Achromatic Objective Brass Chrome Plated 20X Microscope Objective Lens Interface 20.2Mm
Achromatic Objective Brass Chrome Plated 20X Microscope Objective Lens Interface 20.2Mm
Brand: RASTKY
A$27.35
- Superior Clarity: ---- This lens is coated with high light transmittance and features high refractive index, ensuring a brighter image ideal for 20X Biological Microscope Objective observation.

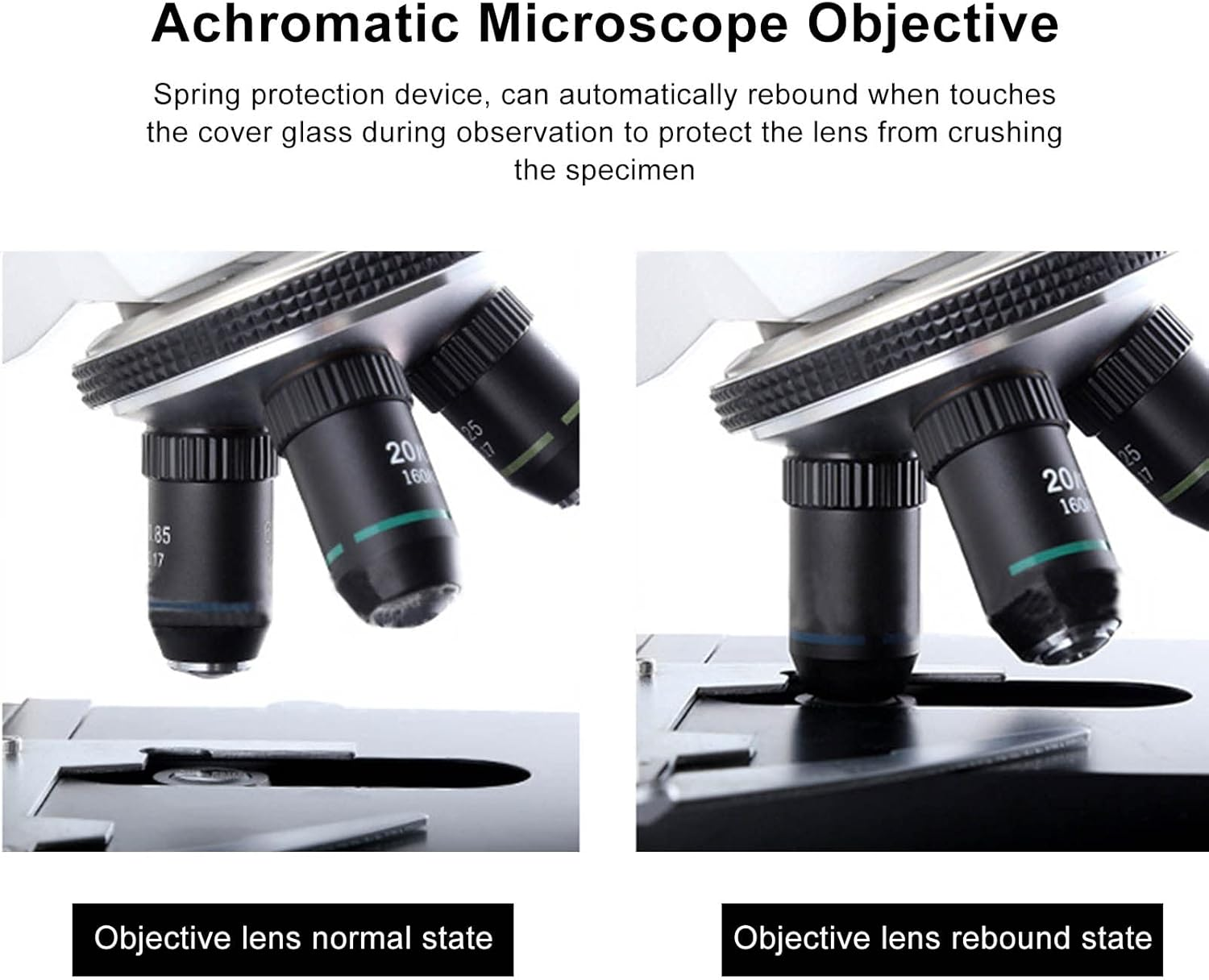

- Automatic Protection: ---- Spring protection device allows for automatic rebound when it touches the cover glass, protecting both the lens and the specimen during viewing.
- Durable Brass Material: ---- Constructed from brass with fine workmanship, this chrome plated lens is corrosion- and ensures longevity, designed for professional microscopes.
- Wide Compatibility: ---- The screw interface is the international standard RMS size (20.2mm), ensuring seamless compatibility with most biological microscopes on the market.
- Essential Specifications: ---- Featuring a magnification of 20X, a common rail distance of 195mm, and a parfocal distance of 45mm, this lens is for precise scientific observation.
Product Description
RASTKY Achromatic Objective Brass Chrome Plated 20X Microscope Objective Lens Interface 20.2mm
Wide Compatibility: ---- The screw interface is the international standard RMS size (20.2mm), ensuring seamless compatibility with most biological microscopes on the market.
Essential Specifications: ---- Featuring a magnification of 20X, a common rail distance of 195mm, and a parfocal distance of 45mm, this lens is for precise scientific observation.
Superior Clarity: ---- This lens is coated with high light transmittance and features high refractive index, ensuring a brighter image ideal for 20X Biological Microscope Objective observation.
Specification
Item Type: Achromatic Objective
Model: 20/0.40
Material: Brass
Use: Microscope Accessories
Interface Size: Approx. 20.2mm / 0.80in (International Standard RMS Size)
Magnification: 20X
Numerical Aperture: Approx. 0.40mm / 0.02in
Cover Glass Applicable Thickness: Approx. 0.17mm / 0.006in
Microscope Applicable Mechanical Tube Length: Approx. 160mm / 6.30in
Working Distance: Approx. 0.55mm / 0.02in
Common Rail Distance: Approx. 195mm / 7.68in
Parfocal Distance: Approx. 45mm / 1.77in
Spring: Yes (Automatic Rebound)
Voltage Parameter
How to Use
Can be used after connecting with the microscope.
In order to facilitate observation, recommended to start observation at low magnification, more difficult to adjust at high magnification than at low magnification. According to the characteristics of the observed specimen, not all slices are suitable for observation under high magnification.
Package List

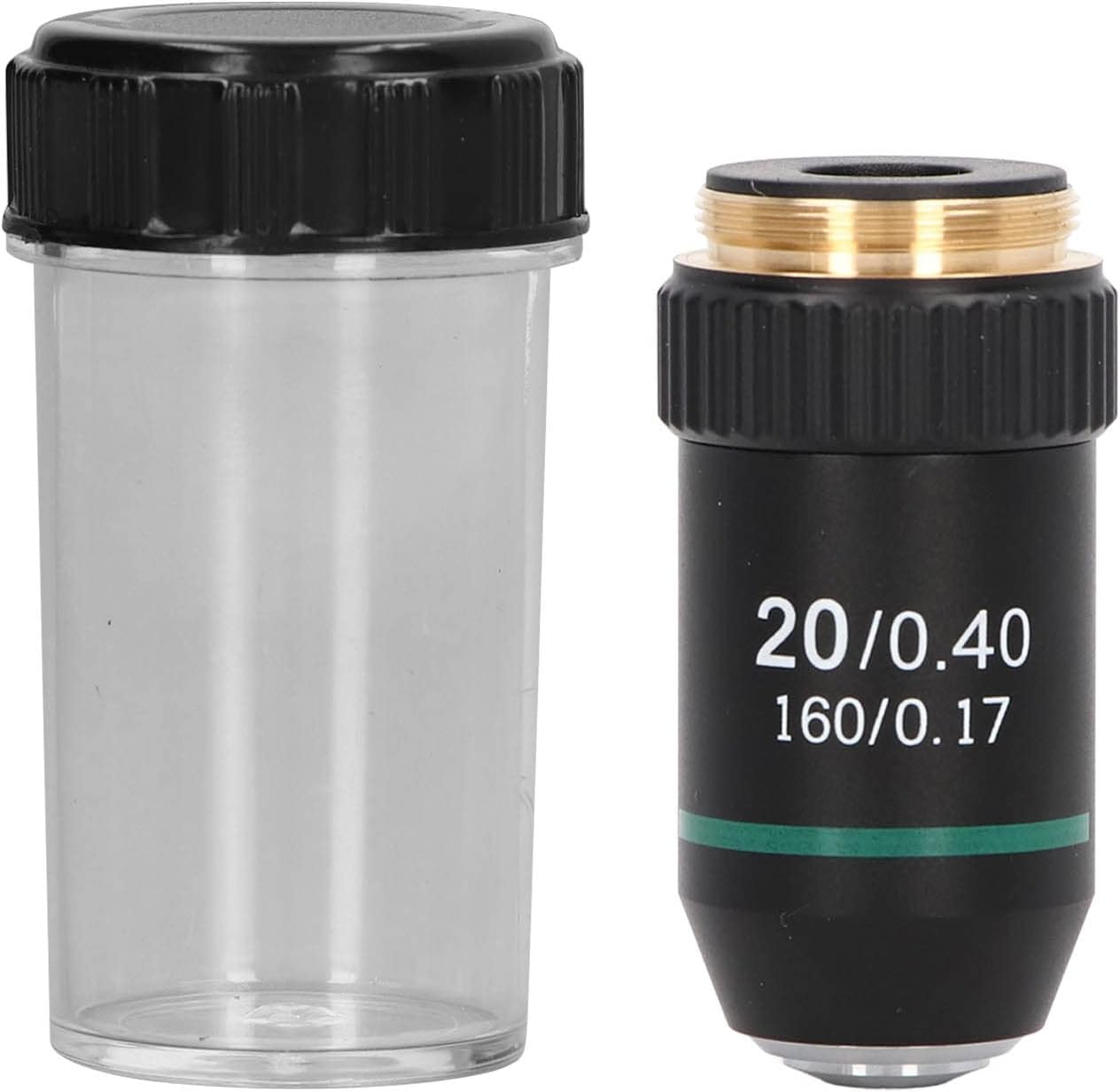

1 x Achromatic Microscope Objective
1 x Storage Box
Note
- Item Weight: 83 g
- Item Model Number: RASTKYsmq3aw58e6
- Country of origin: China
- Package Dimensions: 6 x 4 x 4 cm; 83 Grams
- Manufacturer: RASTKY
