1. This product has 600 p/r (single phase 600 pulses/R, two phase 4 frequency doubling to 2400 pulses).
2. The power source is DC5-24V. Stable work performance and good working condition.
3. 2 phase AB output square wave orthogonal pulse circuit, the output for NPN open collector output type.
4. It can be used to measure the rotation speed, angle and acceleration of the object, as well as length measurement.
5. Suitable for intelligent control of various displacement measurements, fixed length automatic leather guillotines, steel cutting length control, height and weight scale, and student walking robots.
Technical dataification:
Characteristic:
1. This product has 600 p/r (single phase 600 pulses/R, two phase 4 frequency doubling to 2400 pulses).
2. The power source is DC5-24V. Stable work performance and good working condition.
3.AB 2 phase output rectangular orthogonal pulse circuit, the output for NPN open collector output type.
4. It can be used to measure the rotation rate, angle and acceleration of the object, as well as length measurement.
5. Suitable for intelligent control of various displacement measurements, fixed length automatic leather guillotines, steel cutting length and height control. and Libra, students race with robots. 600 pulses/R, two-phase frequency (4 doubling to 2400 pulses)
Output: AB two-phase output square wave orthogonal pulse circuit, the output for NPN open collector output type
Maximum mechanical speed: 5000 rpm
Response frequency: 0-20KHz
Cable length: 1.5 meters
Use:
1. It can be used to measure the rotation rate, angle and acceleration of the object, as well as length measurement
2. Suitable for intelligent control of various displacement measurements, fixed length automatic leather guillotines, steel cutting length control, civilian measured human height scale and student walking robots
Noticed:
The AB-2 phase output should not be connected to the VCC directly, otherwise the output triode will burn out because of different batches and the connection may not be there
. (Green = Phase A, White = Phase B, Red = Vcc + Power, Black = V0)
Delivery content:

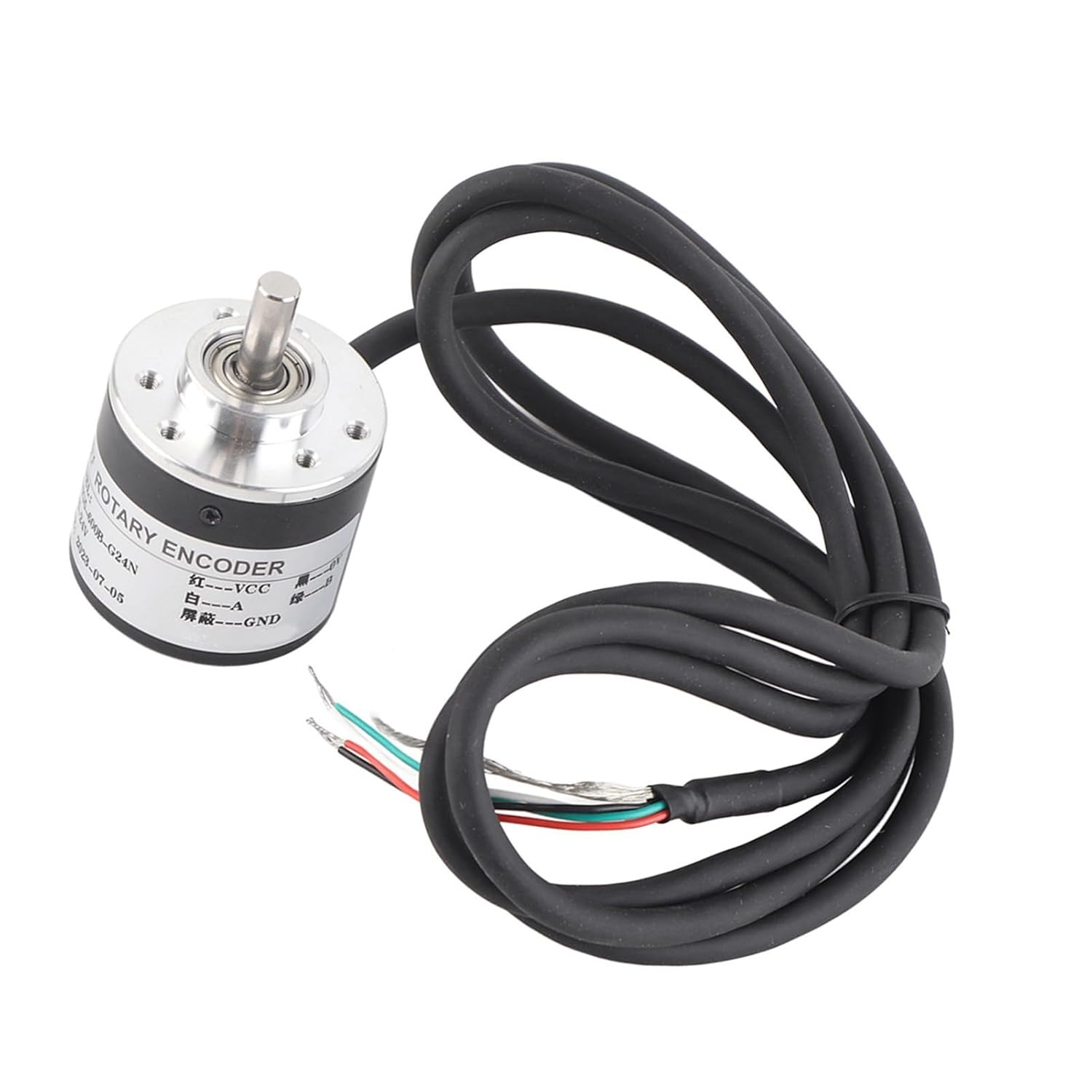

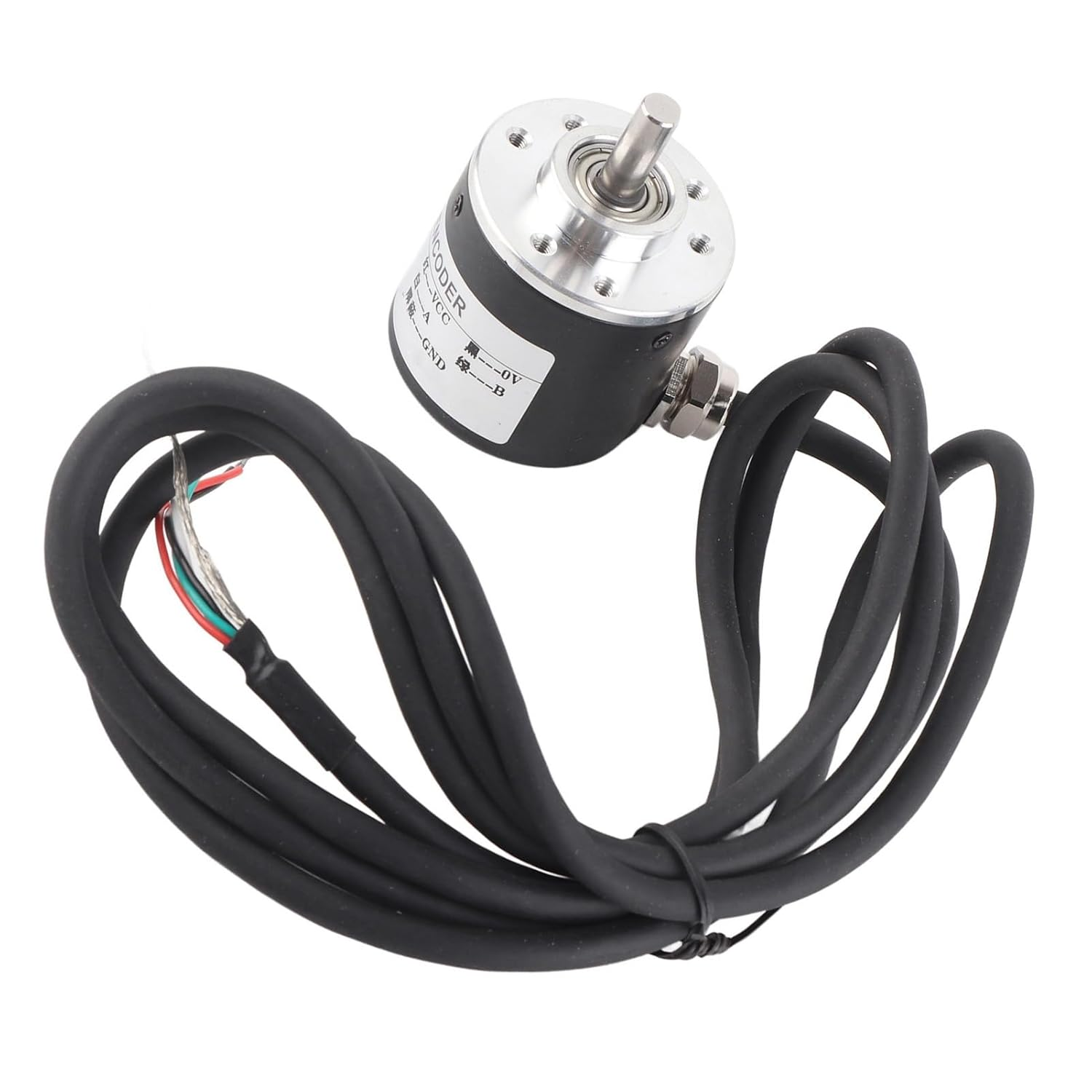

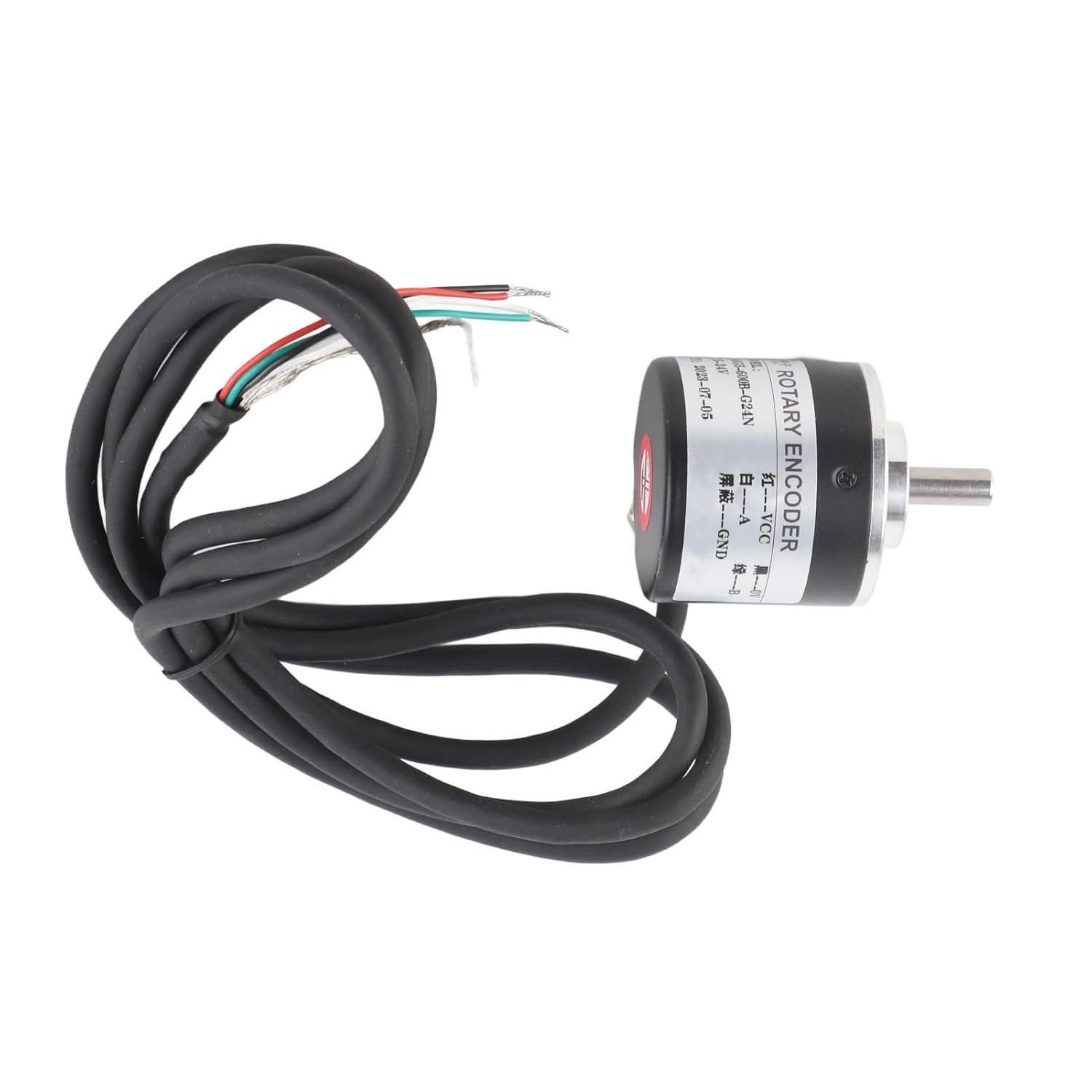

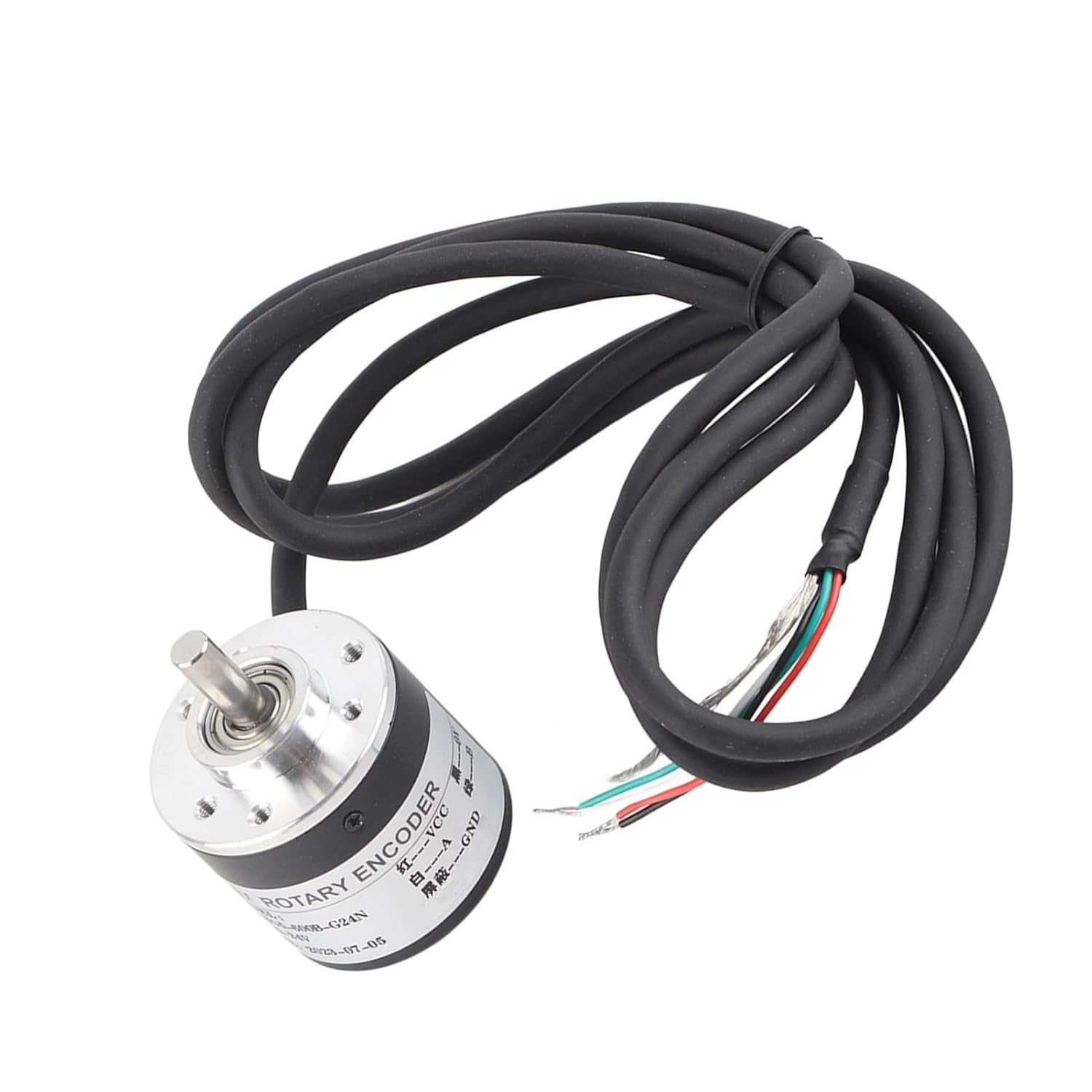

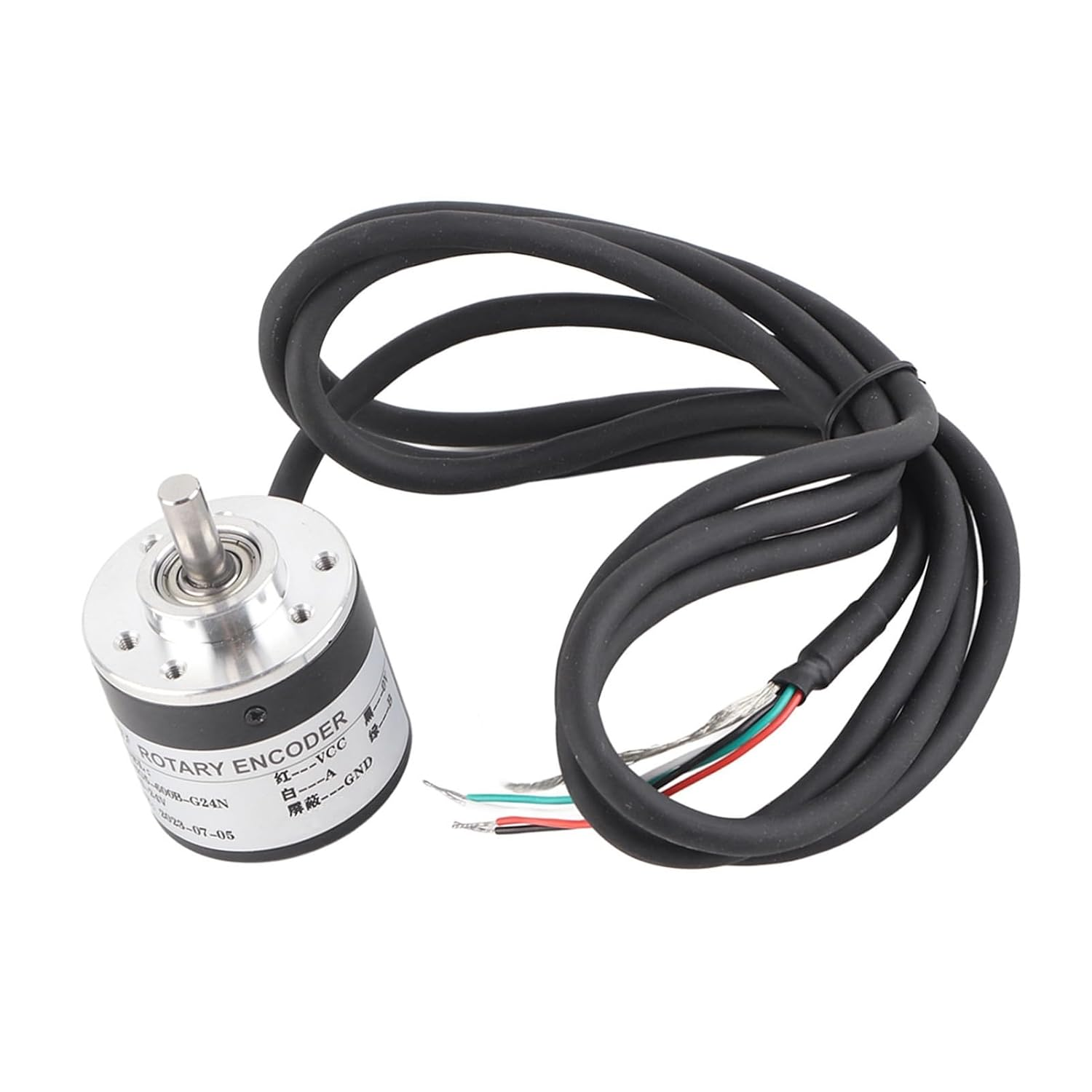

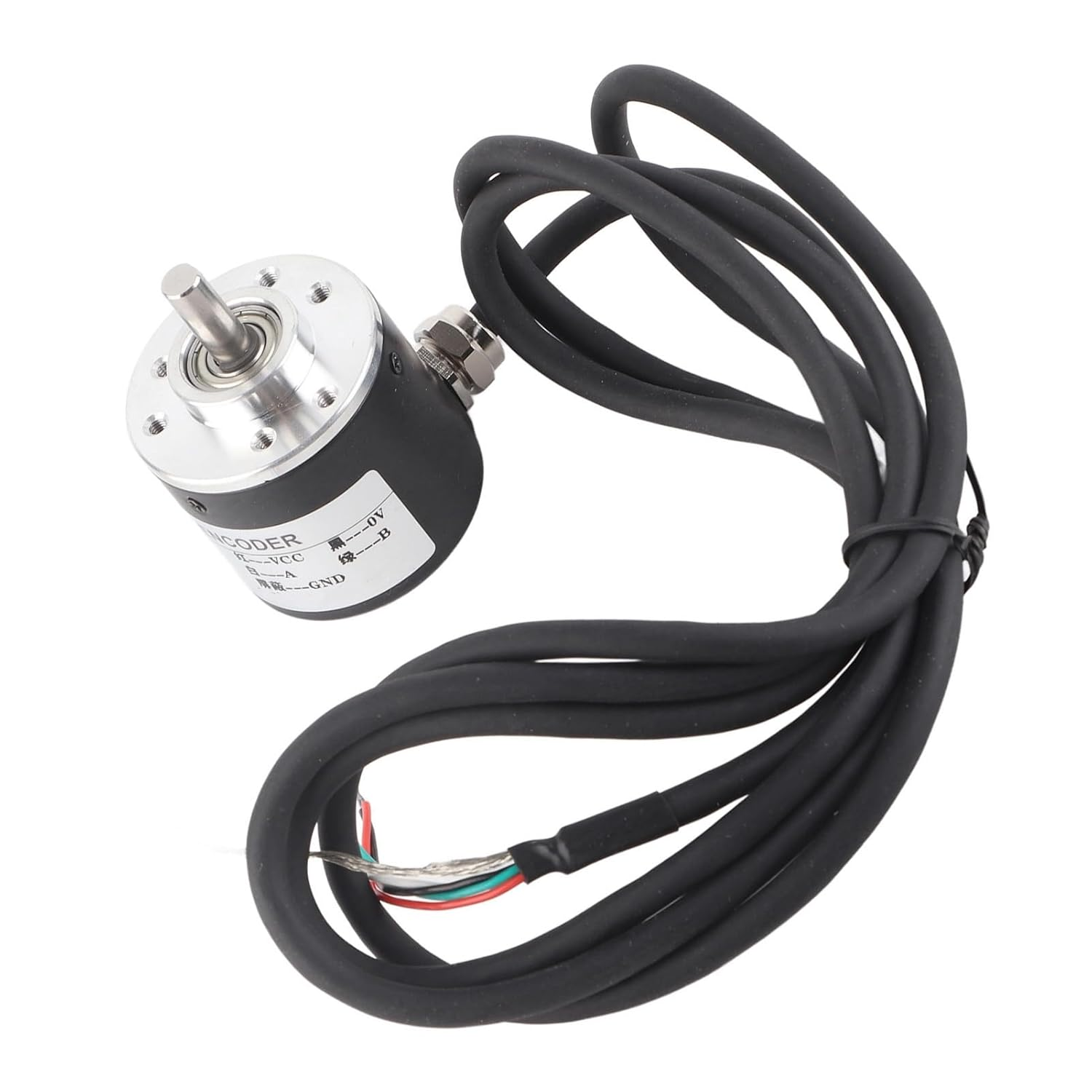

1 x 600P/R encoder, incremental encoder
