Specifications:
Material: ABS shell
Main Color: Black
Power(Maximum): 100W
Work Pressure: 0.7Mpa/101.5psi (145psi=1Mpa)
Flow(Maximum): 8L/min
Protection Valve Type: intelligent valve (with pressure switch)
Head: 70 meters
Range: 9 meters
Suction Distance: 1.5 meters
Size(L x W x G): 18.3 x 4.7 x 4.8cm/7.2'' x 1.85'' x 1.89''
Interface Outer Diameter: Approx. 18mm / 0.71"
Interface Inner Diameter: Approx. 7.5mm / 0.30"
Suitable Inlet/Outlet Hose Size: 12mm outer diameter, 8mm inner diameter
Package Weight: approx. 1.18kg
Applications: Suitable for car washing machine, the solar energy water, remote control water equipment, some place need to control the switch frequently, somewhere energy saving, etc
Package Included:

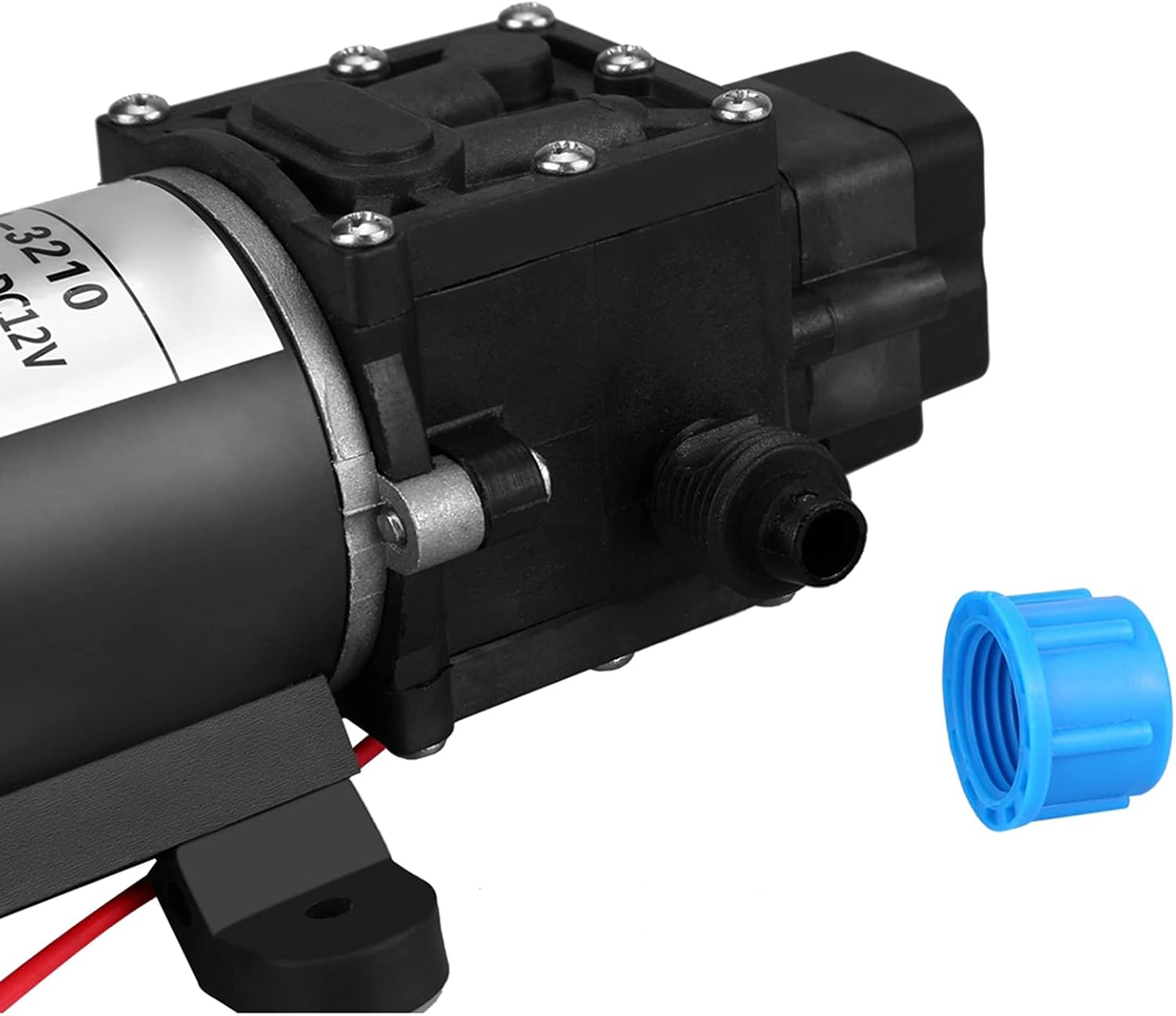

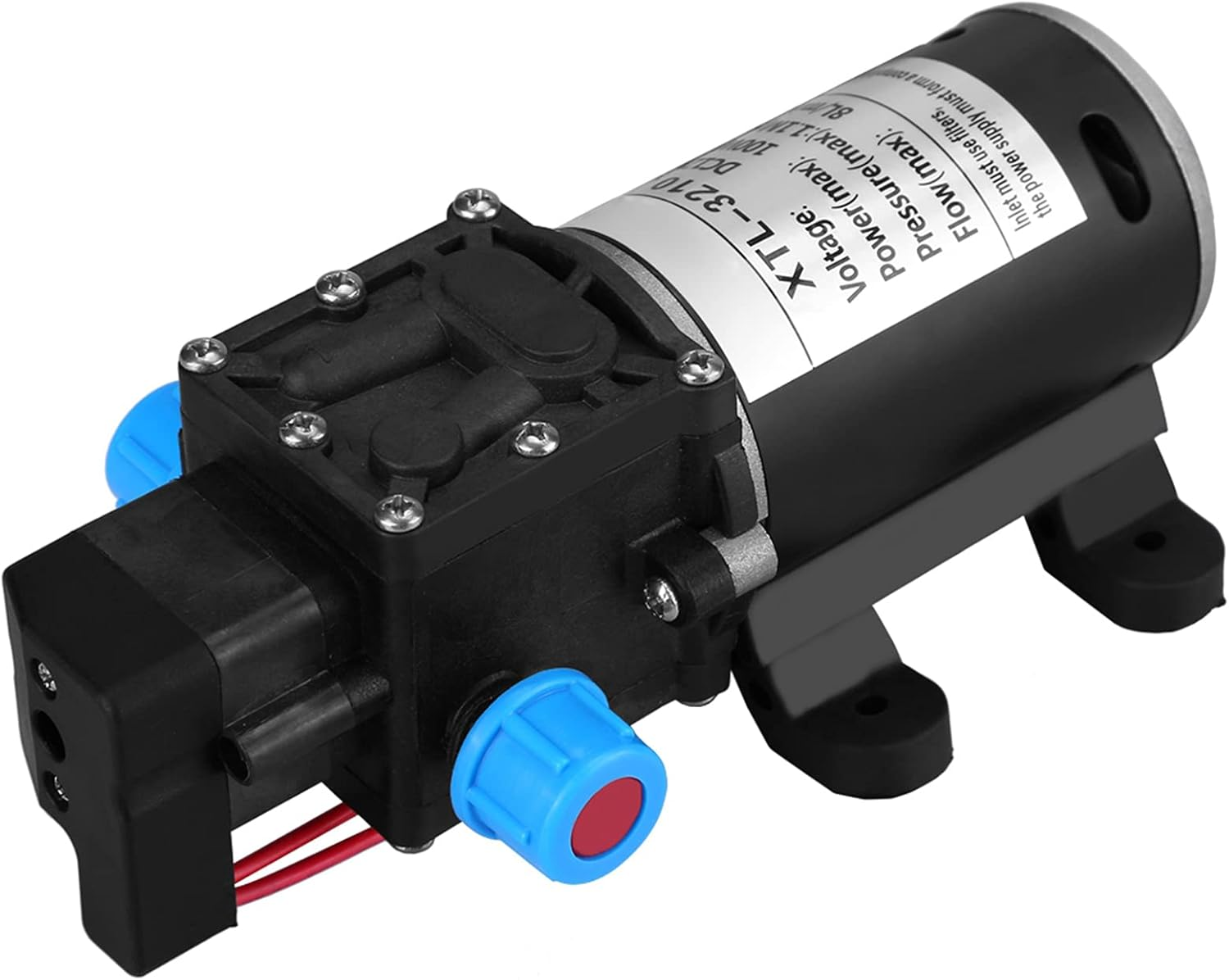

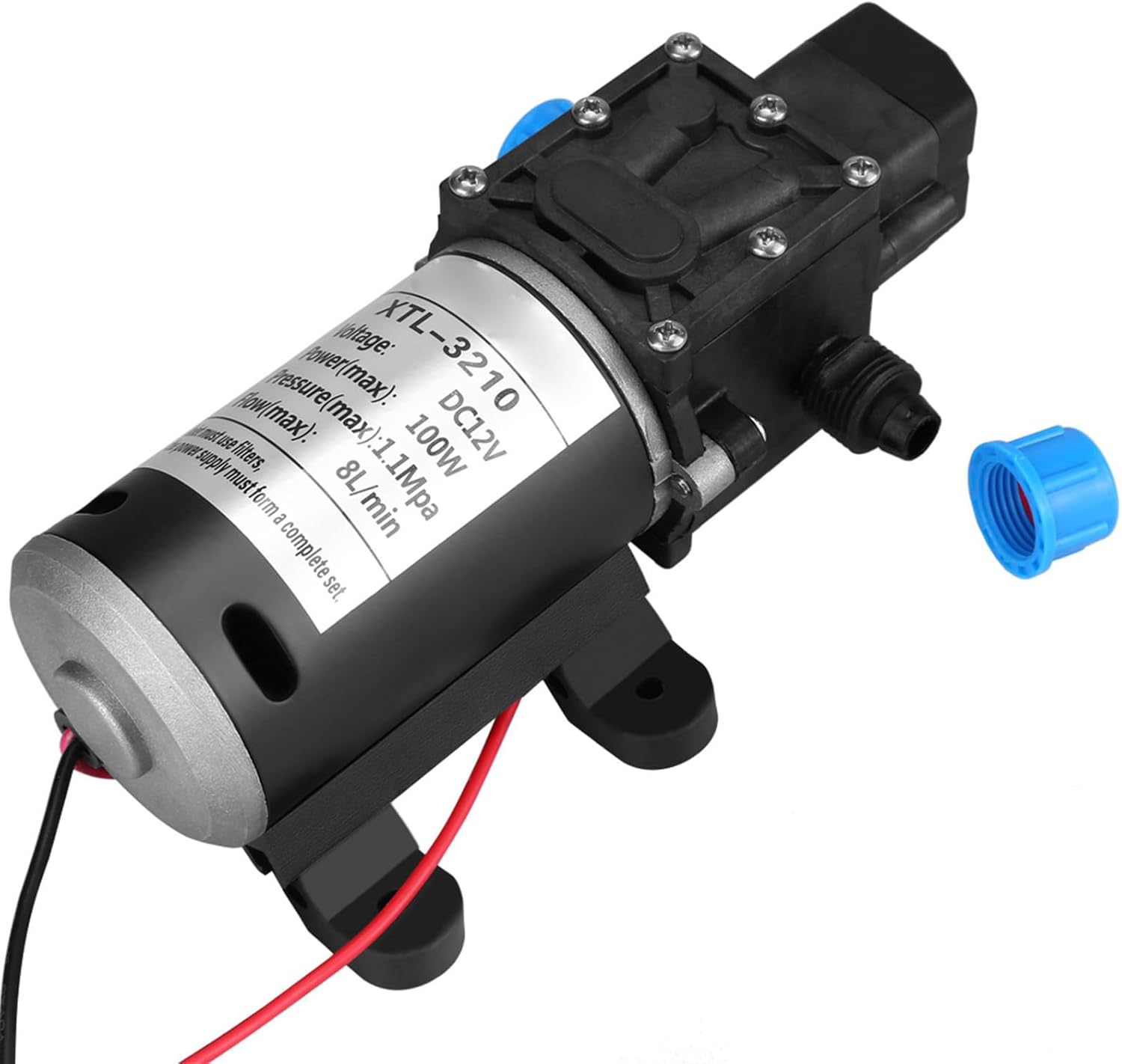

1 x Self Priming Water Pump
Notes:
1. Easy to install, but professional installation is highly recommended.
2. Inlet water end must use filters, the power supply must form a complete set.
3.The product pressure switch is built-in and cannot be adjusted.
4.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
5. The pump can only pump clean liquid without impurities, impurities filter will be blocked, only suitable for pumping weak.
6. The size of the water flow and the size of the water pipe has a certain relationship, to ensure that there is no leakage at the interface between the water pipe and the pump;
7. If it is used with the spray joint, the spray hole should not be too small, which will damage the pressure switch in the pump, causing the pump to burn, the spray hole should not be too large, and the working pressure is not enough, which will lead to no spraying effect (it is recommended to test and install the appropriate nozzle with the pressure gauge)
