Spec:
Description:
This delicate digital display temperature controller can set start and stop temperature. The display and control temperature can be set to 0.1℃. It is convenient to install and wiring is simple. With high precision and long service life, it can completely replace the mechanical temperature controller.
Features:
ABS flame​ retardant housing is avirulent and environmental protective, long service life and will not discolor or be out of shape.
Probe used stainless steel material shell​ and resin sealing treatment, waterproof and does not .
Wide temperature control range from -50℃ to 110℃ and high temperature control precision of 0.1℃.
Can be installed directly or embedded in industrial control equipment panel, convenient and quick.

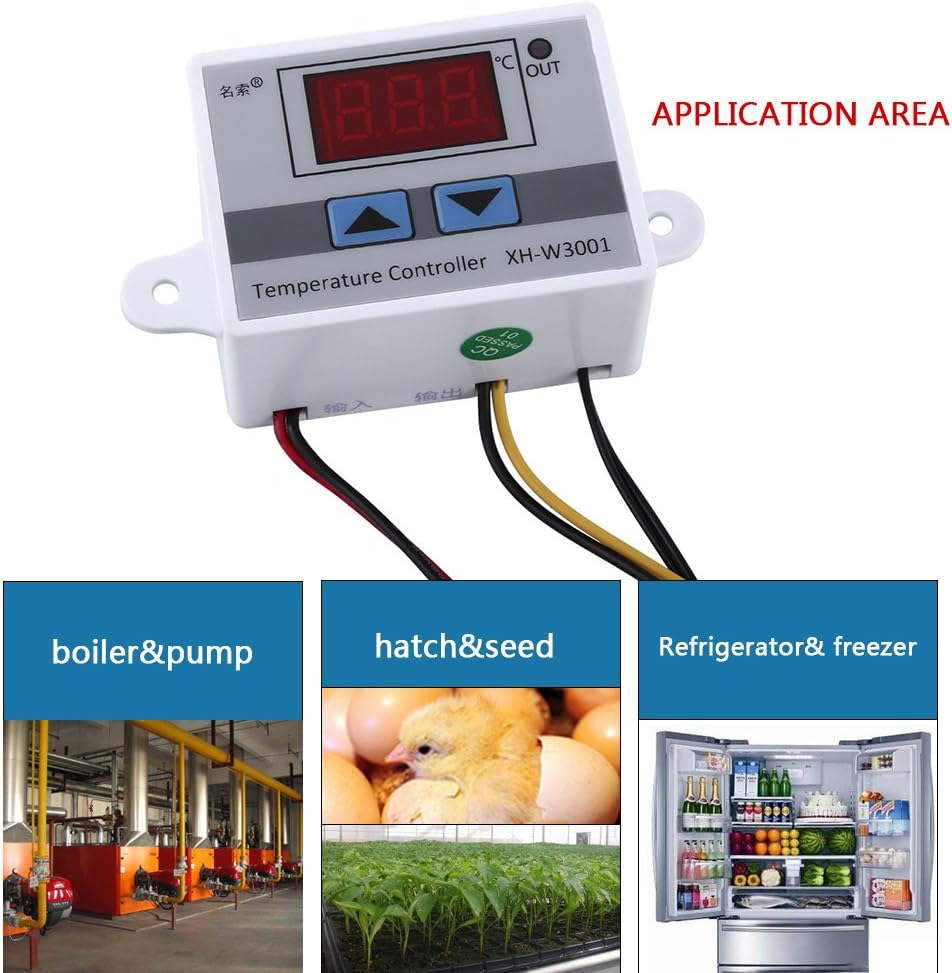

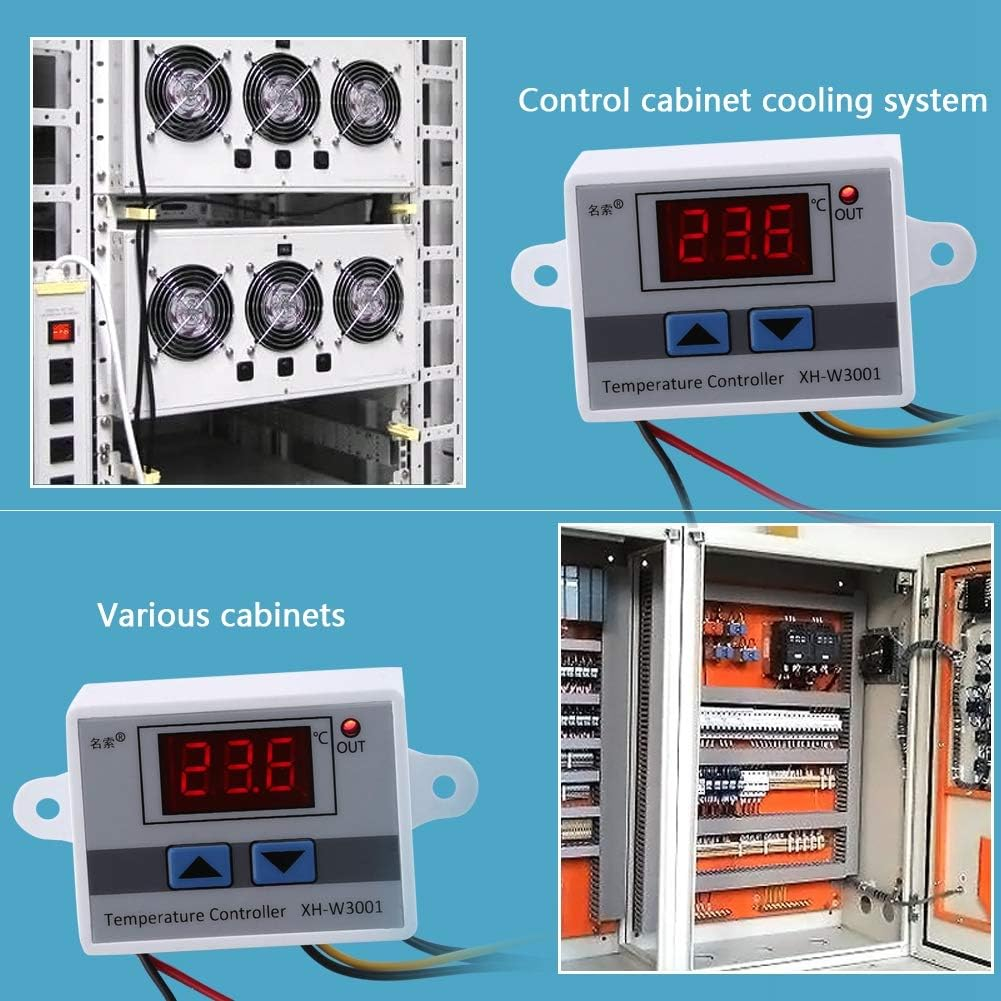

Widely used in the hatching area, equipment case​, air conditioning system, temperature control protection and other fields.

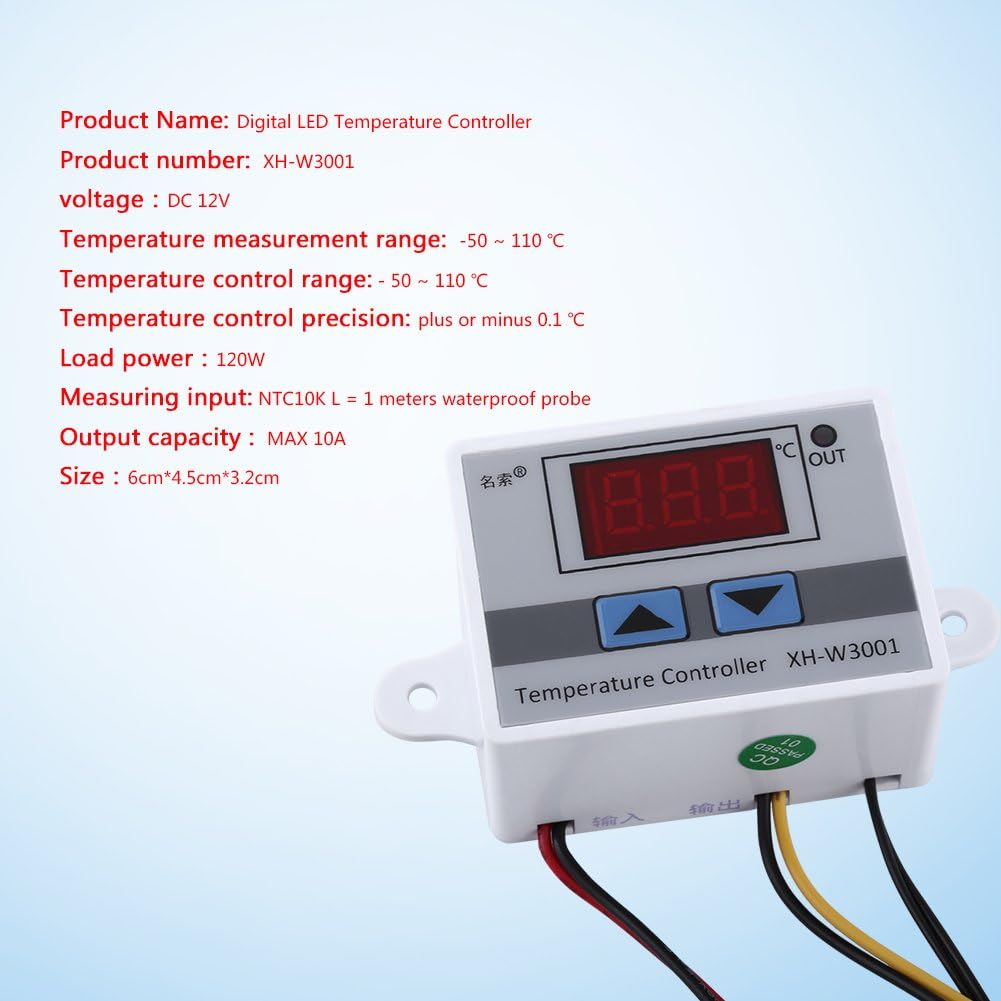

Specifications:
Voltage: DC12V
Temperature Measurement Range: -50~110℃
Temperature Control Range: -50~110℃
Temperature Control Precision: 0.1℃
Load Power: 120W

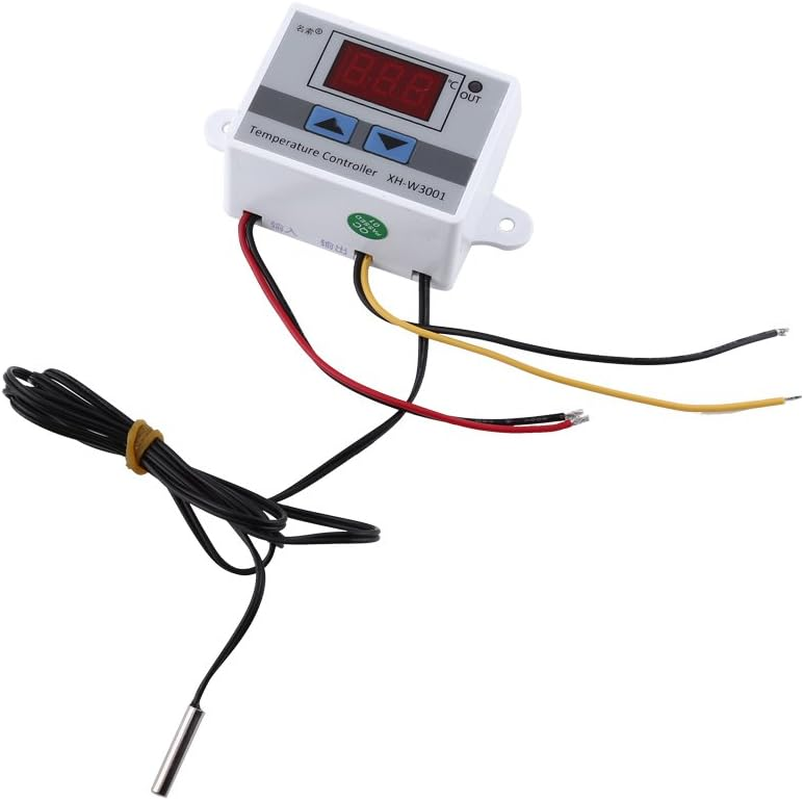

Measuring Input: NTC10K L=1 meters waterproof probe
Output: Max 10A
Installation Hole Distance: 73mm / 2.87"
Hole Diameter: 4mm / 0.15"
Size: 60 x 45 x 32mm / 2.36 x 1.77 x 1.26"
Wire Length: 11cm / 4.33"
Probe Cable Length: 97.5cm / 38.3"
Weight: 53g(approx.)
Instruction:
press up button show the starting temperature
long press UP button the temperature display Flashing , press the UP or Down button Set the start temperature value.
Press Down button show the Stop temperature
long press Down button the temperature display Flashing , press the UP or Down button Set the stop temperature value.
Package Includes:
1 x Thermostat
Note:
1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly
