Specification:

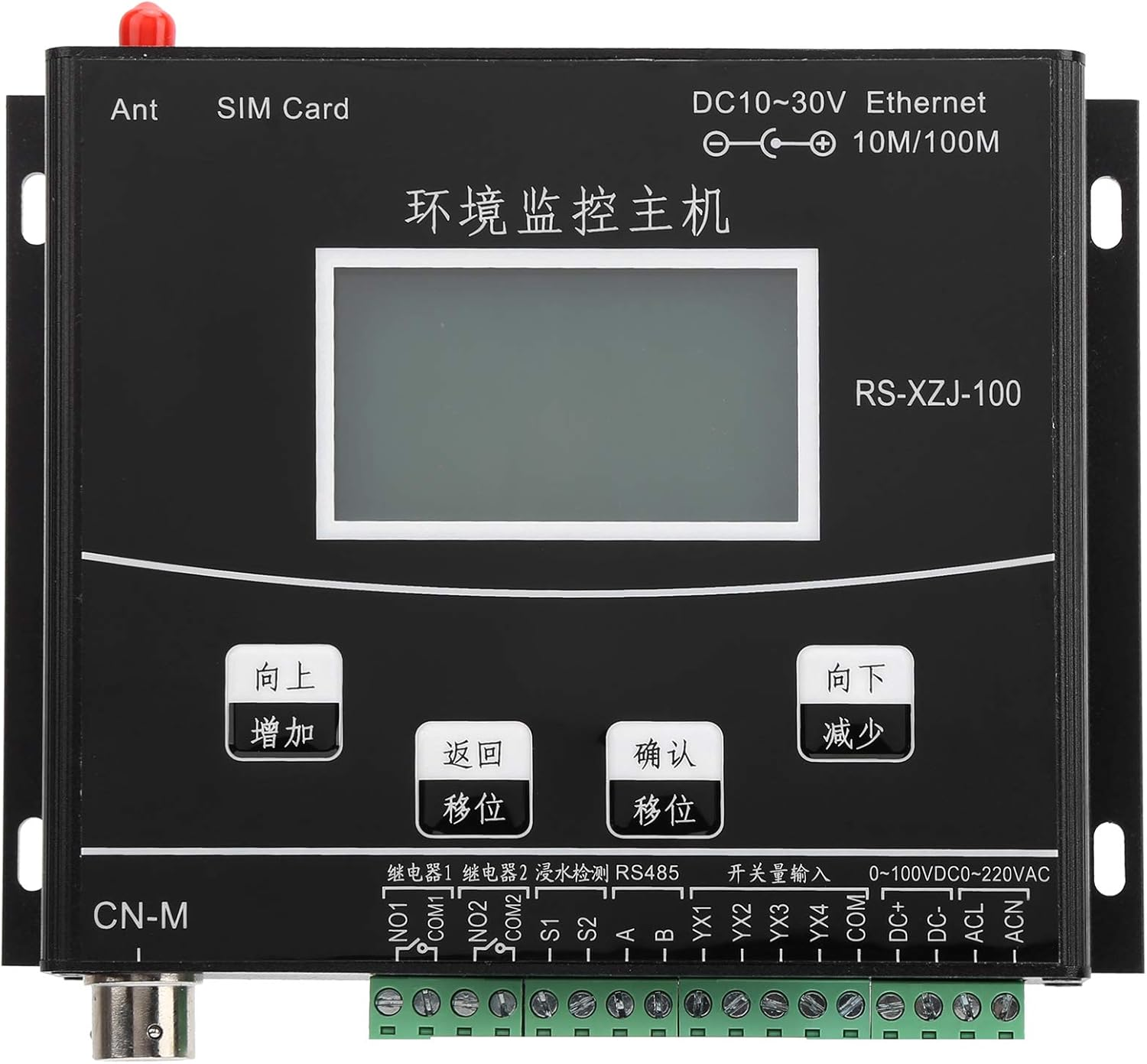

Element type: environmental monitoring host

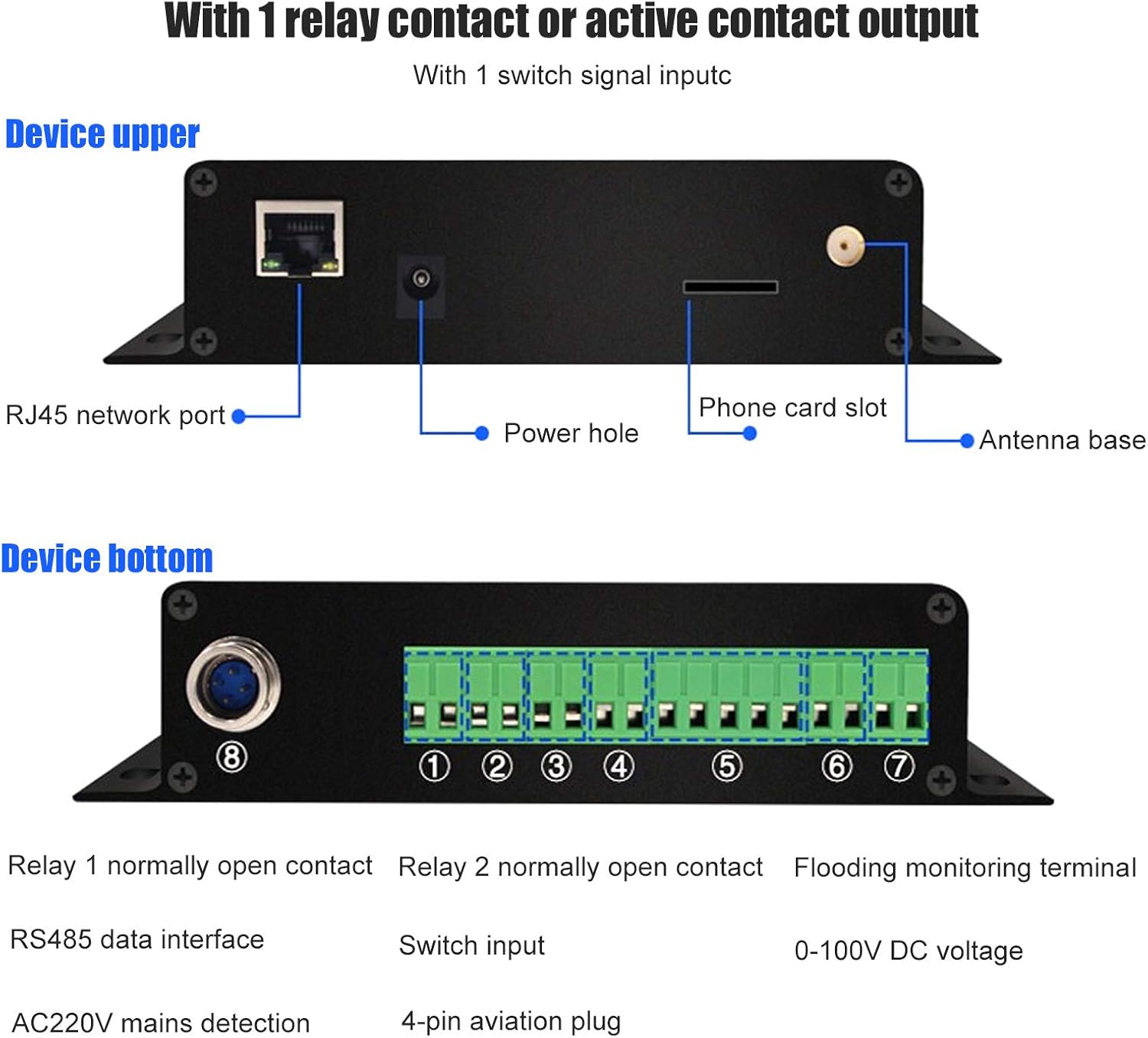

Power supply area: DC 10-30 V DC petition supply
Data upload interface: RJ45 network connection
Data acquisition interface: 32 RS485 channels
1-way flood monitoring: the detection of water leaks is possible
4 switching inputs: Can recognize the one-off state of dry contacts
2 relay outputs: relay drying exposure output
1 DC voltage monitoring: Collect 0-100 V DC
1 Monitoring of the AC voltage: 0-220 V AC voltage that can be used for a network failure alarm
Use:
1. Before starting the device, the following tasks must be carried out:
a. Use the GSM antenna
b. Insert the phone card and note the instructions when inserting the phone card.
c. If you have to configure first, connect the network cable and connect the other end to a computer or another network device.
2. Instructions for operating the device: After switching on the device, the main interface is automatically called up, in which the device name, the model and the current time are displayed. Other parameters can be set using buttons.
3. Instructions of the device button: menu button / OK button for confirmation: Enter level 2 and confirm: The database moves forward.

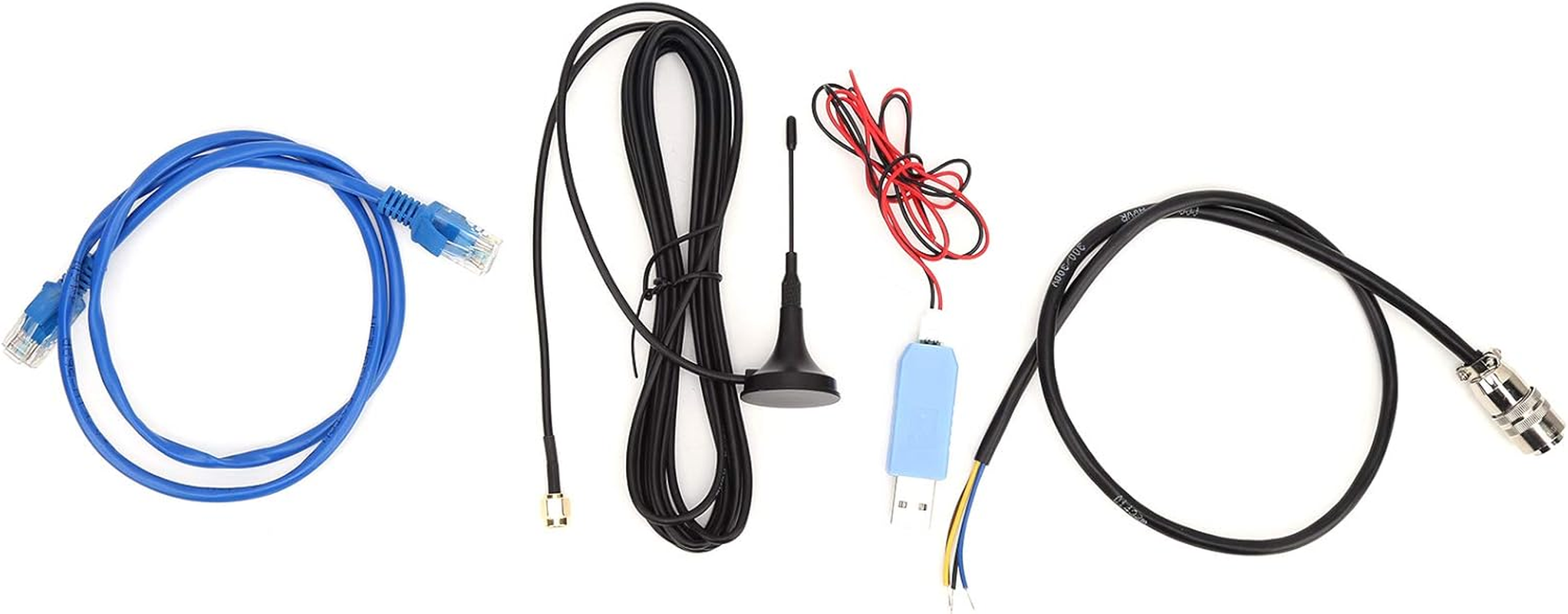

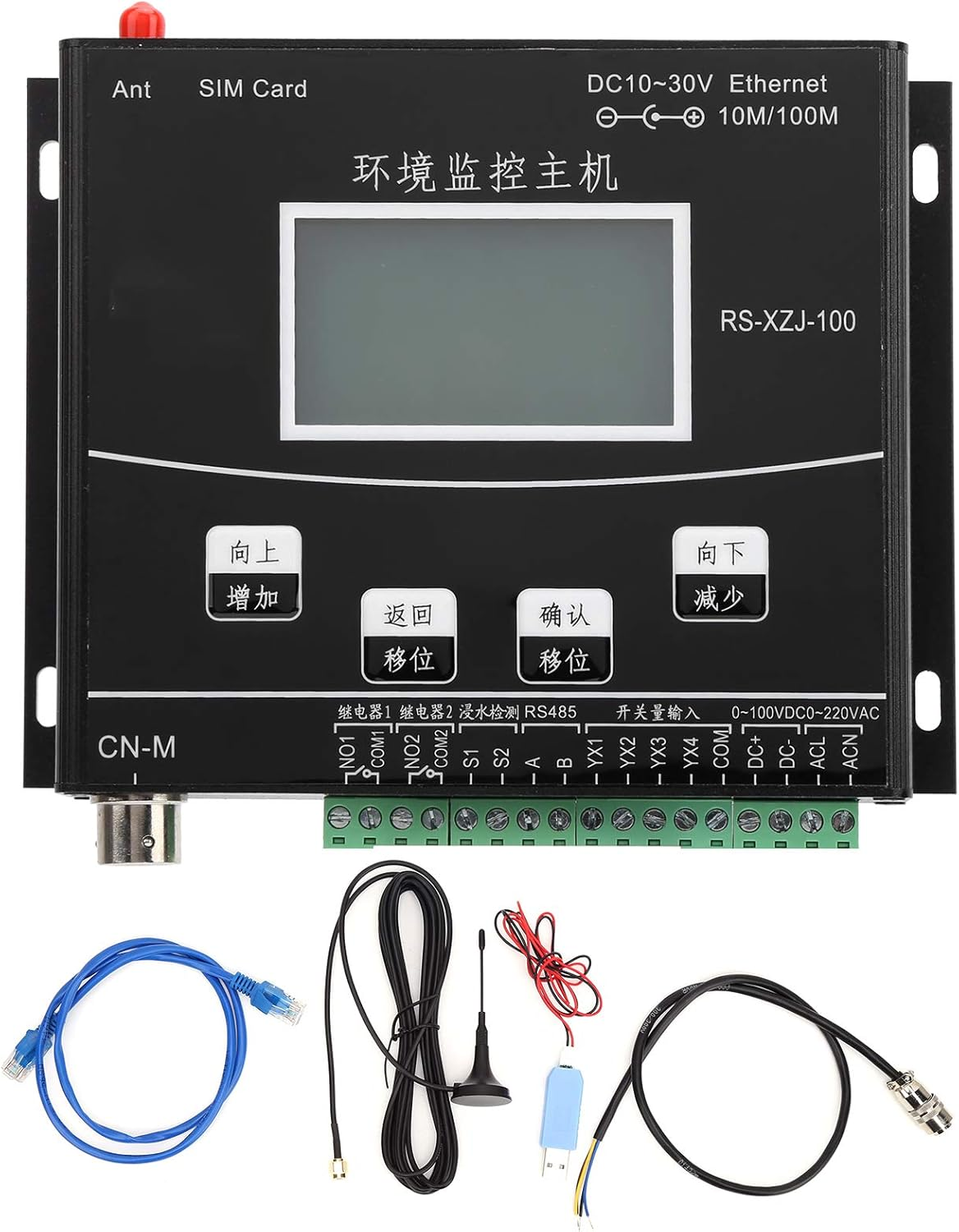

Package list:
1 x host
1 x network cable
1 x aviation plug line
1 x USB to 485 line
1 x communication broadcaster
1 x user manual
