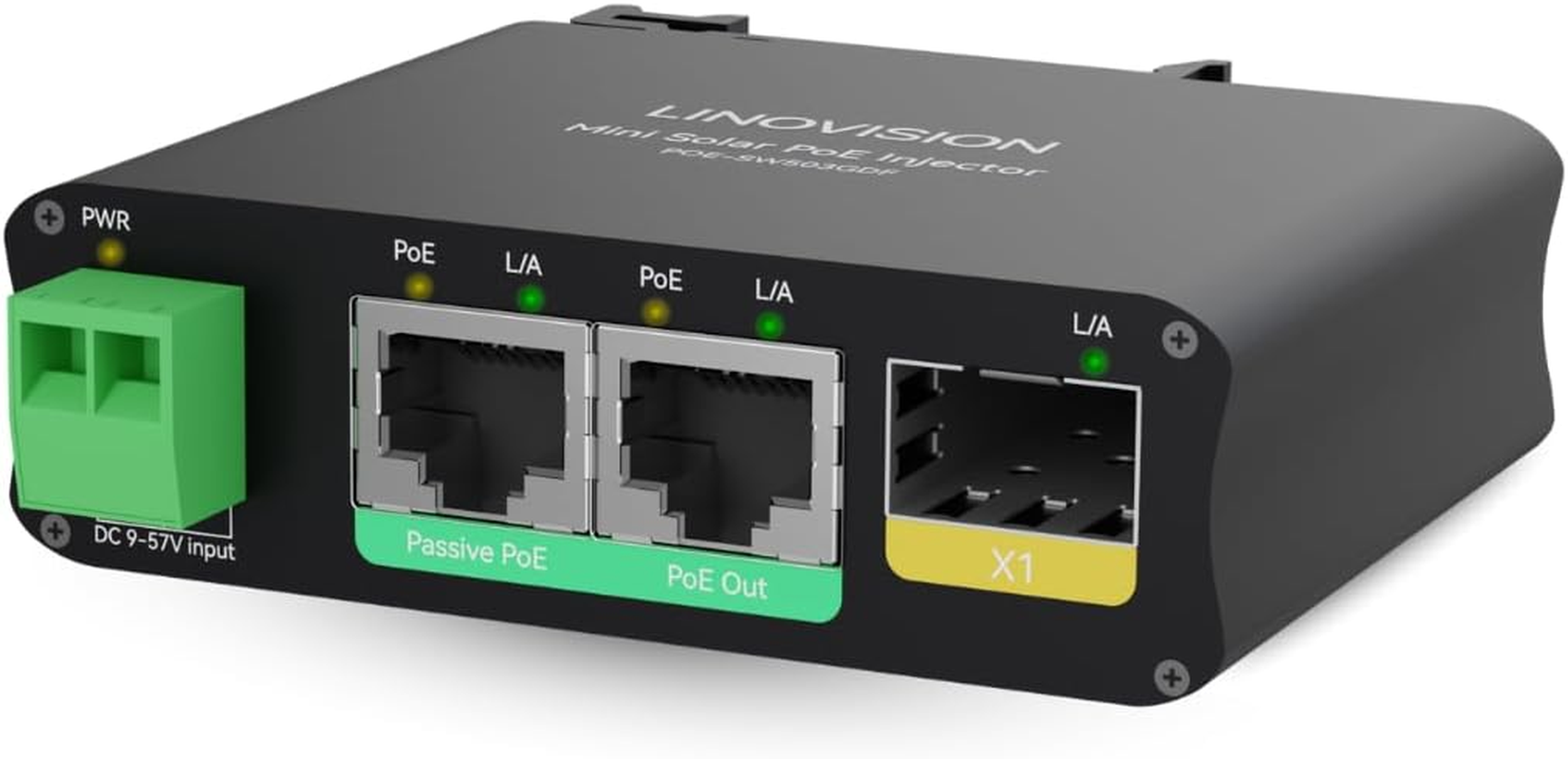

LINOVISION 2 Ports Mini Solar Poe Switch with Passive Poe Output and SFP Uplinks
LINOVISION 2 Ports Mini Solar Poe Switch with Passive Poe Output and SFP Uplinks
Brand: LINOVISION
A$136.50
- 2 Ports Full Gigabit PoE+ Switch - with 1x IEEE802.3af/at PoE Port, 1xPassive PoE port and 1x Gigabit SFP slot (can also use SFP-GE-RJ45 to convert the SFP port to RJ45 port).

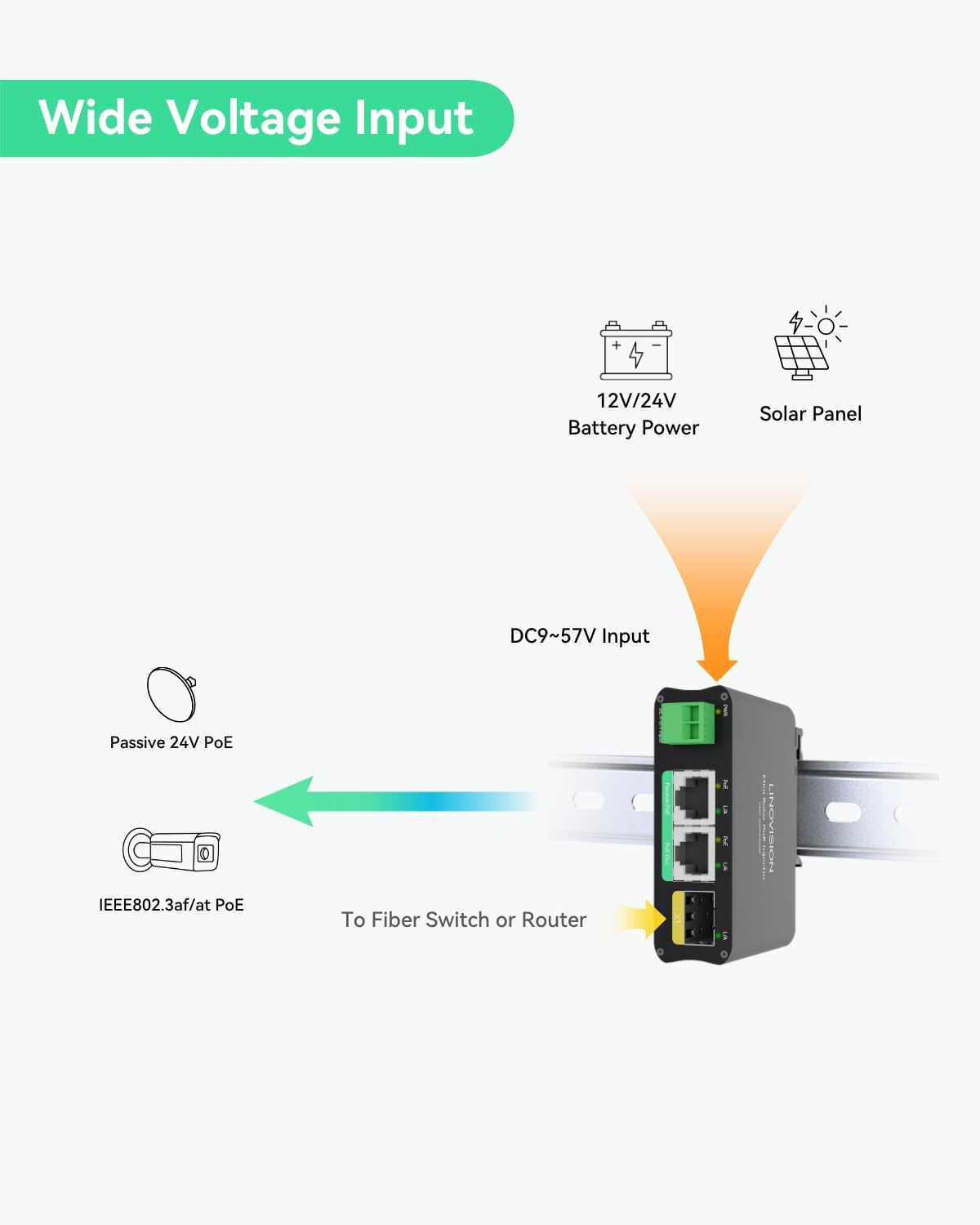

- DC 9～57V Input - Featuring built-in voltage booster, works directly with DC 12V or DC 24V solar battery systems, and outputs standard 48V PoE for regular PoE cameras, no extra DC-DC converter is required.

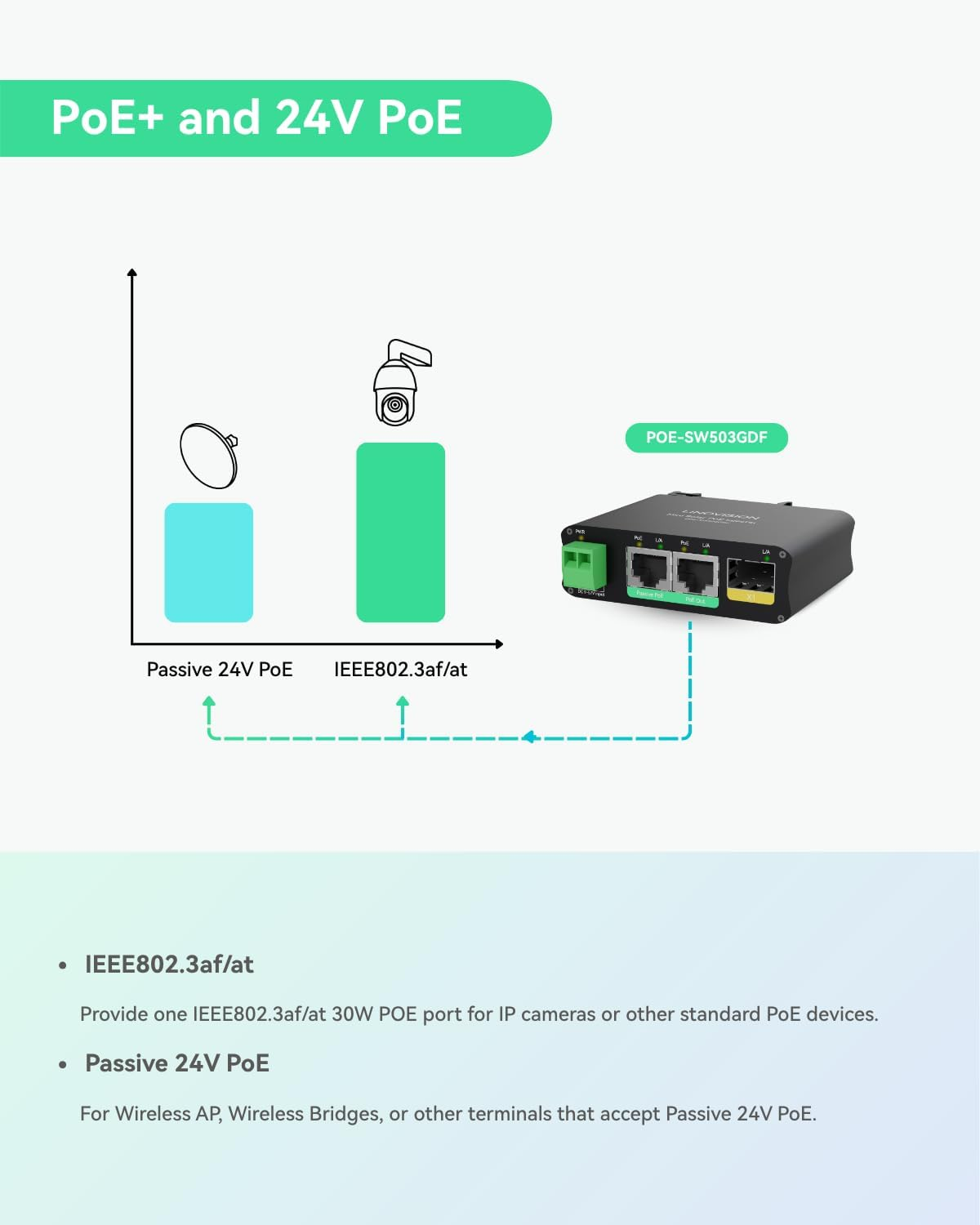

- PASSIVE 24V PoE Output - To connect Wireless AP, Wireless Bridges, or other terminals that accept Passive 24V PoE. No extra PoE injector needed. PoE Pins 4/5(+), 7/8(-)
- Compact Design - Full metal design, Din Rail Mount, compact dimension 3.27 x 2.48 x 1.02"(83x63x25.8mm), perfect for tight spaces like electrical cabinets, solar control boxes, or outdoor enclosures.
- Application - Ideal for Solar power camera system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus system (DC12V/24V input), VoIP/Access control/Robotic Systems (DC24V/DC48V input), Farm Security or remote surveillance applications.
Product Description

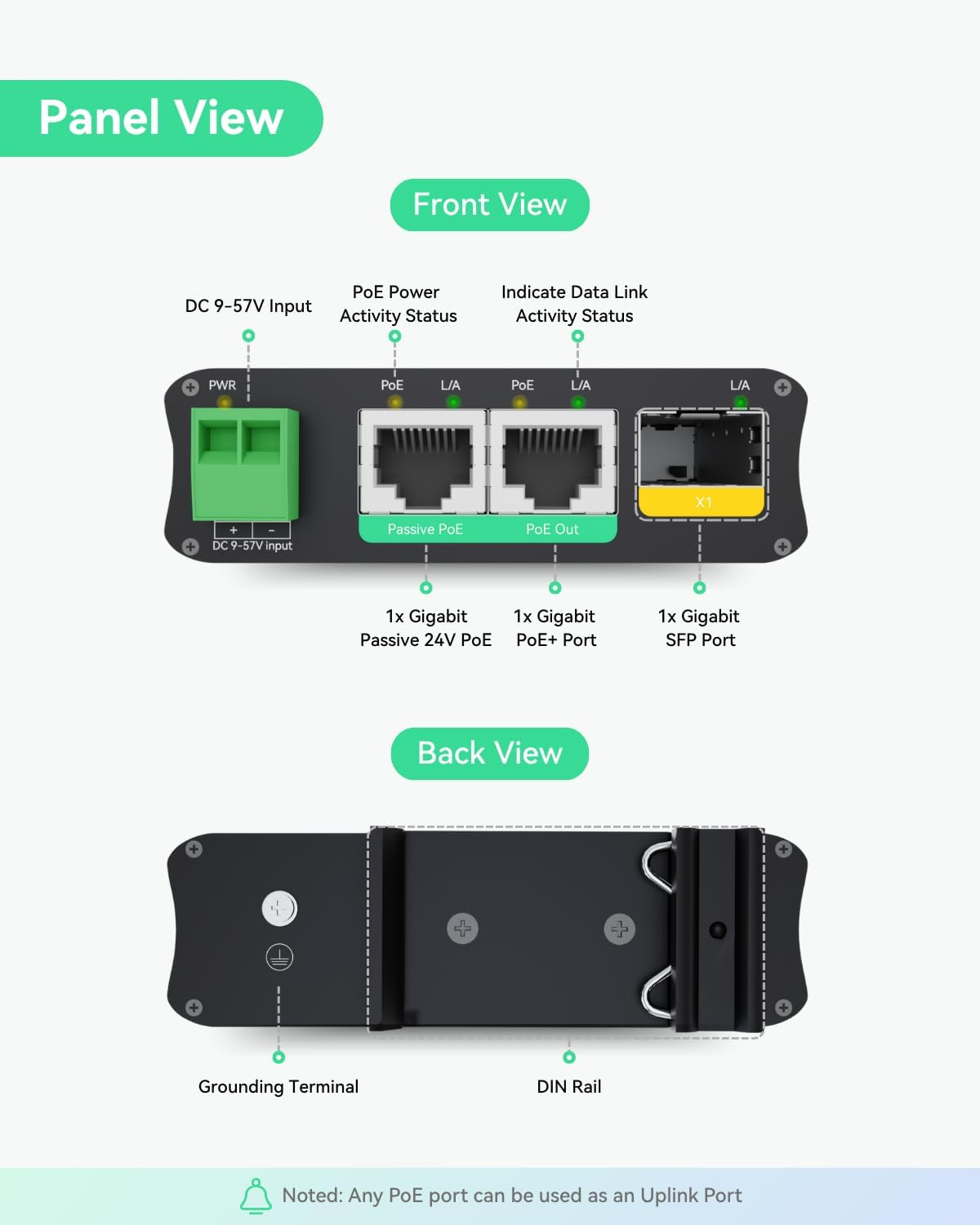

Interface
LINOVISION Wide Voltage Input POE Switch for your choice！
| Customer Reviews | — | 4.4 out of 5 stars 116 | 5.0 out of 5 stars 1 | 3.8 out of 5 stars 7 | 4.7 out of 5 stars 4 | 3.4 out of 5 stars 4 |
| Price | $129.99$129.99 | $149.99$149.99 | $149.99$149.99 | $189.99$189.99 | $399.00$399.00 | $299.99$299.99 |
| Input | DC9~57V | Dual DC Input: 9V~54V DC | DC9-54V | DC 9V~57V | Dual DC Input: 8V~57V | Solar&Batt 12/24V, Ext DC12V |
| Output | IEEE802.3af/at, Passive PoE | 44~57V PoE Standard | 44~57V PoE Standard | IEEE802.3af/at, Passive PoE | 44~57V PoE Standard | IEEE802.3af/at/bt, Passive PoE |
| Uplink Ports | 1 Gigabit SFP | 1 Gigabit Uplink | 1 Gigabit SFP | Any PoE port can be Uplink | 2 Gigabit SFP+ 2 Gigabit RJ45 | 1 * 1.25G SFP |
| POE Ports | 1 * Gigabit PoE Port | 4 Gigabit PoE Ports | 4 Gigabit PoE Ports | 2 * Gigabit PoE Ports | 8 Gigabit PoE Ports | 5 * Gigabit PoE Ports |
| POE++ Ports | / | / | / | 1 * 45W High PoE+ Port | / | 1 * BT 60W Port (Port 1) |
| Passive 24V PoE | 1 * Passive 24V PoE | / | / | 1 * Passive 24V PoE | / | P4-5 Switch to 24V Passive PoE |
| POE budget | 30W | 120W (DC24V/48V), 60W (DC12V) | 120W (DC24V/48V), 60W (DC12V) | 100W@DC24V/48V, 50W@DC12V | 240W@48V, 180W@24V, 70W@12V | 65W |
| L2/L3 Management | / | / | / | / | L2+ | / |
| Remote PoE Port Control | / | / | / | / | PoE Port Remote Cloud Control | / |
| Installation Method | DIN-Rail | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail | DIN-Rail/Wall-Mount | Wall-Mount |
| Waterproof | ✘ | ✘ | ✘ | ✘ | ✘ | ✘ |
- Item Model Number: POE-SW503GDF
- Part Number: POE-SW503GDF
- Data transfer rate: 1 Gigabits Per Second
- Number of items: 1
- Country/Region of origin: China
- Batteries Included: No
- Batteries Required: No
- Product dimensions: 8.3L x 6.3W x 2.6H centimetres
- Item weight: 0.19 Kilograms
- Item Weight: 190 g
- Interface type: SFP, RJ45
- Model: POE-SW503GDF
- Manufacturer: LINOVISION
- Voltage: 48 Volts
