Specification:
Condition: 100% Brand New
Item Type: Wind Sensor
Material: Aluminum Alloy, Polycarbonate
Output Voltage: 0-5V
Wind Speed Measurement Range: 0-30m/S
Accuracy of Wind Speed Measurement: +1m/S
Response Time: Baud Rate: 2400/4800/9600
Power Consumption: Operating Temperature: -30 - 80℃
Working Temperature Environment: 0-100% RH (15-95% RH)
Weight: Approx. 518g / 18.3oz

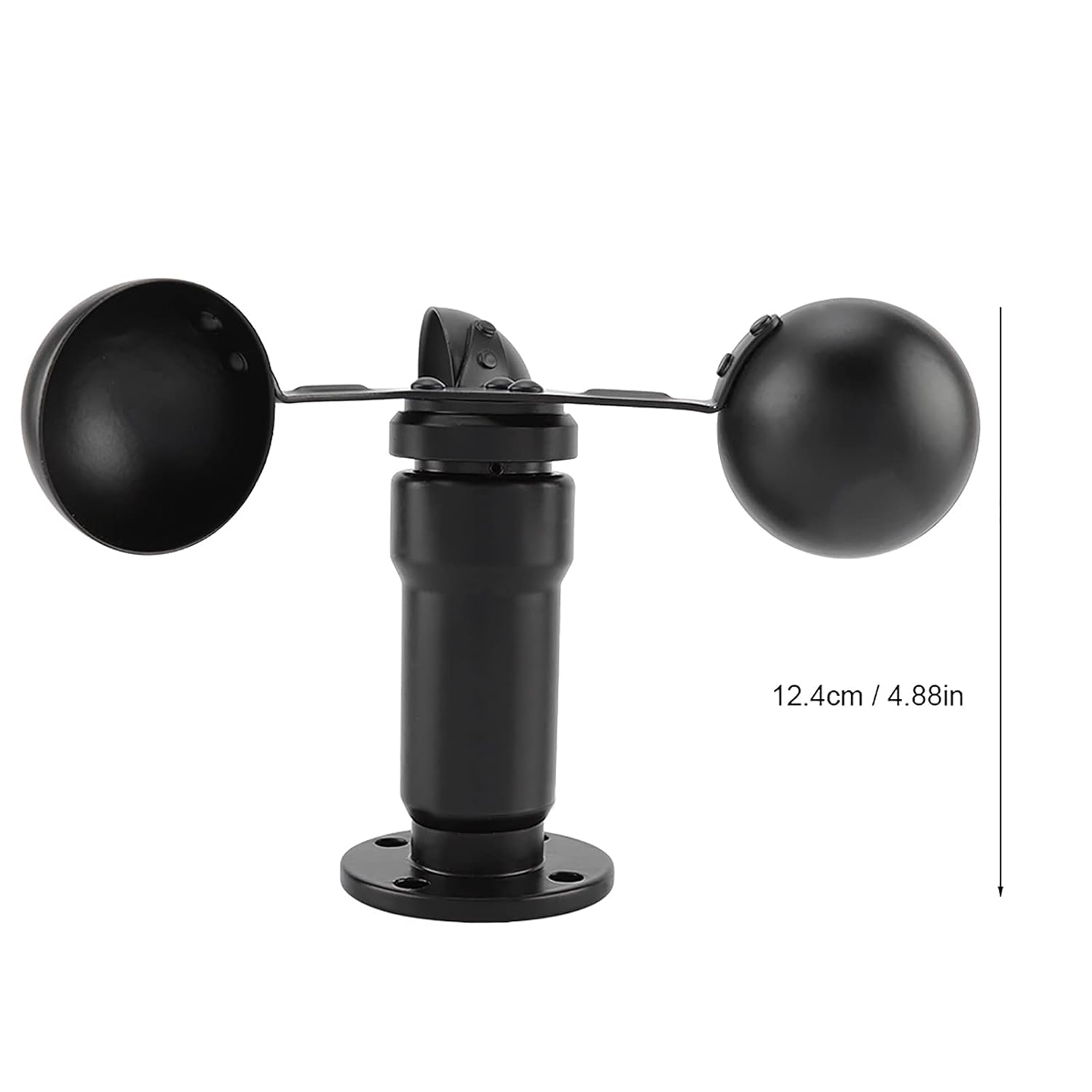

Height: Approx. 12.4cm / 4.9in
Wiring Instructions:
Brown: Power Supply Positive (12-24V)
Black: Power Supply Negative
Yellow: 485-A
Blue: 485-B

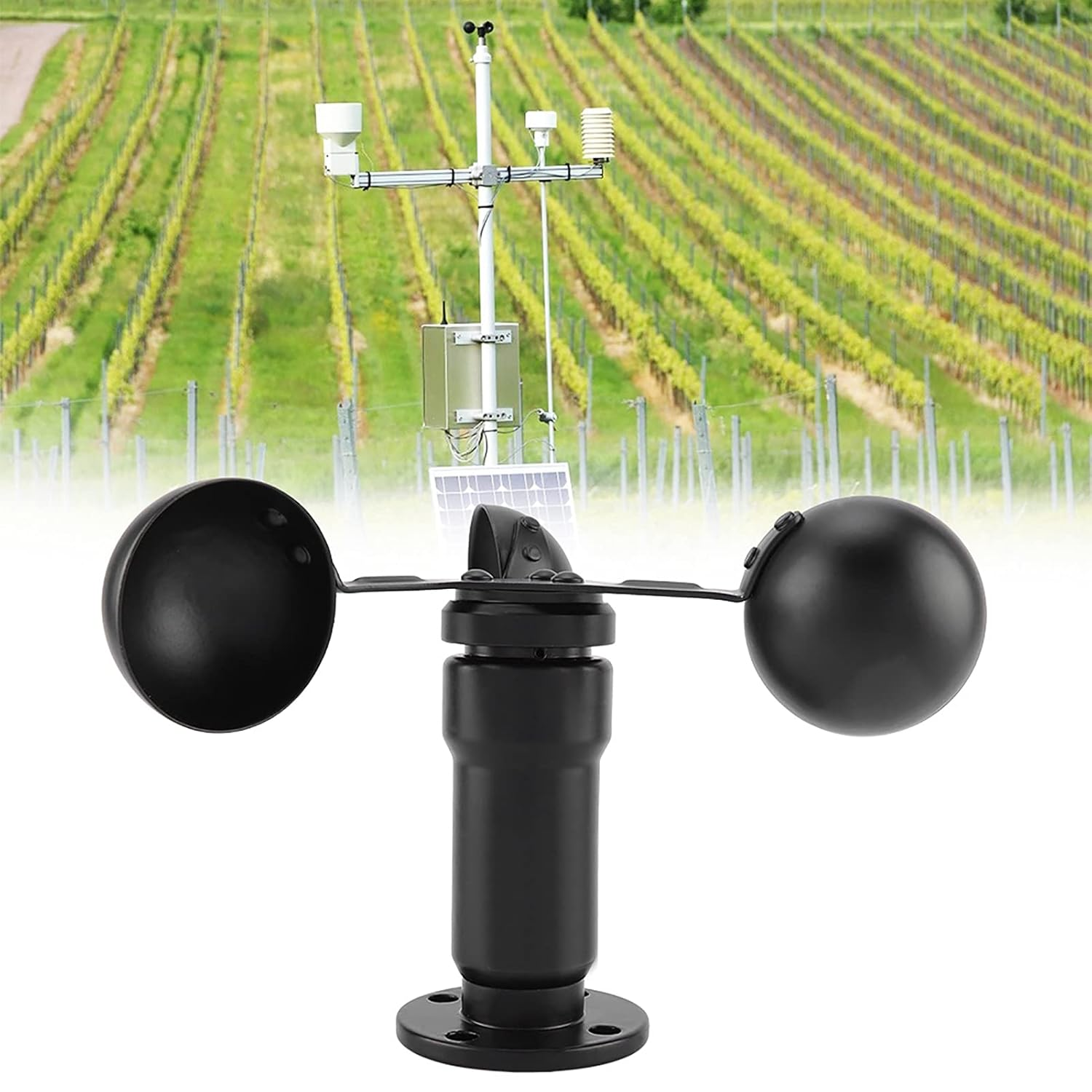

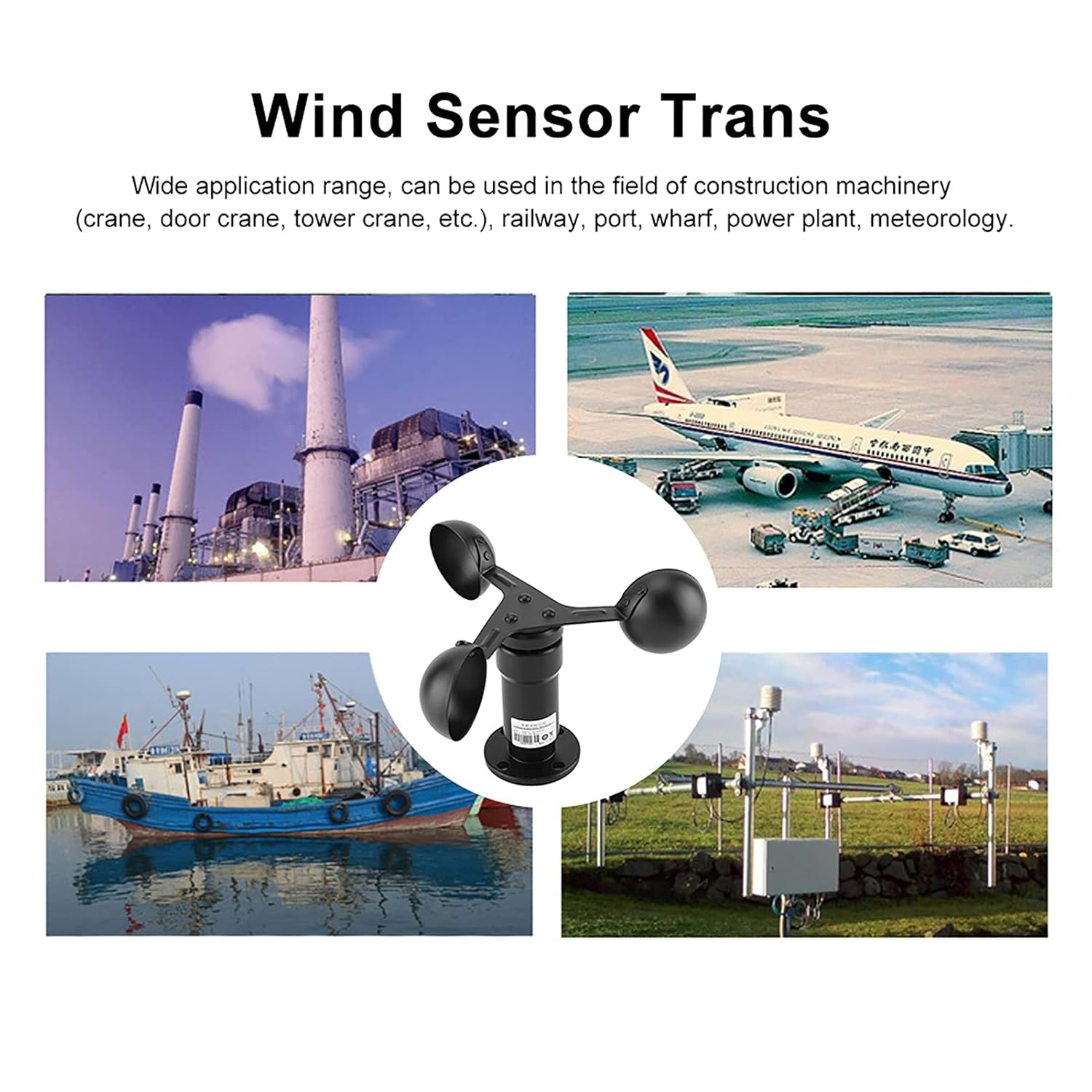

Application: Wind speed measurement of power plant, wind speed and direction measurement of meteorological monitoring, wind speed and direction measurement of navigation and aviation, wind speed and direction measurement of agricultural intelligent wind speed and direction measurement
Installation Method:
1. Ensure that the mounting bracket is parallel to the ground;
2. Installation with flange and fixing with Screw/Fastener on bracket;

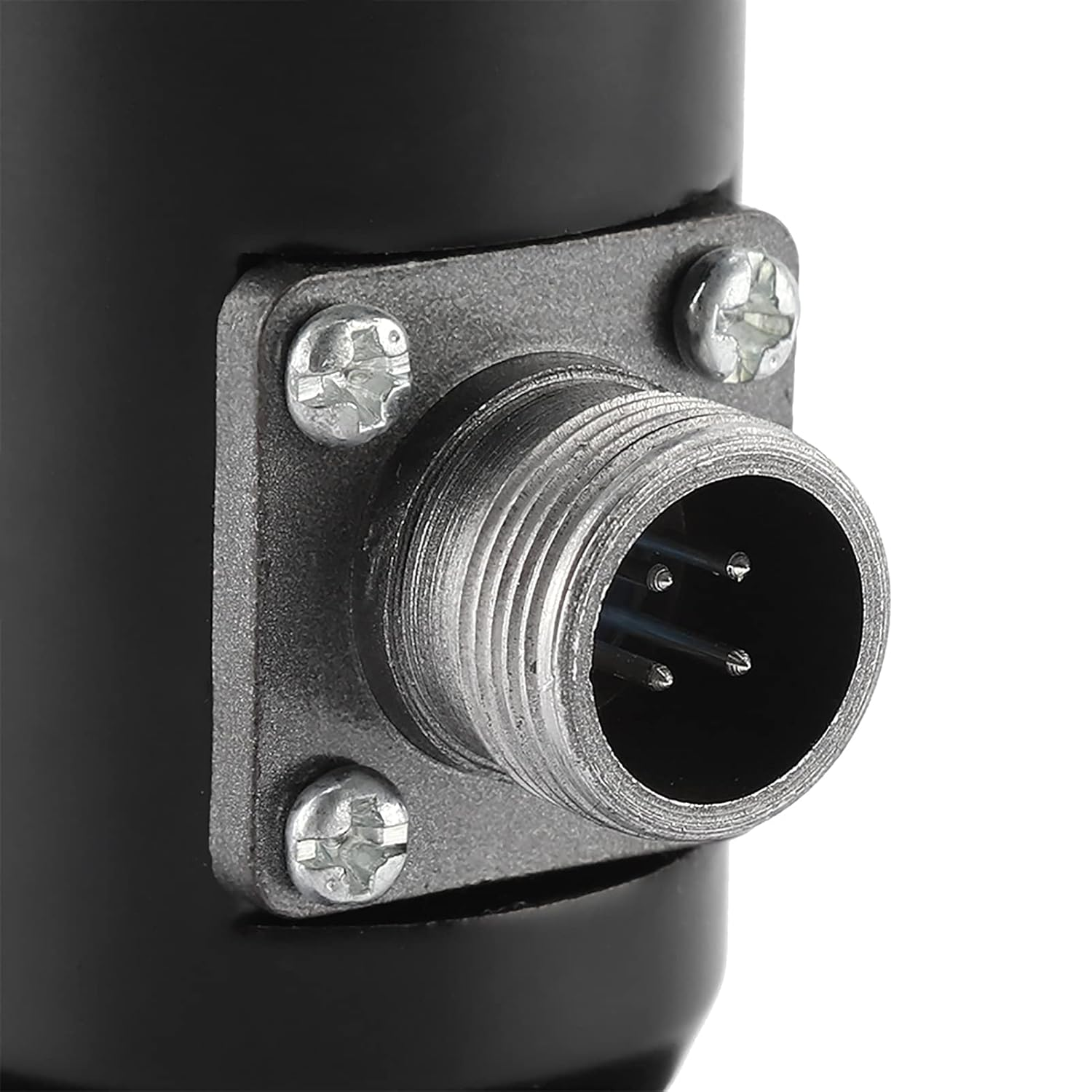

3. Connect the air socket connector with the air socket of the sensor through the reserved air route hole.
Package List:

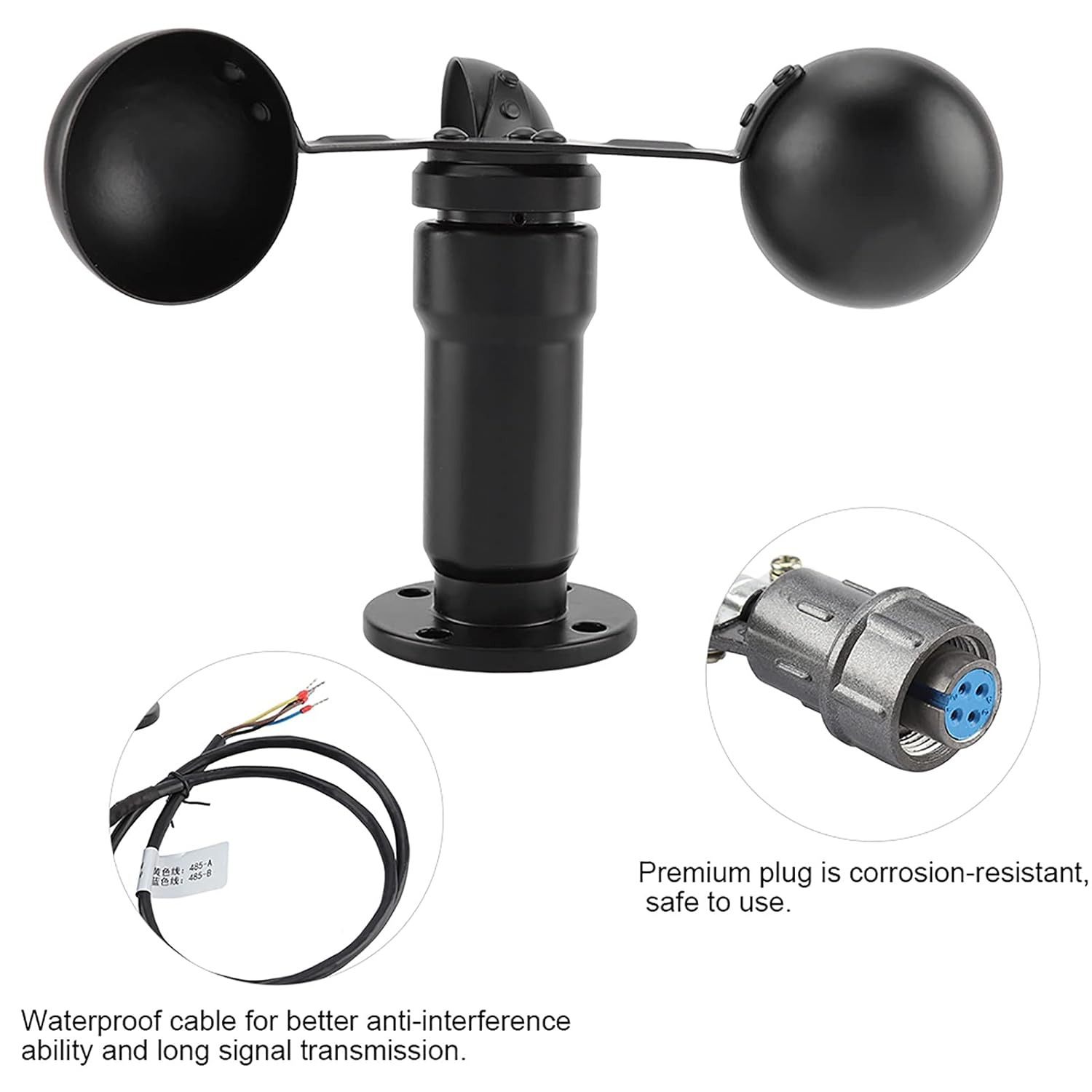

1 x Wind Sensor

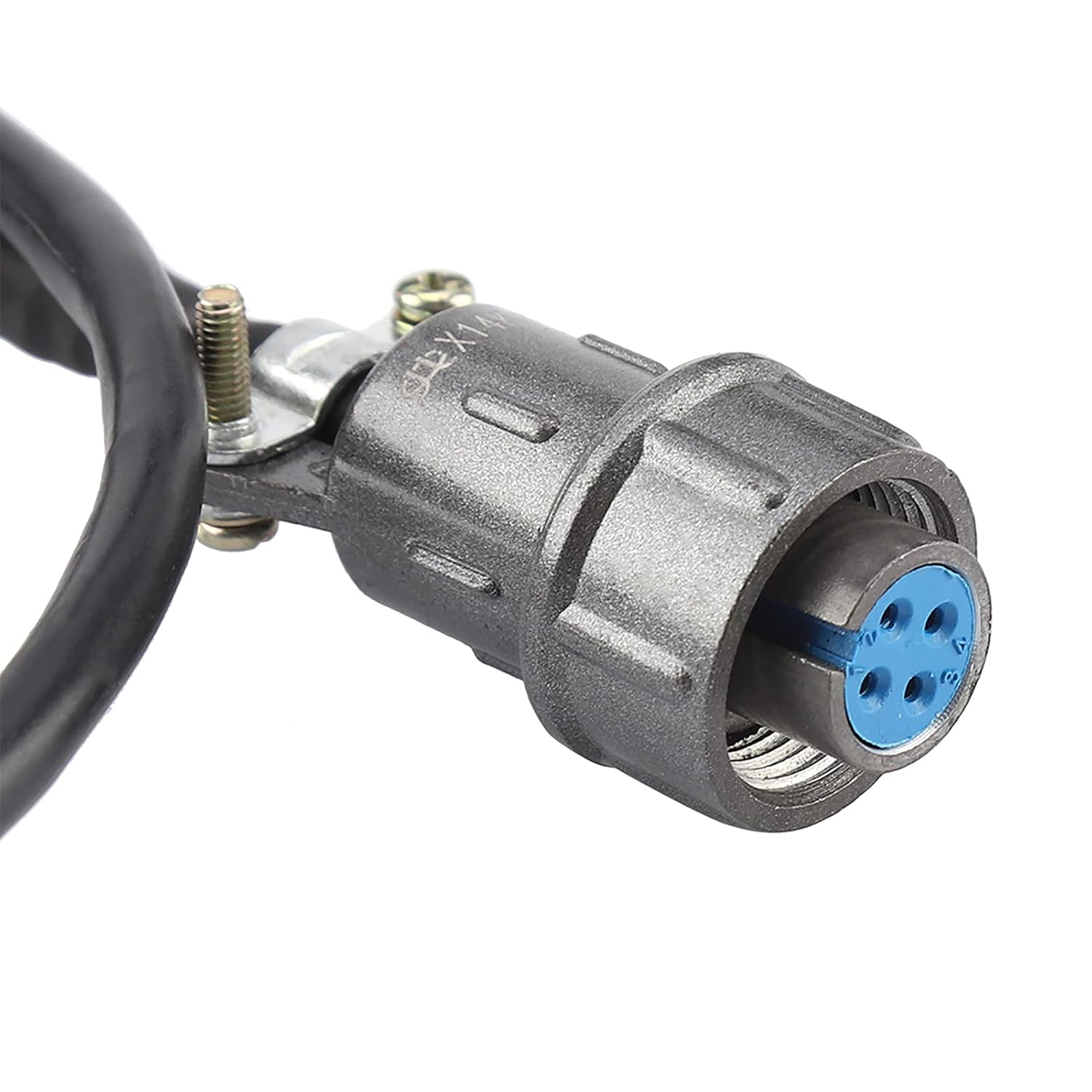

1 x Cable
1 x Bag of Screws
