Specification:
Item Type: Soil Sensor
Material: ABS, 316 Stainless Steel
Power Supply: 12-24V DC
Measurement Range: 0-100%
Storage Environment: -45℃-115℃
Accuracy: ± 3% (In Range of 0 - 53% ) / ± 5% (In Range of 53 - 100%)
Response Time: Temperature Measurement Range: -45℃-115℃
Temperature Accuracy: ±0.5℃
Installation Method: All buried or all probes inserted into the measured medium
Protection Level: IP68
Voltage Output Type: 0-5V
Voltage Output Load: ≤250Ω
Power Consumption: Working Pressure Range: 0.9-1.1atm
Weight: Approx. 197g / 6.9oz

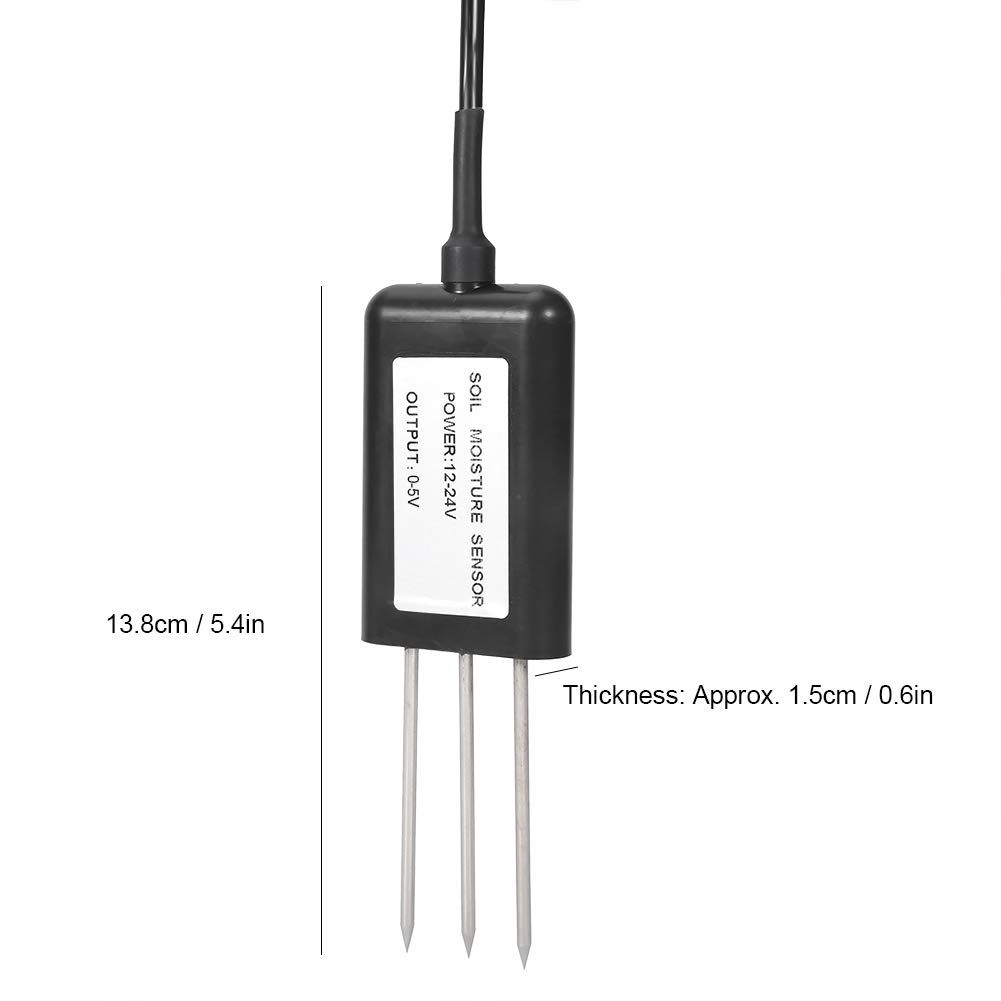

Size:
Length: Approx. 13.8cm / 5.4in
Thickness: Approx. 1.5cm / 0.6in
Wiring:
Cable Color Description
Power Supply Brown Power Supply Positive (12-24V DC)
Black Power Supply Negative
Communication White Humidity Voltage / Current Output is Positive
Gray Temperature Voltage / Current Output is Positive
Blue NC
Yellow NC
1 x Soil Sensor
1 x Instruction Manual
