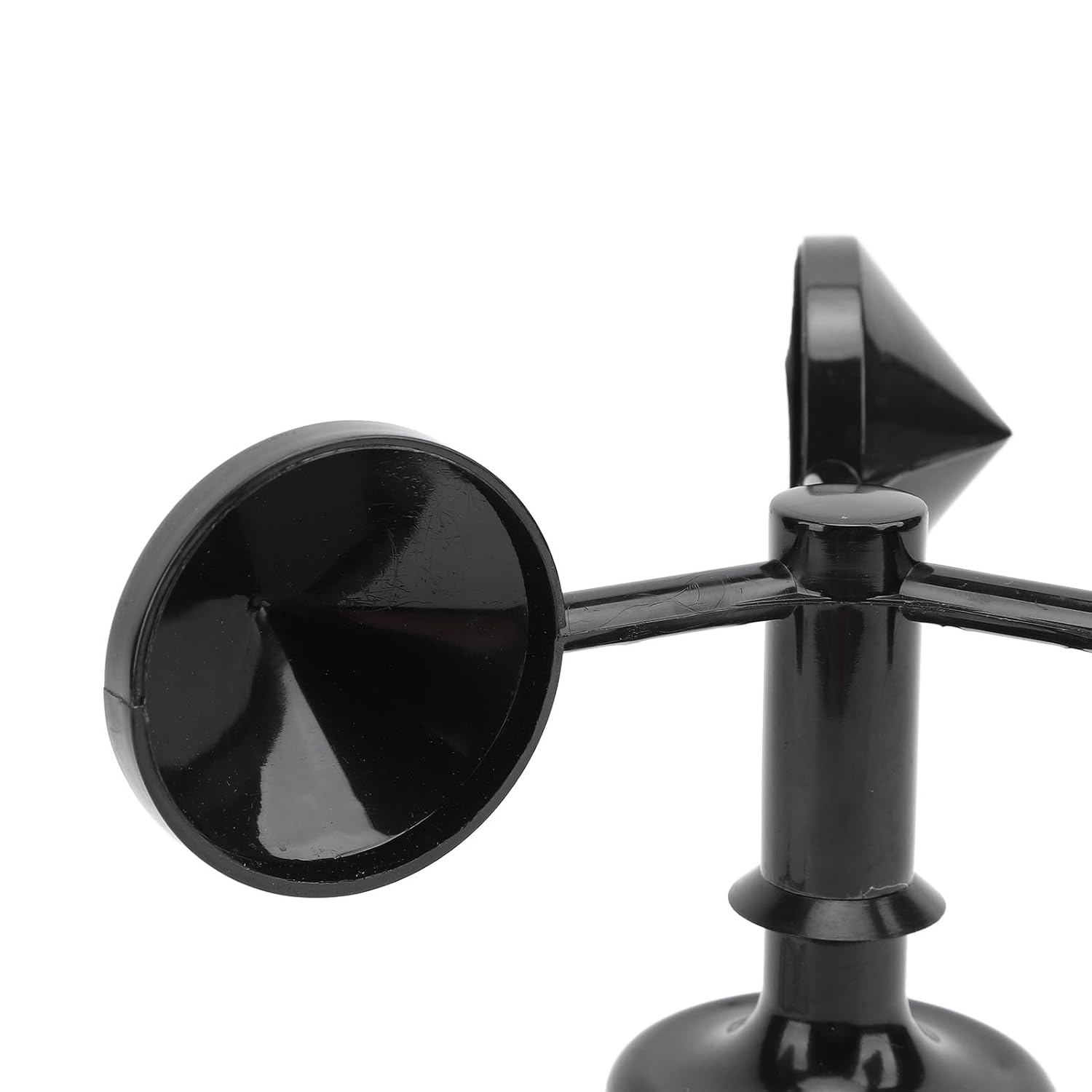

1. STRONG MATERIAL: The wind cup is made of excellent ABS material, with high strength, small starting wind speed, and good erosion
2. INTERFERENCE RESISTANT: The wind speed sensor has strong prevent interference ability, small and lightweight, easy to carry and assemble
3. WIRING MODE: The wind speed monitoring sensor is compatible with two cable outlet modes, including bottom cable outlet and side cable outlet
4. WEATHER RESISTANT: Wind speed sensor anemometer possess strong pressure , suitable for all kinds of harsh environment, with strong wind

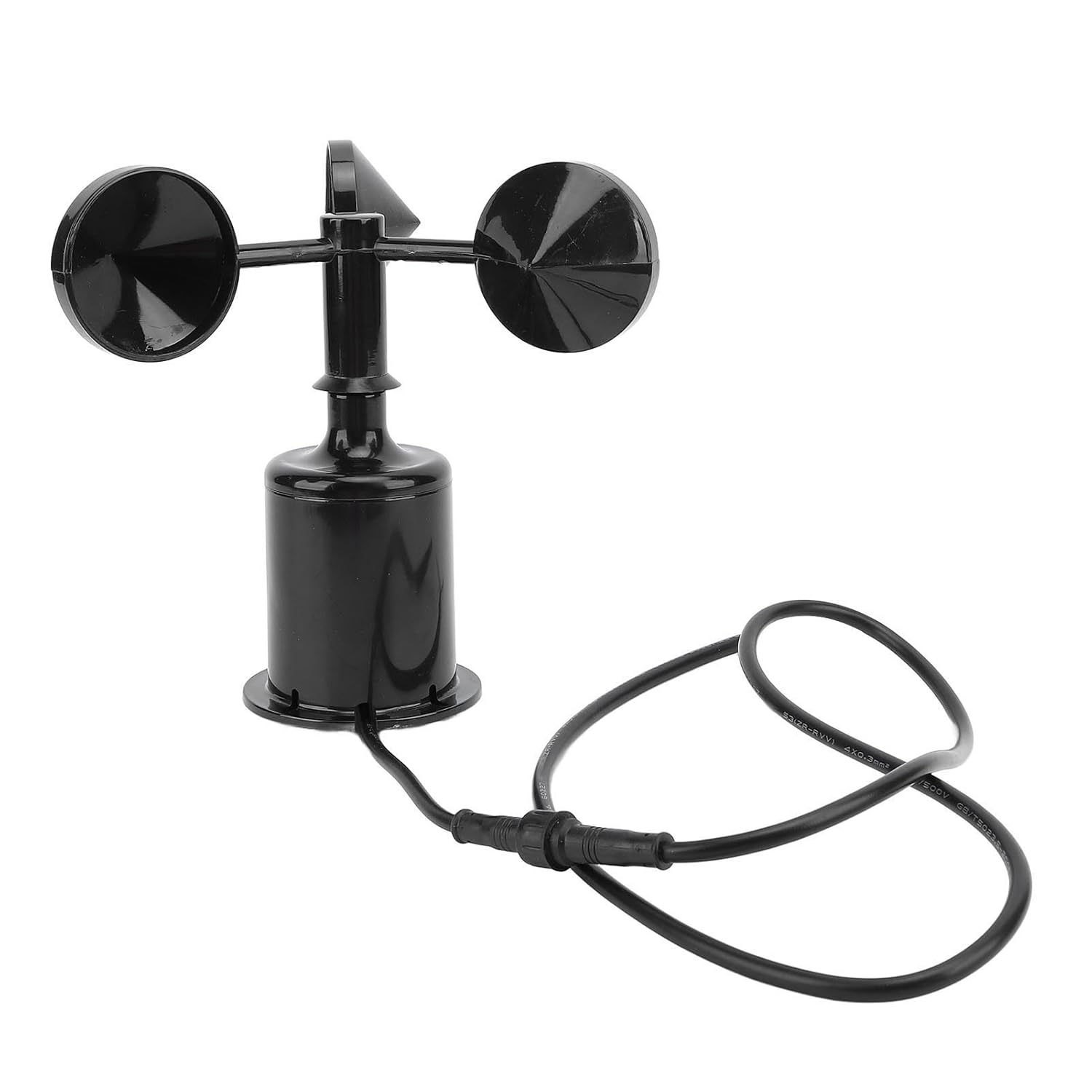

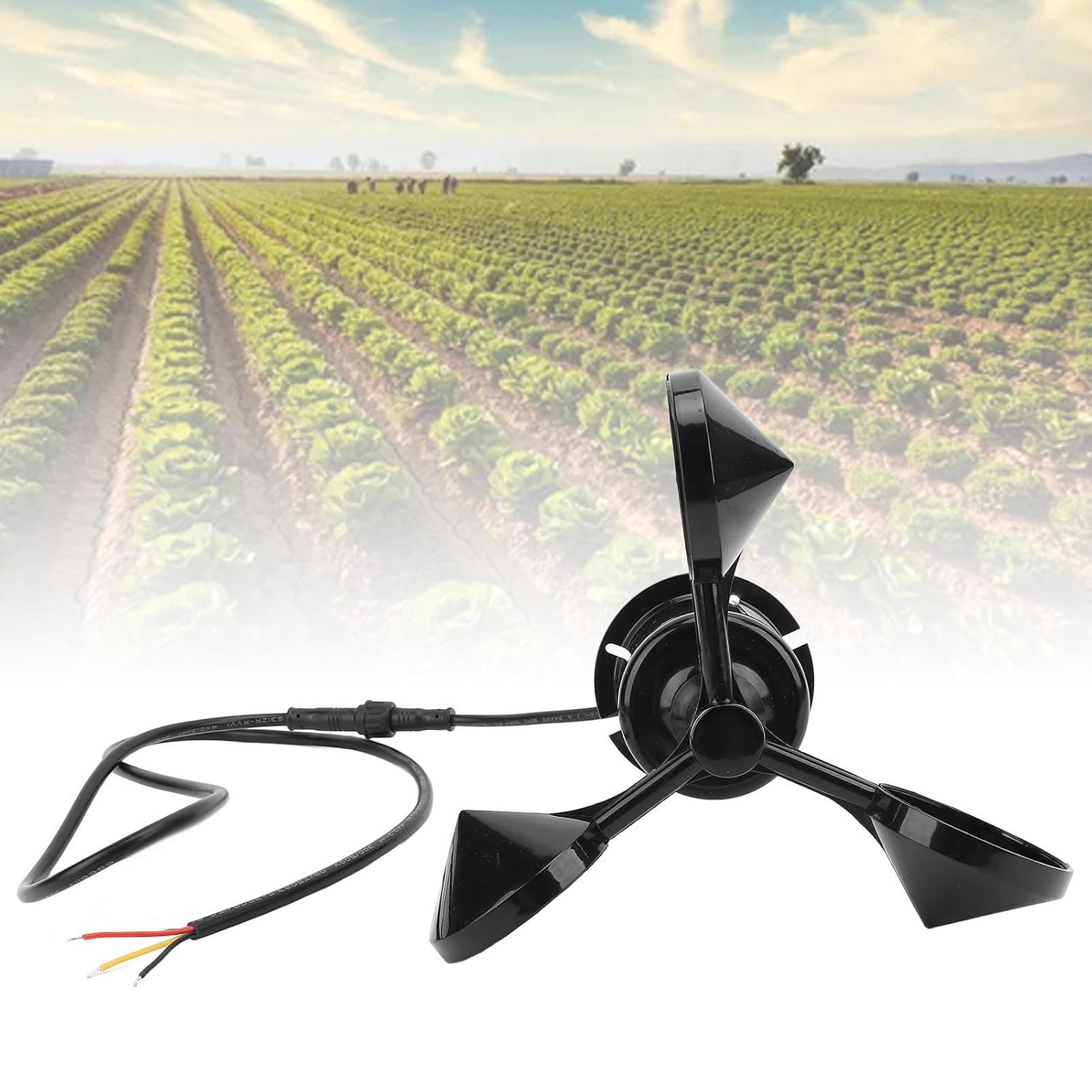

5. EQUIPPED WITH EXTENSION CABLE: The wind speed sensor connection extension line is 0.8m long, the interface has a sealing washer design, waterproof
Specification:
Item Type: Wind Speed Monitoring Sensor
Material: ABS
Size: Approx. 158 x 180 x 70mm / 6.22 x 7.09 x 2.76in
Power Supply Voltage: DC9-30V
Signal Output: 4-20mA
Measurement Range: Wind speed 0~45m/s
Extension Line Length: Approx. 0.8m / 2.6ft
Accuracy: ±(0.5+0.02V)m/s(V represent real time wind speed value)
Resolution: 0.1m/s
Startup Wind Speed: ≤0.8m/s
Maximum Power Consumption: 0.48W
Load Capacity:
DC12V power supply, current output impedance ≤350Ω
DC24V power supply, current output impedance ≤900Ω, voltage output impedance ≥1KΩ
Working Environment: Temperature: -35℃~60℃, Humidity: ≤100%RH non condensing
Protection Level: IP64

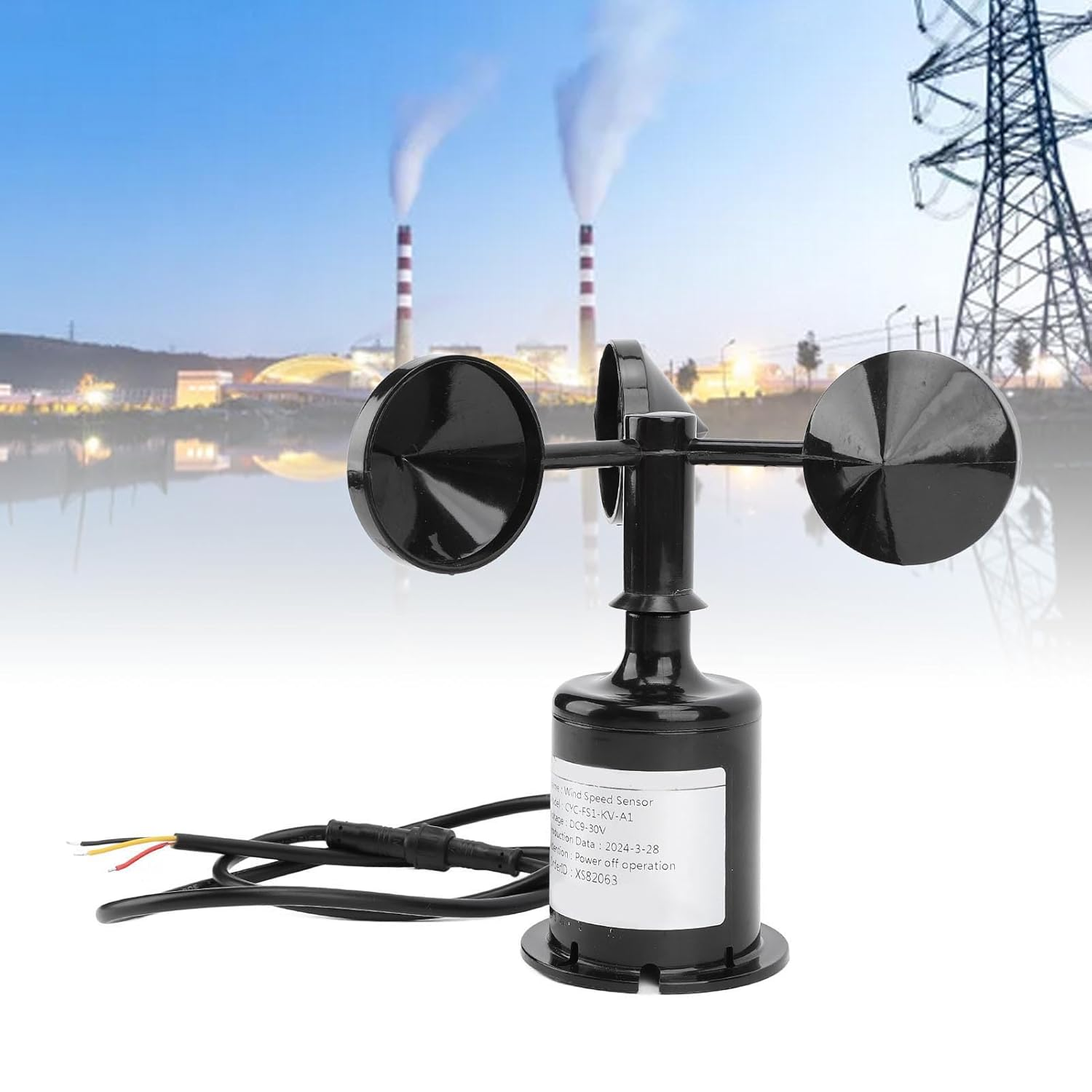

Widely Used In: Greenhouses, environmental protection, ships, docks, aquaculture, advertising gate barriers, weather, marine, environmental, airports, ports, laboratories, industrial, agricultural and traffic environments for wind speed measurement
Formula: 4-20mA: F=(I-4)/16xA+B
F: Wind speed, m/s;
I: Sensor output current value, mA;
A: Sensor range width(range upper limit minus lower limit);
B: Minimum value of sensor range(lower limit of range);

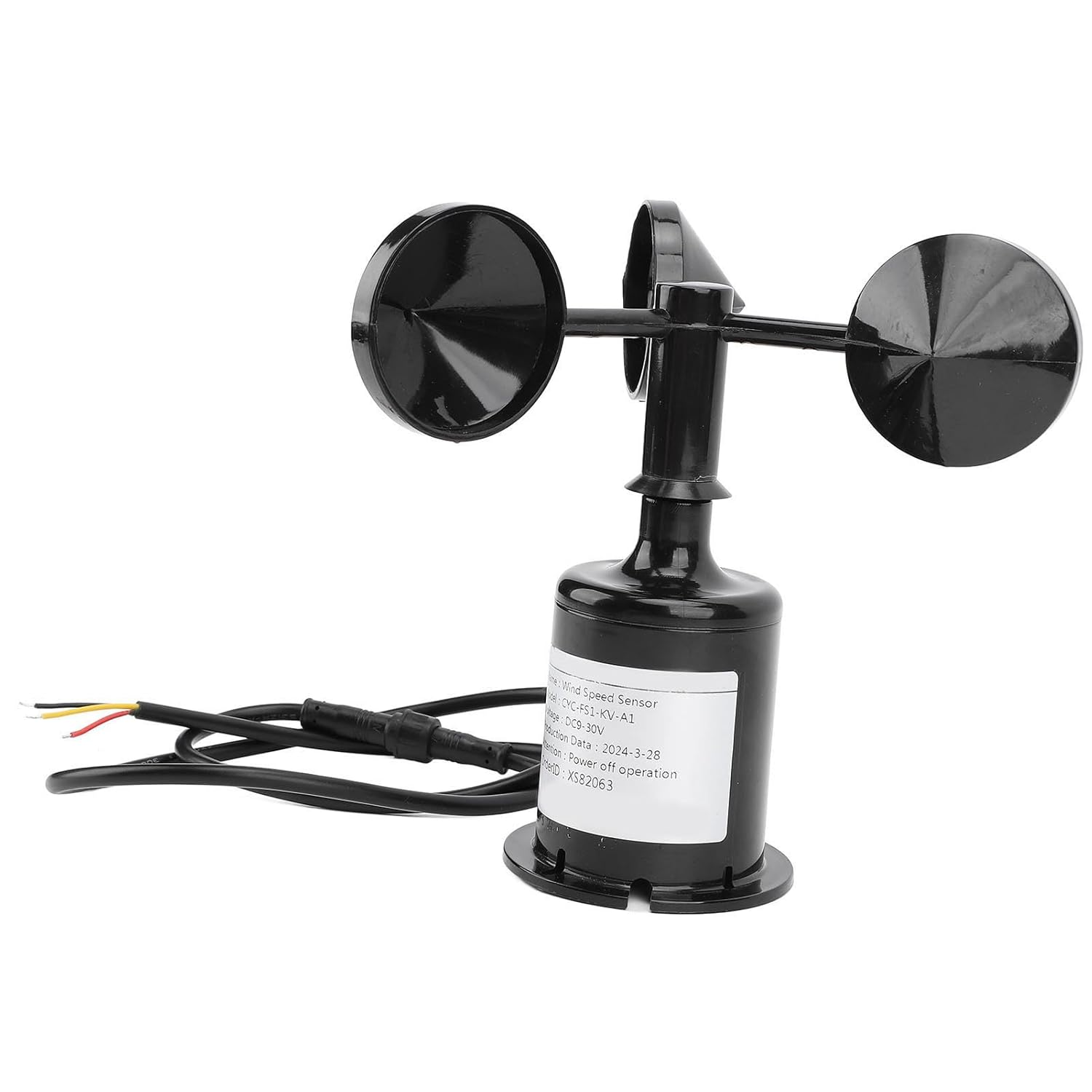

Wire Connection Method:
Red Output Signal(voltage): Power supply positive
Black Output Signal(voltage): Power supply negative
Yellow Output signal(voltage): Signal
Distribution Diameter: Approx. 63mm / 2.48in
Mounting Hole Diameter: Approx. 3.2mm / 0.13in
Aerial Plug Diameter: Approx. 15mm / 0.59in(recommended to reserve 25mm for wiring, wire connection first, then install and fix the sensor)
Troubleshooting:
1. The wind Vane/Wing does not rotate smoothly and has a large delay. There may be foreign objects or jamming in the bearings due to long term use. Please return the sensor to the company for processing;
2. The instrument display value is incorrect. May be due to wiring problems or communication port failures that prevent obtaining correct data. Please check whether the wiring is correct and secure, whether the port is occupied, and whether the port settings are correct;
Weight: Approx. 272.00g / 9.59oz

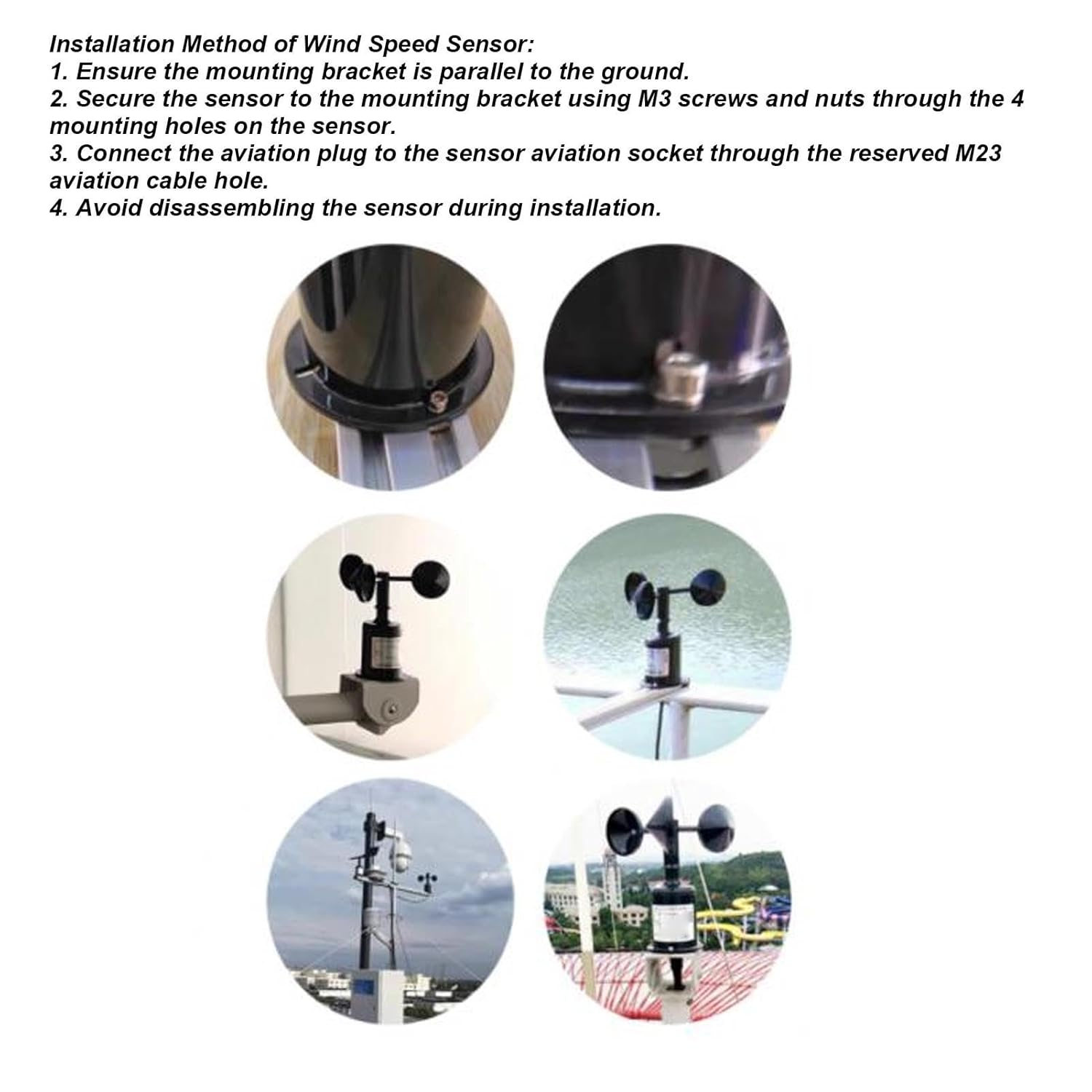

How to Use:
1. Ensure the mounting bracket is parallel to the ground.
2. Secure the sensor to the mounting bracket using M3 screws and nuts through the 4 mounting holes on the sensor.
3. Connect the aviation plug to the sensor aviation socket through the reserved M23 aviation cable hole.
4. Avoid disassembling the sensor during installation.
PackageList:
1 x Wind Speed Monitoring Sensor
Notice:
1. Please check the packaging for integrity and verify that the product model matches the selection; 2. Do not connect the wires while they are powered. Only power on after confirming the connections are correct;
3. The length of the sensor wire may affect the product output signal. Do not alter the product randomly while using it. If there are changes needed, please the manufacturer;
4. Sensors are accurate instruments. Users should not disassemble them, allow incisive objects or erosive liquids to come into with the sensor surface to avoid damage to the product;
5. Please keep the calibration certificate and the certificate of conformity. Return them together with the product for repairs;
6. Do not plug or unplug while the power is on.7. Customers need to provide their own screws and nuts.
