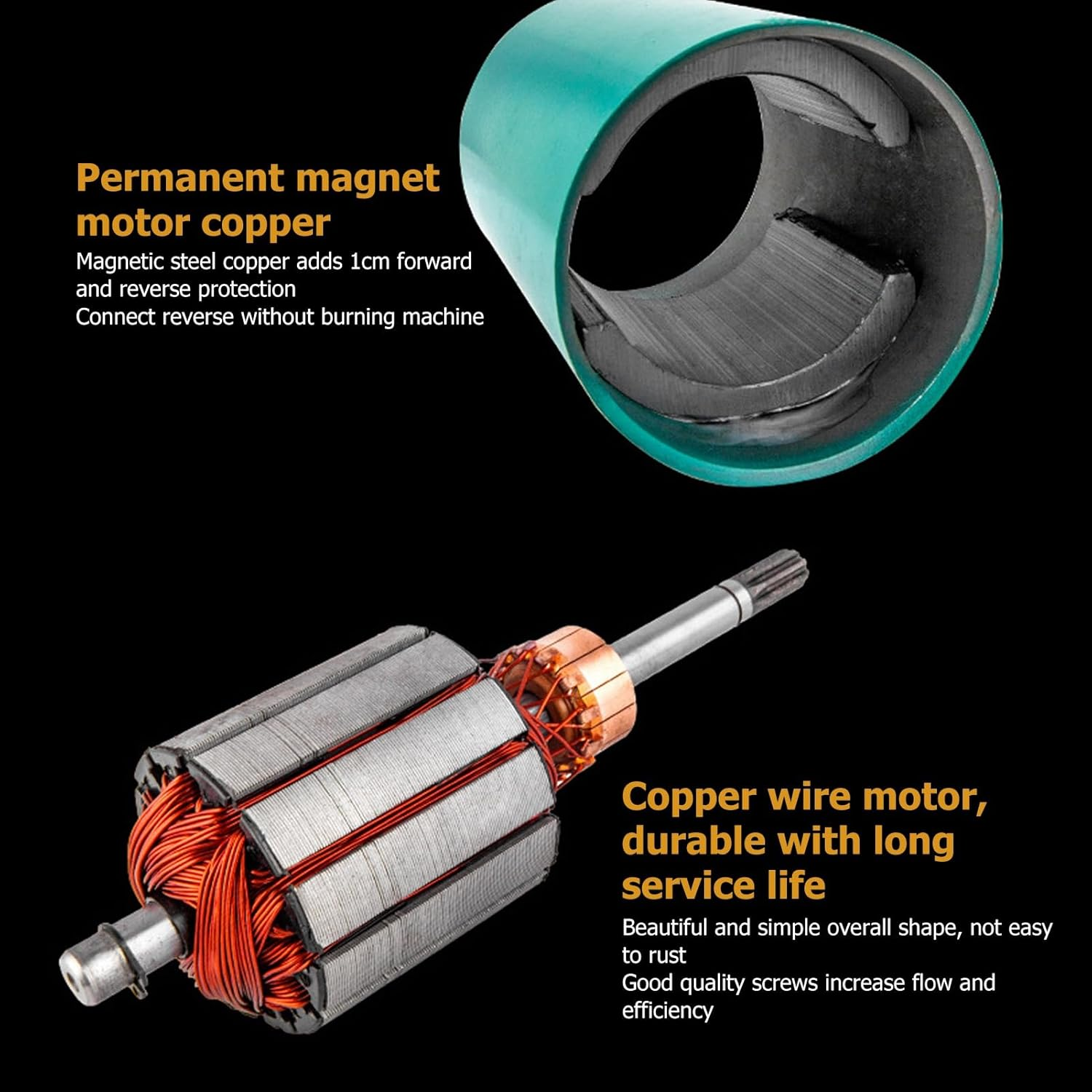

1. RESISTANT MATERIAL: One time molding body made of stainless steel, no , resistant. Using permanent magnet motor copper, magnetic steel copper adds 1cm forward and reverse protection, connect reverse gear without burning the machine
2. INCREASING EFFICIENCY: The copper wire motor is durable and long lasting, the overall shape is beautiful and simple, not easy to , screws increase and efficiency
3. EXCELLENT PERFORMANCE: bearings have low noise level, no noise pollution, pagoda-shaped water outlet is convenient for connecting to pipelines. Come with good insulation performance, surface , wear and high mechanical hardness
4. MECHANICAL SEAL: Stainless steel spring has high strength, good sealing performance, low and sand control
5. WIDE RANGE OF APPLICATIONS: DC deep well pump with external hose or pipe connection thread, stainless steel housing, easy to carry. Ideal for homes, farms, irrigation gardens, ponds, pools, boats and aquaculture, grassland irrigation, washing plants, tanks, hot tubs, low-lying floodplains and mining drainage, etc.
Technical dataification:

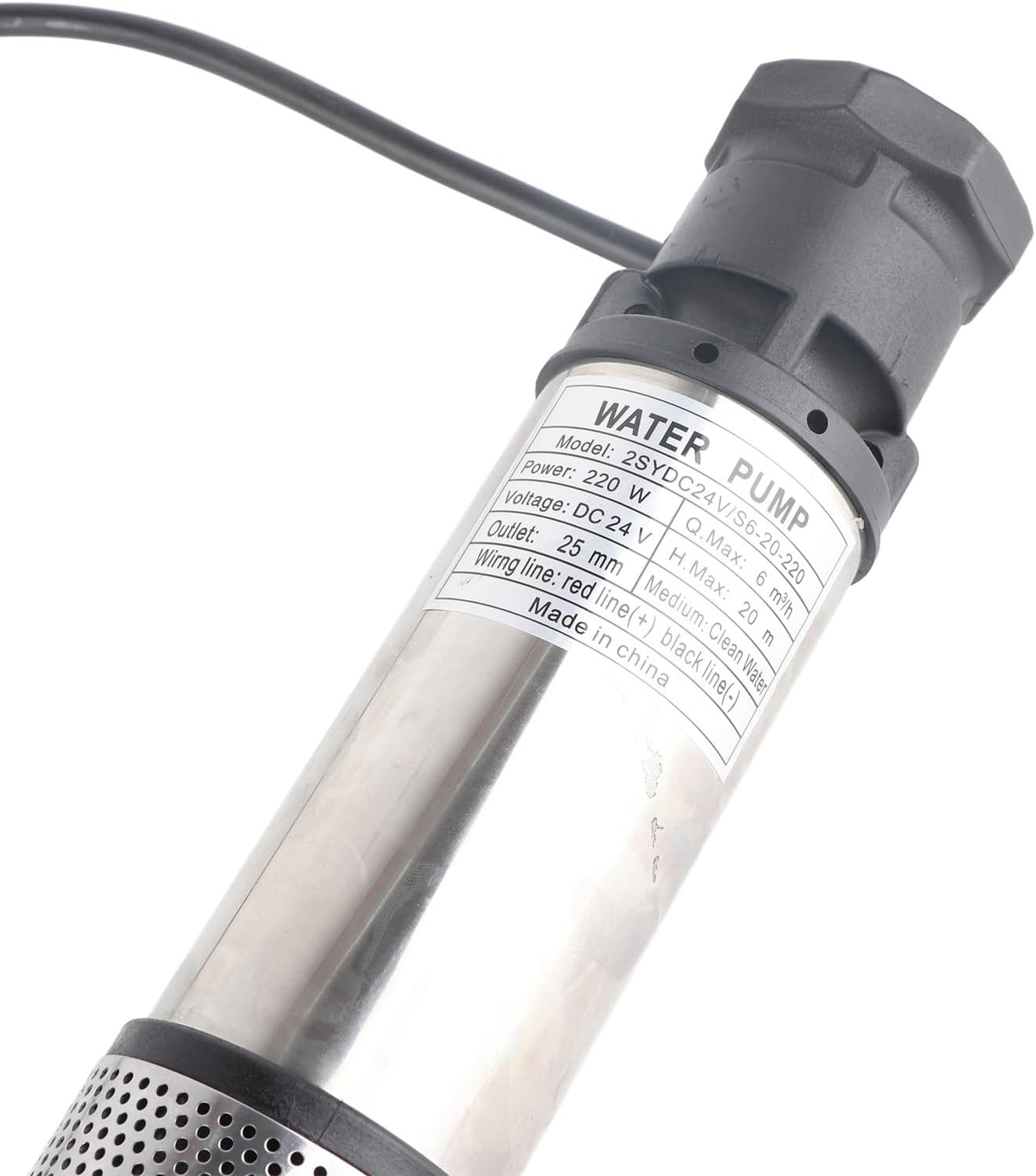

Item Type: DC Deep Well Pump
Model: 2SYDC24V/S6-20-220
Rated power: 220W
Maximum : 6 m³/h
Maximum Lift: Approx. 20 meters / 65.6 feet
Power supply voltage: DC24V
Outlet Diameter: Approx. 25mm / 0.98 inch
Motor speed: 5000 rpm
Material: stainless steel, copper
Supports the use of solar panels and batteries as a power source to drive the pump
Use:
When using, immerse the pump completely in water1. Check whether the mains voltage matches that of the pump2. Check whether the red cable wire is connected to the positive (+) pole and the other wire should be connected to the negative (-) pole.3) Before using the pump, please put it in the water first and then turn it on4) After using or not using the pump, the pump should not be immersed in water for a long time. After use, please keep the pump away from water and dry it in a ventilated place
List of packages:

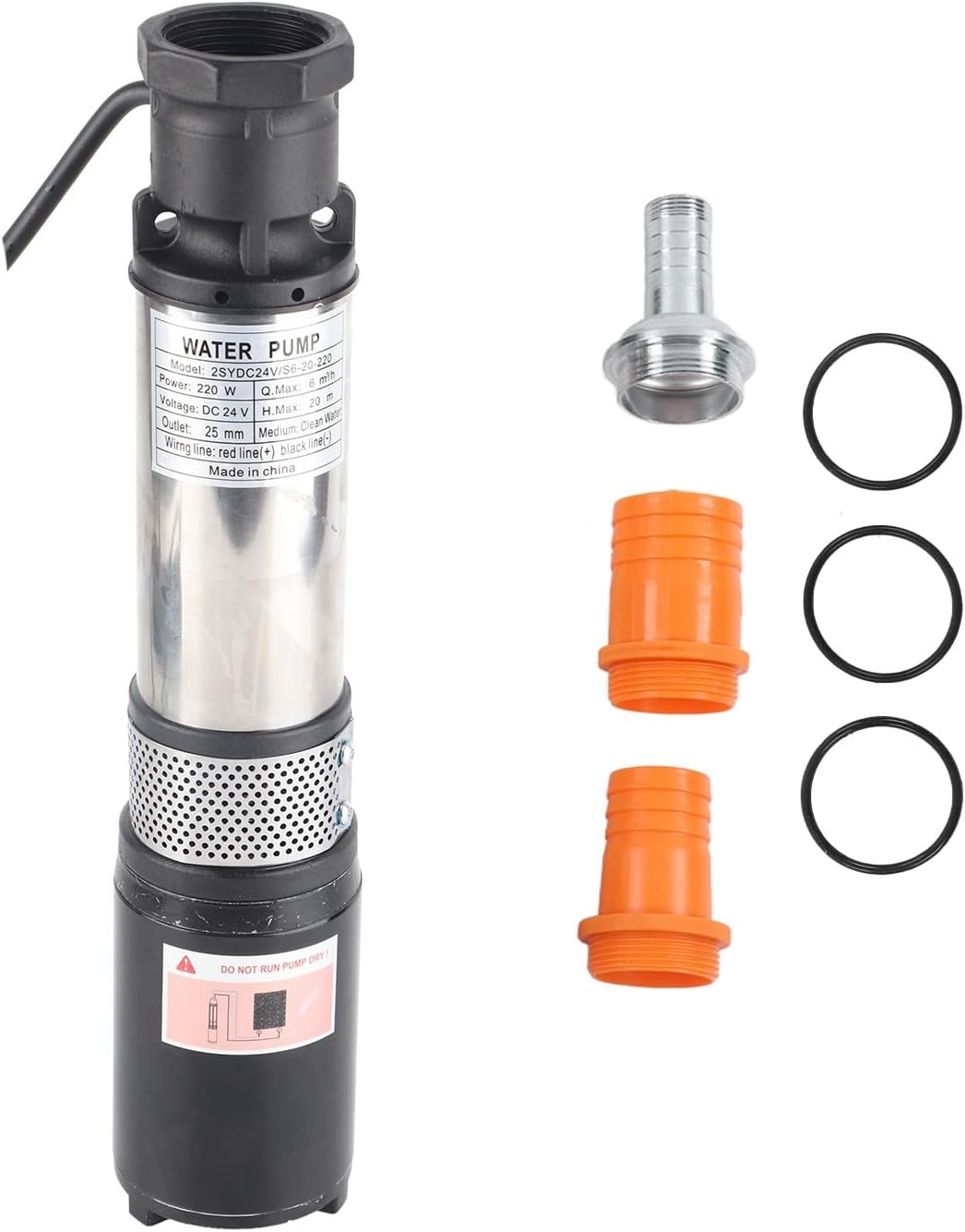

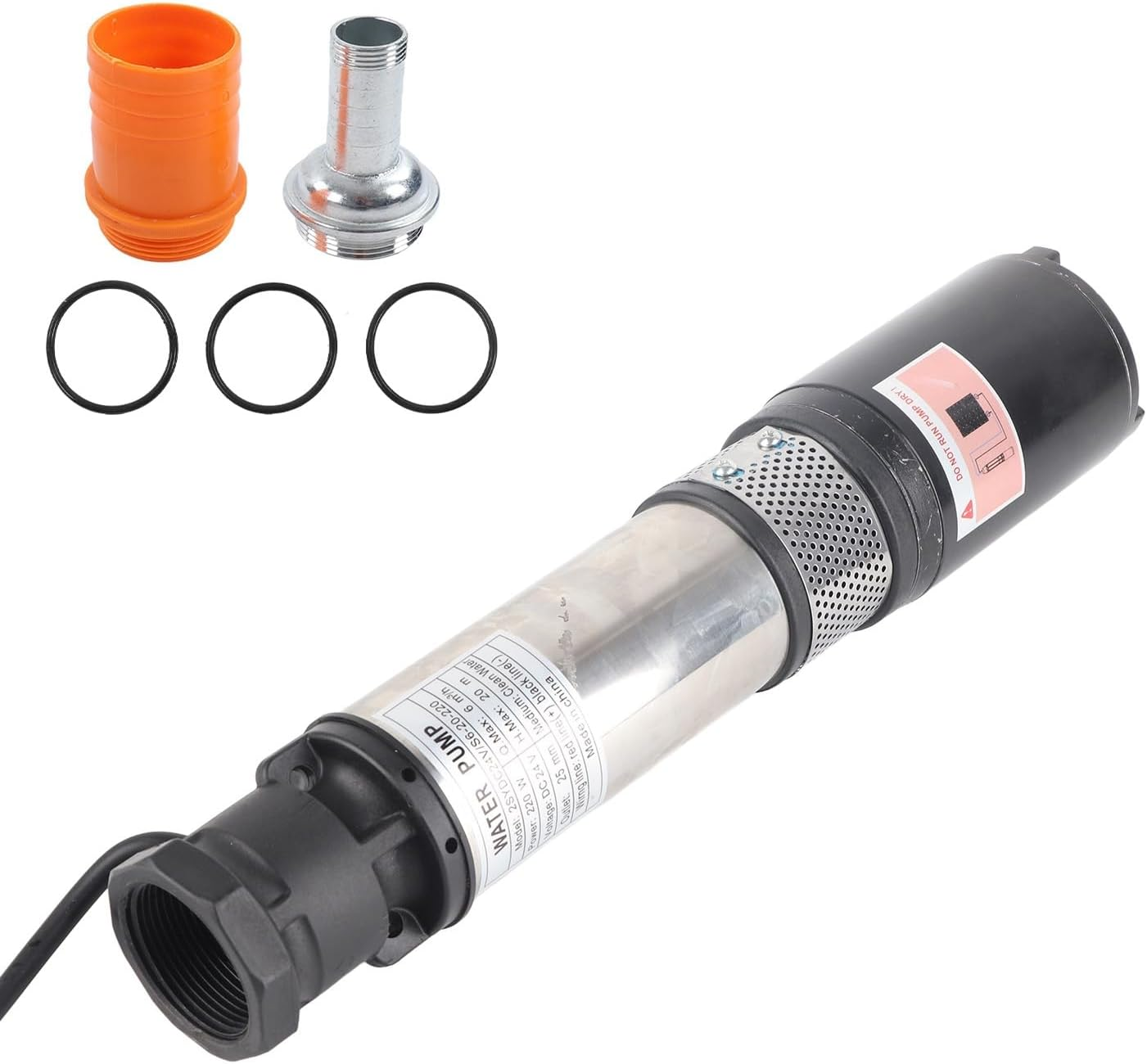

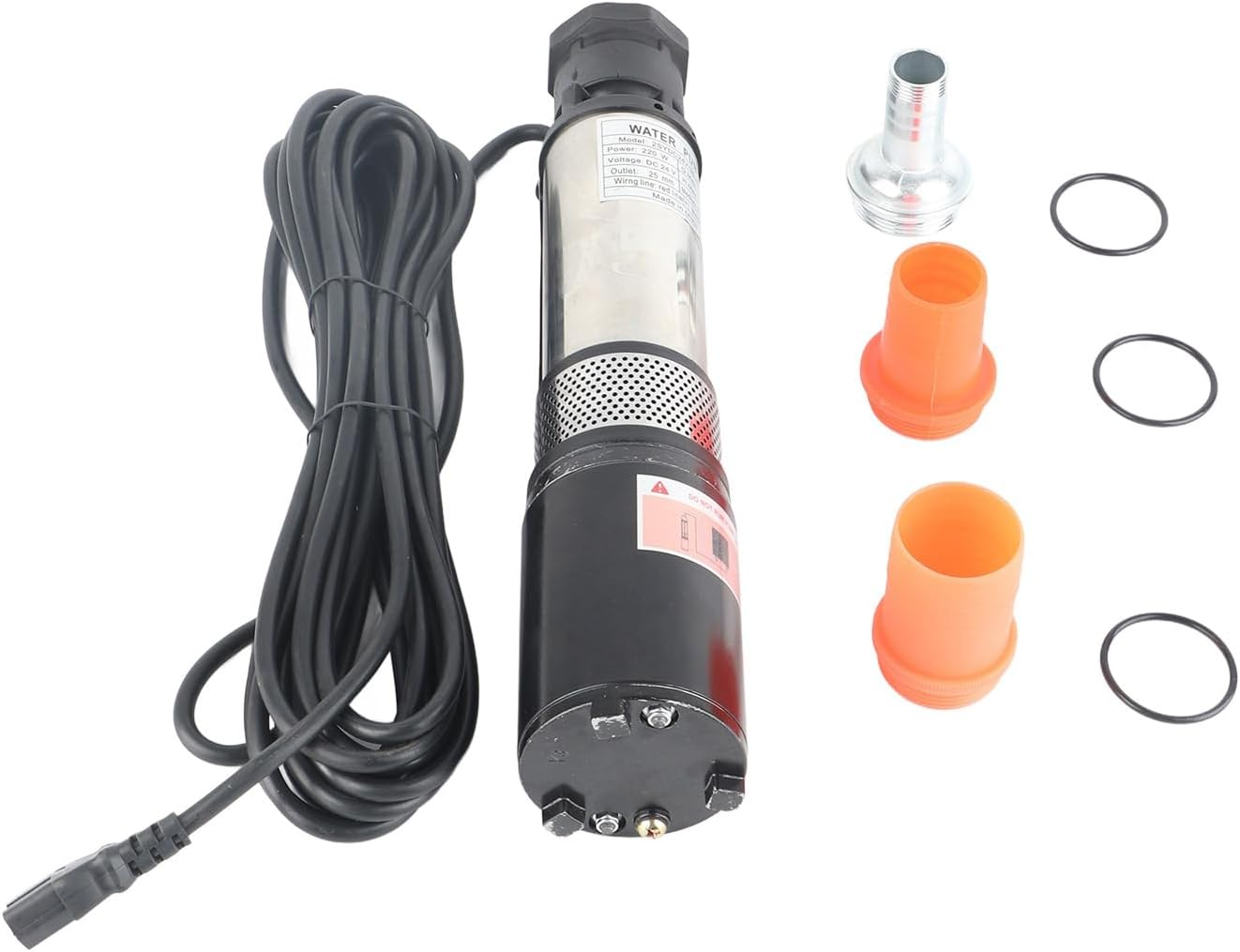

1 x DC Deep Well Pump

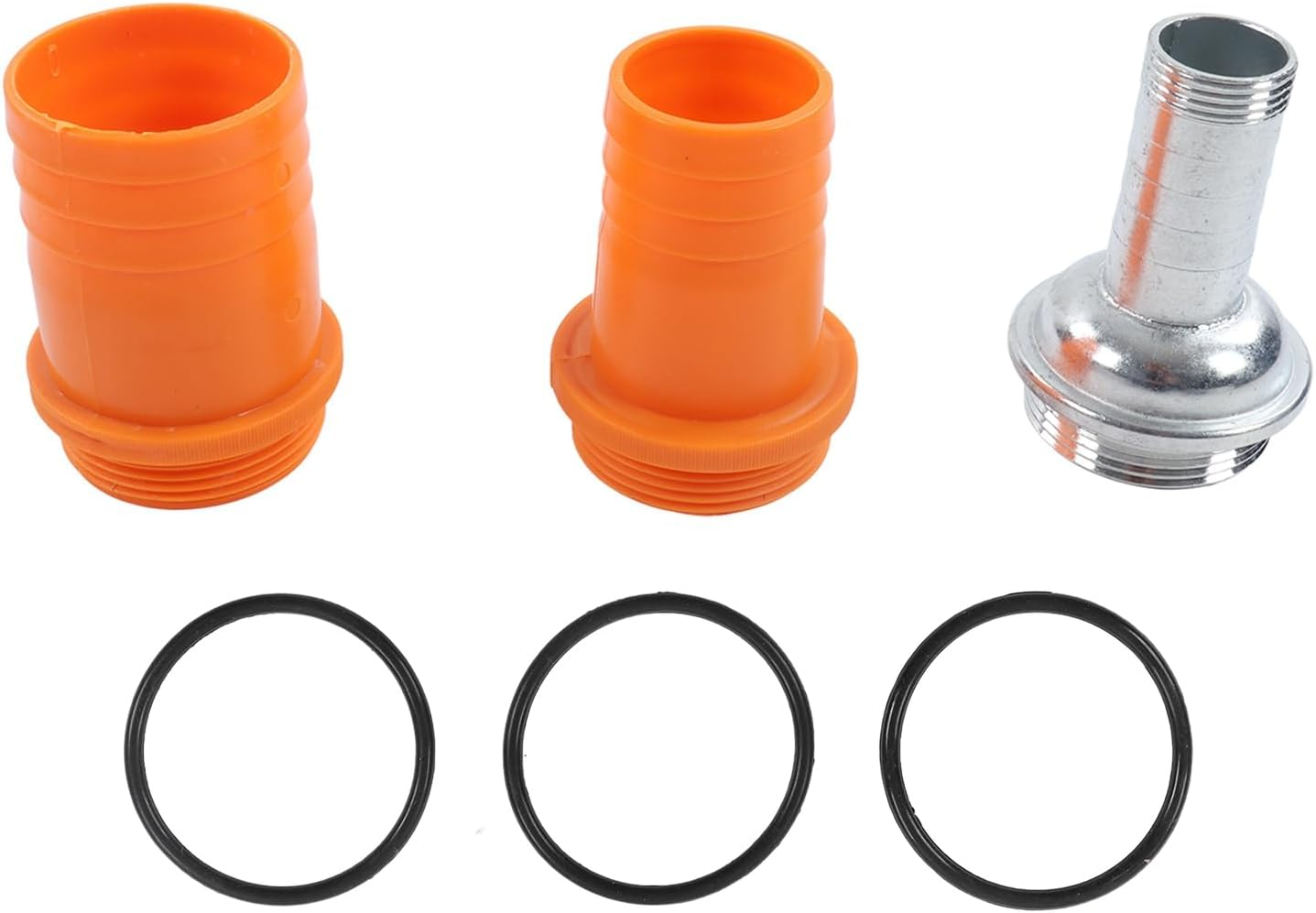

3 x Pipe Connector
3 x Rubber Washer
1 x User Manual
A notice:
1. No idling: The idling speed of the pump motor should not exceed 1 motor, otherwise the oil seal may be damaged.
2. Do not pull the cord when inserting or removing the pump into the water.
3. If there are foreign objects such as sediment in the water source, please put the pump in a bamboo basket or other equipment to prevent clogging.
4. The stroke is too low, please check whether the connecting line is too or smaller than the pump cable; Open the bottom screen to check if the impeller is blocked. or the performance is not enough.
5. Prohibit the use of household electricity.
