Specifications:
Material: aluminum alloy
For: Wind direction sensor / weather station
Product Type: Six elements of meteorology
Interface type: RS485
Measuring range: 0 ~ 360 °
Accuracy: ±3°
Starting wind speed: 0.5m/s
Power supply mode: DC
Output form: current 4~20ma voltage 0~5V 0~10V RS485
Instrument line length: standard: 2.5 meters
Load capacity: current type output impedance 250Ω Voltage type output impedance 1KΩ
Working environment: temperature -40 ° C ~ 50 ° C humidity 100% RH
Protection level: IP45
Cable grade: temperature grade: 80 ° C
Rated voltage: 300V
Product power consumption: 5.5mW
Wind direction measurement range; 16 orientation
Wind direction measurement accuracy: 1 position
Response time: less than 5 seconds
Baud rate: 9600
Communication port: RS485
Power supply: 12V-24V DC
Power consumption: Operating temperature: -30-80 ° C
Operating humidity environment: 0-100% RH (15-95% RH)

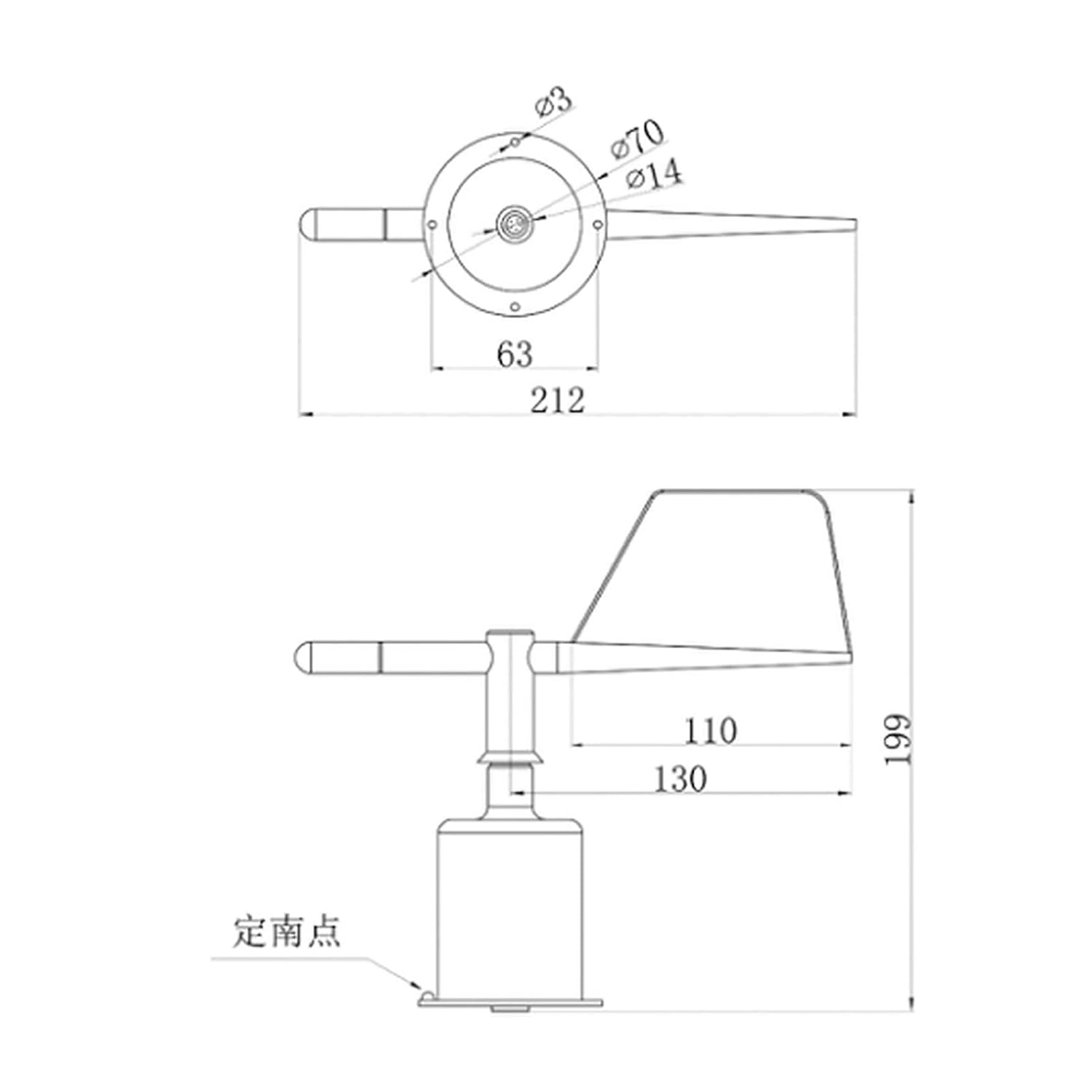

Size: Approx. 16x23cm/6.3x9.06in
Package List:
1 x Sensor

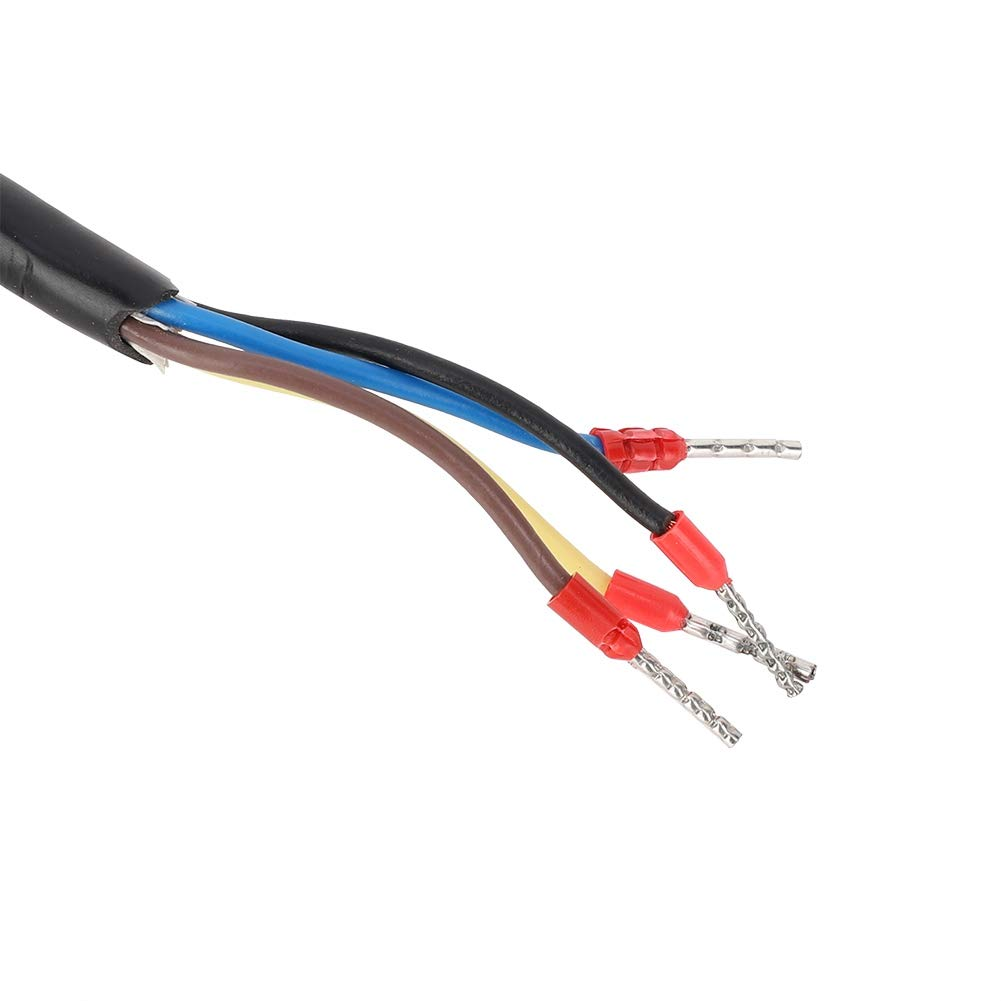

1 x Cable
1 x User Manual
1 x Screw Bag
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
