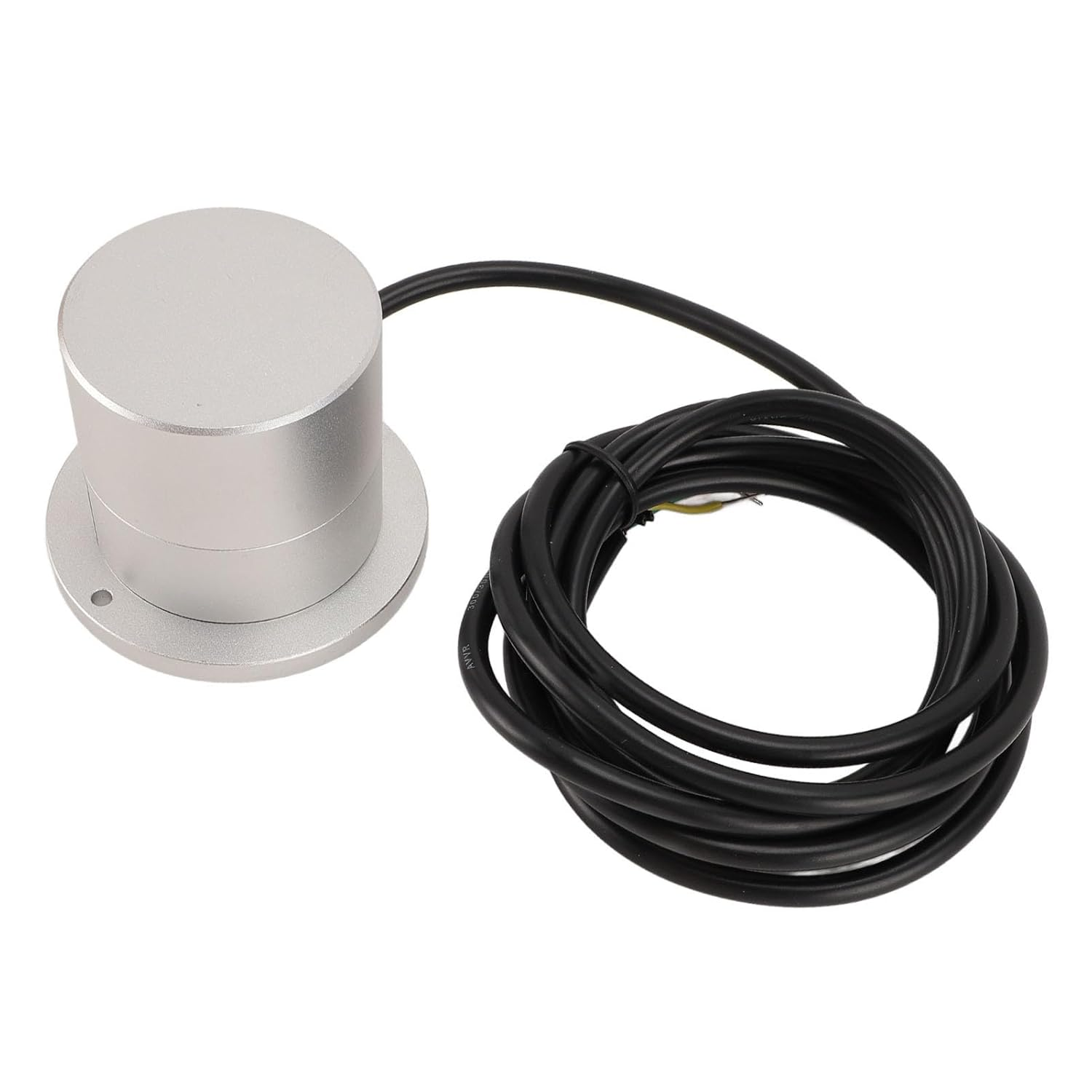

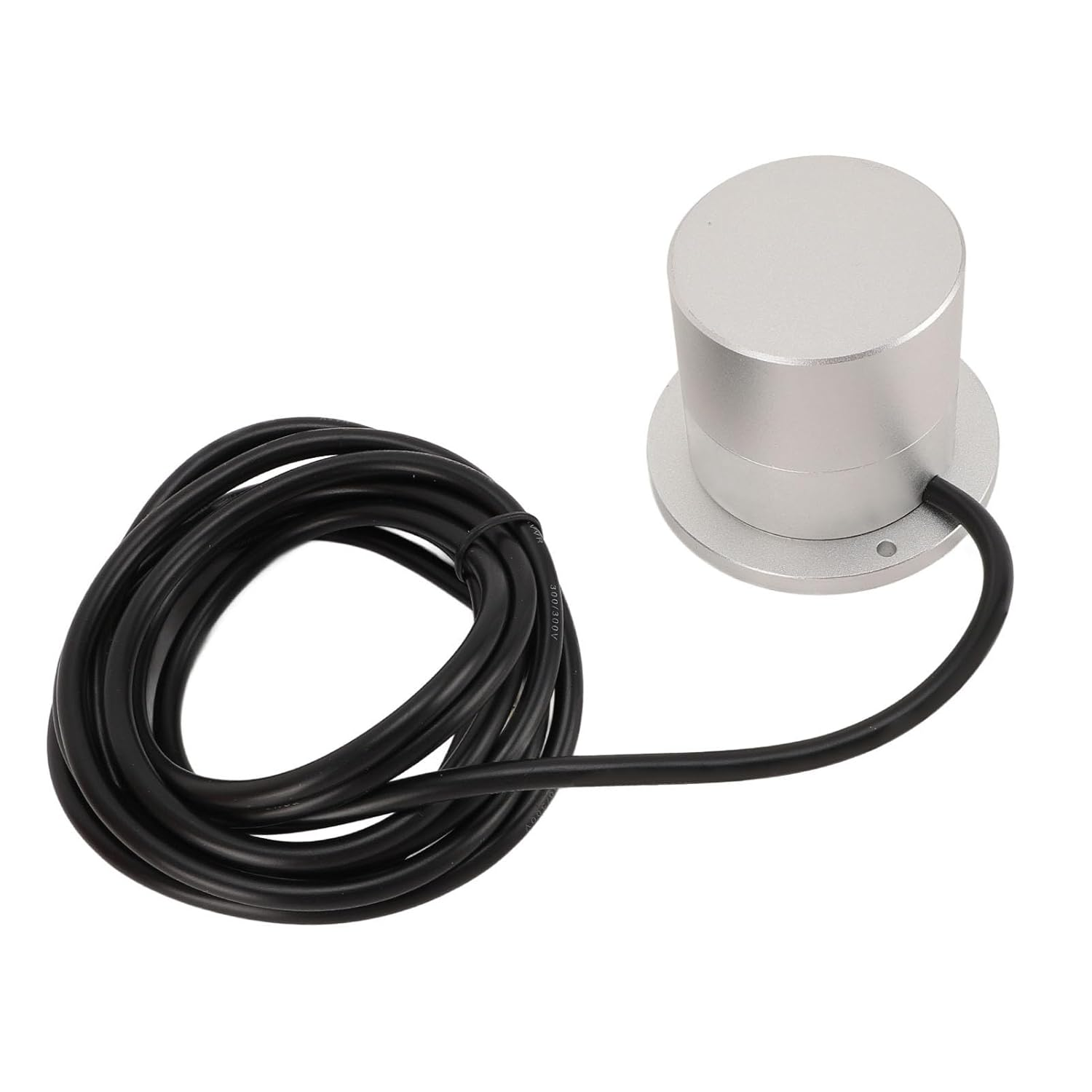

1. Precise Sensor: The component of the solar radiation sensor is a high accuracy photosensitive part, ensuring excellent stability and accuracy. Made of premium aluminum alloy, it boasts a long service life.
2. Versatile Functionality: This sensor can measure solar total radiation within the spectrum range of 0.3 to 1.1μm. When oriented downwards, it can also measure reflected radiation, and with a shading loop, it can measure scattered radiation.
3. Sturdy Construction: Equipped with a quartz glass cover processed with precise optical cold work, the sensor is effectively protected against environmental factors that could impact its performance.

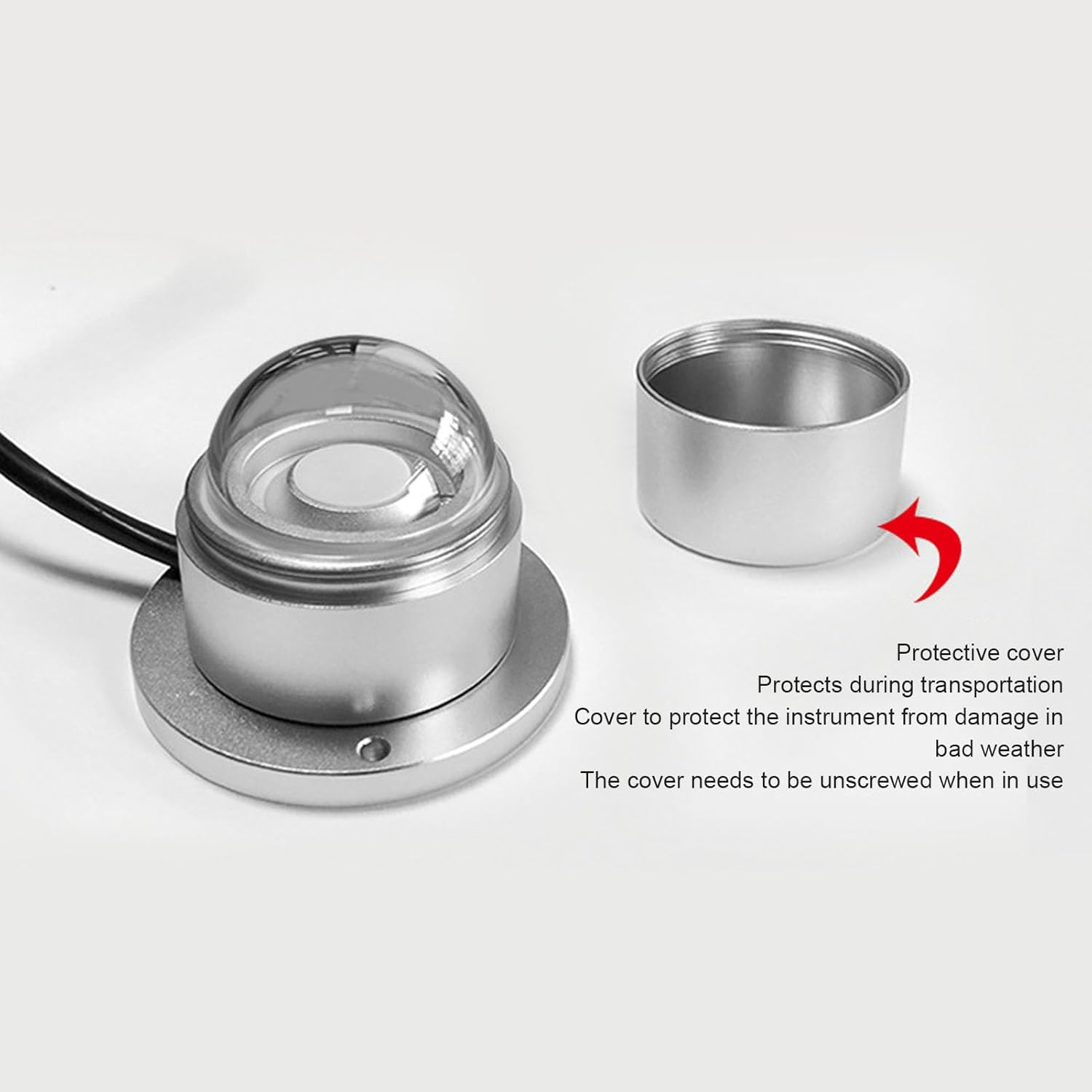

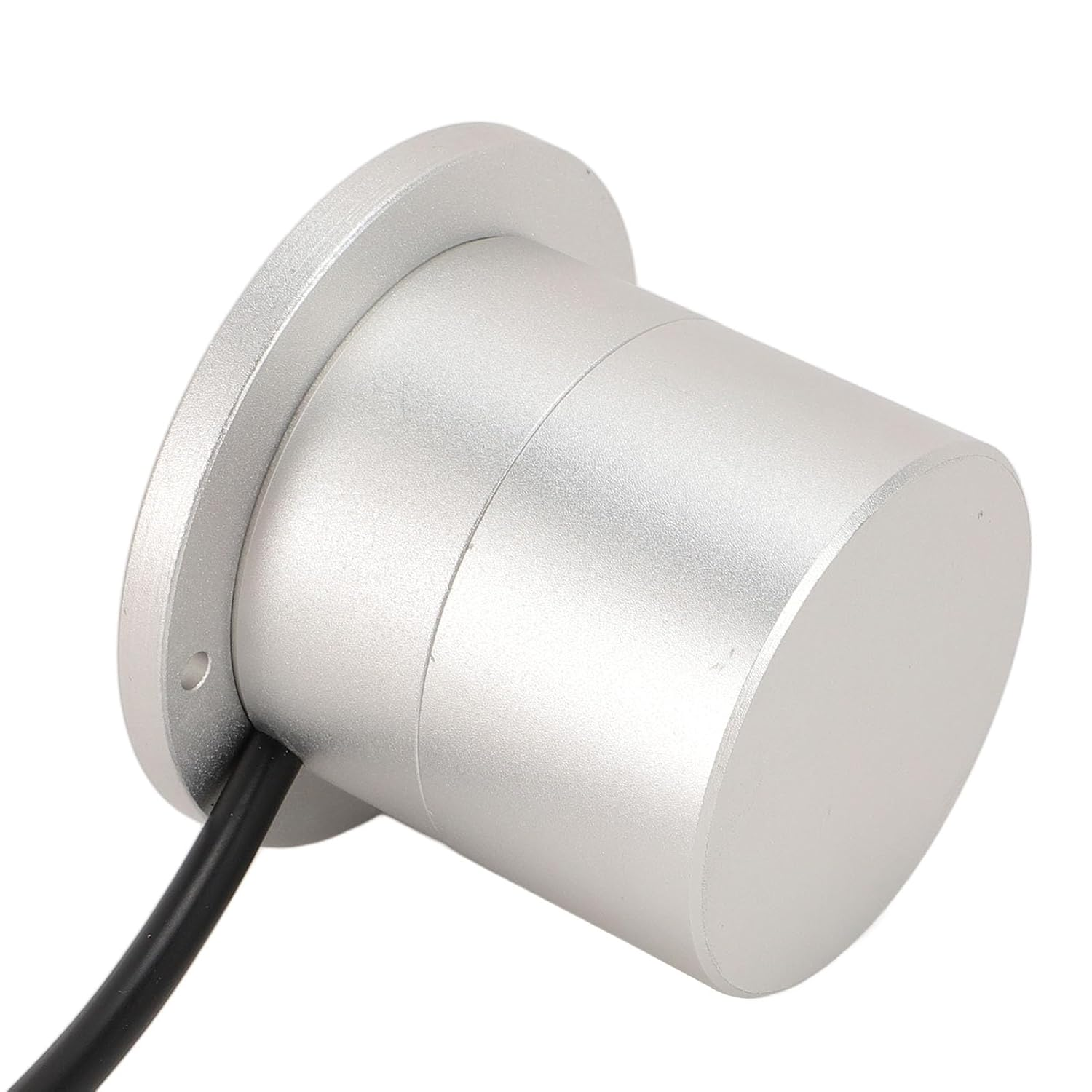

4. : The serves as a protector during transportation and can protect the pyranometer from damage in adverse weather conditions. Simply rotate and unscrew the when in use.

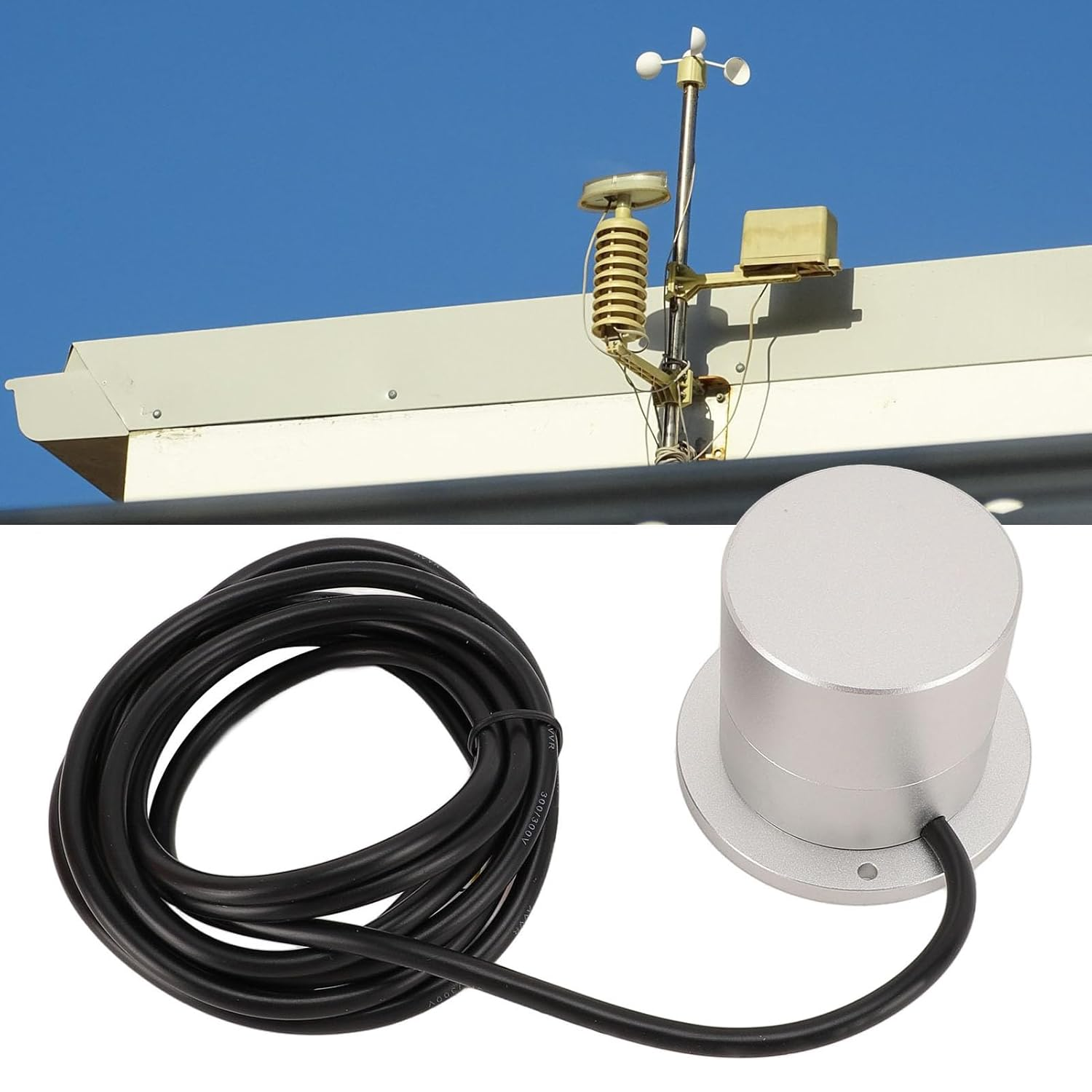

5. Wide Application: With RS232 output and for Modbus protocol, this photoelectric total solar radiation sensor finds extensive use in meteorology, energy, construction, and other fields.
Specification:
Item Type: Solar Radiation Sensor
Material: Aluminum alloy
Weight: Approx. 298.00g/10.5oz
Product Size: Approx. 65x52x49mm/2.56x2.05x1.93in
Bottom Hole Distance: Approx. 57mm/2.24in
Output: RS232 (default for Modbus protocol)
Red Wire: Power positive
Black Wire: Connect to device RX, computer serial port pin 2
Yellow Wire: Connect to device TX, computer serial port pin 3
Green Wire: Power negative
Power Supply: 5V
Spectrum Range: 300 to 1100nm
Resolution: 1W/m2
Measurement Range: 0 to 1500W/m2
Sensitivity: 7 to 14μV/Wm-2
Accuracy: ±5%
Load Capacity: Current output impedance RL≤250Ω
Voltage output impedance RL≥1KΩ
Response Time: Cosine Response: Non Linearity: Annual Variation: Operating Environment: Temperature -40°C to 60°C; Humidity ≤100%RH
Power Consumption: 0.48W
For Modbus CRC Checksum Steps:
1. Initialize a 16 bit register to hex FFFF, referred to as the CRC register.
2. XOR the first 8 bits of data with the low byte of the CRC register and store the result in the CRC register.
3. Right shift the contents of the register by one bit, filling the highest bit with 0, and check the lowest bit.
4. If the lowest bit is 0: Repeat step 3 (shift again). If the lowest bit is 1: XOR the CRC register with the polynomial A001 (1010 0000 0000 0001).
5. Repeat steps 3 and 4 for a total of 8 shifts, processing the entire 8 bit data.
6. Repeat steps 2 to 5 for the next 8 bit data. The final CRC register obtained is the CRC code (low byte first, high byte last).
Troubleshooting:
The displayed value on the instrument is incorrect during output. This may be due to wiring issues or communicating port failure, preventing the correct data acquisition. Please check the wiring for correctness and stability, make sure the serial port is not being used by other devices, and verify the serial port settings are correct.
How to Use:
1. Make sure the mounting bracket is parallel to the ground.

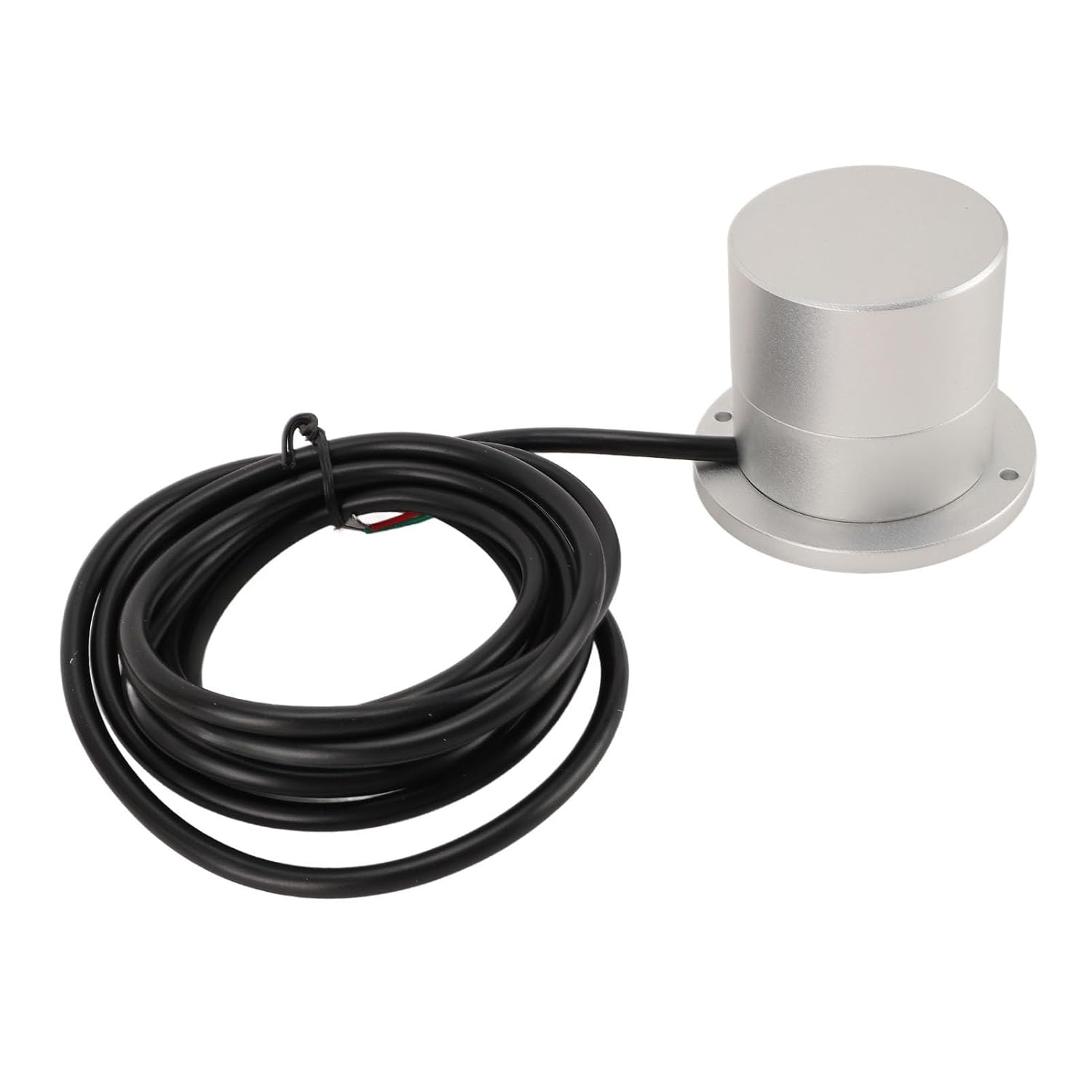

2. Secure the sensor to the mounting bracket through the two mounting holes on the sensor using M3 screws and nuts.
3. Avoid disassembling the sensor during installation.
Package List:
1 x Solar Radiation Sensor
1 x Specification
Note:
1. Please check whether the package is intact, and check whether the product model is consistent with the selection
2. Do not connect the wires with electricity, check the wiring is correct before turning on the power
3. The length of the sensor line will affect the product output signal, do not change when using
4. The sensor is a precise device, do not disassemble the sensor, touch the sensor with cutting objects or corrosive liquids during use to avoid damage to the product
5. When the sensor is in use, please remove the .
