TOPINCN Wind Meter, All round 360 Degree Wind Direction Sensor With, High Accuracy Direction Sensor Transmitter Indicatorfor Meteorology, Aviation, Aerospace, Weather Statio

TOPINCN Wind Meter, All round 360 Degree Wind Direction Sensor With, High Accuracy Direction Sensor Transmitter Indicatorfor Meteorology, Aviation, Aerospace, Weather Statio

Brand: TOPINCN
4.0
A$57.40
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

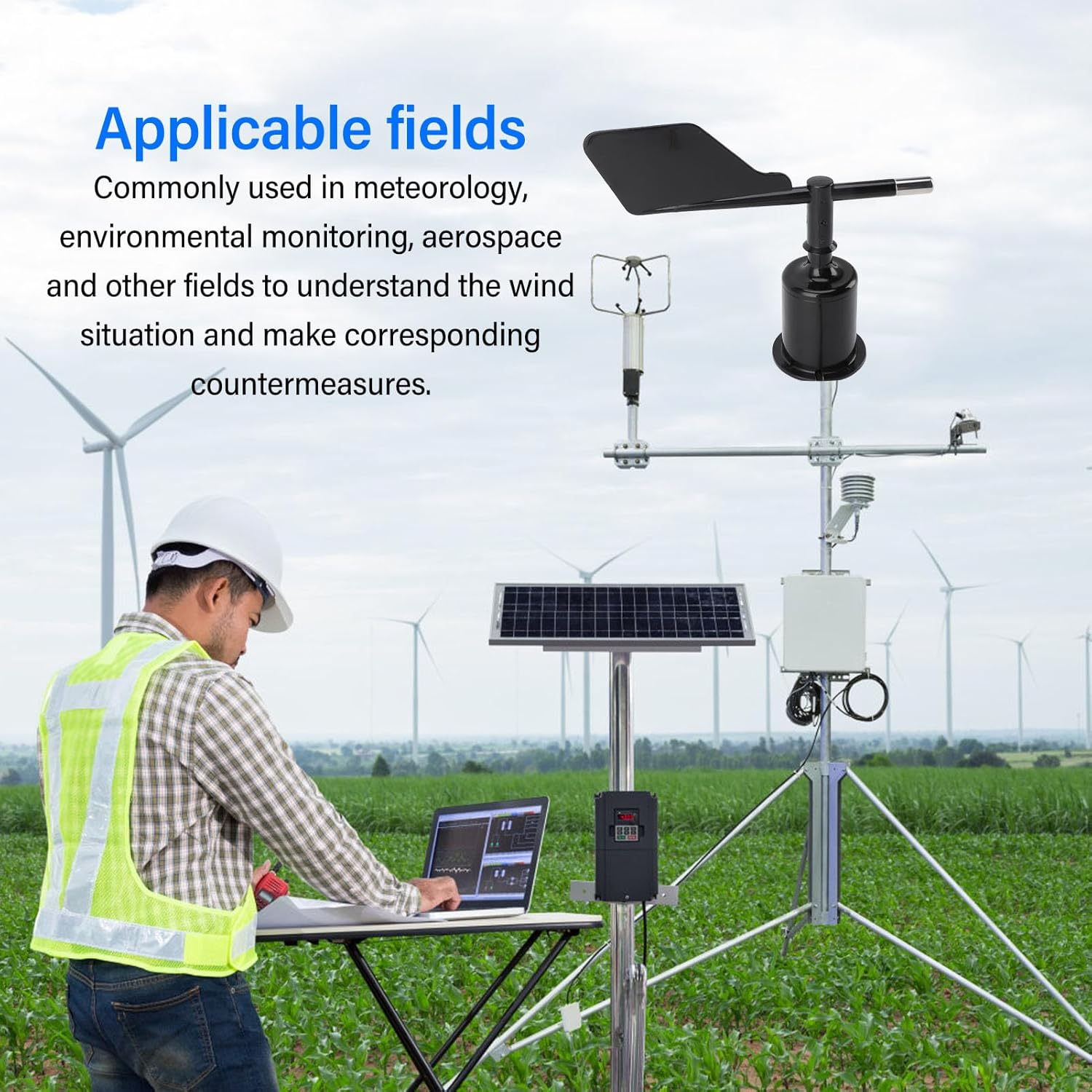

  • [Accurate Rotational Measurements] Operating primarily through rotation, this sensor delivers precise wind direction data. ideal for meteorology, environmental monitoring, aviation, and aerospace applications.

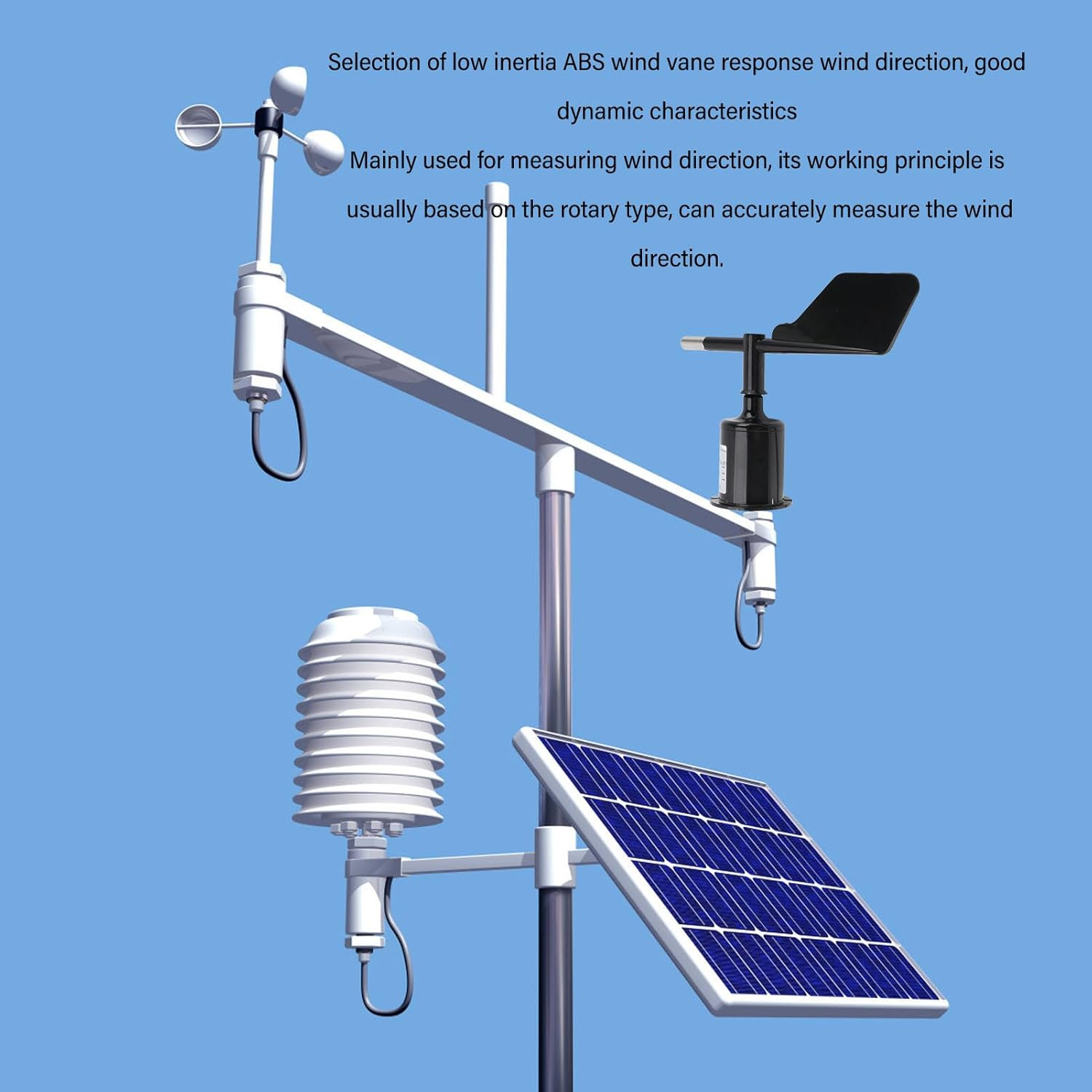

  • [Stable Performance] Crafted with a low inertia abs wind vane, this sensor demonstrates excellent dynamic characteristics and responsiveness to wind direction changes. safe and stable for long-term outdoor use.

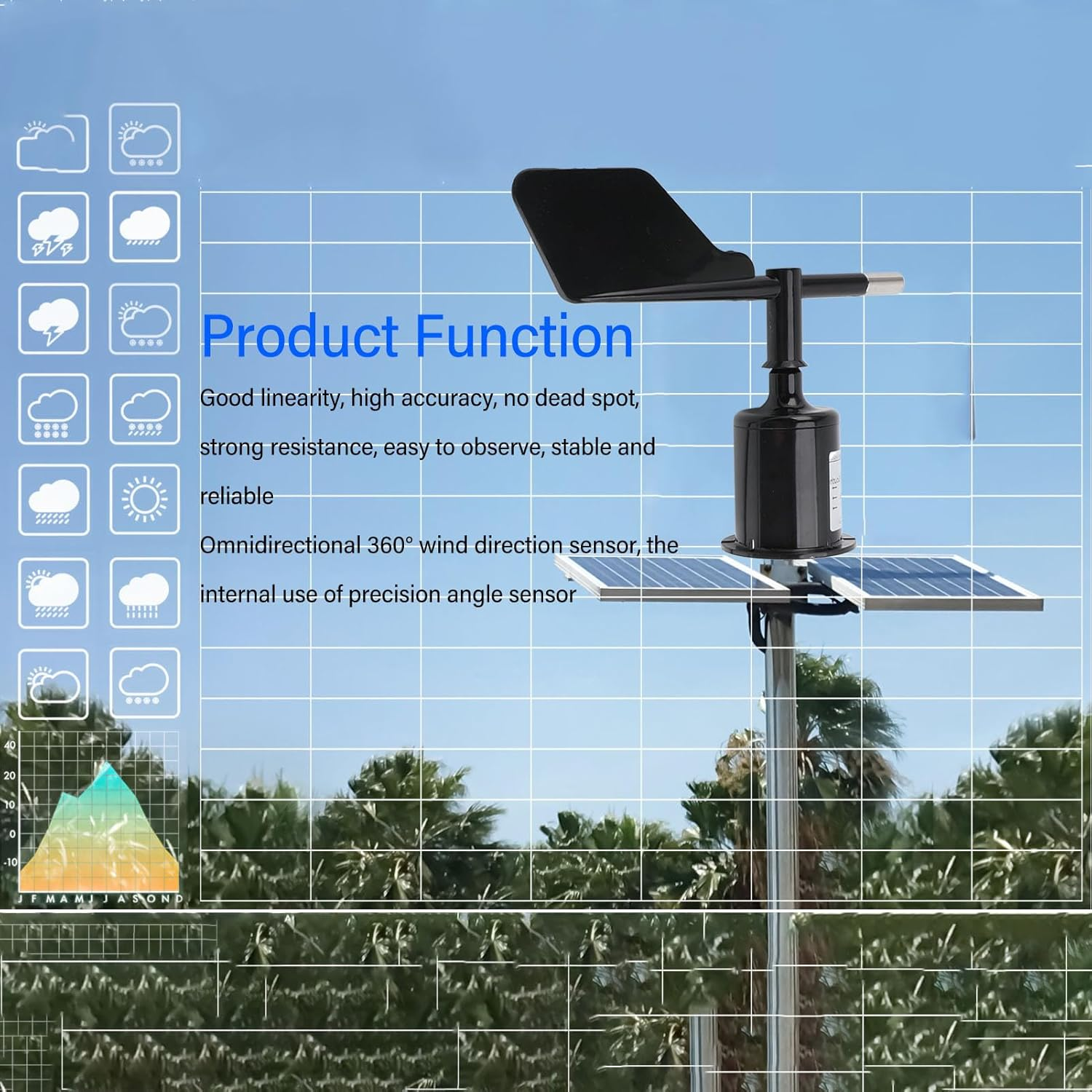

  • [Excellent Linearity and Accuracy] The 360 degree wind direction sensor offers superior linearity, high accuracy, and no dead points, ensuring precise measurements. easy to observe and highly stable.
  • [Portable and Practical Design] With small rotational resistances and a compact size, this sensor is lightweight and easy to carry and assemble. simple yet practical, providing a user-friendly experience.
  • [Versatile Applications] Suitable for a wide range of settings including gardens, greenhouses, environmental monitoring stations, and more. enhance your understanding of wind conditions for effective decision-making.

Specification:
Item Type: Wind Direction Sensor
Material: ABS

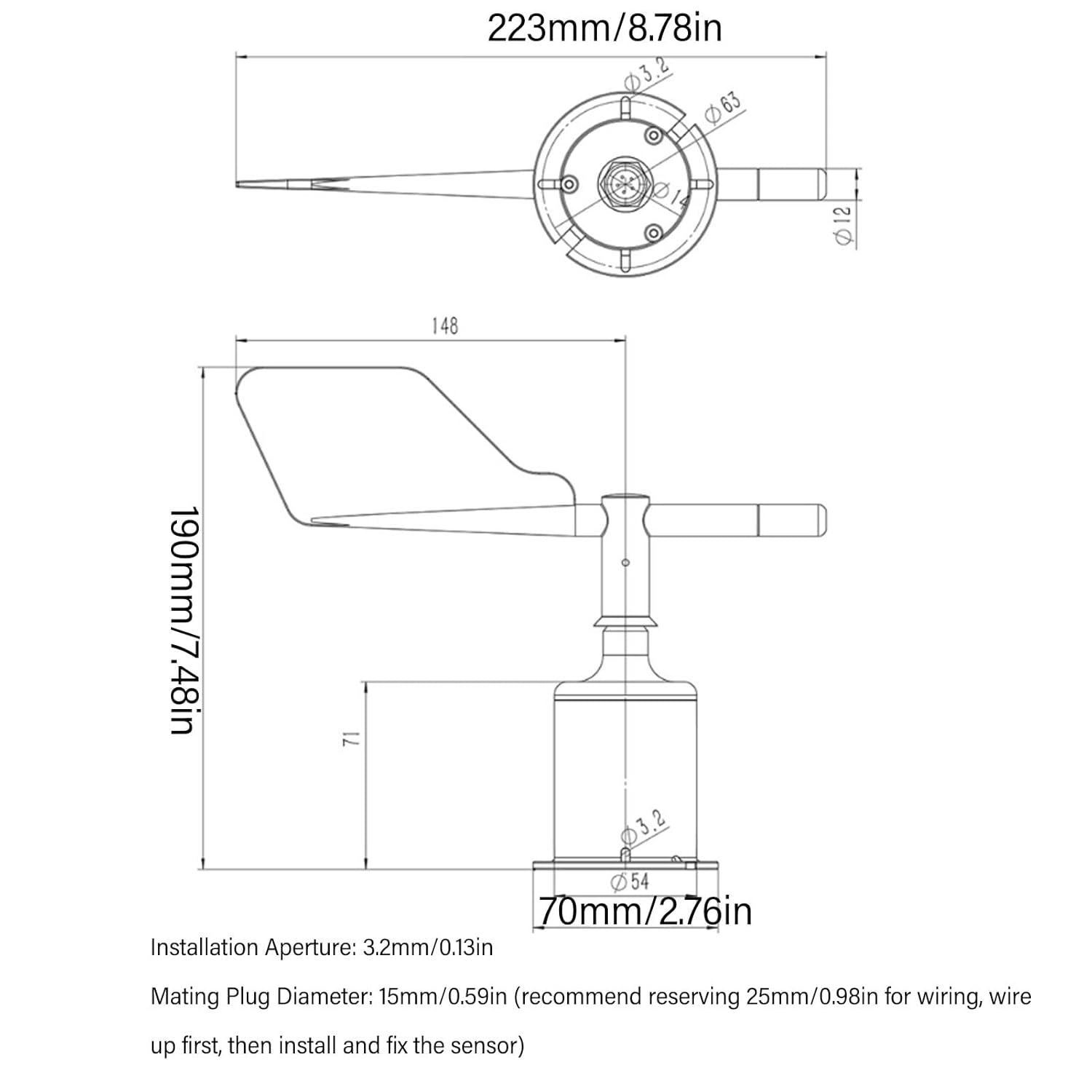

Product Size: Approx. 223x190x70mm/8.78x7.48x2.76in
Gross Weight: Approx. 385.00g/13.6oz
Power Supply Voltage: DC 5V
Output: RS485 for Modbus
Extension Cable Length: 0.8m/2.6ft
Accuracy: Omni directional: ±3°
Resolution: Omni directional: 1°
Startup Wind Speed: ≤0.8m/s
Maximum Power Consumption: 0.48W
Load Capacity: DC 12V power supply, current output impedance ≤350Ω
DC24V power supply, current output impedance ≤900Ω
Voltage output impedance ≥1KΩ
Operating Environment: Temperature -35℃ to 60℃
Humidity ≤100%RH non condensing
Protecting Level: IP64
Cable Level: Rated voltage: 300V 80℃
Application: for garden, greenhouse, environmental protecting, meteorological station, ship, dock, aquaculture, advertising barrier, weather, marine, environment, airport, port, laboratory and traffic environment wind direction measurement
Installation Aperture: 3.2mm/0.13in
Mating Plug Diameter: 15mm/0.59in (recommend reserving 25mm/0.98in for wiring, wire up first, then install and fix the sensor)

  • Country of origin: China
  • Package Dimensions: 24 x 21 x 8 cm; 385 Grams
  • Manufacturer reference: TOPINCNk75yc1v8fn
  • Manufacturer: TOPINCN
