Spec:

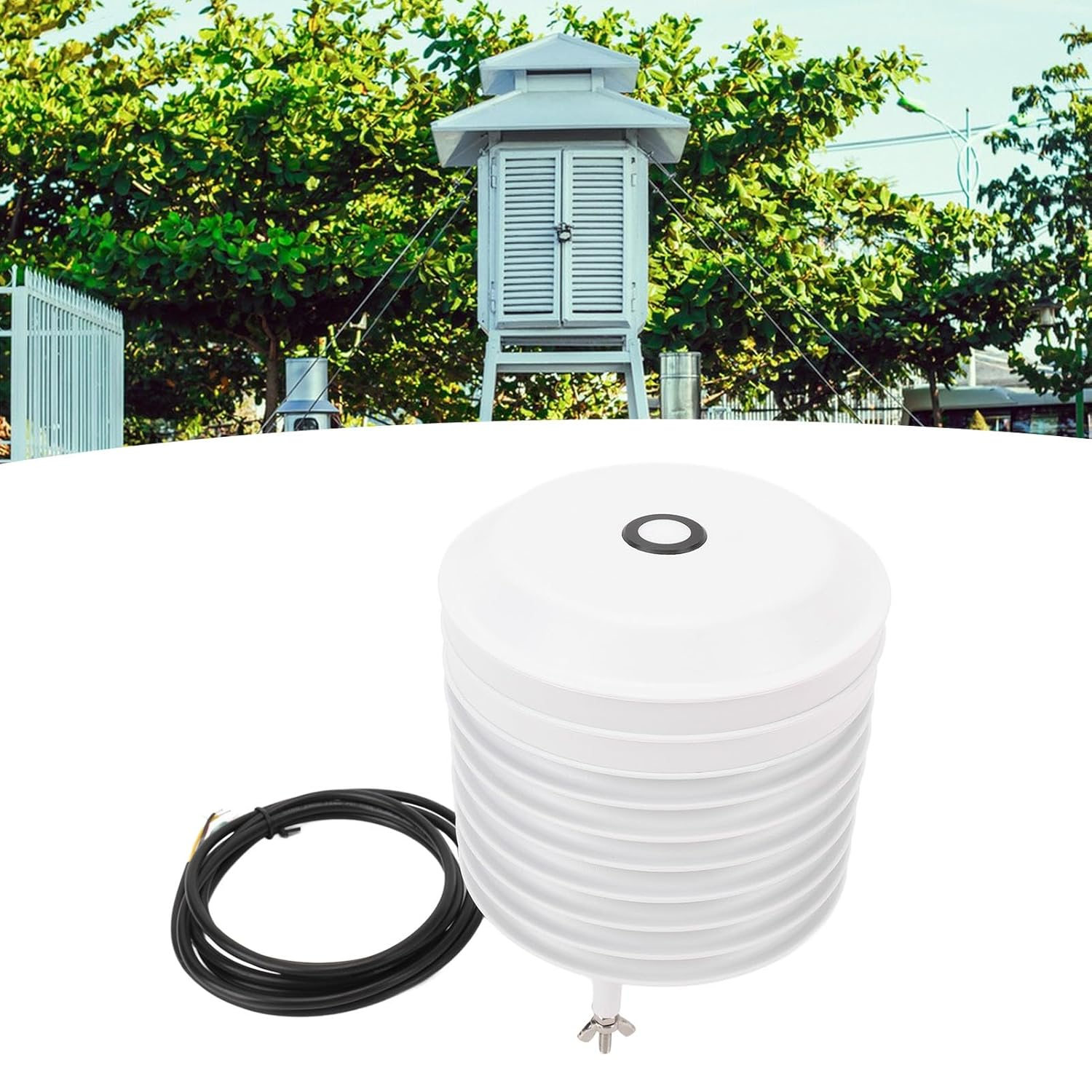

Item Type: Weather Sensor
Product Material: ABS
Functions: Atmospheric Temperature, Atmospheric Humidity, Light , CO2
Power Supply Mode: 9-30V
Output Form: RS485
Product Size with Bending Plate: Approx. 262 x 215mm / 10.3 x 8.5in

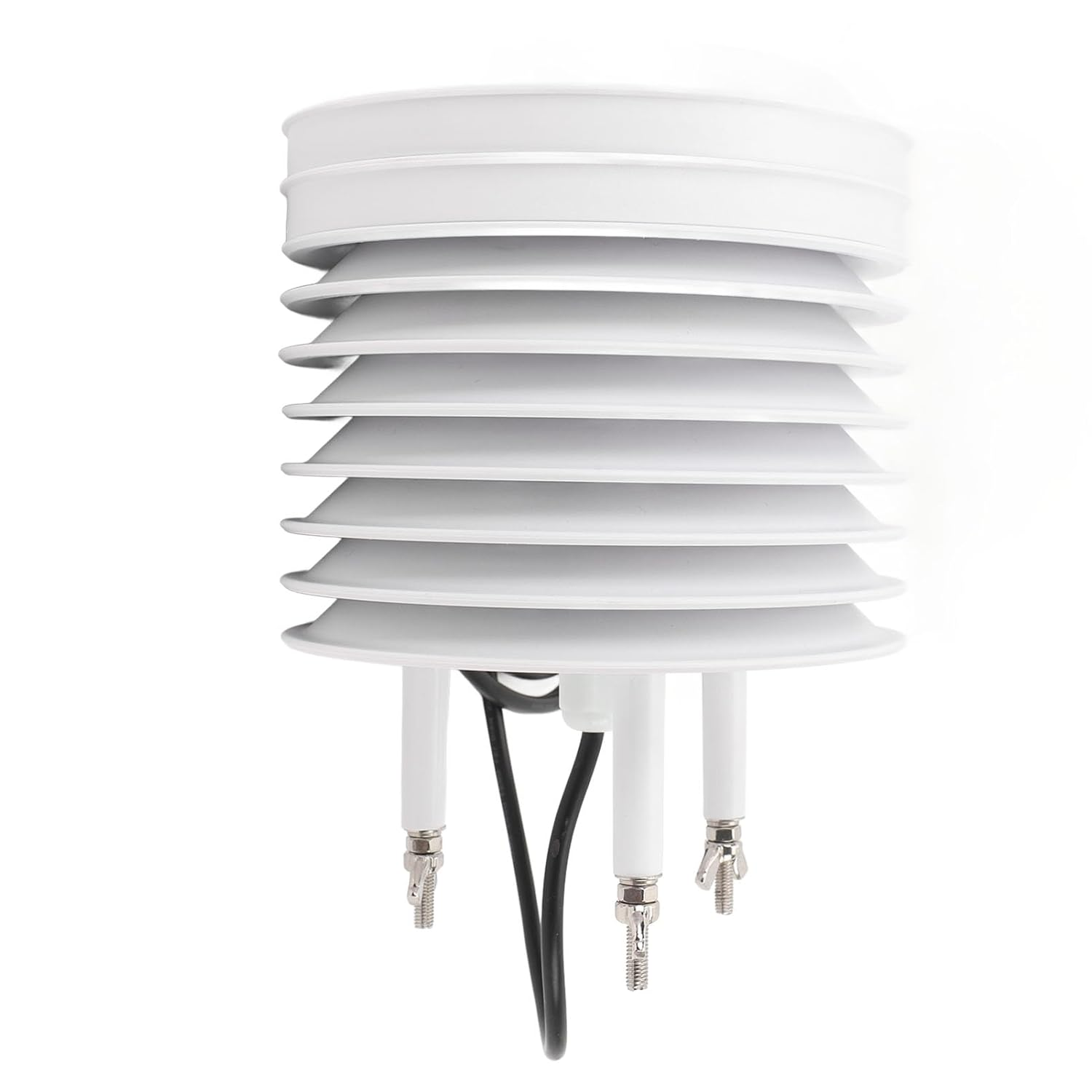

Louver Box Size: Approx. 140 x 127mm / 5.5 x 5in
Weight: Approx.1266g/44.66oz
Measurement Type Range Accuracy Resolution Power Consumption
Luminous Flux 0-200000Lx (Outdoor) ±4% 1Lx 0.1mW
0-65535Lx (Indoor) 0.1mW
CO2 0-5000ppm ±(50ppm+5%) 1ppm 100mW
Atmospheric Temperature -40-100℃ (Digital Output) ±0.3℃(Standard) 0.1℃ 1mW
Atmospheric Humidity 0-100 %RH ±5%RH (Standard) 0.1%RH Sensor Total Power Consumption: Multi Factor Power Consumption + Mainboard Basic Power Consumption
Working Environment: -40℃-75℃
Main Board Basic Power Consumption: 200mw
Protective Level: IP54
Wire Color and Wiring Sequence (RS485 Signal)
Red Wire: VCC Power Supply Positive Pole
Green Wire: GND Power Supply Negative Pole
Black Wire: 485-A
Yellow Wire: 485-B
Checking Steps:
1. The preset 16 bit register is hexadecimal FFFF, is called CRC register;
2. The first 8 bit data is different from the lower part of the CRC register or put the result in the CRC register;
3. Move the contents of the register to the right one bit (towards the low), fill the highest bit with 0, and check the lowest bit;
4. If the lowest position is 0: repeat step 3 (shift again) If the lowest position is 1: the CRC register is XOR with polynomial A001 (1010 0000 0000 0001);
Package List:
1 x Louver Box
1 x Bending Plate
1 x User Manual
