1. Small in size and light in weight, easy to carry and assemble, 8 directions and easy to operate.
2. It is made of polycarbonate housing, which has high mechanical strength, high hardness, corrosion and .
3. Anti‑exposure, high impact strength, long service life, suitable long‑term use in outdoor environments.
4. With the internal smooth bearing system, the accuracy of information collection is effectively ensured and the use is more convenient.
5. High‑performance bearings, low rotational , accurate measurement, anti‑electromagnetic interference treatment, can be applied to both four‑wire and three‑wire connection.
Spec:
Condition: 100% Brand New

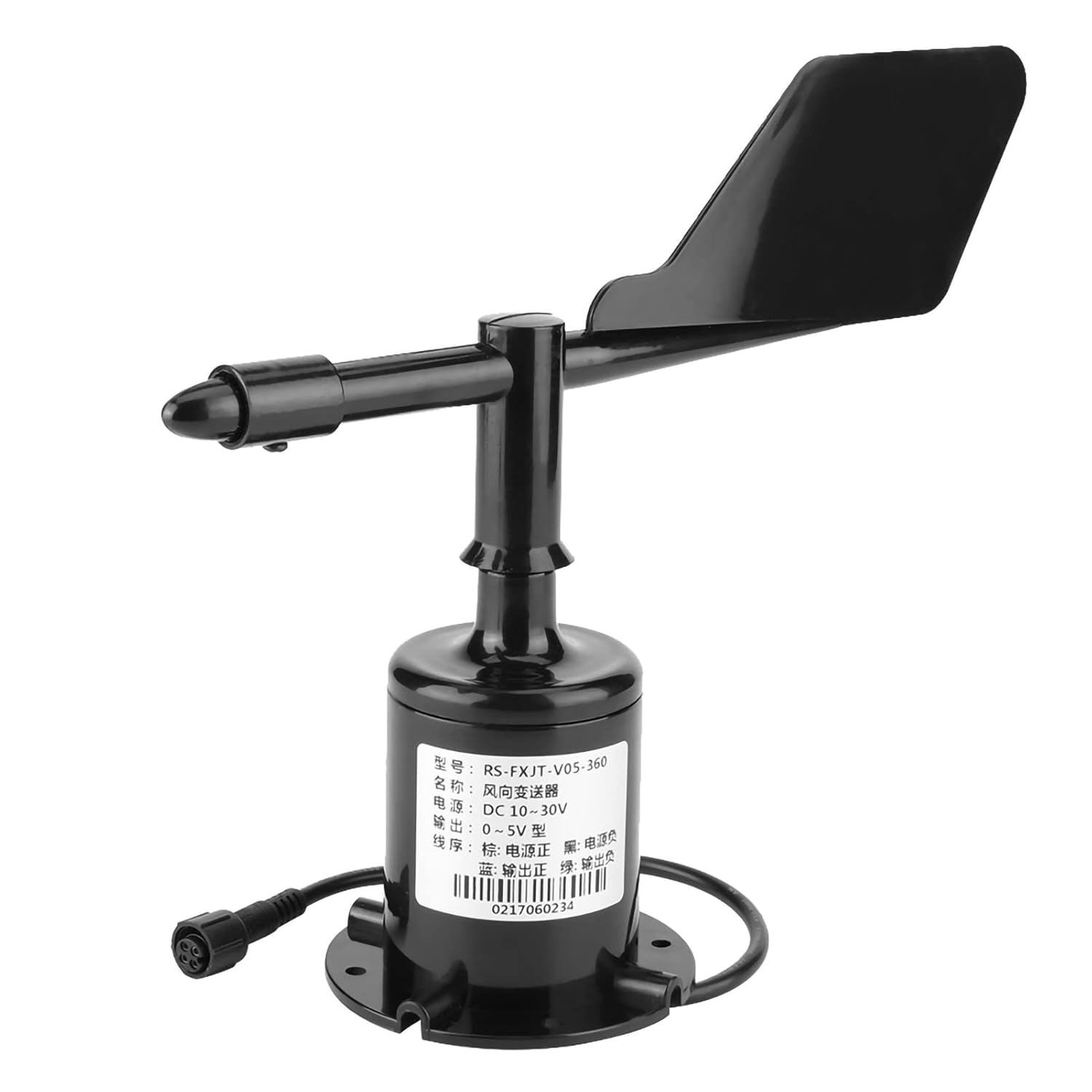

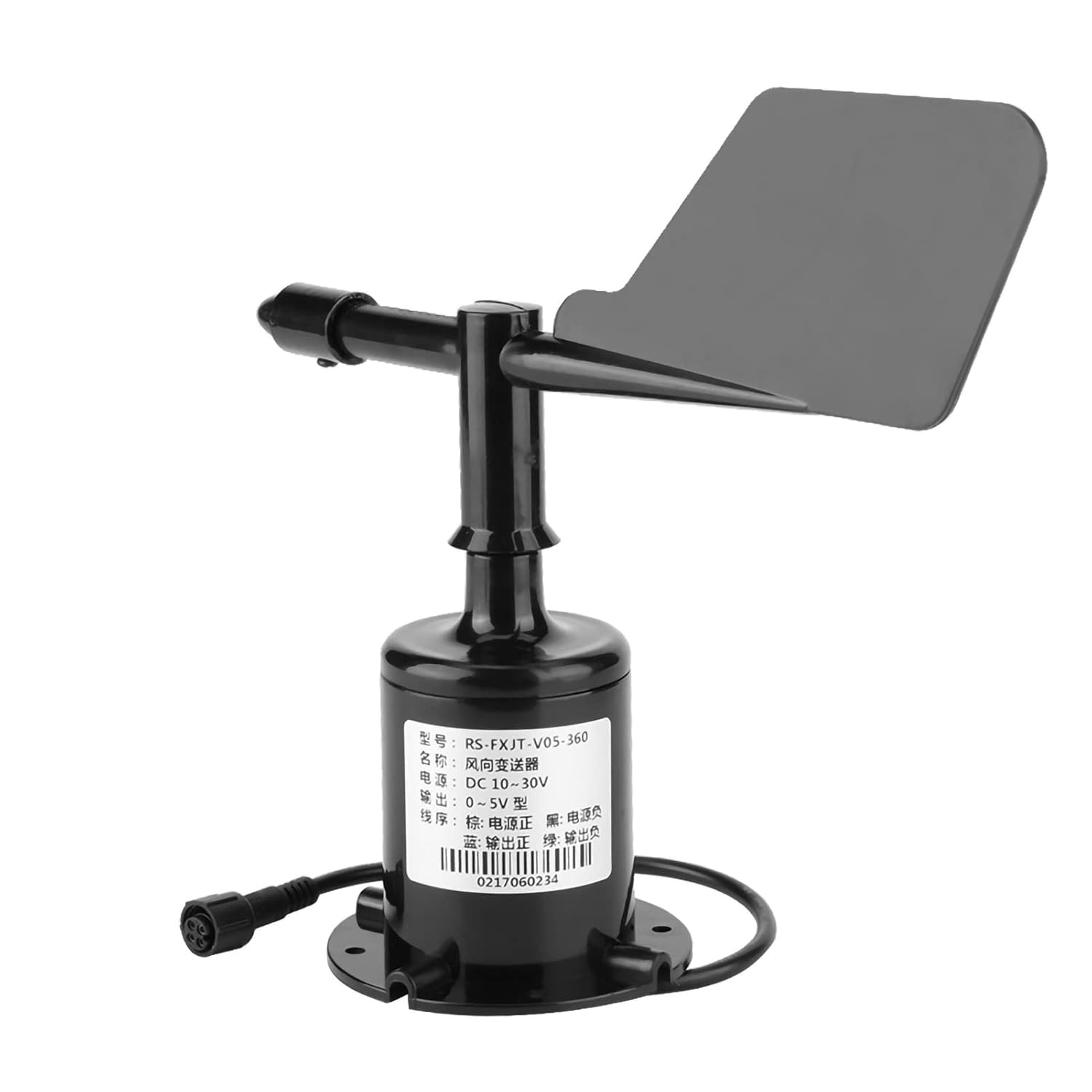

Item Type: Wind Direction Sensor
Material: Polycarbonate
Wide Voltage: 10-30V DC Power Input

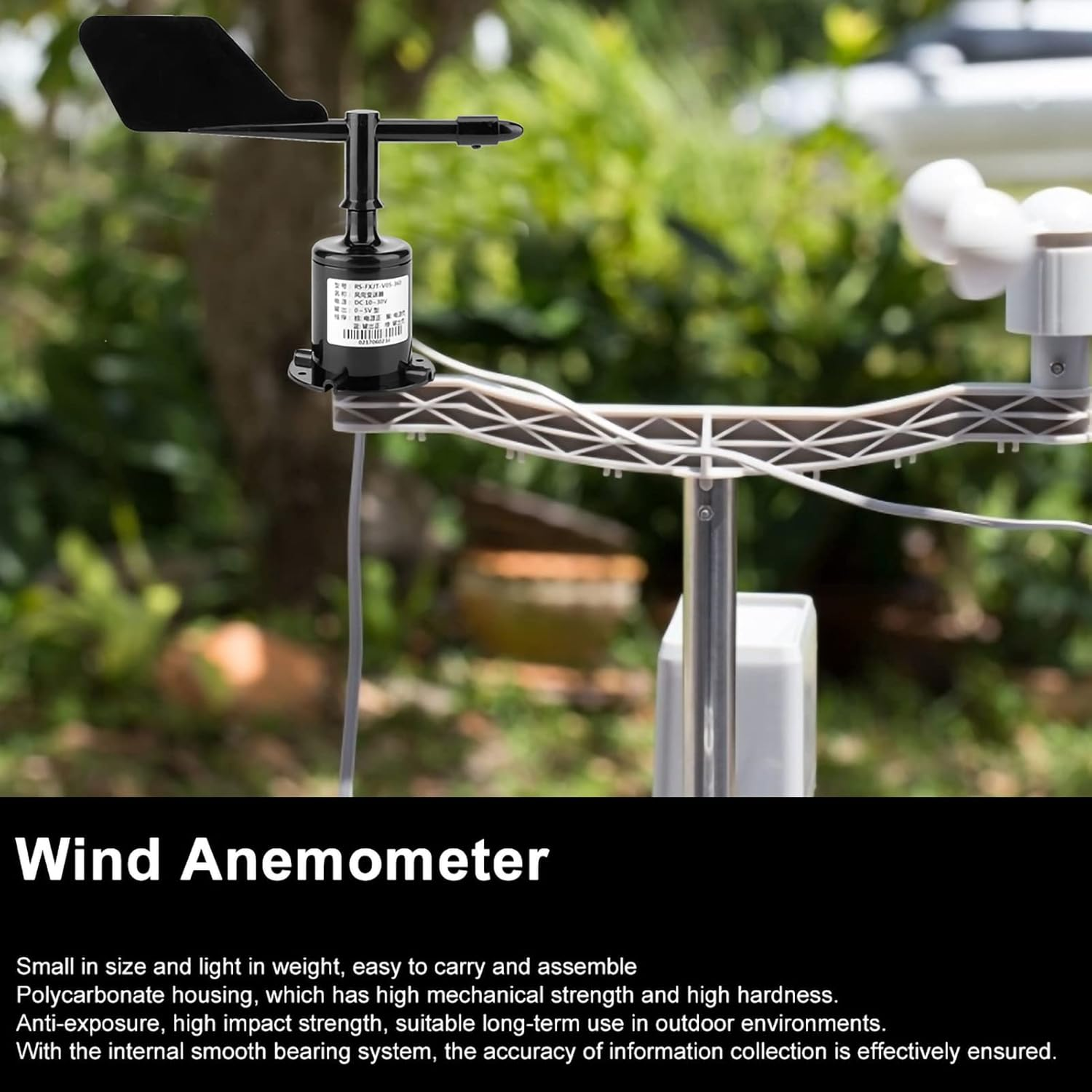

Application: Widely used in the measurement of wind direction in greenhouses, environmental protection, weather stations, ships, wharf, breeding and other environments.
Parameter:
DC Power Supply (Default) 10-30V DC
Maximum Power Consumption Voltage Output 1.2W
Transmitter Circuit Operating Temperature -20℃ to +60℃, 0%RH-80%RH
Dynamic Response Time ≤0.5s
Output Signal Voltage Output 0-5V
Load Capacity Voltage Output Output ≤600Ω
Calculation Method:
0-5V Output Comparison Table
Output Value (V) Corresponding Wind Direction
≈0 North Wind
≈0.7143 Northeast Wind
≈1.4286 Wind
≈2.1429 Southeast Wind
≈2.8571 South Wind
≈3.5714 Southwest Wind
≈4.2857 West Wind

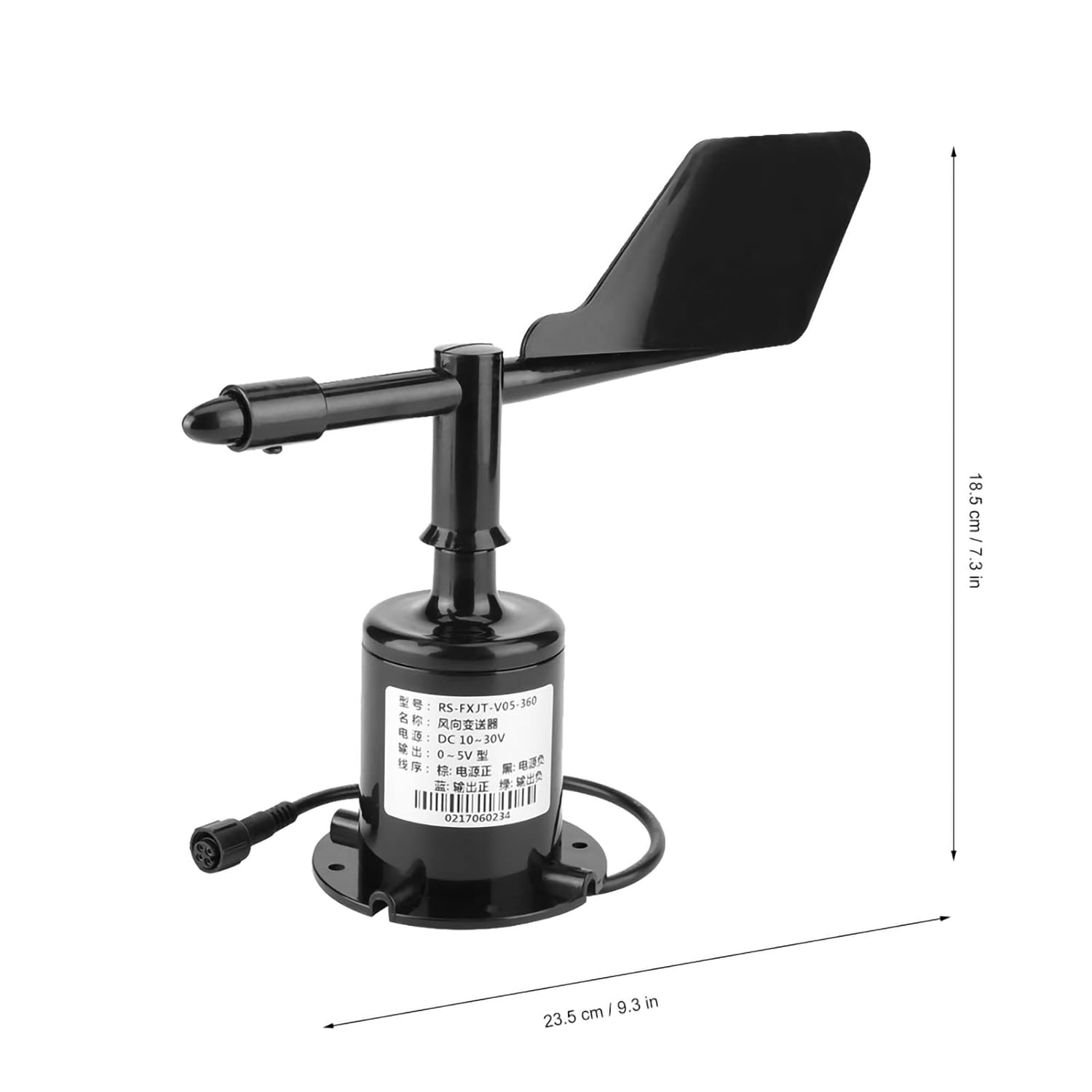

≈5 Northwest Wind Product Size: Approx. 23.5 x 18.5 cm / 9.3 x 7.3 in
Weight: Approx. 315g / 11.1oz
Common Problems and Solutions:
No output or output error possible causes:
1) The range corresponding error causes the error PLC calculation. Please refer to the technical indicators for the range.
2) The wiring method is incorrect or the wiring sequence is wrong.
3) The power supply voltage is incorrect (24V power supply for 0-10V type).
4) The distance between the transmitter and the collector is too long, causing signal disturbance.
5) The PLC collection port is damaged.
6) Equipment damage.

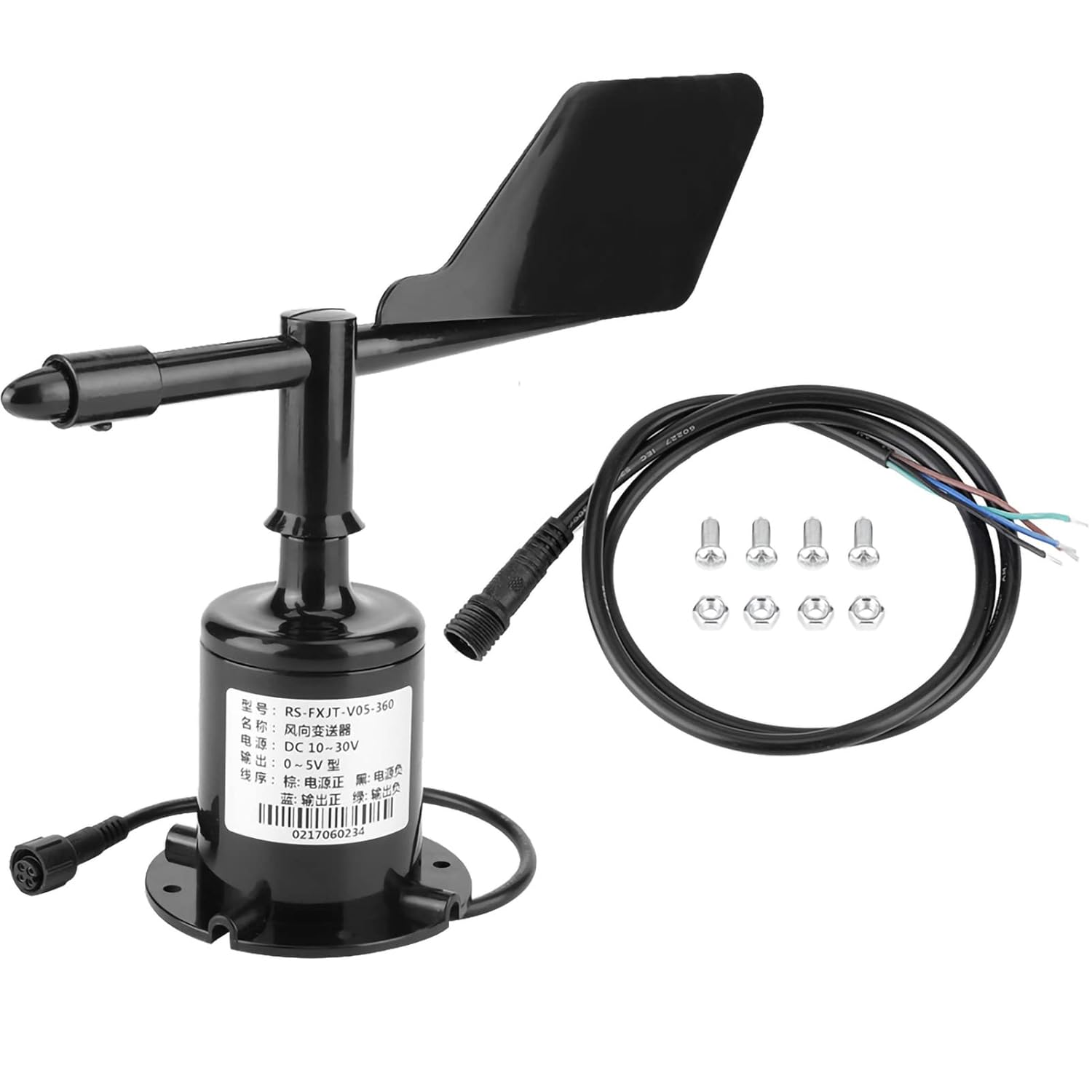

packing list:
1 x Wind Direction Sensor

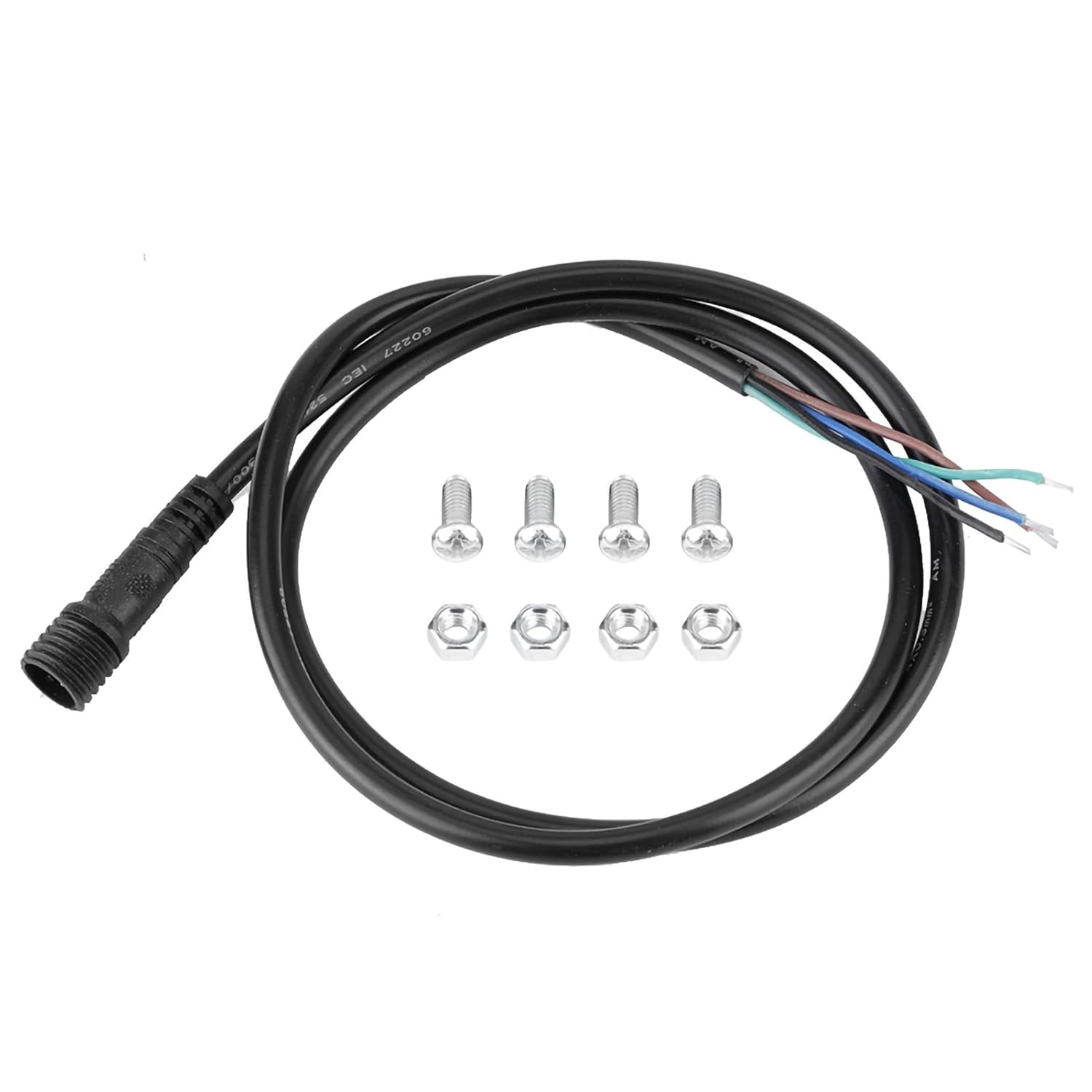

1 x Cable
1 x Screw Kit (4 x Screw, 4 x Nut)
Note:
1. The user should not disassemble it by himself, and should not touch the sensor core to avoid damage to the product.
2. Keep away from high-power interference equipment as much as possible to avoid inaccurate measurement, such as inverters, motors, etc. When installing or disassembling the transmitter, the power must be disconnected firstly, and water in the transmitter can cause irreversible changes.
3. Prevent chemical agents, oil, dust, etc. from directly invading the sensor, do not use it for a long time under condensation and extreme temperature environment, and prevent cold and heat shock.
