Specific:
Article type: temperature sensor
Product size: approx. 147 x 88 x 41 mm / 5.79 x 3.46 x 1.61 inches
Power cabling: 10 ~ 30 V DC wide voltage input.

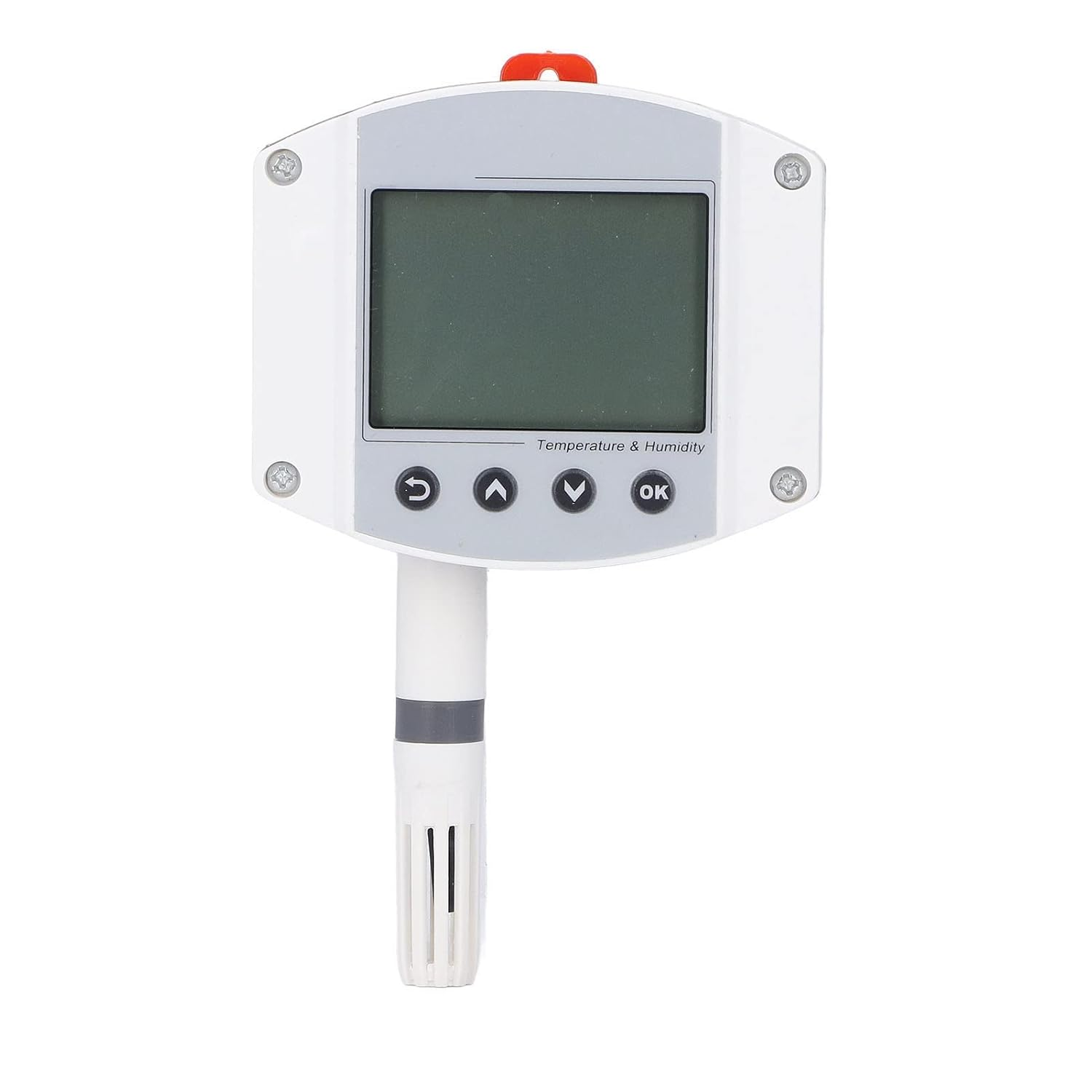

Product overview: The measurement converter is an industrial wall Box/Cover with a high type of protection. The circuit uses a microprocessor chip in industrial quality and a high-precision temperature and moisture sensor to ensure excellent reliability, high accuracy and productivity. If 4 ~ 20 mA takes analogue output of the industrial standard interface, can be connected to digital display, PLC, inverter, industrial control host and other devices on site, safe and reliable appearance, good appearance, simple installation.
Weight: 178 g / 6.28 ounces (approx.)
Installation method:
1. Wall mounting: The back of the transmitter is equipped with a slide rail mounting plate, please remove the assembly plate first. There are two dowels and two sheet metal screws in the accessories. First drill two holes with a diameter of 5 mm and a depth of ≥ 30 mm into the wall (the distance between the holes is 70 mm). After plugging in the wall socket, attach the sliding rail mounting plate with self-tapping screws to the wall and finally push it into the transmitter.

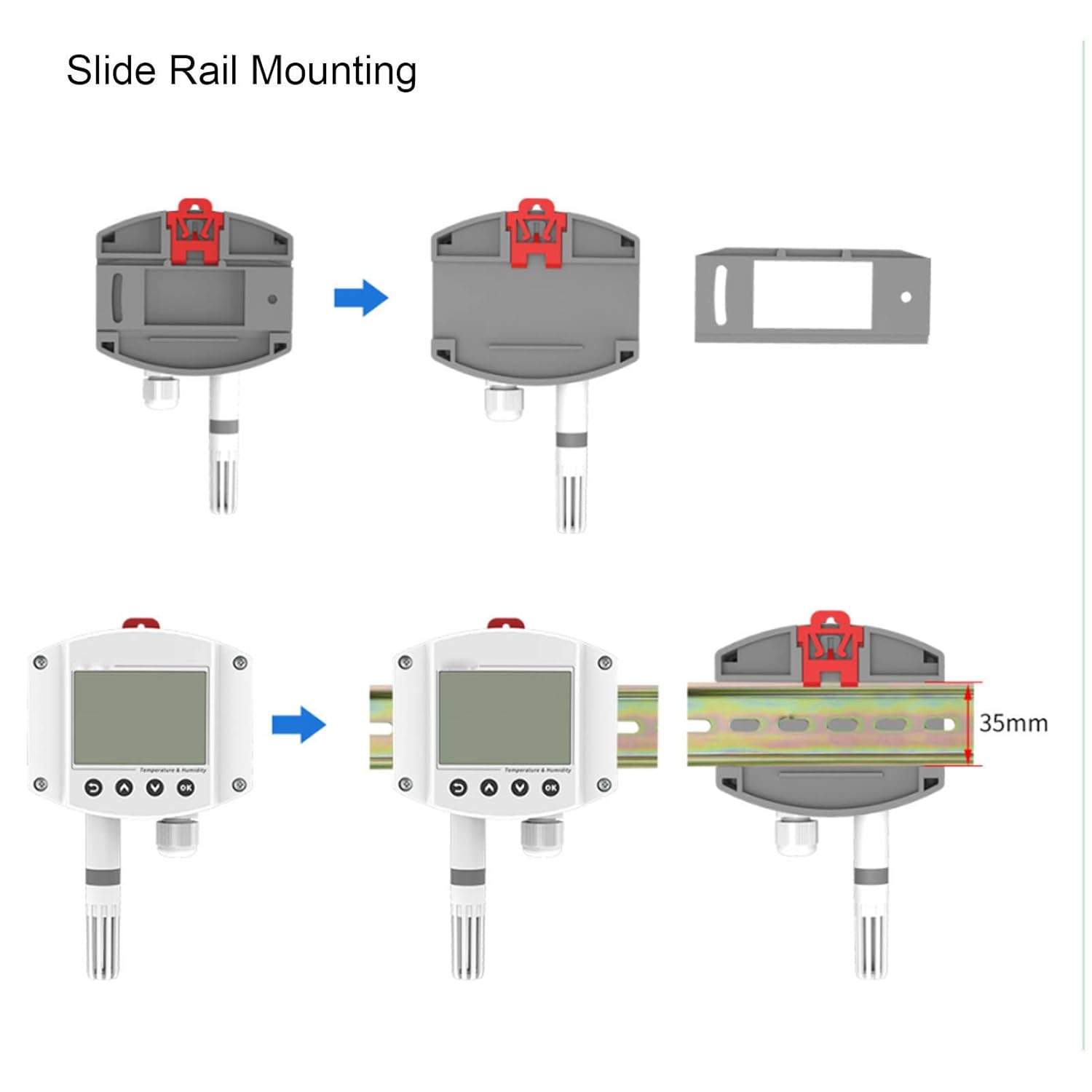

2. Installation of the slide line: On the back of the transmitter there is a sliding rail mounting plate, please remove the assembly plate first. The transmitter is inserted directly into a 35 standard rail.
Package list:
2 screws
2 sockets
1 temperature sensor
1 operating instructions
