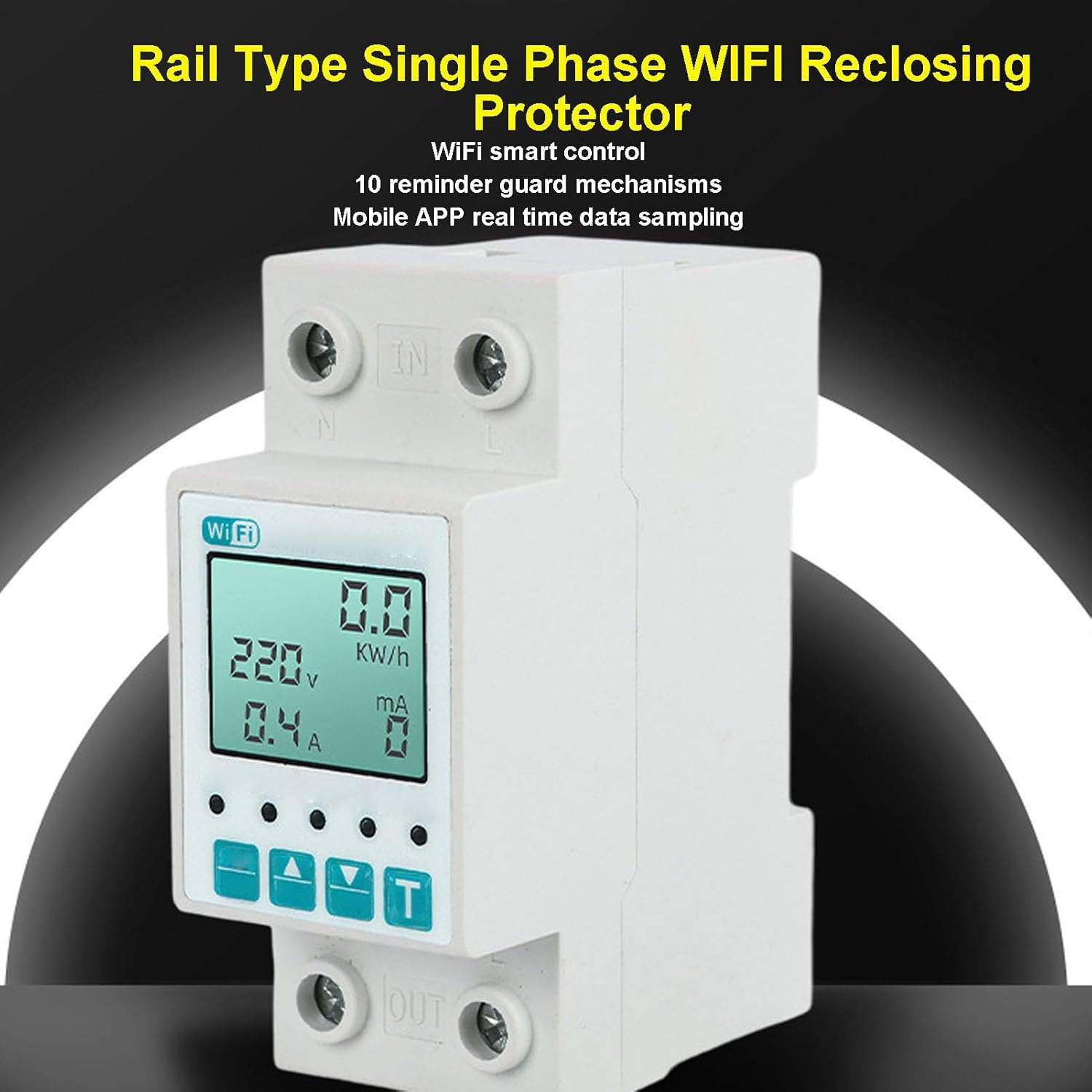

1. [Multifunctional Energy Meter] Designed for energy consumption monitoring, equipped with a large LCD display screen for displaying voltage, current, and energy.

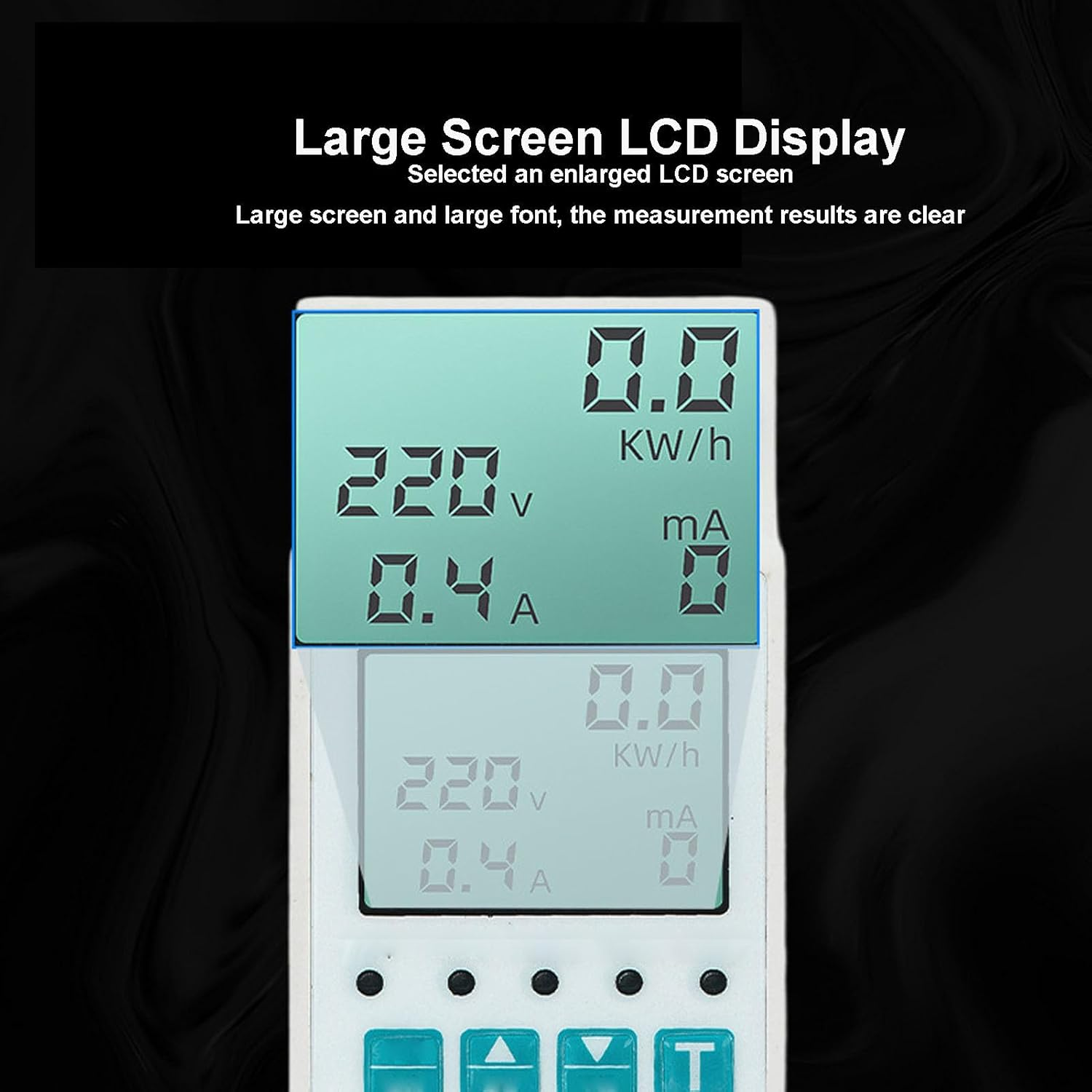

2. [Large LCD Display] The WiFi smart energy meter features an enlarged LCD screen with large font size, making measurement results clearly visible.

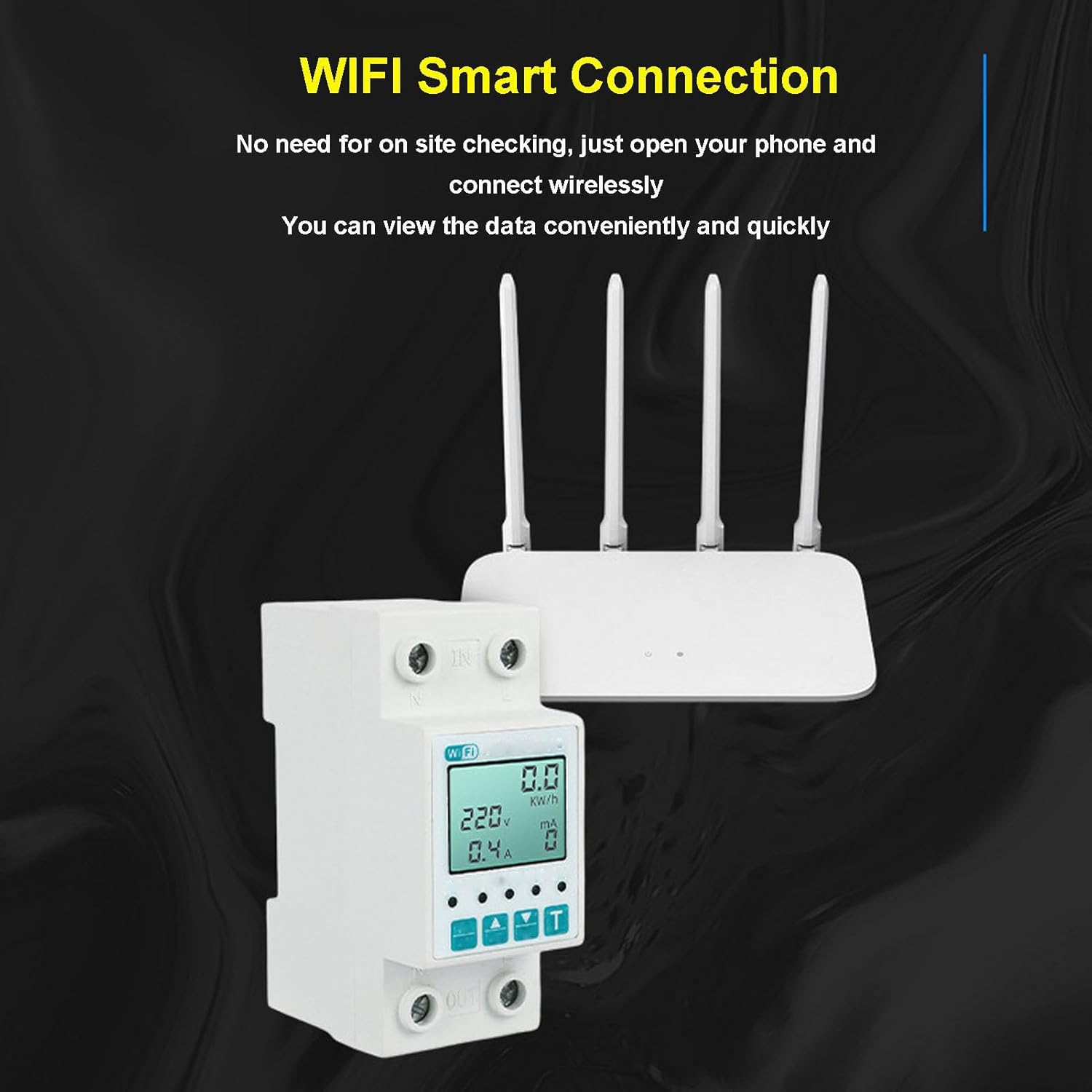

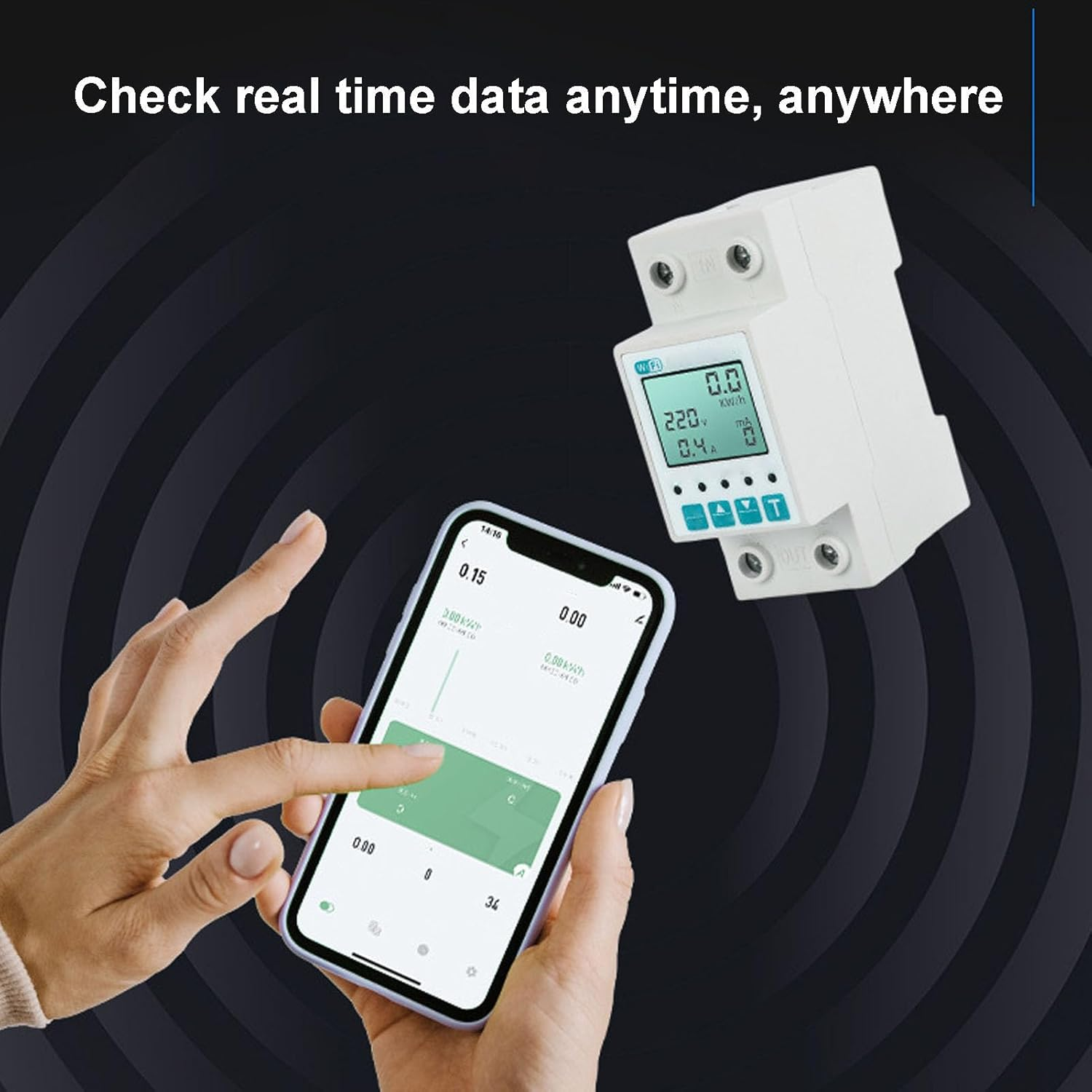

3. [Remote and Voice Control] You can control household devices through smartphone anytime, anywhere. Check device power consumption through APP.
4. [Timer and Schedule Function] The smart energy meter can set timer and countdown to automatically turn on and off your household appliances according to your daily schedule.
Specification:
Item Type: WiFi Smart Energy Meter
Material: ABS
Operating Voltage Range: AC80V-400V (single phase)
Rated Frequency: 50/60Hz
Current (>A): 1-63A
Over Voltage (>U): 120-300V Setting Range: (adjustable)
Under Voltage (Leakage Guard: 10-99mA OFF
Guard (Can be Turned off): >U and Over Current and Leakage Guard Times: 1-30 OFF
Power Display Range: 0-99999.9kw/h
Reset/Start Delay: 10s-99s
Operating Temperature: -30℃ to 70℃
Features:
1. Can open or close remote control via mobile phone anytime, anywhere
2. Check current voltage, current, and total power on the phone
3. Set over voltage, under voltage and leakage current in the APP or on the protector
4. Under Voltage Guard: 80V-210V (adjustable) (default: 175V)
5. Over Voltage Guard: 120V-300V (adjustable) (default: 275V)
6. Over Current Guard: 1A-63A (adjustable) (default: 63A)
7. Leakage Guard: 10-99mA (default: 50mA), this function can be turned off
8. Reconnect Time (Delay Time: -1099 default: 0 seconds)
9. Over Current and Leakage Guard Time: 1-30 OFF (default: 5), this function can be turned off (this parameter is set only in the APP)
10. Four Picture Modes: Schedule mode, countdown mode, cycle timing, momentary mode
How to Use:
Take
