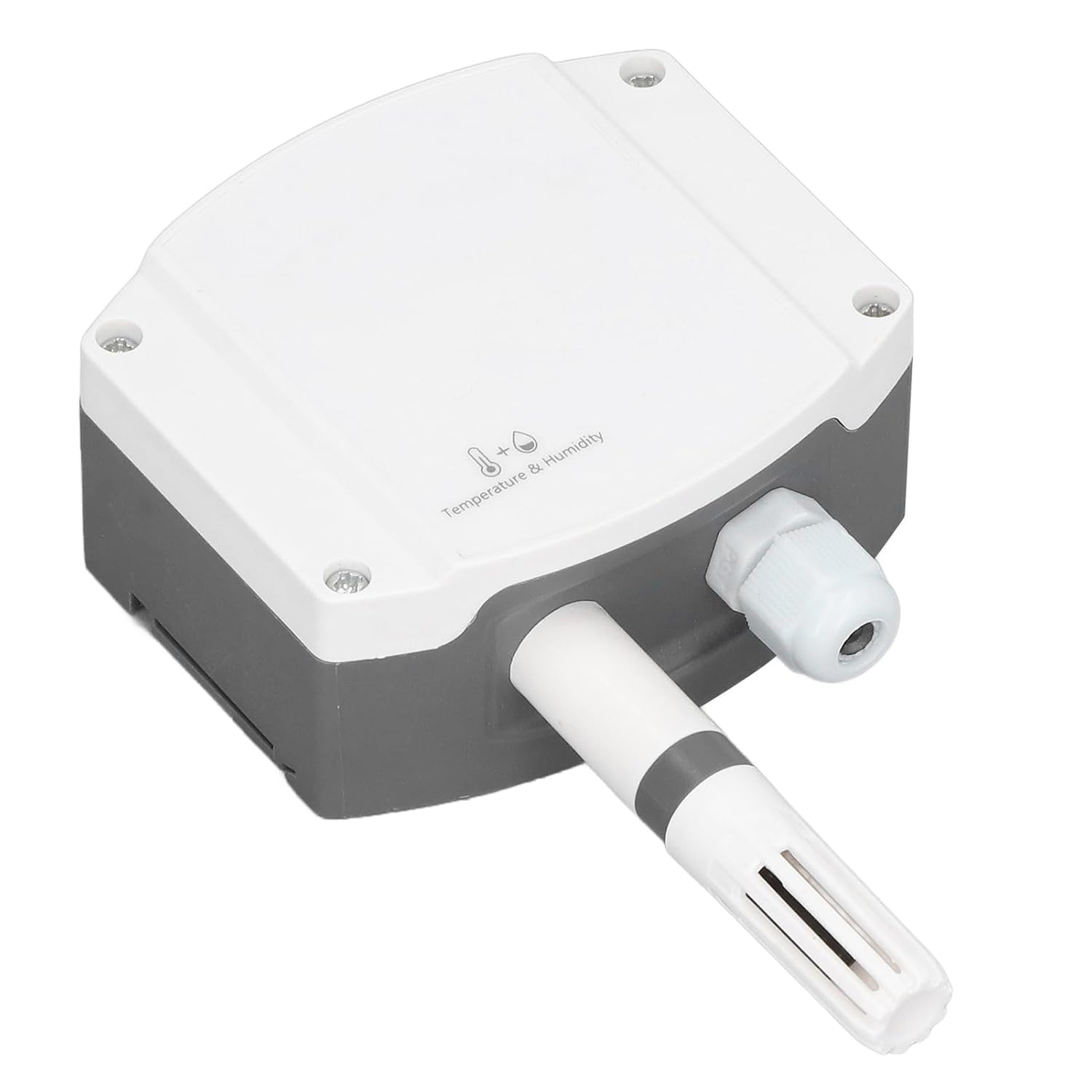

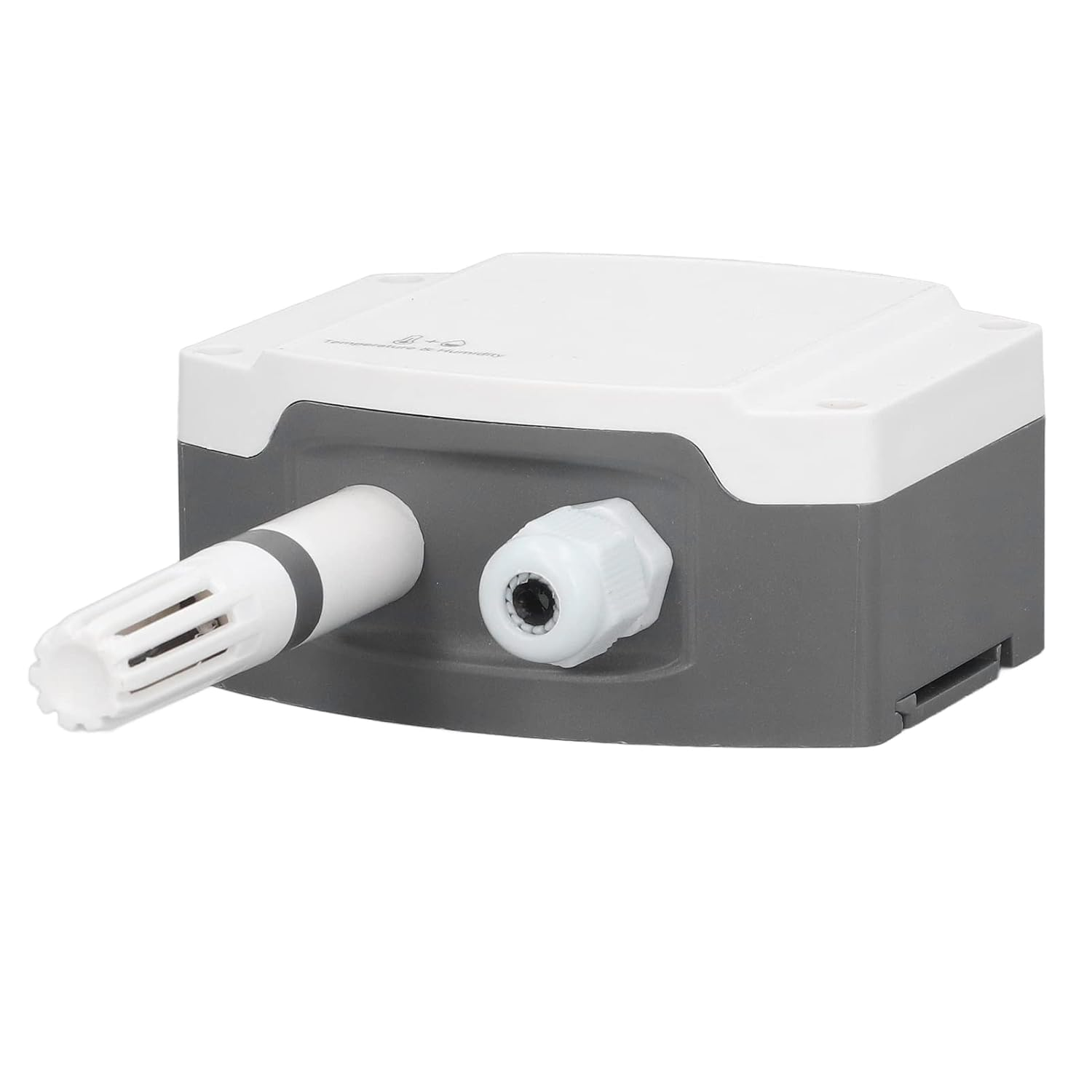

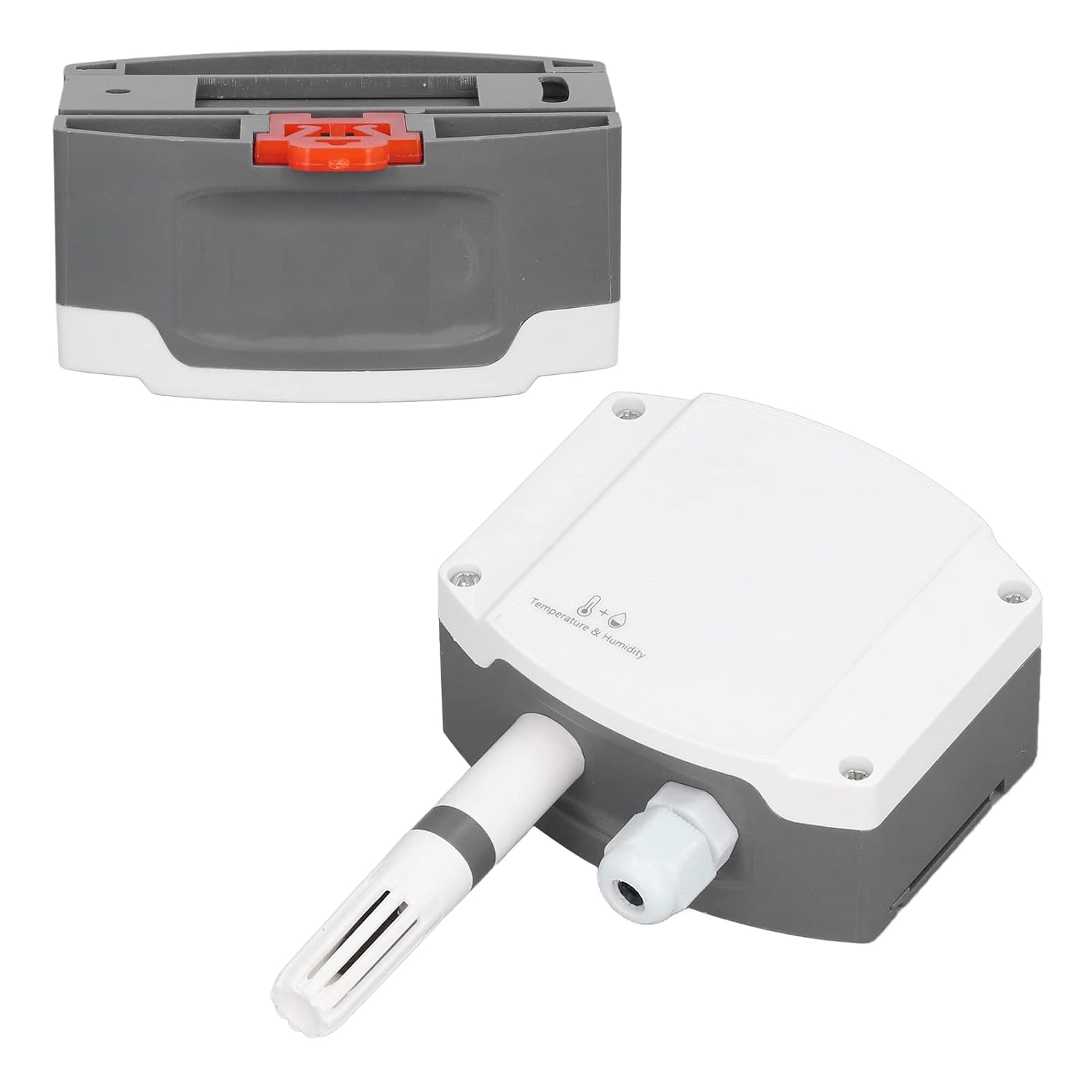

Temperature and Moisture Transmitter, Temperature and Moisture Recognition Sensor Transmitter Module, 4~20 MA Voltage Converter Module Sensor

Temperature and Moisture Transmitter, Temperature and Moisture Recognition Sensor Transmitter Module, 4~20 MA Voltage Converter Module Sensor

Brand: OVAQUIXI
4.2
A$47.75
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Safe and reliable: 10 ~ 30 V Wide voltage input power supply, safe and reliable, beautiful appearance, easy to install, can be mounted on the wall or on the rail
  • Safe and reliable: 10 ~ 30 V Wide voltage input power supply, safe and reliable, beautiful appearance, easy to install, can be mounted on the wall or on the rail
  • 4 ~ 20 mA analog signal output: If a standard industrial interface takes 4 ~ 20 mA analog signal output, can be connected to a digital display, a SPS, an inverter, an industrial control host and other devices on site
  • High accuracy: The circuit uses a microprocessor chip in industrial quality and high-precision temperature and moisture sensors to ensure reliability, high accuracy and interchangeability
  • Long-lived material: made from ABS material, durable, wear-resistant, small, small, with a special analog circuit, a high-precision temperature and moisture measurement unit

Specific
Item type: Temperature moisture measurement meter
Material: ABS
Product size: approx. 147 x 88 x 3.5 x 1.6 inch
Protection degree against dust: IP65
Power cable: 10 ~ 30 V DC Wide tension input. Analog outputs
Approximately weight. 157 g / 5.5 oz
Installation method:
1. The accessories contain two spreading dowels and two sheet metal screws. First drill two holes with a diameter of 5 mm and a depth of ≥ 30 mm into the wall (the distance between the holes is 70 mm). After inserting the extension connector, attach the sliding rail mounting plate with self-tapping screws to the wall and finally push it into the measurement converter.

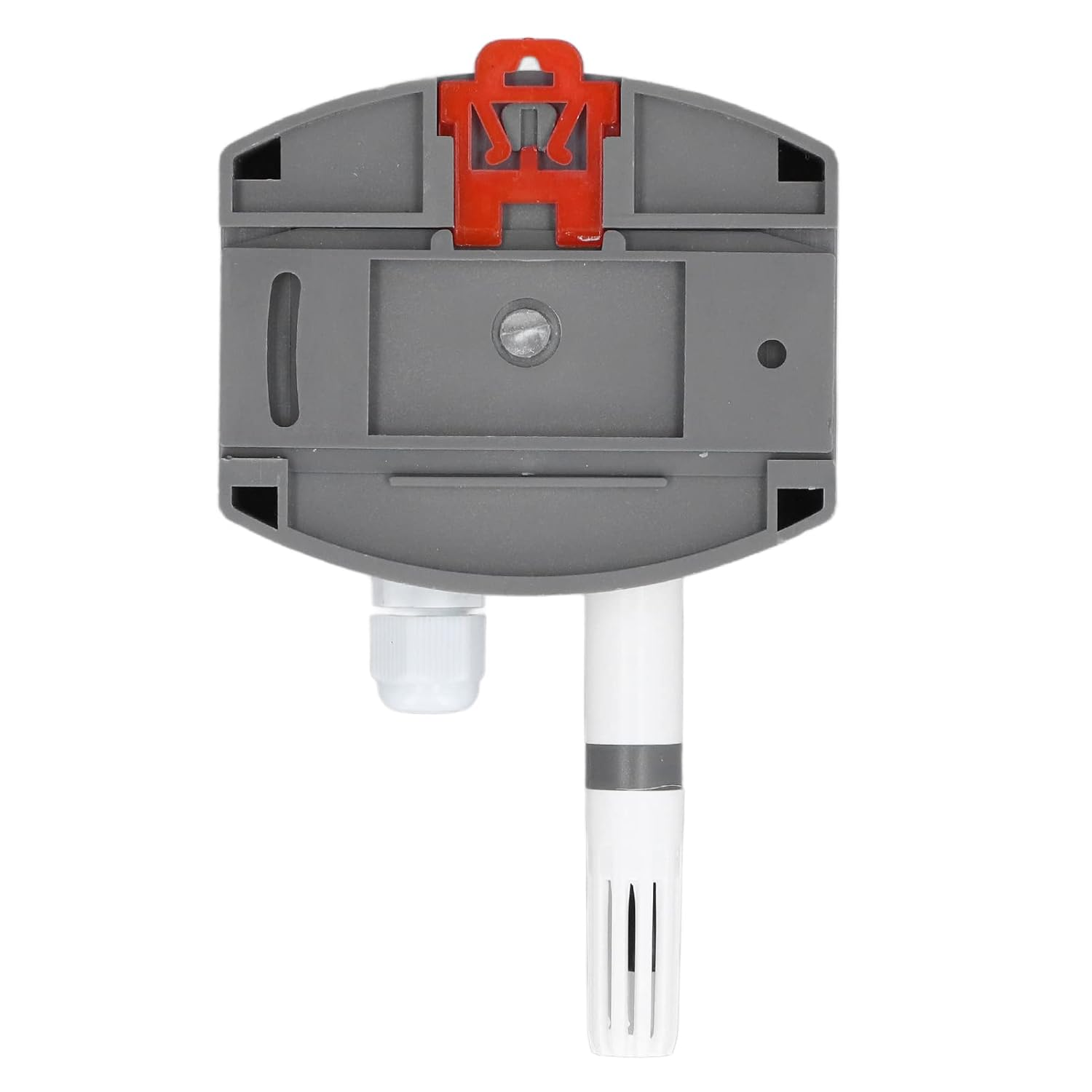

2. Installation of the slide: On the back of the transmitter there is a sliding rail mounting plate, please remove the assembly plate first. The transmitter is inserted directly into a 35 standard rail.
package list:
2 screws
2 expansion pipes
1 transmitter
1 manual

  • Package Dimensions: 17 x 10 x 6 cm; 157 Grams
  • Manufacturer reference: OVAQUIXIkx1idavgwy
  • Manufacturer: OVAQUIXI
