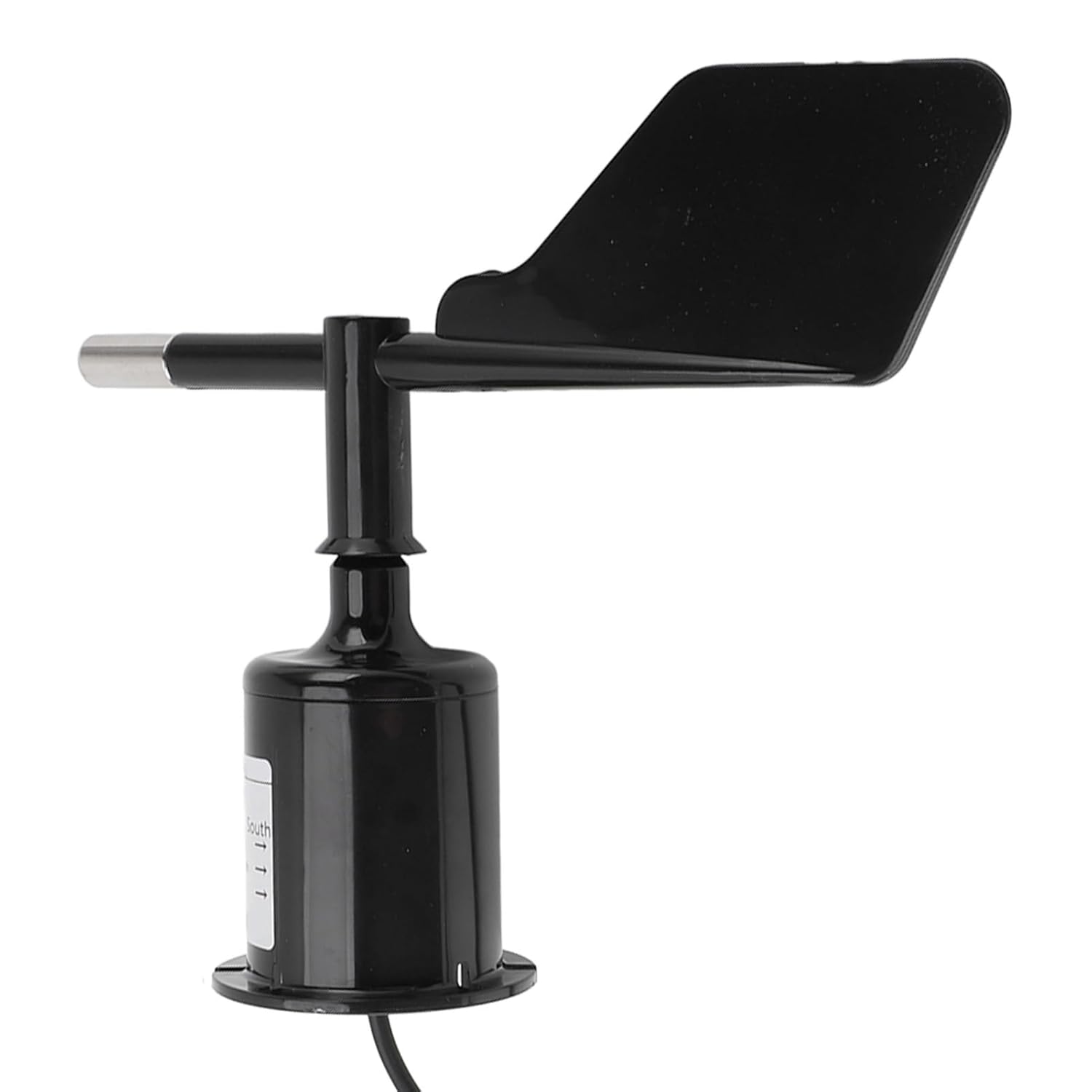

1. CHARACTERISTICS: Wind direction sensor is characterized by good linearity, high accuracy, no dead spot, no fear of strike, and easy observation, more stable and reliable use. Users can know the wind direction through the sensor and make corresponding decisions and countermeasures.
2. ALL AROUND: The internal precise angle sensor is able to realize all round 360° wind direction monitoring. Users can get a full range of wind direction information, ensuring the comprehensiveness and accuracy of the data.
3. PREMIUM MATERIAL: Made of low inertia ABS material with good dynamic characteristics. The premium material made it has stable performance and long lasting reliability, and can work well in various environments.
4. FUNCTION, WORKING PRINCIPLE: It is mainly used to measure the direction of the wind, adopting the type, which can accurately measure the direction of the wind.
5. WIDELY USED: It is suitable for meteorology, environmental monitoring, aerospace and other fields. Besides it can also be used for wind direction measurement applied in gardens, greenhouses, environmental protecting, weather stations, ships, wharves, aquaculture, advertisement gates, meteorology, marine, environment, airports, ports, laboratories, industry, and transportation environments.
Spec:
Item Type: Wind Direction Sensor
Material: ABS
Weight: Approx. 385g / 13.6oz
Product Size: Approx. 223x190x70mm / 8.8x7.5x2.8in
Supply Voltage: DC 9-30V
Output: 4-20mA
Extension Wire Length At Connection: 0.8m / 2.6ft
Accuracy: Omni Directional: ± 3°
Resolution: Omni Directional: 1°
Starting Wind Speed: ≤0.8m/s
Maximum Power Consumption: 0.48W
Load Capacity: DC12V power supply, current type output impedance ≤ 350Ω, DC24V power supply, current type output impedance ≤ 900Ω, voltage type output impedance ≥ 1KΩ
Operating Environment: Temperature -35℃-60℃
Humidity: ≤100% RH without condensation
Prevention Grade: IP64
Cable Grade: Rated Voltage: 300V 80°C
Mounting Hole Diameter: 3.2mm / 0.13in
Aerial Plug Diameter: 15mm / 0.59in (It is recommended to reserve 25mm / 0.98in for easy wiring, wiring first, then install the fixed sensor)
Calculation Formula:
4-20mA: F=(I-4)/16x359
Attention:
F: Indicates the wind direction angle value, unit: °.
I: Sensor output current value, mA
Wiring Methods (Wire Sequence)
Wire color
Output signal (current)
Red Power positive
Black Power negative
Yellow Signal
Troubleshooting :
1. The wind blades do not rotate properly, and the hysteresis is big. There are foreign objects or jammed in the bearing due to long term use. Please send the sensor back to the company for processing.
2. Analog signal meter display value is not correct. Possible wiring problems or communication serial port failure caused by the inability to obtain the correct data. Please check whether the wiring is correct and firm, whether the serial port is occupied, and whether the serial port setting is correct.
3. If it is not the above reasons, please customer service.
How to Use:
Wind direction sensor installation method:
1. Ensure that the mounting bracket is parallel to the ground.
2. After connecting the sensor wire, use the corresponding specification fasteners to fix the sensor on the mounting bracket through the mounting holes on the sensor.
3. Wind sensor Cover label has a fixed south line, when installing the sensor axis and the ray of the fixed south line aligned with the south (can be positioned through the compass)
packing list:
1 xWind Direction Sensor
Note:
1. Please check whether the package is intact, and check whether the product model is consistent with the selection;
2. Do not wire with electricity, check the wiring is complete before powering up;
3. Sensor line length will affect the product output signal, do not change the product when using;
4. Sensors are precise devices, users should not disassemble, use objects or corrosive liquids to the sensor surface, so as not to damage the product;
5. Please do not plug and unplug with electricity;
6. Please install it in the south direction;
