Specification
Condition: Brand

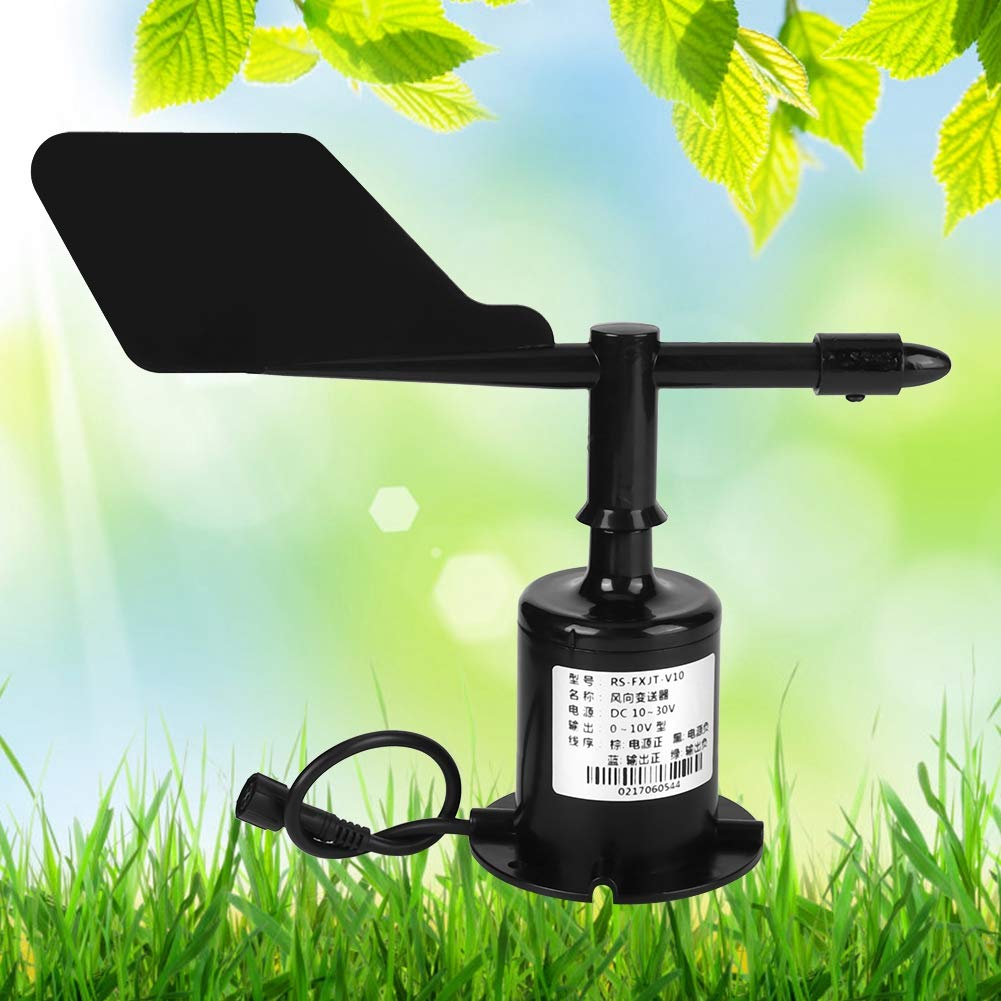

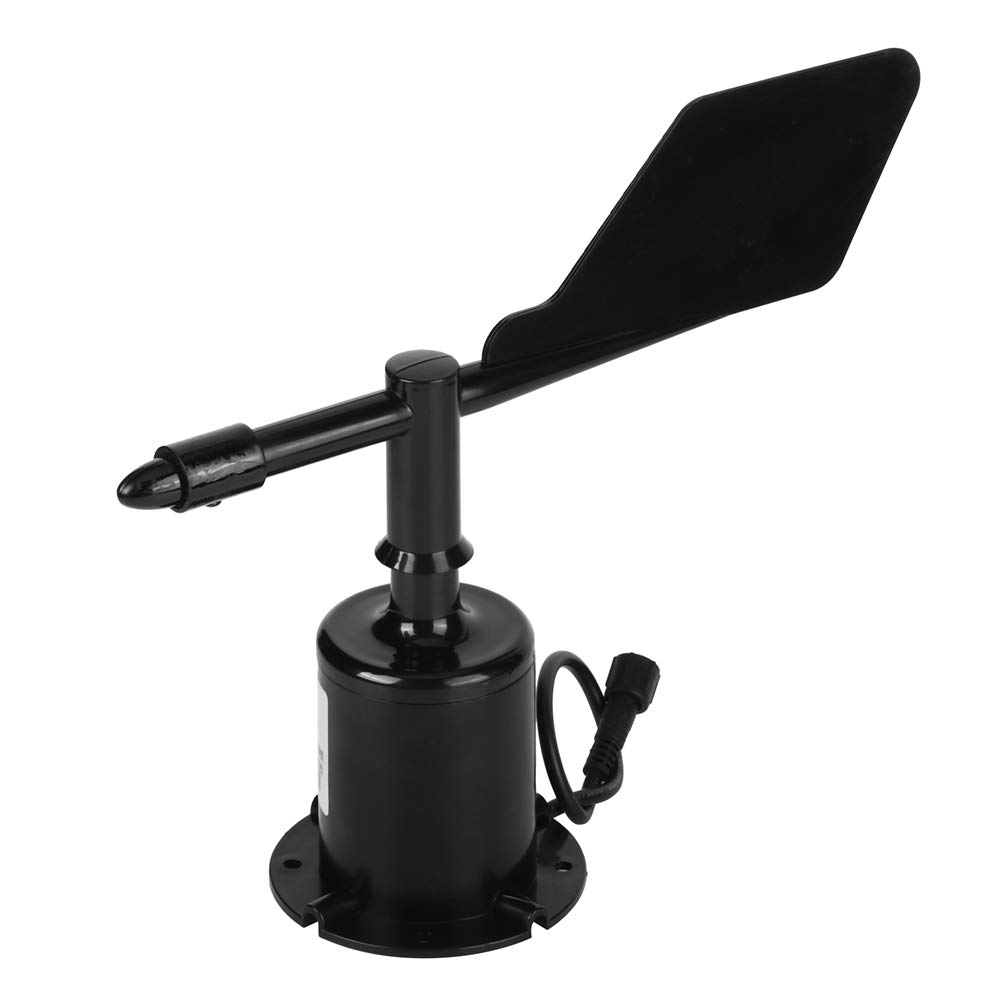

Item Type: Wind Speed Sensor
Material: Polycarbonate
Application: Widely used in wind direction measurement in greenhouses, environmental , weather stations, ships, docks, and aquaculture.
Power Supply Wiring: Wide voltage 10-30V power input. Only 24V power supply available for 0-10V output equipment.
Parameter:
Power Supply (Default) 10-30V
Maximum Power Consumption .2W
Transmitter Circuit Operating Temperature -20℃ to +60℃, 0% -80%

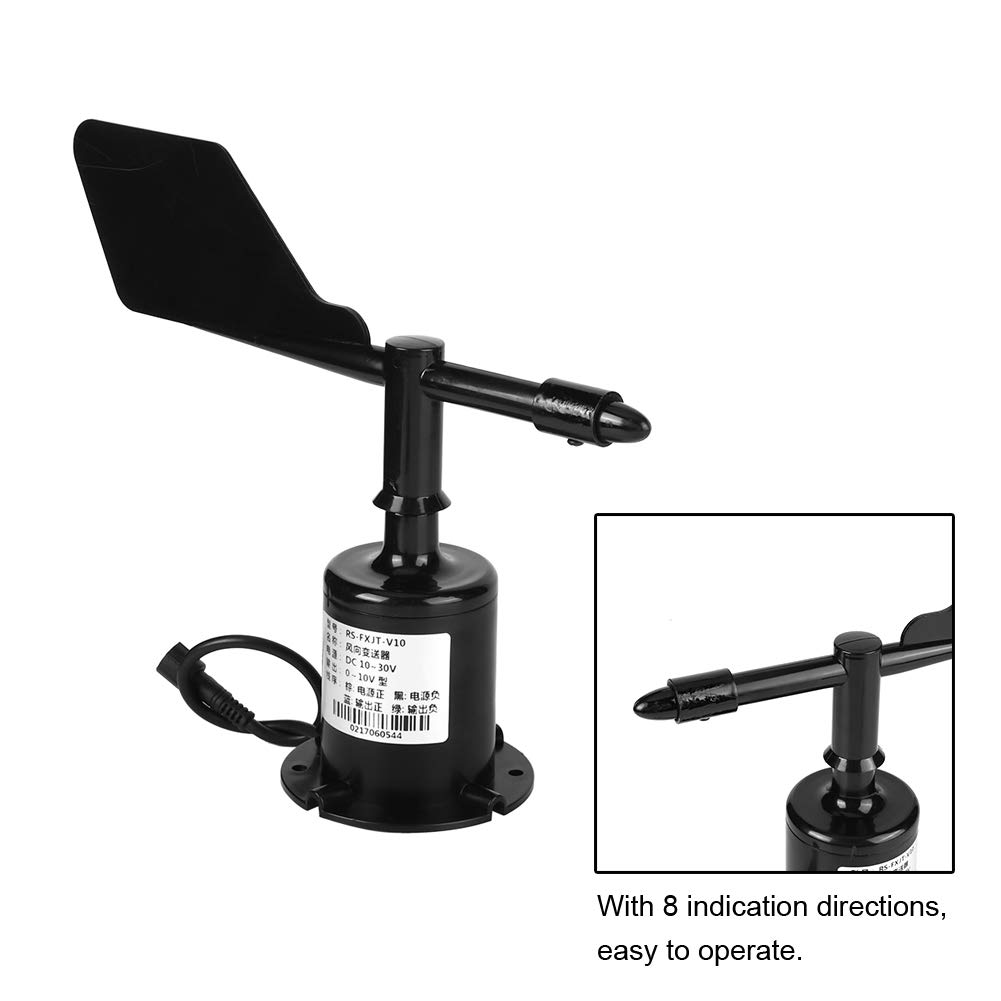

Measuring 8 Indication Directions
Dynamic Response Time ≤0.5s
Output Voltage Output 0-10V
Load Capacity Voltage Output Output ≤250Ω
Calculation :
0-10V Output Comparison Table
Output Value (V) Corresponding Wind Direction
≈0 North Wind
≈ .4286 Northeast Wind
≈2.8571 Wind
≈4.2857 Southeast Wind
≈5.7143 South Wind
≈7.1429 Southwest Wind
≈8.5714 West Wind
≈10 Northwest Wind
Product Size: Approx. 23.5 18.5 / 9.3 7.3 in
Weight: Approx. 317g / 11.2oz
Common Problems and Solutions
No output or output error possible causes:
error causing PLC calculation issues. Refer to technical specifications for accurate .
Incorrect wiring or .
Incorrect power supply voltage (24V required for 0-10V type).
Excessive distance between the transmitter and collector causing disturbance.
Damaged PLC collection port.
Equipment malfunction.
How to Use
List
Wind Speed Sensor
Cable
Screw Kit (4 Screw, 4 Nut)
Note
Users should avoid disassembling the product and refrain from touching the sensor to damage.
Keep the device away from high-power interference, such inverters and motors, to accurate measurements. Always disconnect power before installation or maintenance to avoid water damage.
