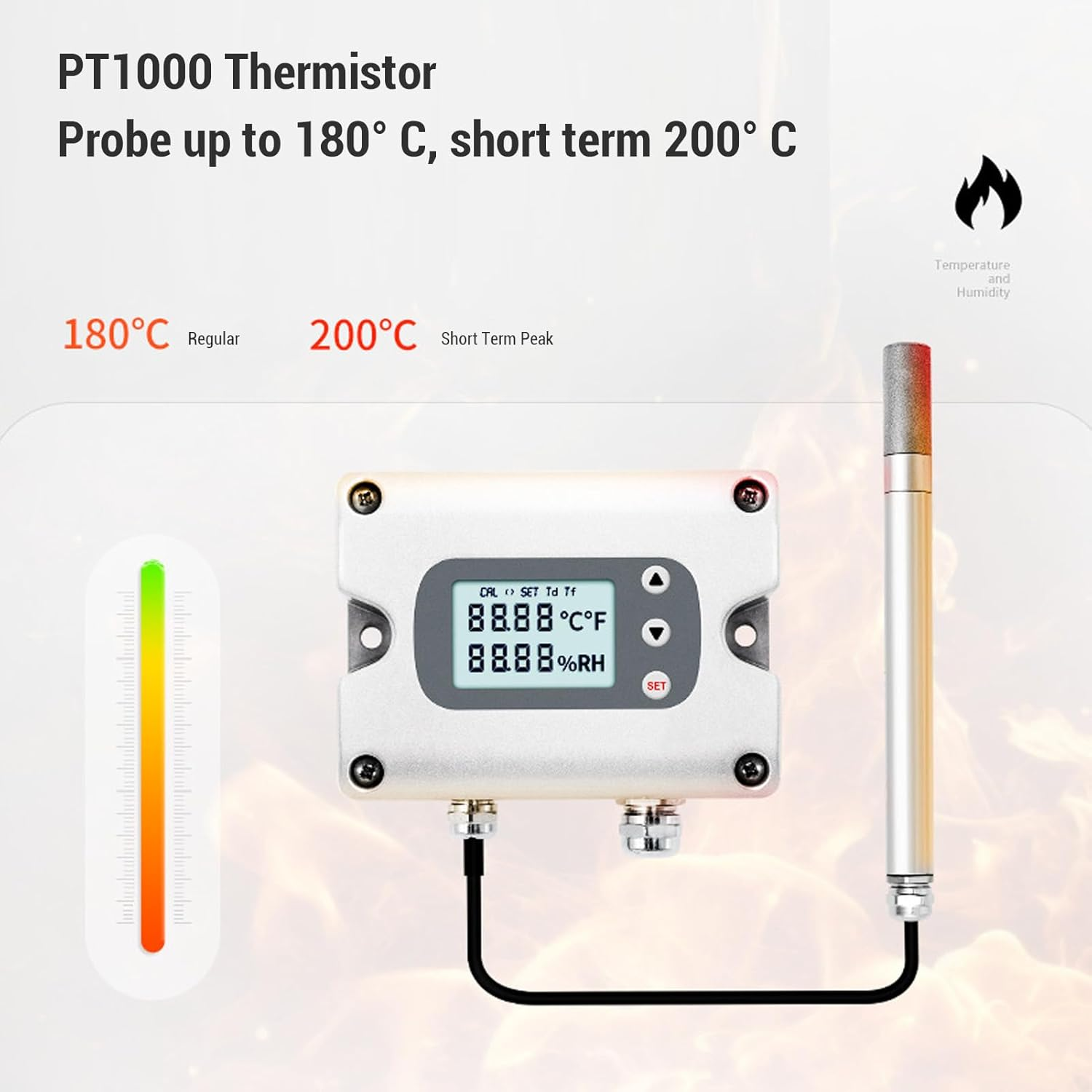

1. High temperature tolerance: The PT1000 thermistor with its probe, which resists temperatures up to 180 ° C and briefly up to 200 ° C, along with a unique union coating, guarantees better stability even in rough environments with dust, salt fog and high temperatures, high humidity and condensation.
2. 4-20 MA robust temperature transformer: equipped with a sensor in industrial quality, this high temperature humidity relay offers better stability and reliability even under extreme temperature or moisture conditions. The design mounted on the wall ensures an easy installation and its dust proof properties, rain and snow combined with excellent breathability, do so incredibly robust.
3. All metal housing: the temperature and humidity transmitter has a fully metal robust housing and is designed in such a way that it resists hard and approximate operating conditions and guarantees durability and good performance in difficult work environments.
4 .. versatile temperature range: The high temperature humidity sensor can change between different temperature ranges, which allows flexible adaptation to various environmental measurement requirements and makes it ideal for different industrial applications.
5. Clara digital screen: The temperature and humidity sensor has a large LCD screen and clearly shows the temperature and humidity values in real time, so that a and access is guaranteed to the data of the environment. With a 10 -second recording interval, it provides appropriate updates and ideas.
Technical data:
Article type: temperature moisture sensor transmitter
Material: Aluminum alloy
Relative humidity:
Sensor: High temperature moisture capacity
Area: 0-100 %
Departure: 0-10 V, 4-20 Ma
Reaction time: ≤10 s
Precision: ≤90 % HR at 20 ° C ± 2 % HR,> 90 % HR at 20 ° C ± 2.3 % HR
Temperature:
Sensor: PT1000
Type of type sold working temperature: -40–180 ° C
Precision: ± 0.2 ° C at 20 ° C
FOOD SUPPLY: 15–35 VDC, 24 VAC ± 20 %
Electronic component operating temperature range (with LCD): -20–60 ° C
Relay output: 2x SPDT (3A-30VDC/250VAC)
Output load: ≤500Ω (output power), ≥10kq (voltage output)

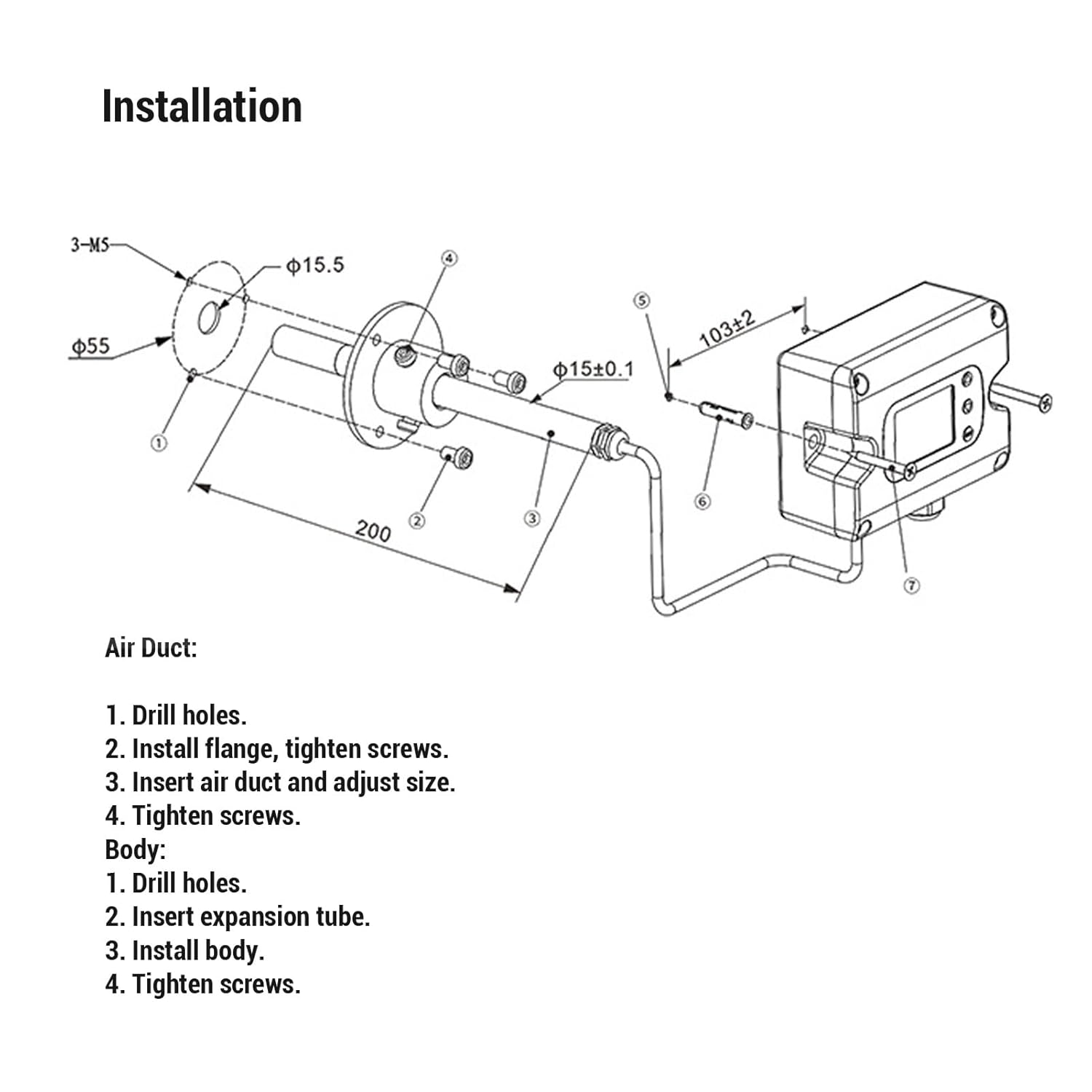

Wear:

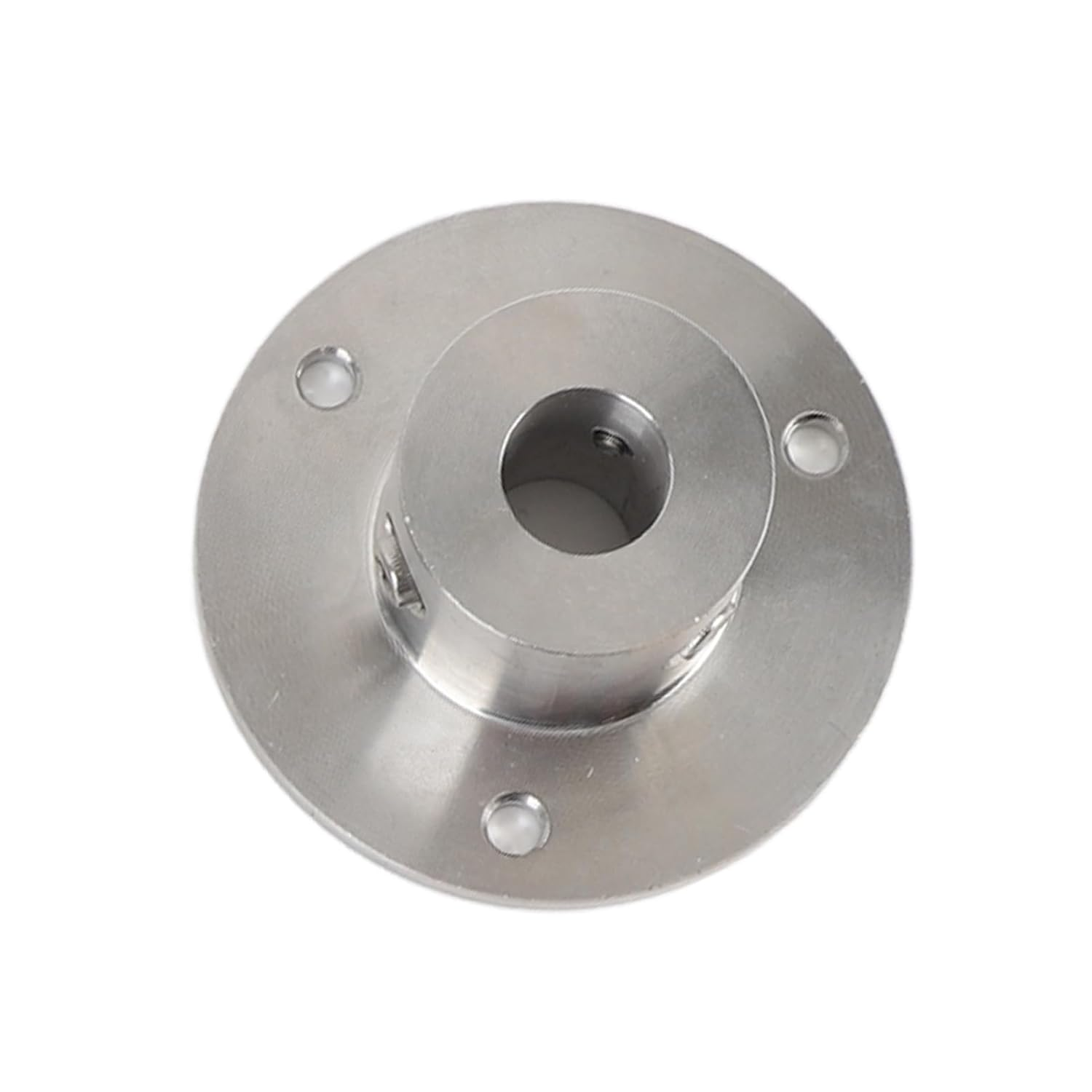

Air channel: drilling the holes. 2. Assemble the flange, tighten the screw. 3. Insert the air channel and adjust the size. 4. Tighten the screws. Body: 1. drilling holeros. 2. Insert expansion pipe. 3. Install the body. 4. Tighten the screws.
Packaging list:
1 x temperature and humidity sensor
1 x lock screw
5 x screws
5 x bolts
5 x expansion pipes
1 x manual
