1. High Temperature Tolerance: The PT1000 thermistor with its probe capable of withstanding temperatures up to 180°C, and short term up to 200°C, along with a unique breathable coating, provides enhanced stability even in harsh environments with dust, salt fog, high temperature, high humidity, and condensation.
2. Robust 4-20mA Temperature Transmitter: Equipped with an industrial grade sensor, this high temperature humidity relay offers improved stability and reliability even under extreme temperature or humidity conditions. The wall mounted design ensures easy installation and its dust proof, rain proof, and snow proof features coupled with excellent breathability make it incredibly rugged.
3. All Metal Enclosure: Designed with a rugged all metal housing, the temperature and humidity transmitter sensor is built to withstand severe and harsh operating conditions, ensuring longevity and good performance across arduous work environments.

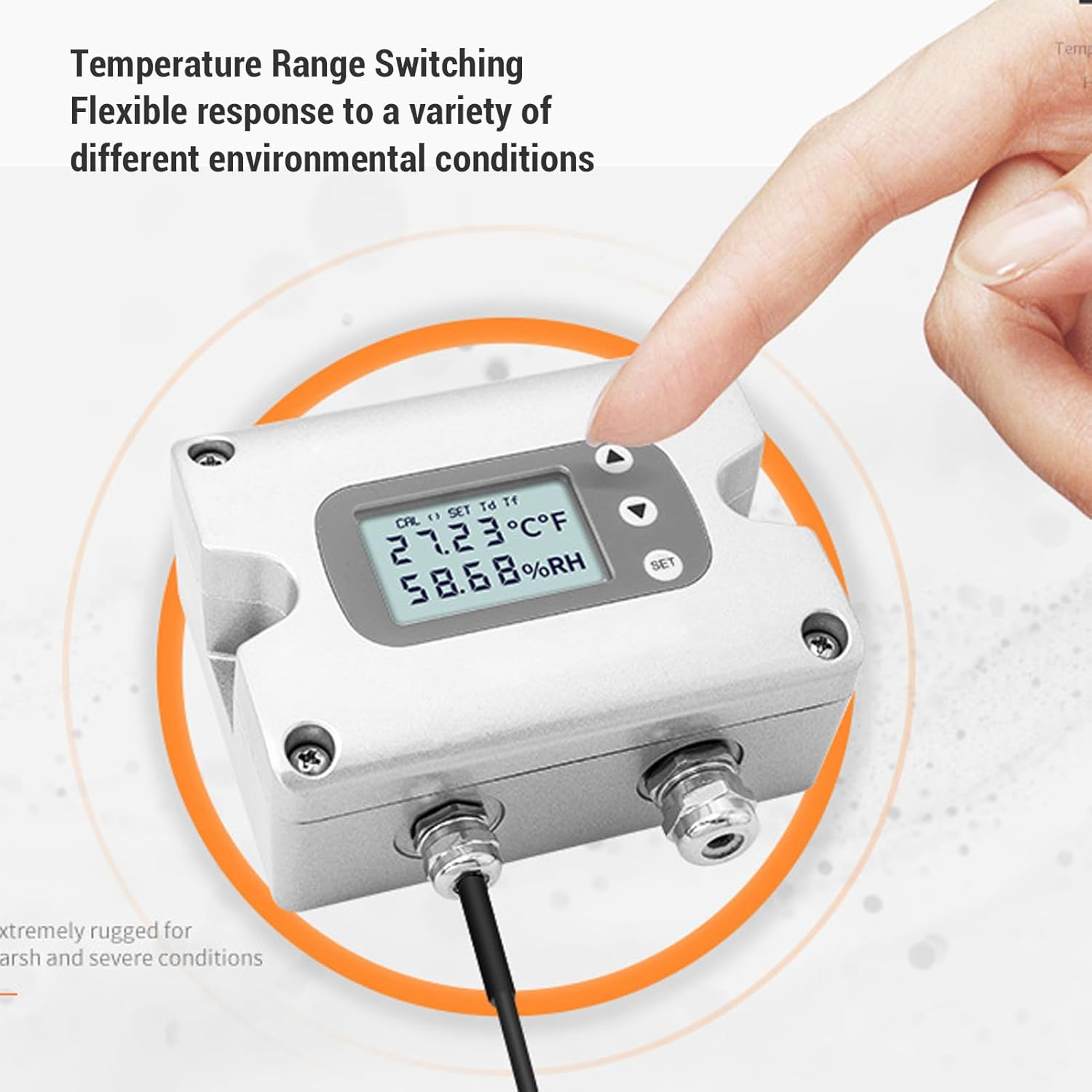

4. Versatile Temperature Range Switching: The high temperature humidity sensor is capable of switching between different temperature ranges, allowing flexible adaptation to various environmental measurement needs, making it ideal for diverse industrial applications.

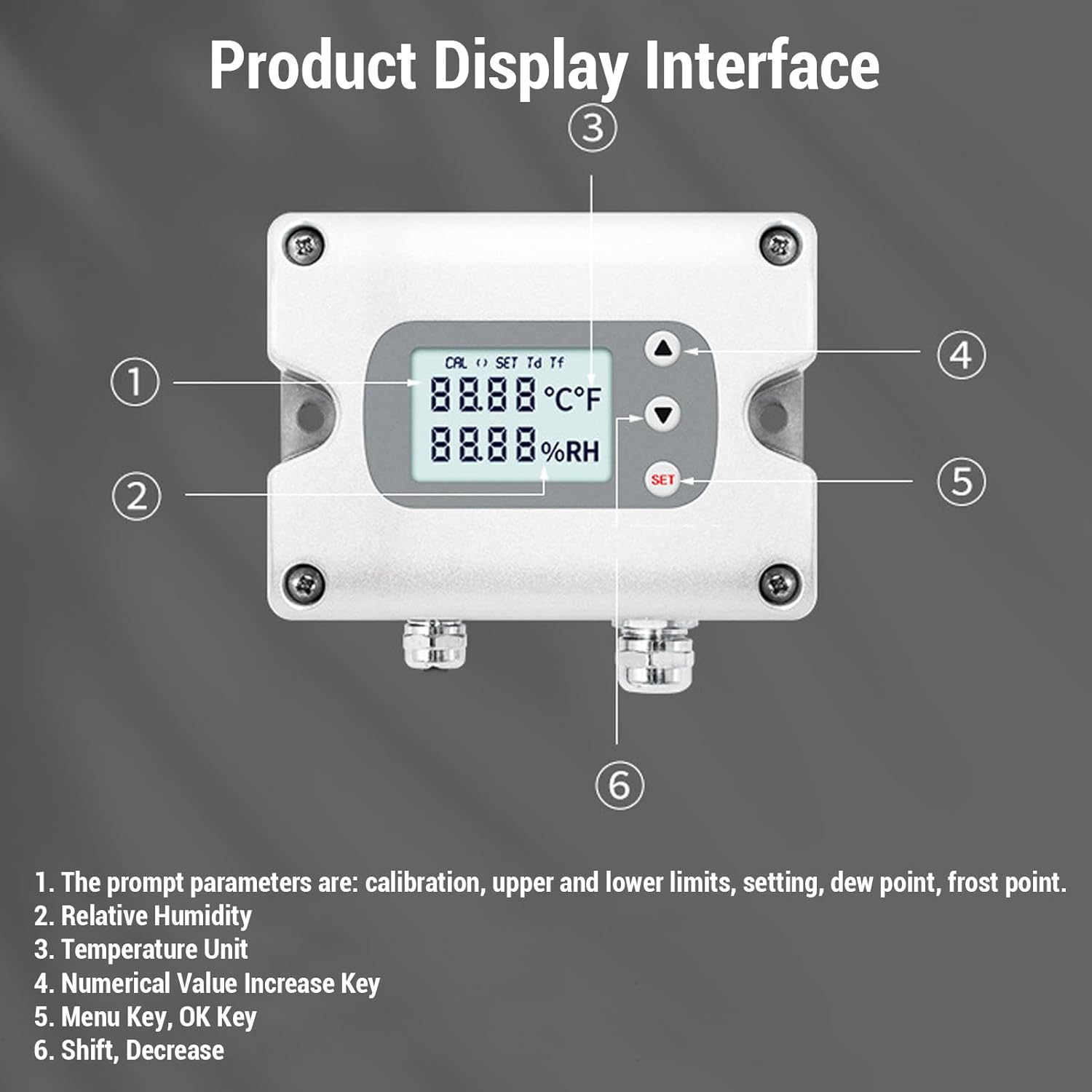

5. Clear Digital Display: Featuring a large LCD screen, the temperature and humidity sensor displays real time temperature and humidity values clearly, ensuring quick and easy access to environmental data. With a recording interval of 10 seconds, it provides timely updates and insights.
Spec:
Item Type: Temperature Humidity Sensor Transmitter
Material: Aluminum Alloy
Relative Humidity:
Sensor: High Temperature Humidity Sensitive Capacitance
Range: 0-100%
Output: 0-10V, 4-20mA
Response Time: ≤10S
Accuracy: ≤90%RH at 20°C±2%RH, >90%RH at 20°C±2.3%RH
Temperature:
Sensor: PT1000
Probe Type Working Temperature: -40-180°C
Accuracy: ±0.2°C at 20°C
Power Supply: 15-35VDC, 24VAC±20%
Electronic Component Operating Temperature Range (with LCD): -20-60°C
Relay Output: 2X SPDT(3A-30VDC/250VAC)
Output Load: ≤500Ω (Current Output), ≥10KQ (Voltage Output)
How to Use:
Air Duct: 1. Drill holes.
2. Install flange, tighten screws.
3. Insert air duct and adjust size.
4. Tighten screws.
Body:
1. Drill holes.
2. Insert expansion tube.
3. Install body.
4. Tighten screws.
PackageList:
1 x Temperature and Humidity Sensor
1 x Locking Screw
5 x Screws
5 x Bolts
5 x Expansion Tubes
1 x Manual
