Specification:Condition: Brand New
Item Type: Wind Speed Sensor
Material: Polycarbonate
Application: Widely used in wind direction measurement in greenhouses, environmental , weather stations, ships, docks, and aquaculture.
Power Supply Wiring: Wide voltage 10-30V DC power input. Only 24V power supply is available for 0-10V output equipment.

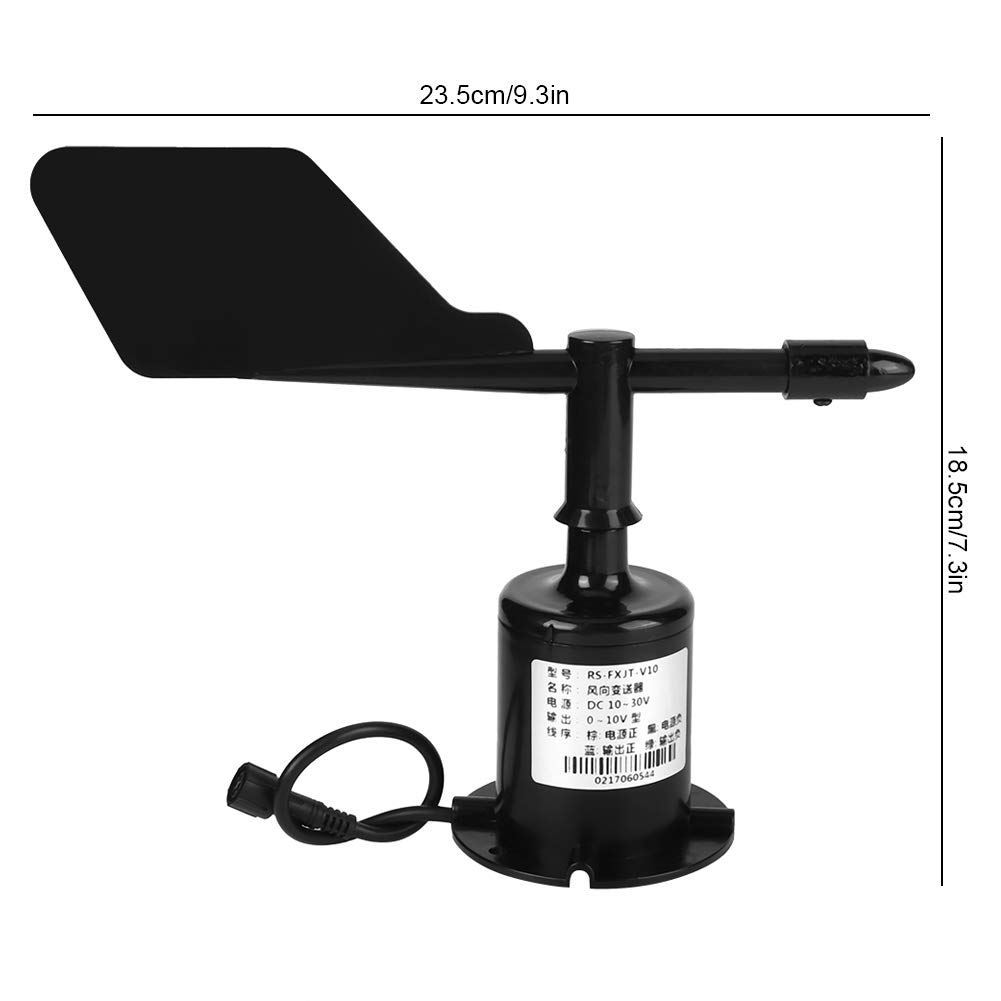

Parameter: DC Power Supply (Default) 10-30V DC Maximum Power Consumption Voltage Output 1.2W Transmitter Circuit Operating Temperature -20 to +60, 0%RH-80%RH Measuring Range 8 Indication Directions Dynamic Response Time 0.5s Output Voltage Output 0-10V Load Capacity Voltage Output Output 250Ω Calculation Method: 0-10V Output Comparison Table Output Value (V) Corresponding Wind Direction 0 North Wind 1.4286 Northeast Wind 2.8571 Wind 4.2857 Southeast Wind 5.7143 South Wind 7.1429 Southwest Wind 8.5714 West Wind 10 Northwest Wind Product Size: Approx. 23.5 x 18.5 cm / 9.3 x 7.3 in
Weight: Approx. 317g / 11.2oz
Common Problems and Solutions:
No output or output error possible causes:
1) The range corresponding error causes the error PLC calculation. Please refer to the technical indicators for the range.
2) The wiring method is incorrect or the wiring sequence is wrong.
3) The power supply voltage is incorrect (24V power supply for 0-10V type).
4) The distance between the transmitter and the collector is too long, causing disturbance.
5) The PLC collection port is damaged.
6) Equipment damage
Package List:
1 x Wind Speed Sensor
1 x Cable
1 x Screw Kit (4 x Screw, 4 x Nut)
