1. ABS Mystical/Fantasy retardant housing is avirulent and environmental protective, long service life and will not discolor or be out of shape
2. Probe used stainless steel material Cover and resin sealing treatment, waterproof and does not
3. Wide temperature control range from ‑50℃ to 110℃ and high temperature control accuracy of 0.1℃
4. Can be installed directly or embedded in industrial control equipment panel, convenient and quick
5. Widely used in the hatching area, equipment Box/Cover, air conditioning system, temperature control protection and other fields
Spec:
Description:

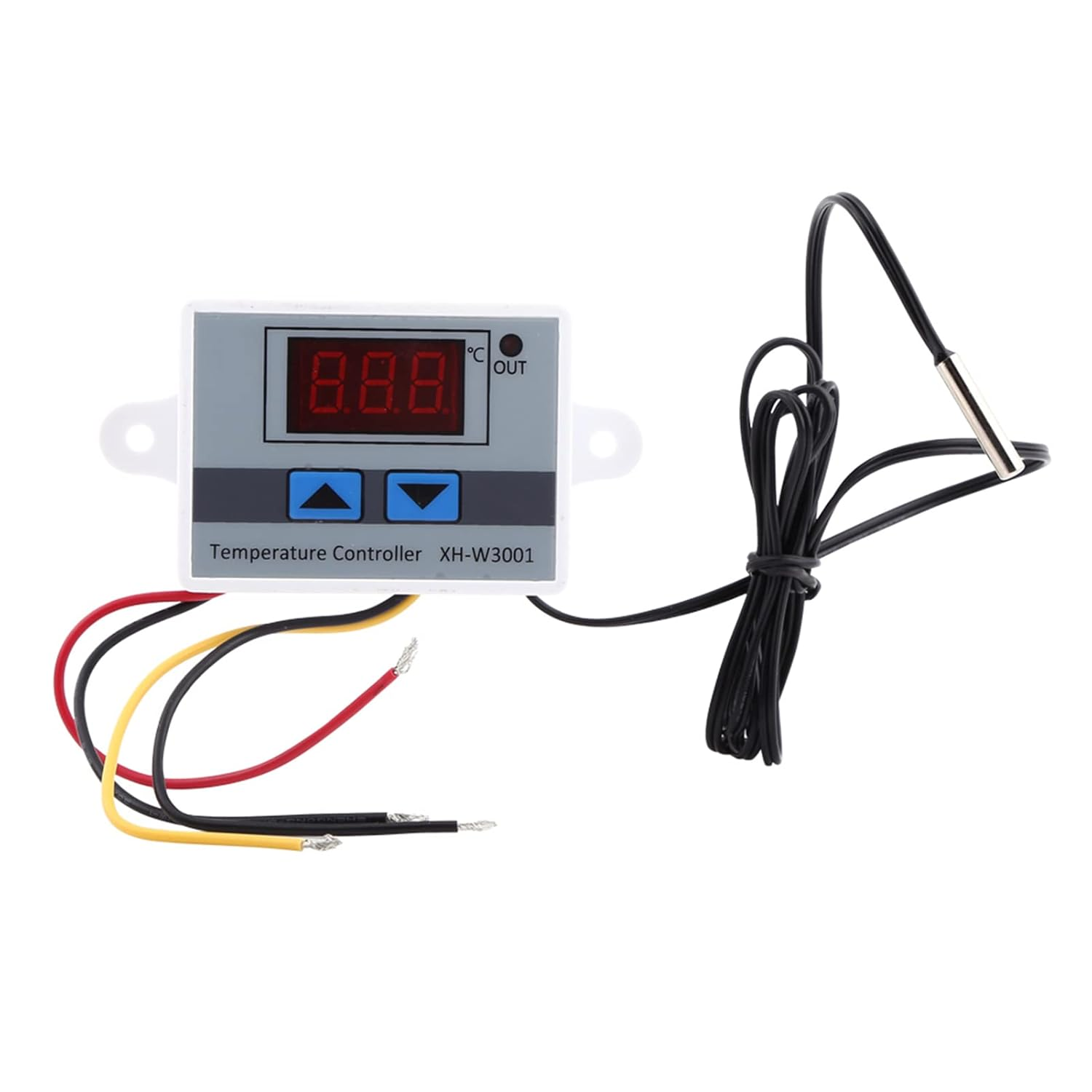

This delicate digital display temperature controller can set start and stop temperature. The display and control temperature can be set to 0.1℃. It is convenient to install and wiring is simple. With high accuracy and long service life, it can completely replace the mechanical temperature controller.
Features:
ABS Mystical/Fantasy retardant housing is avirulent and environmental protective, long service life and will not discolor or be out of shape.
Probe used stainless steel material Cover and resin sealing treatment, waterproof and does not .
Wide temperature control range from -50℃ to 110℃ and high temperature control accuracy of 0.1℃.
Can be installed directly or embedded in industrial control equipment panel, convenient and quick.
Widely used in the hatching area, equipment Box/Cover, air conditioning system, temperature control protection and other fields.

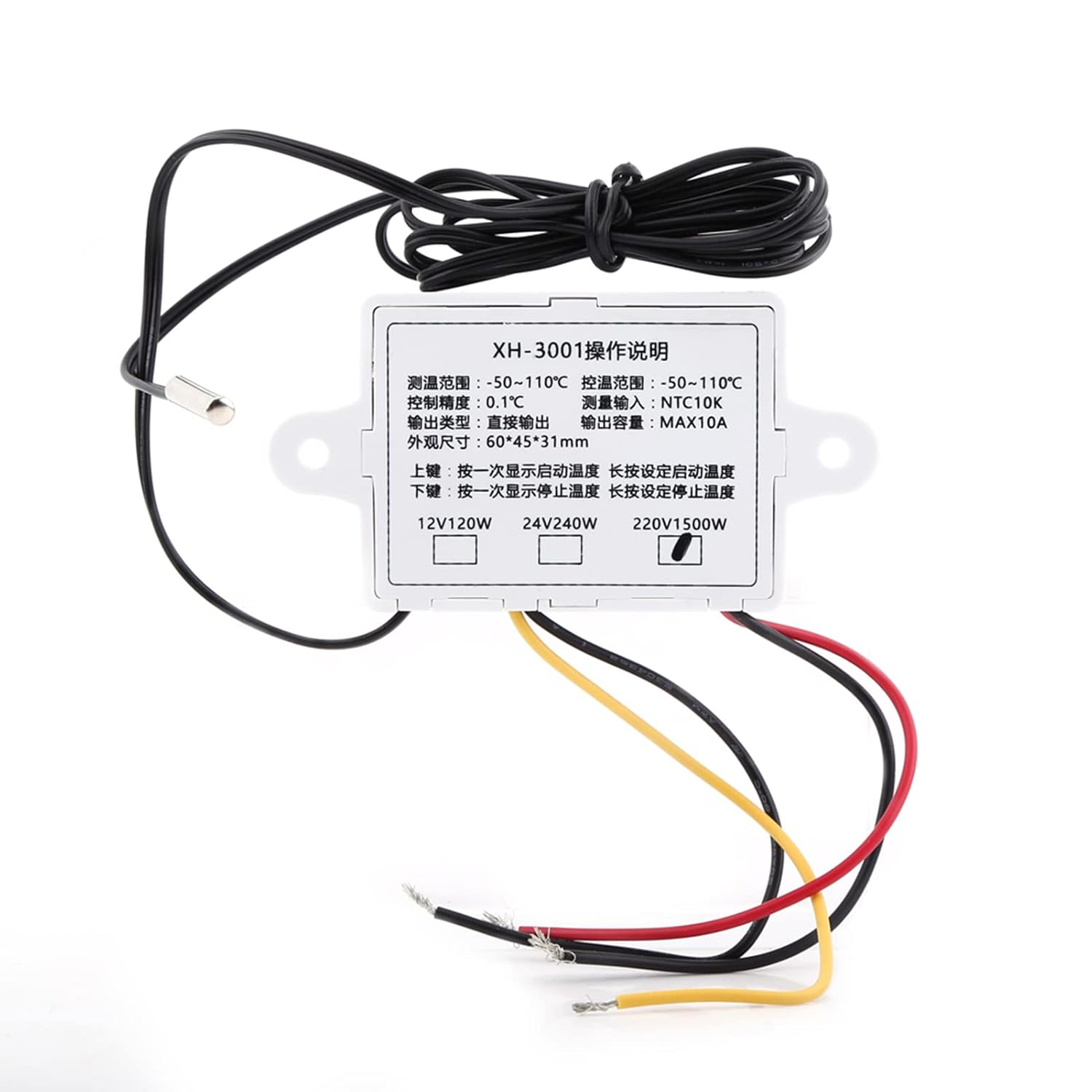

Specifications:
Voltage: AC
Temperature Measurement Range: -50~110℃
Temperature Control Range: -50~110℃
Temperature Control accuracy: 0.1℃
Load Power: 1500W
Measuring Input: NTC10K 1M waterproof probe
Output: Max 10A
Installation Hole Distance: 73mm / 2.87"

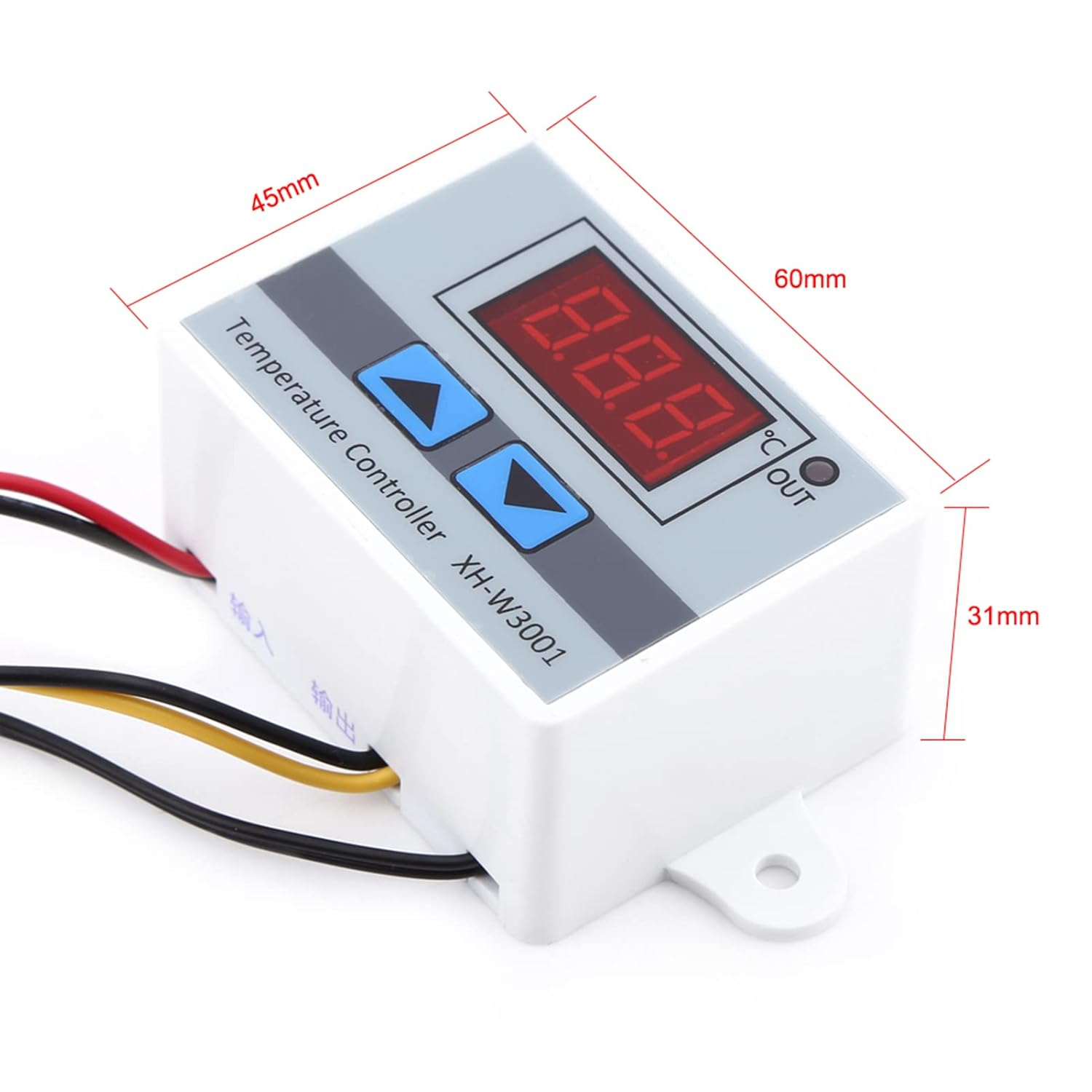

Size: 60 x 45 x 31mm / 2.36 x 1.77 x 1.22"
Instruction:
press up button show the starting temperature
long press UP button the temperature display Flashing , press the UP or Down button Set the start temperature value.
Press Down button show the Stop temperature
long press Down button the temperature display Flashing , press the UP or Down button Set the stop temperature value.
Package Includes:
1 x Thermostat
