[HIGH-PERFORMANCE BEARINGS] provide accurate and reliable measurement results
[SMALL AND LIGHT DESIGN] for easy carrying and assembly in various environments
[DURABLE POLYCARBONATE Cover] ensures long-term outdoor use with high mechanical strength

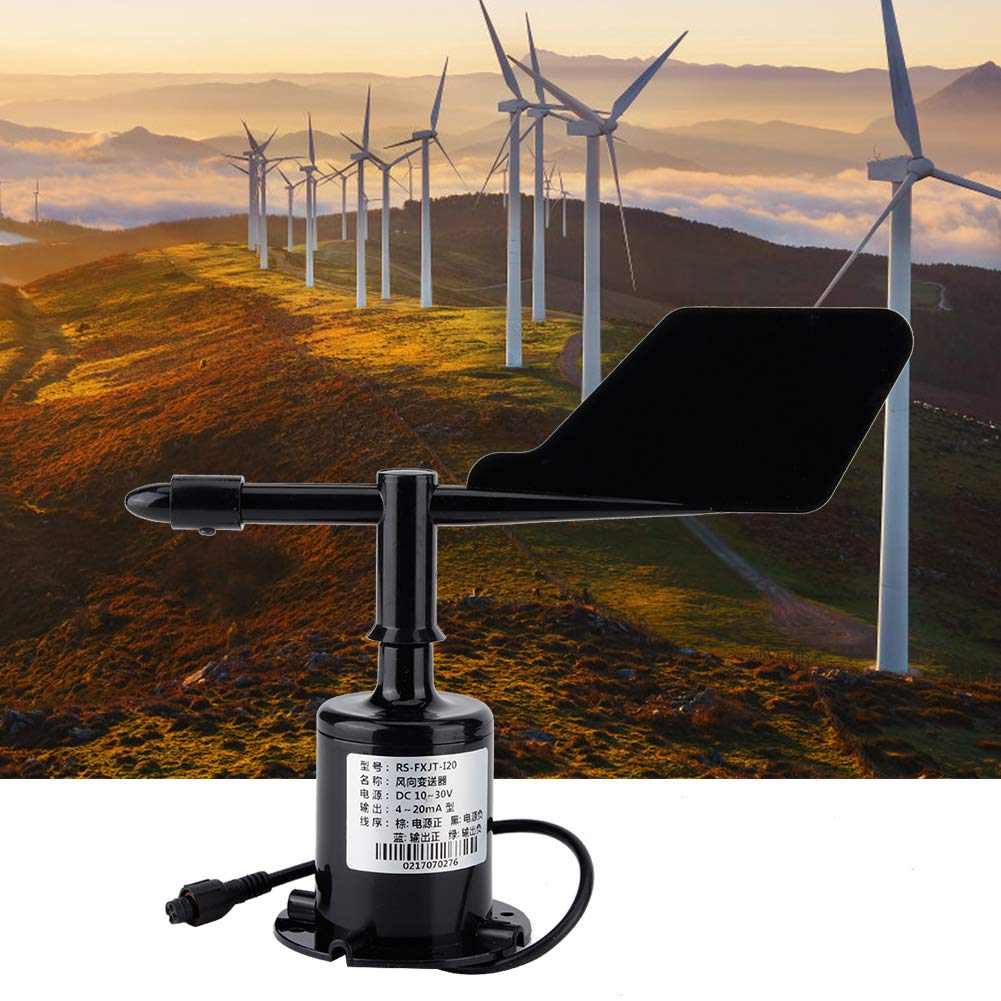

[WIDE APPLICATION] in greenhouses, weather stations, ships, terminals, and more
[PRECISE WIND DIRECTION] provided through the internal smooth bearing system for guaranteed accuracy

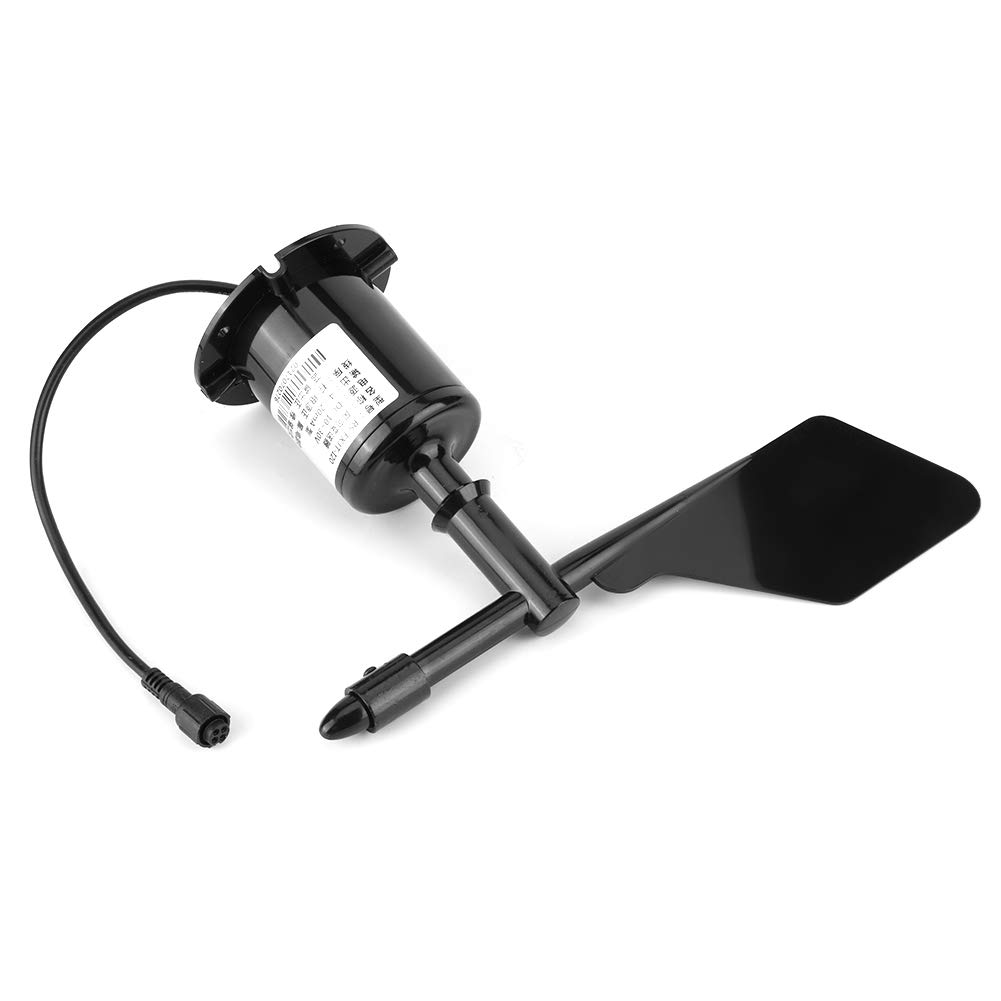

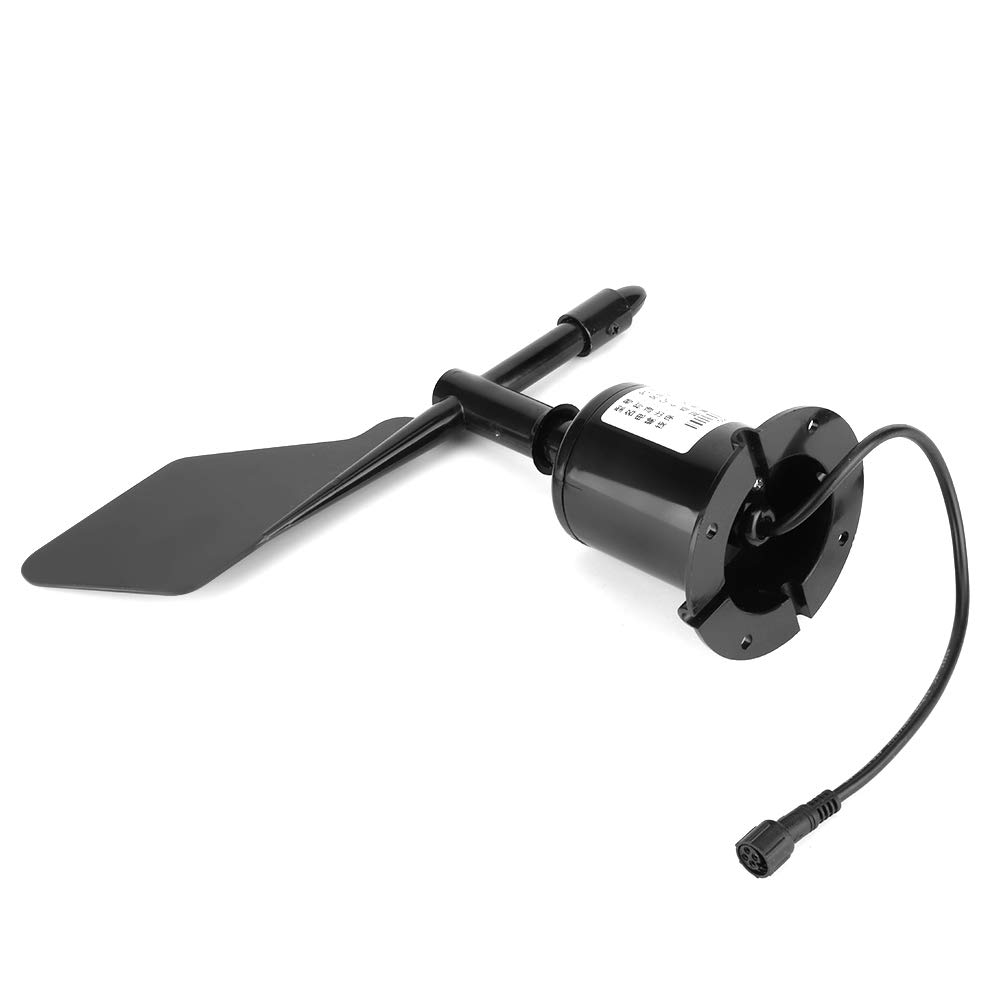

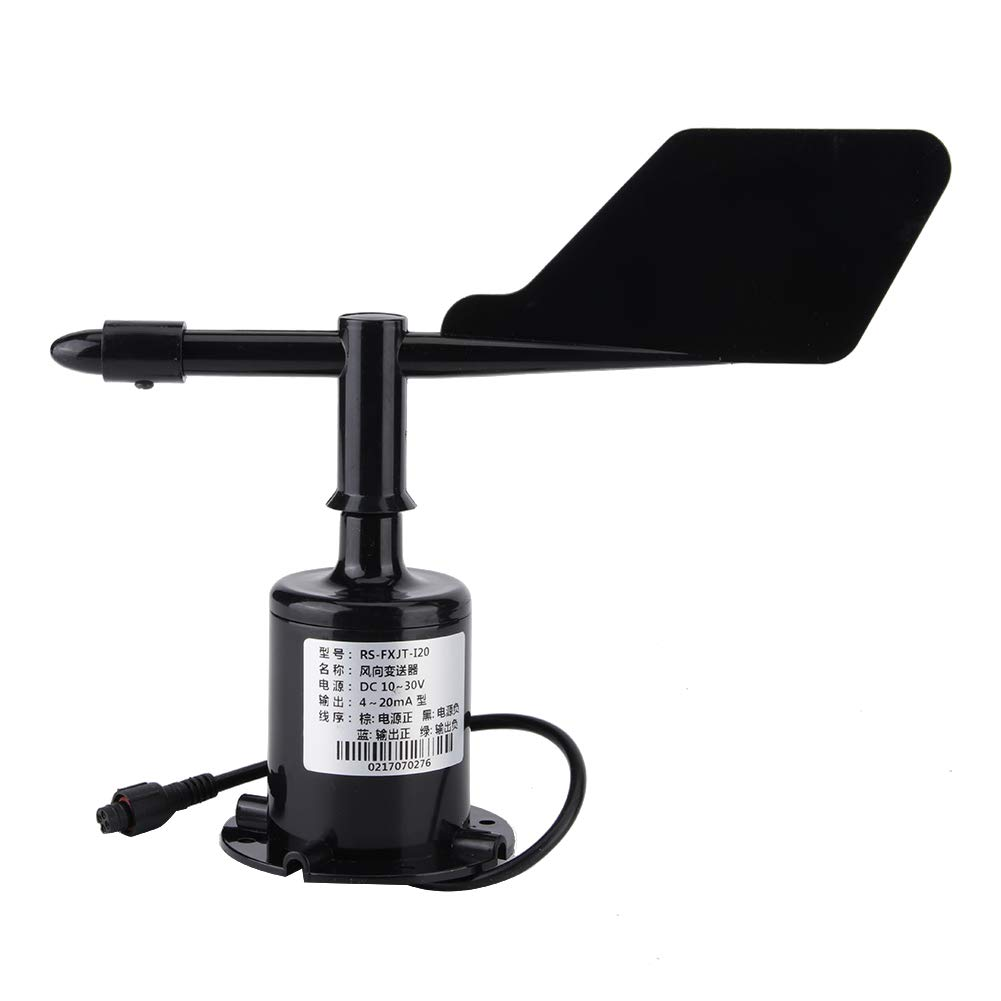

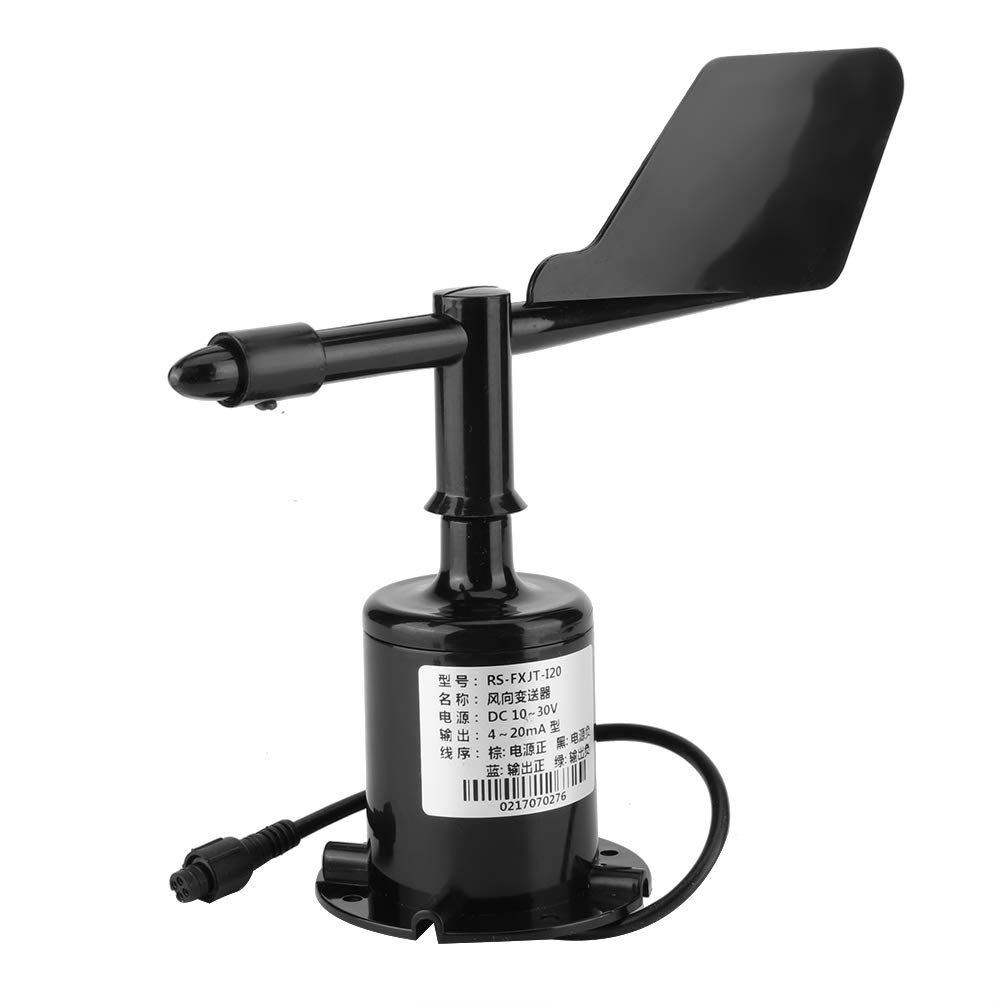

Item Type: Wind Direction Sensor
Material: Polycarbonate
Parameter:
DC Power Supply (Default) 10-30V DC
Maximum Power Consumption Current Output 1.2W
Transmitter Circuit Operating Temperature -20℃ to +60℃, 0%RH-80%RH
Measuring Range 8 Directions
Dynamic Response Time ≤0.5s
Output Signal Current Output 4-20mA
Load Capacity Current Output ≤600Ω Calculation Method:
0-10V Output Comparison Table
Output Value (V) Corresponding Wind Direction
≈0 North Wind
≈1.4286 Northeast Wind
≈2.8571 Wind
≈4.2857 Southeast Wind
≈5.7143 South Wind
≈7.1429 Southwest Wind
≈8.5714 West Wind
≈10 Northwest Wind Power Wiring: Wide Voltage 10-30V DC Power Input
Product Size: Approx. 23.5 x 18.5 cm / 9.3 x 7.3 in
Weight: Approx. 317g / 11.2oz
Common Problems and Solutions:
No output or output error possible causes:
1) The range corresponding error causes the error PLC calculation. Please refer to the technical indicators for the range.
2) The wiring method is incorrect or the wiring sequence is wrong.
3) The power supply voltage is incorrect (24V power supply for 0-10V type).
4) The distance between the transmitter and the collector is too long, causing signal disturbance.
5) The PLC collection port is damaged.
6) Equipment damage.

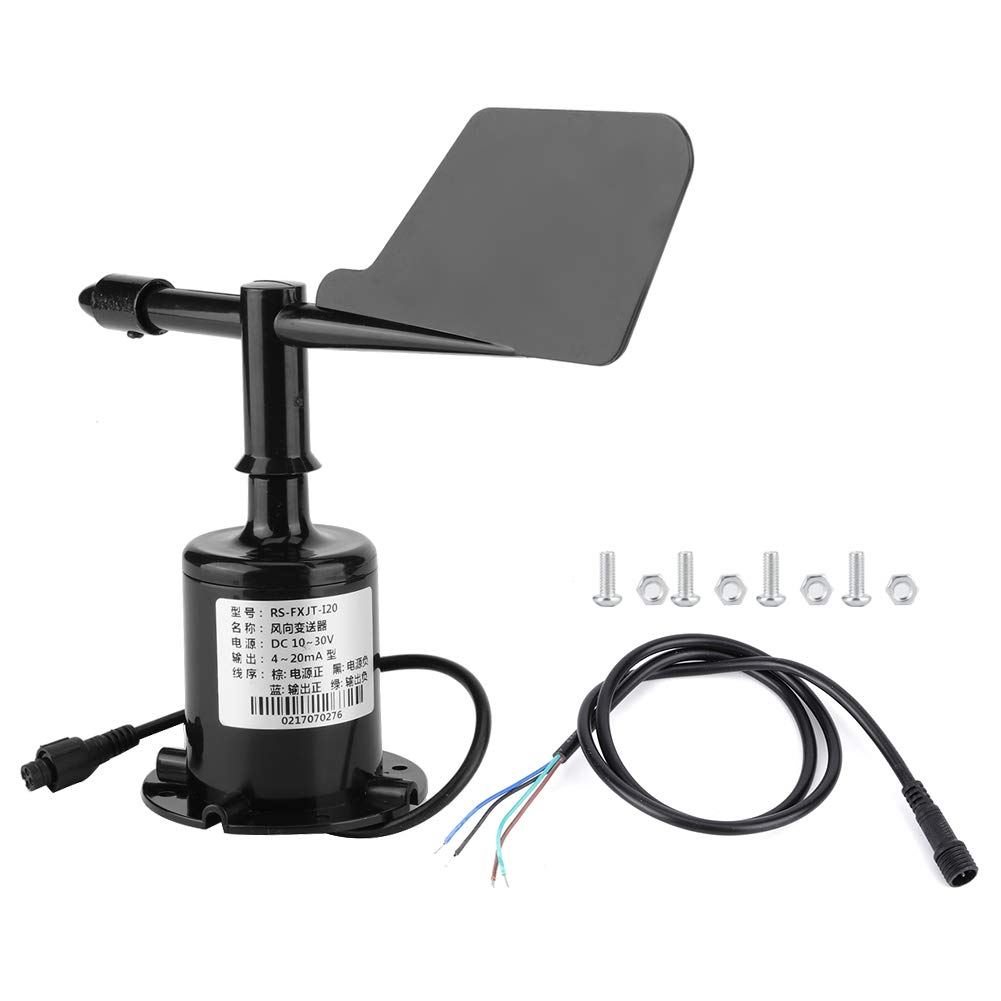

1 x Wind Direction Sensor
1 x Cable
1 x Screw Kit (4 x Screw, 4 x Nut)
1. The user should not disassemble it by himself, and should not touch the sensor core to avoid damage to the product.
2. Keep
