1. : The shell is made of aluminum alloy material, with small volume, light weight, low power consumption and working current of 200 ma.

2. Long Working Time: Support 32GB small memory card (level 10 recommended). Built in 3.7V, 400mah lithium ion battery, working time of 1.5 to 2 hours.

3. Multi Function: Multi language menu, 11 menu languages can be selected. Universal Type C charging interface, high accuracy level 4 battery power indication.

4. Input and Output: CVBS signal input (built in video decoder), support playback and AV signal output (built in video encoder). The video input format is NTSC and PAL, which can be switched.

5. Stable Performance: Professional manufacturing, craftsmanship and high accuracy help to provide stable performance to meet your various needs.

Spec:

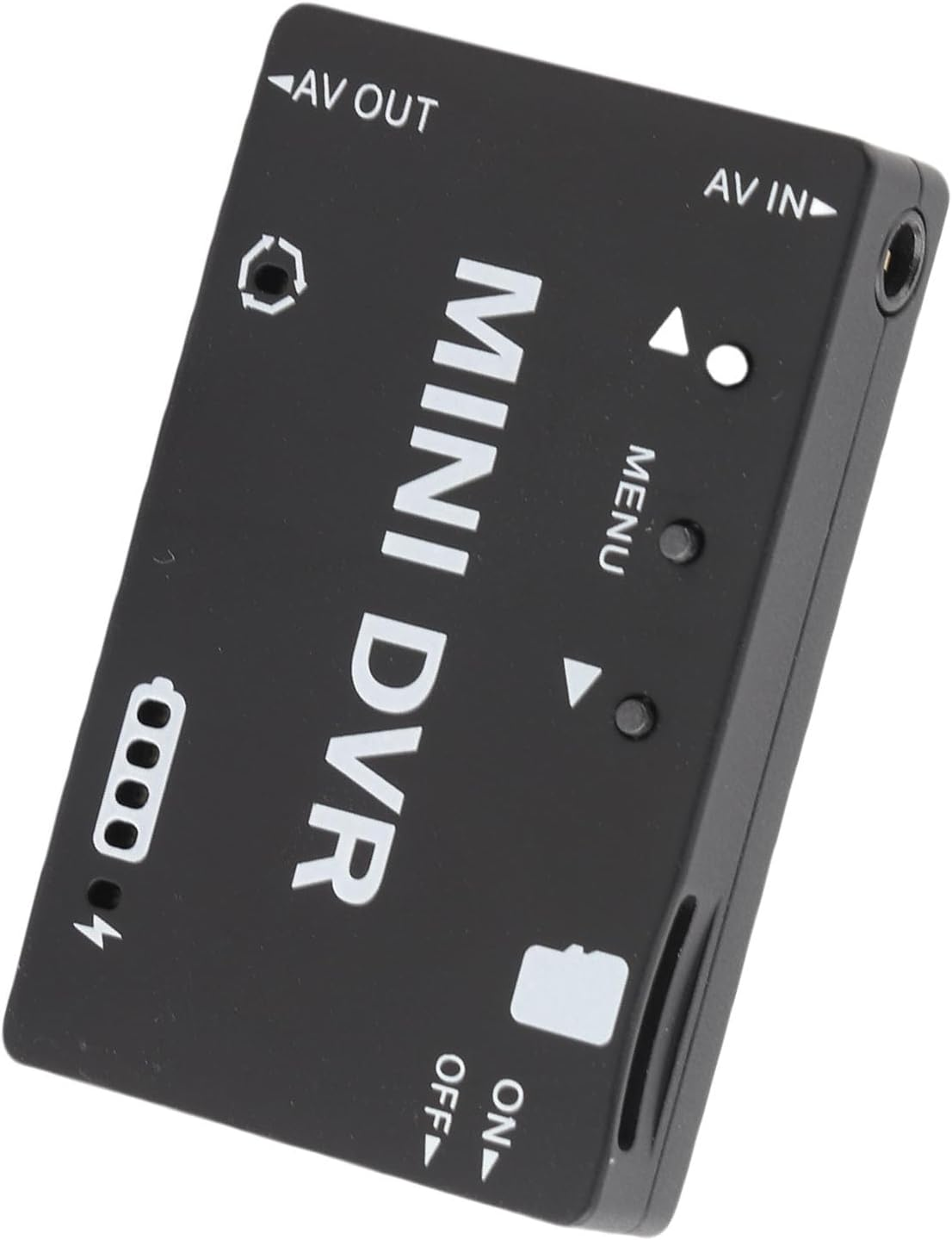

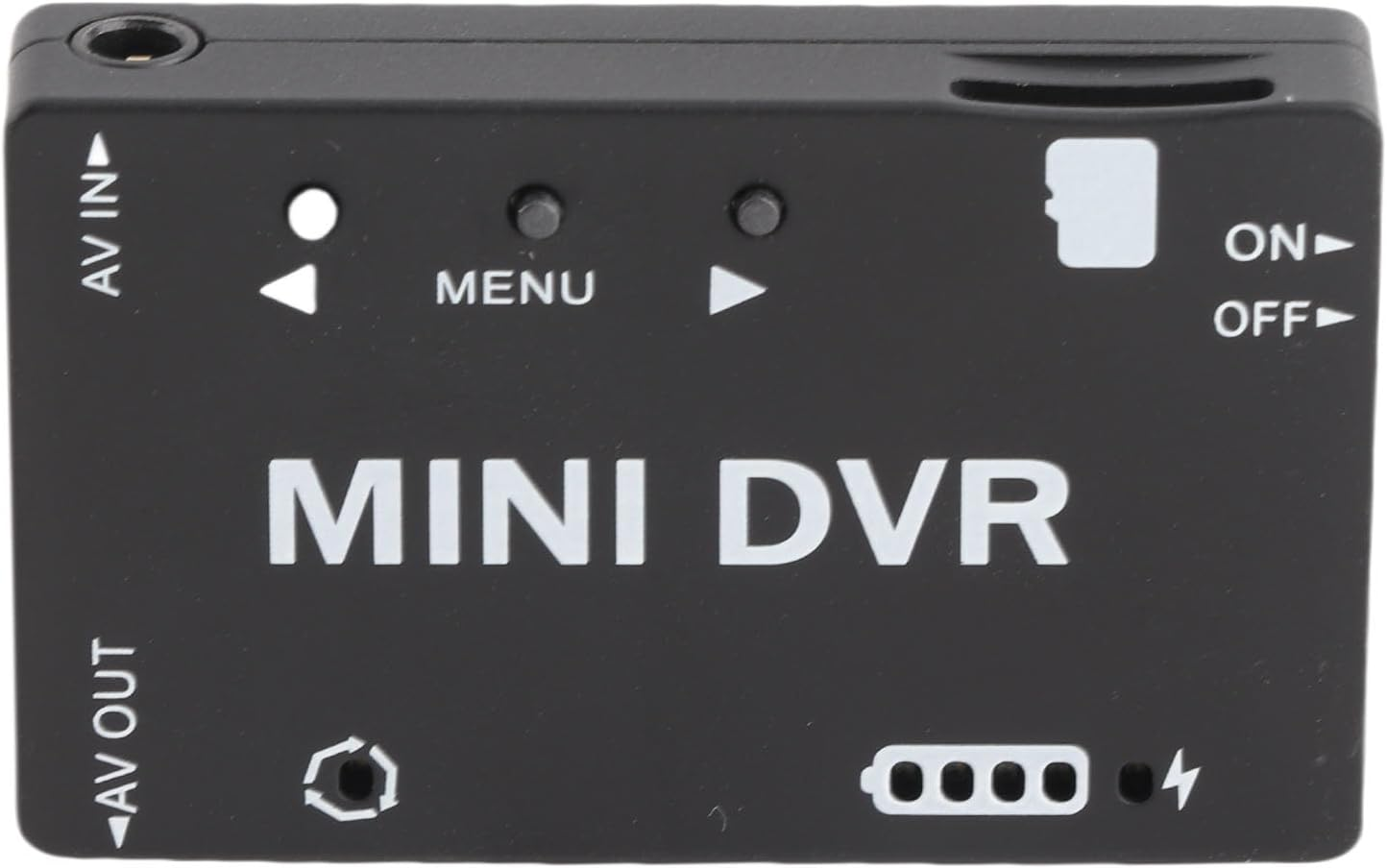

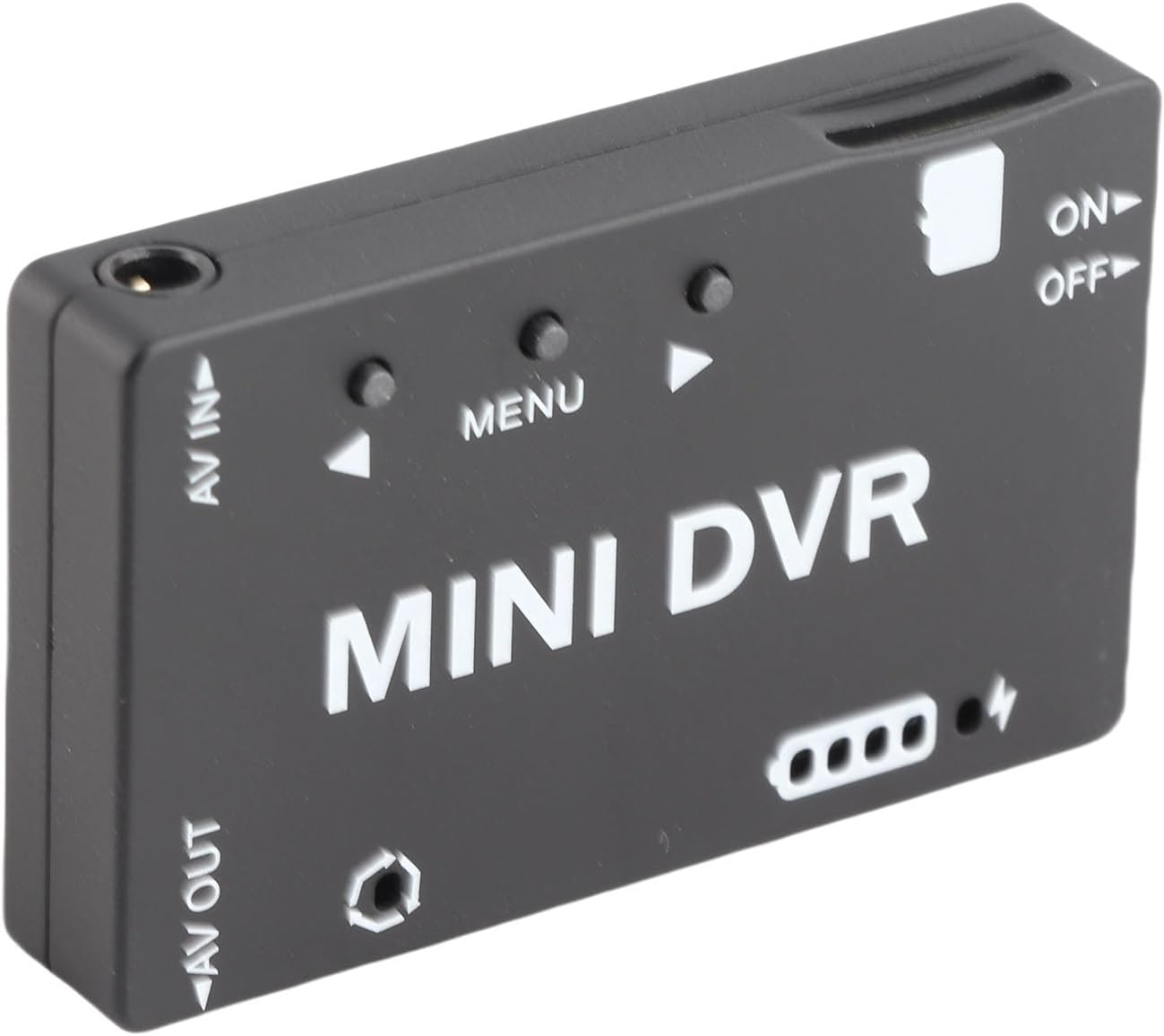

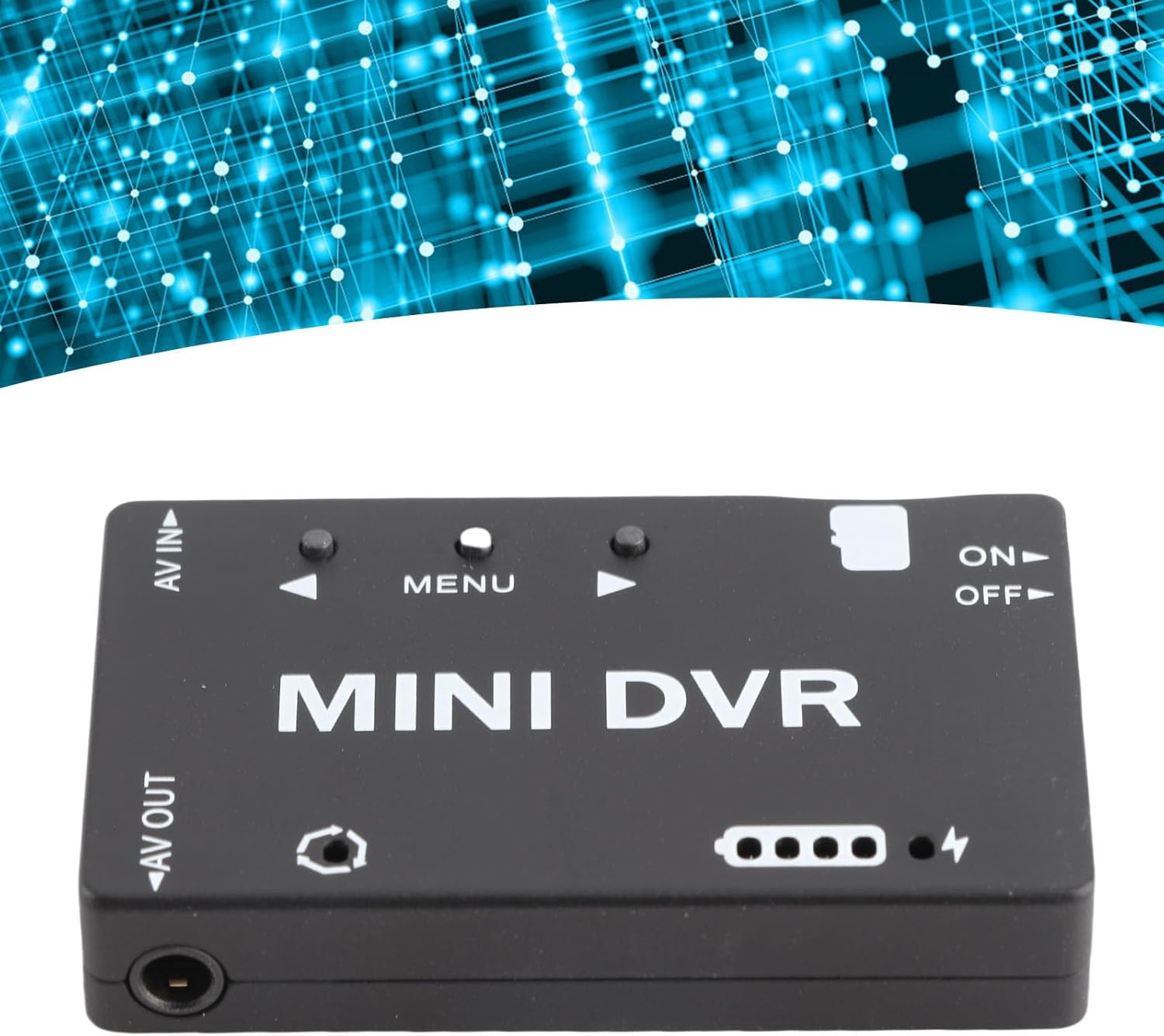

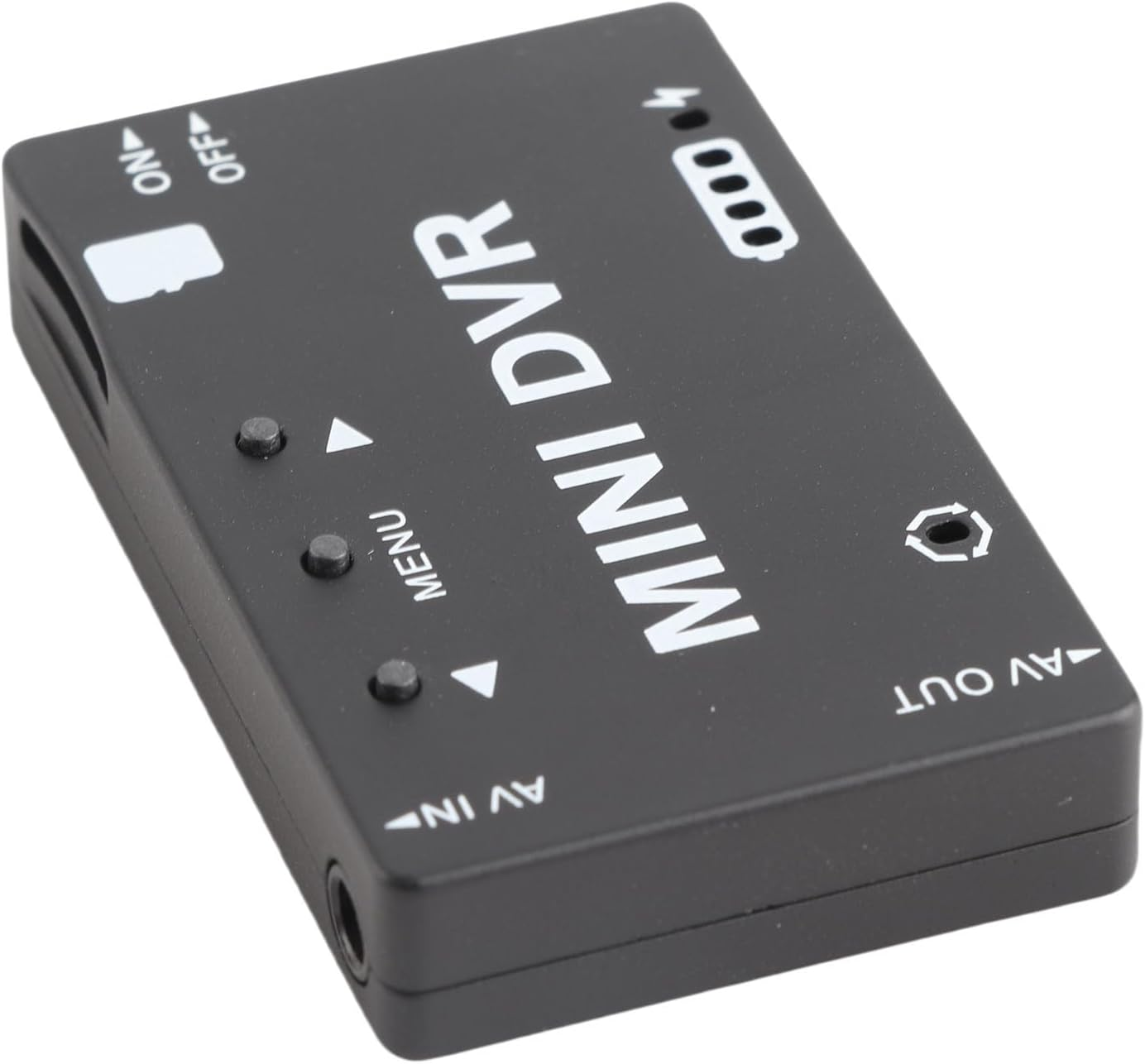

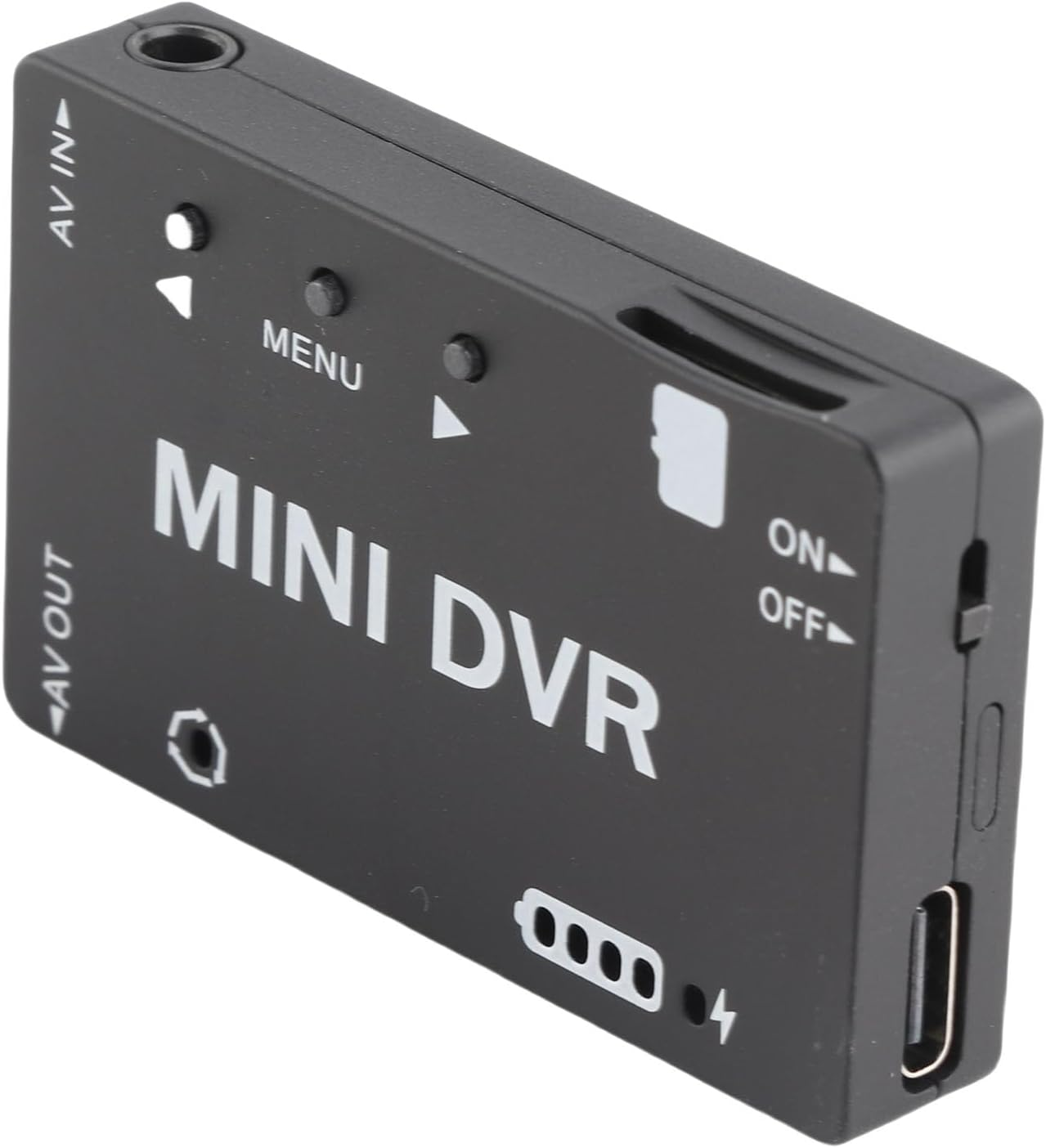

Item Type: Mini FPV DVR Module

Material: Aluminum Alloy, Electronic Components

Product Size: Approx. 53 x 33 x 9mm / 2 x 1.3 x 0.4in

Weight: Approx. 64g / 2.3oz

System Startup Time: 3 Seconds

Video Input Format: NTSC, PAL

Video Input Impedance: 75Ω Typ

Video Compression Format: MJPEG

Recording File Resolution: VGA(640x480), D1(720x480), HD(1280x720) Optional

Recording File Format: AVI

Recording Sound: On or Off Optional

Cycle Recording Time: 10min, 20min, 30min Optional

Frame Rate: 30 Frames

Memory Card: Small memory card supports up to 32GB (C10 recommended) (purchased separately)

Optical Frequency: 50Hz, 60Hz optional

Video Playback: CVBS Output (Connected To Display)

Audio Input Interface: 3.5mm AV Jack

Audio Output Interface: 3.5mm AV Jack

Charging Interface: Type C Interface

Charging Voltage: 5V DC

Charging Current: 500mA Maximum

Battery (Non Removable): 3.7V, 400mah Lithium Ion Battery (Built In)

Battery Life: 1.5 to 2 hours per working load.

Operating Temperature: -10 to 60°C

Working Humidity: 85% RH

Menu Language: 11 Language Choices

Menu Language: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian And Korean.

Suitable: for FPV Drone, for RC Model Racing Car

PackageList:

1 x Mini FPV DVR Module

2 x Single End AV Cable

1 x Hook and Loop

1 x Storage Box

1 x Manual

Notice:

1. Manual measurement, please allow 1‑3mm error, thank you!

2. Due to the differences between different displays, the pictures may not reflect the actual color of the object.

3. (can be used with FPV glasses or screen without DVR function)

4. Please read the complete operation manual before operation to get familiar with the function of the product.

5. Please avoid damp or humid environment.

6. Please use a standard USB charger. The charging voltage can only be 5V.

7. The hard disk video recorder has a built‑in battery. Do not store it in a high temperature and humid environment.
