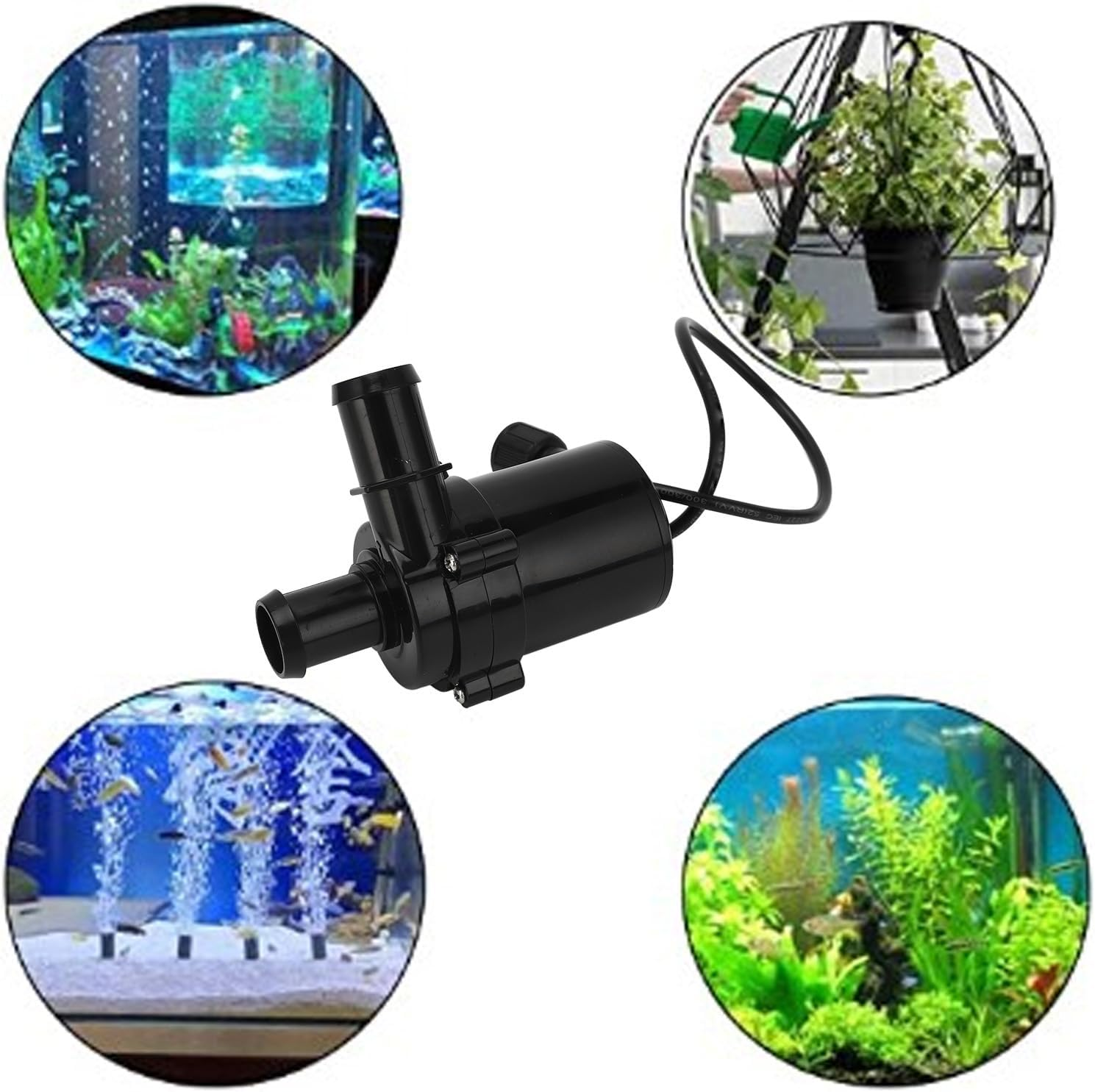

1. APPLICABLE SCENARIO: DC Submersible is widely used in smart toilet, fruit and vegetable machine, other kitchen bath electrical products; For aquariums, fish tanks, ponds, fountains, hydroponic gardens

2. FLEXIBLE AND SUBMERSIBLE: The aquarium DC has no self priming function and can be submerged in water when used

3. ULTRA QUIET DESIGN: DC electric reliable and repeatable motor does not make too much noise, providing you with a quiet environment

4. PROTECTION FUNCTION: When the pump body is idling without water, the pump will run at reduced speed for five consecutive times. Also with no load protection, over current protection, over voltage protection, under voltage protection

5. SCRATCH RESISTANT ABS: DC brushless adopt excellent ABS material, possess impact , scratch ,

Specification:

Item Type: DC

Model Number: AY4147

Frame Material: Pump Body: ABS, Pump Leaf: PPO, Pump Cover: ABS

Rated Current: 3.9A

Rated Power: 47W

Maximum : 36L/min

Maximum Lift: Approx. 10meter / 32.81ft

Life: ≥20000H

Noise: ≤45dB

Insulation Grade: F(155℃)

Ambient Temperature: -25~55℃

Ambient Humidity: Submersible

Type of Liquid Used: Clear water, prevent freezing solution

Liquid Temperature: 0~50℃

Protection Level: IP68

Environmental Protection Grade: Meet ROHS environmental protection requirements

Protection Function:

When the pump body is idling without water, the pump runs at a reduced speed for five consecutive times

No Load Protection: When the pump body is idling without water, the runs at a slow speed. It starts and stops for five consecutive times, and the stops working for a total of 50 seconds. It can only be started after being powered on again.

Overcurrent Protection: When the running current is greater than 6A, the stops working. When the current is less than 6A, the recovers.

Overvoltage Protection: When the voltage exceeds 18 ±1V, the pump protection does not work; If the voltage is less than 15V, the recovers.

Undervoltage Protection: When the voltage is lower than 71V, the pump protection does not work. When the voltage is greater than 8V, the pump will resume work.

How to Use:

Install and use directly.

Package List:

1 x Pump Body

1 x Line
