1. UPGRADED DESIGN: The adapter is a small, low cost open source USB to CAN analyzer that enumerates as a virtual serial port on your computer and acts as a serial line for CAN bus interface. It supports CAN2.0A, CAN2.0B and CAN FD protocols.
2. ENHANCED PERFORMANCE: This USB to CAN adapter features upgraded hardware with improved interference performance, making it ideal for industrial debugging or motor control applications. It maintains high speed data transfer and stable operation.
3. WIDE COMPATIBILITY: Compatible with CAN 2.0A, CAN 2.0B, baud rates up to 1M, for candleLight firmware, for slcan firmware, and preliminary support for CAN-FD with testing speeds of up to 2M 5M baud.

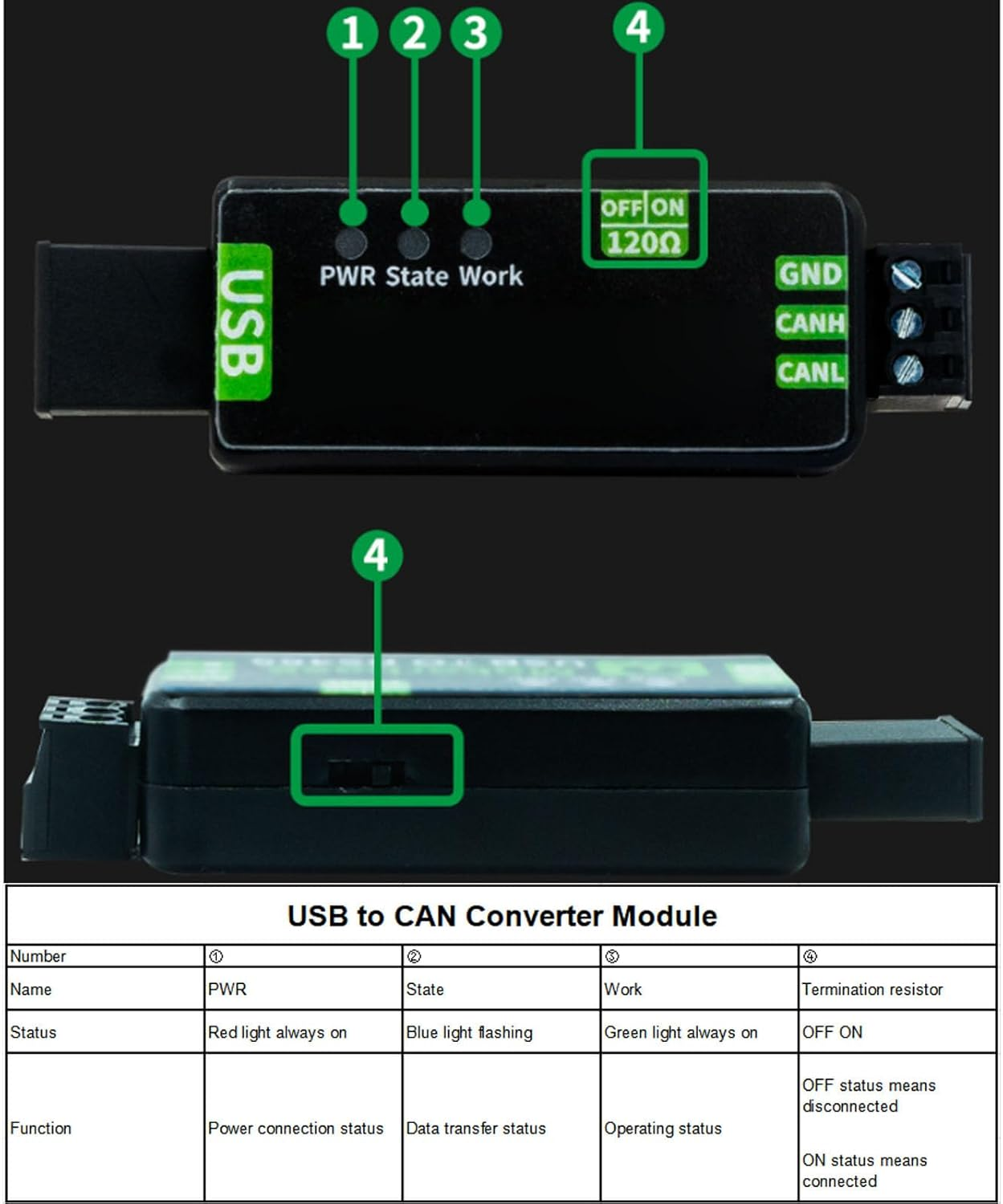

4. FLEXIBLE CONFIGURATION OPTIONS: This adapter allows terminal resistor enable disable selection via jumper ​ and supports for socketcan through for slcand, providing versatile setup possibilities for different applications.

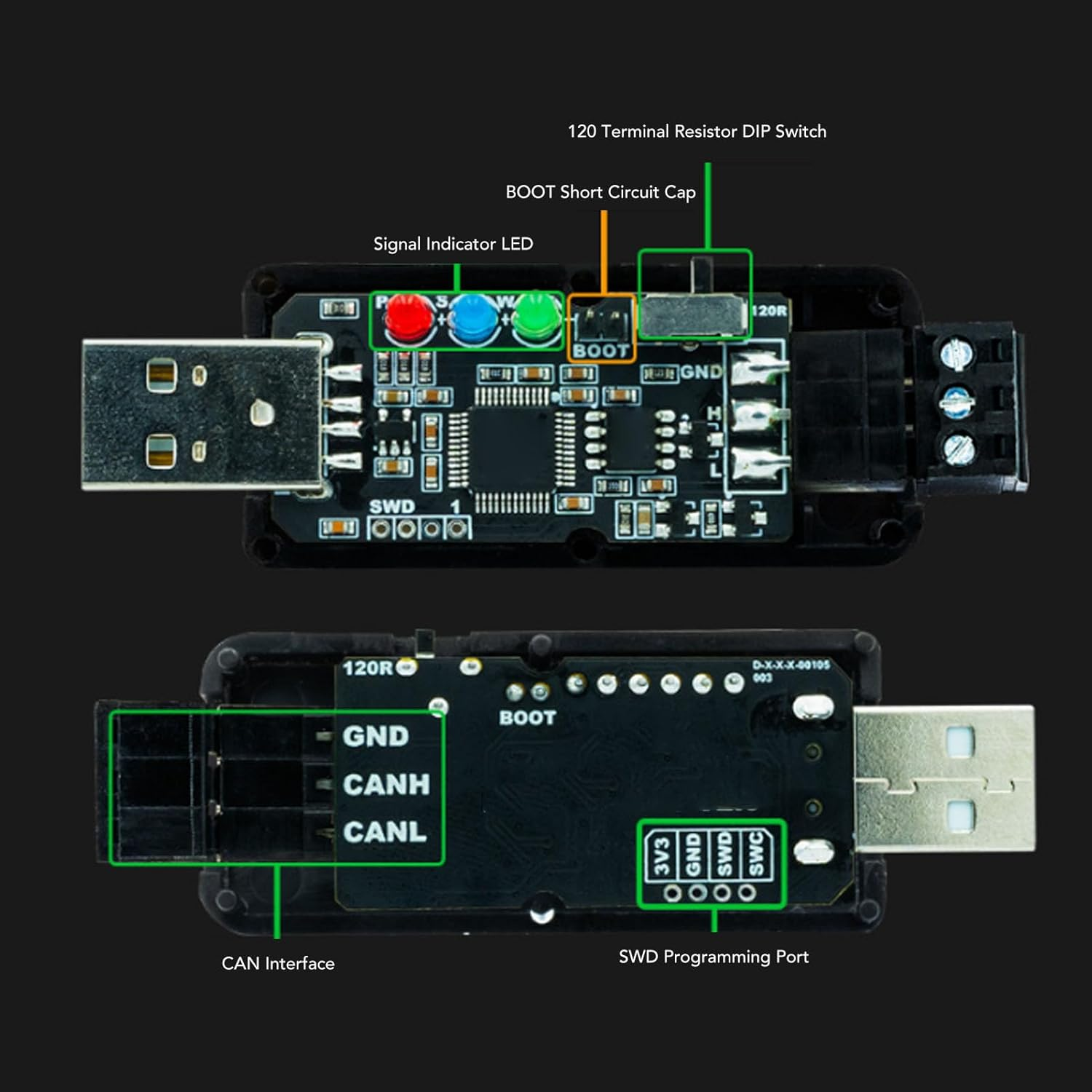

5. HIGH PERFORMANCE: Made of ABS material, the adapter features a for STM32G431C8T6 microprocessor, for TJA1051T/3 communicating chip, and supports DC 3.3V-5V input voltage. Ensures reliable performance and stable operation in industrial environments.
Specification:
Item Type: 2.0 USB to CAN Adapter
Material: ABS
Microprocessor: for STM32G431C8T6
Communication Chip: for TJA1051T/3
CAN FD: Support
CAN 2.0 A/B: Support
Firmware: for candleLight, for slcan
Transfer Rate: 1M 2M 5M
How to Use:
Plug and play

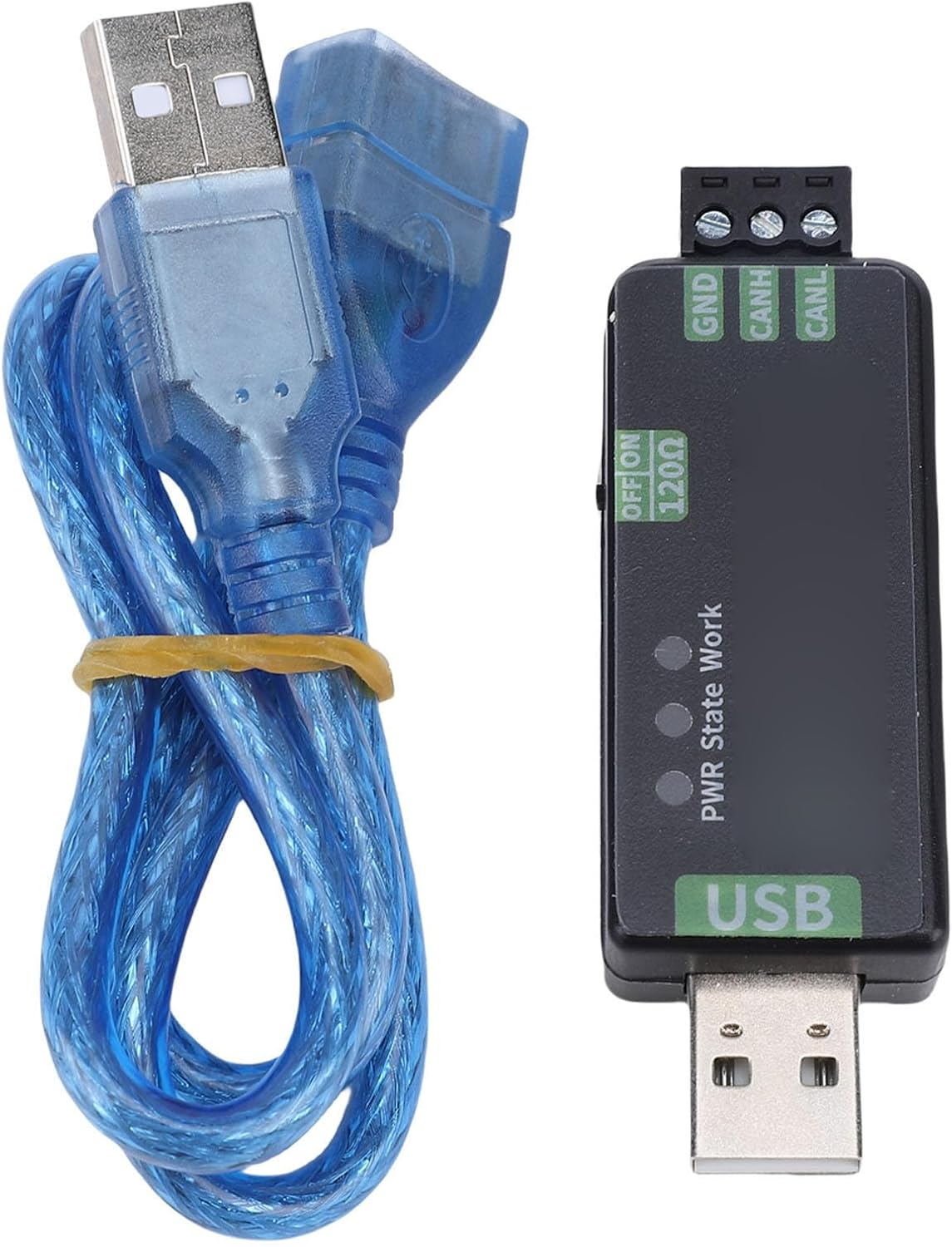

packing list:
1 x Adapter
1 x USB Cable
