16PCS Blind Hole Bearing Puller Blind Hole Collet Bearing Race and Seal Puller Extractor Kit, Slide Hammer Pilot Insert Inner Internal Bearing Removal Tool Set for Wheel Bearings/Bushings, Red
16PCS Blind Hole Bearing Puller Blind Hole Collet Bearing Race and Seal Puller Extractor Kit, Slide Hammer Pilot Insert Inner Internal Bearing Removal Tool Set for Wheel Bearings/Bushings, Red
Brand: Aruzpy
A$76.65
Availability:
-
This item is currently not available
Shop with confidence

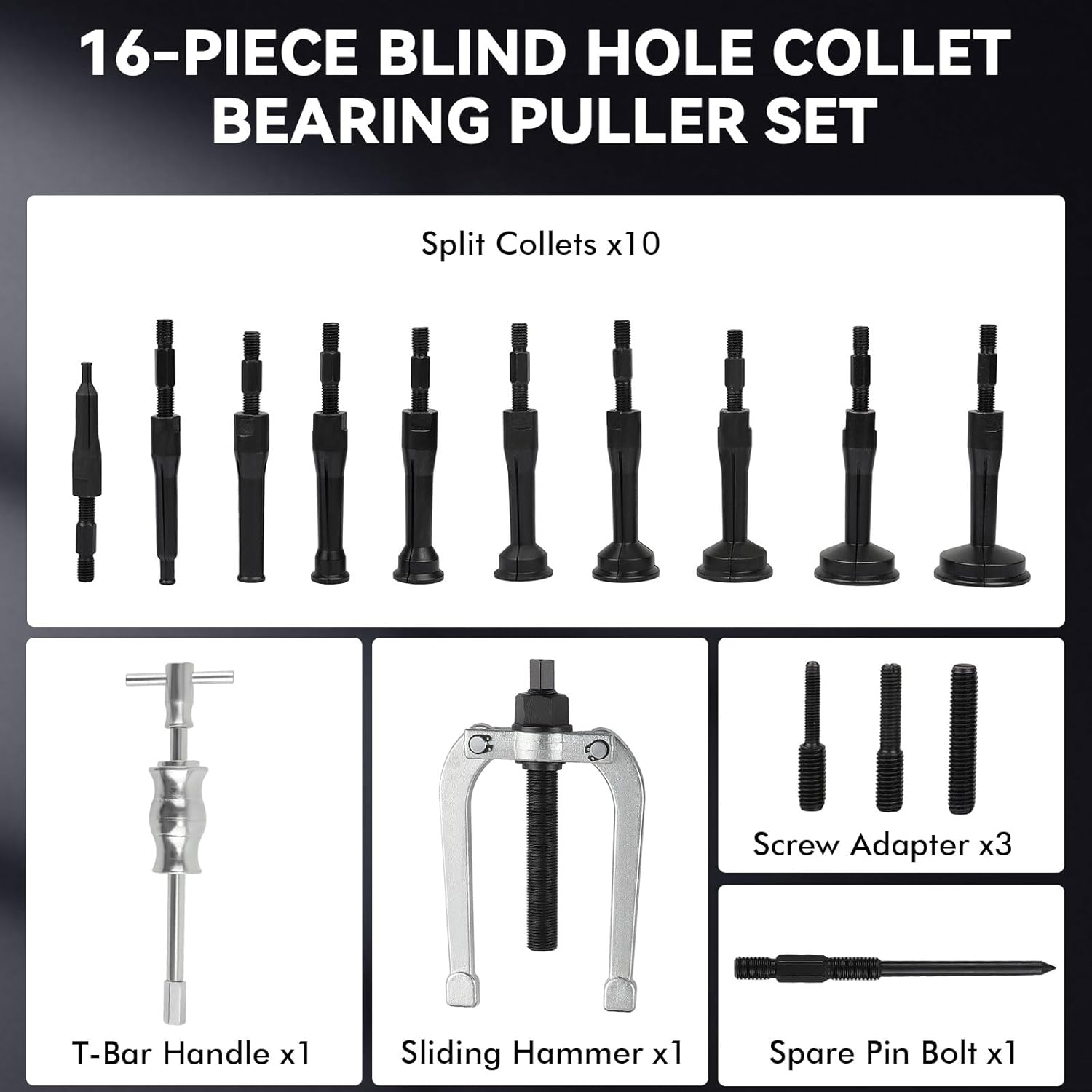

- Complete 16-Piece Kit – This 16PCS blind hole collet bearing puller set includes a slide hammer puller set, counterstay, 3 screw adapters, and 10 collets (8-58 mm / 5⁄16"-2-5⁄16"), ideal for professional and DIY bearing disassembly puller work.
- Versatile Application – Works as a blind bearing puller, pilot bearing puller, and bearing race puller for removing tight or jammed axles, bushings, and inner bearings from cars, motorcycles, ATVs, and light trucks.
- Durable Steel Build – Forged carbon and chromoly steel construction ensures long-lasting strength. Each blind hole bearing puller and pilot bearing removal tool resists corrosion, impact, and deformation for repeated use.
- Secure Grip & Easy Expansion – The blind hole collet bearing race expands to grip firmly inside the bearing bore. The pilot bearing puller attachment locks securely, preventing slip and damage during extraction.
- Effortless Operation – Simply insert the right collet, tighten to expand, attach the slide hammer puller set, and pull to remove bearings. For precision, use the counterstay for controlled removal of stuck components.
- Wide Size Range – Ten collets fit inner diameters 8-11 mm (5⁄16"-7⁄16"), 12-17 mm (15⁄32"-11⁄16"), 18-23 mm (23⁄32"-29⁄32"), 24-29 mm (15⁄16"-1-1⁄8"), 30-34 mm (1-3⁄16"-1-11⁄32"), 34-38 mm (1-11⁄32"-1-1⁄2"), 39-43 mm (1-17⁄32"-1-11⁄16"), 44-48 mm (1-3⁄4"-1-7⁄8"), 49-53 mm (1-15⁄16"-2-3⁄32"), 54-58 mm (2-1⁄8"-2-5⁄16").
- Portable Storage Case – Each blind hole puller tool is organised in a blow-moulded carry case for convenient transport and storage, keeping your bearing puller and accessories secure and ready for every job.
Product Description
16PCS Blind Hole Bearing Puller Kit
This 16-piece blind hole puller set is designed for removing internal bearings and bushings where external grip tools cannot reach. Using expansion collets that anchor from the inside, the slide hammer delivers controlled pulling force to extract bearings without damaging surrounding components. Suitable for automotive hubs, mechanical assemblies, motorcycle repairs, workshop maintenance, and general engineering tasks. The kit comes organised in a portable case for easy transport and storage.
Portable Storage Case for Organised Use
All parts are stored in a fitted carry case, keeping the collets and adaptors arranged according to size. This allows faster setup, easier identification, and convenient movement between workshop locations or job sites.
Simple Operation

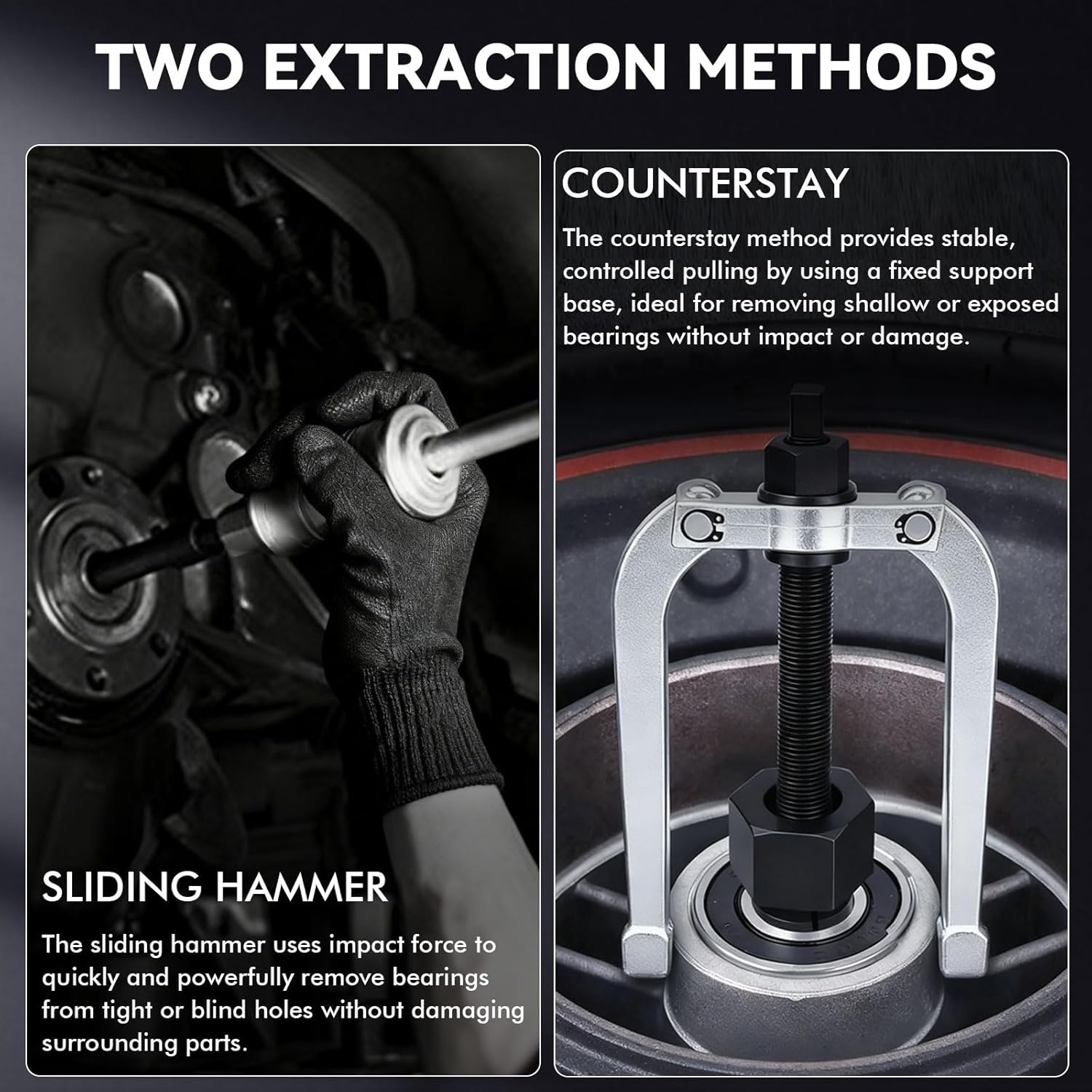

The slide hammer method provides quick removal by applying impact force, making it effective in tight spaces or when bearings are firmly seated from long-term use. In contrast, the counterstay method applies steady, controlled axial pulling force with reduced vibration, helping to protect the bore surface and surrounding components. Choosing between the two methods allows you to adapt to different work conditions, balancing efficiency and precision during internal bearing extraction.
Suitable for a Wide Range of Mechanical Tasks

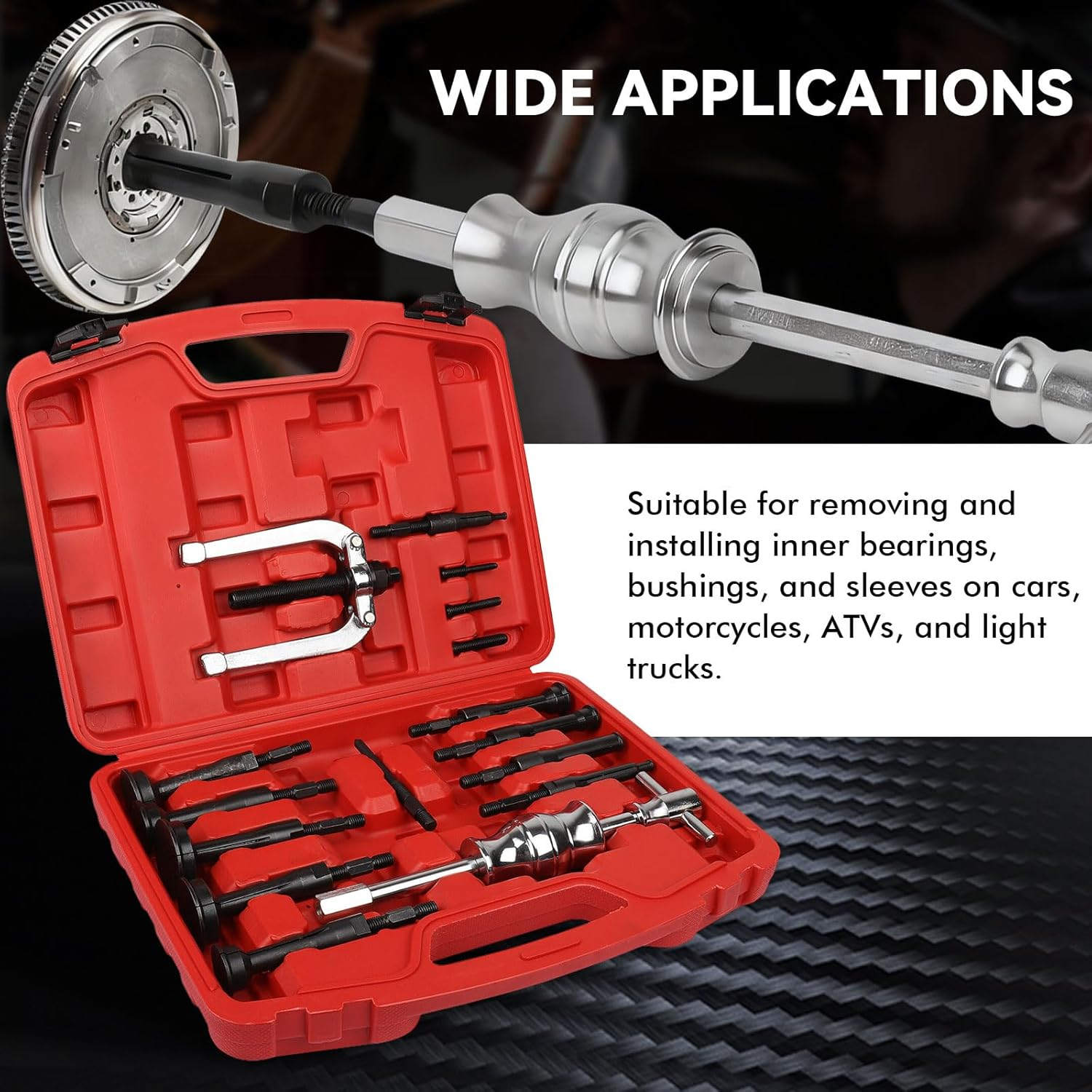

This blind hole bearing puller kit is commonly used in automotive and motorcycle wheel hubs, transmission rebuilds, mechanical servicing, machinery restoration, lawn equipment maintenance, workshop repair benches and equipment overhaul tasks.

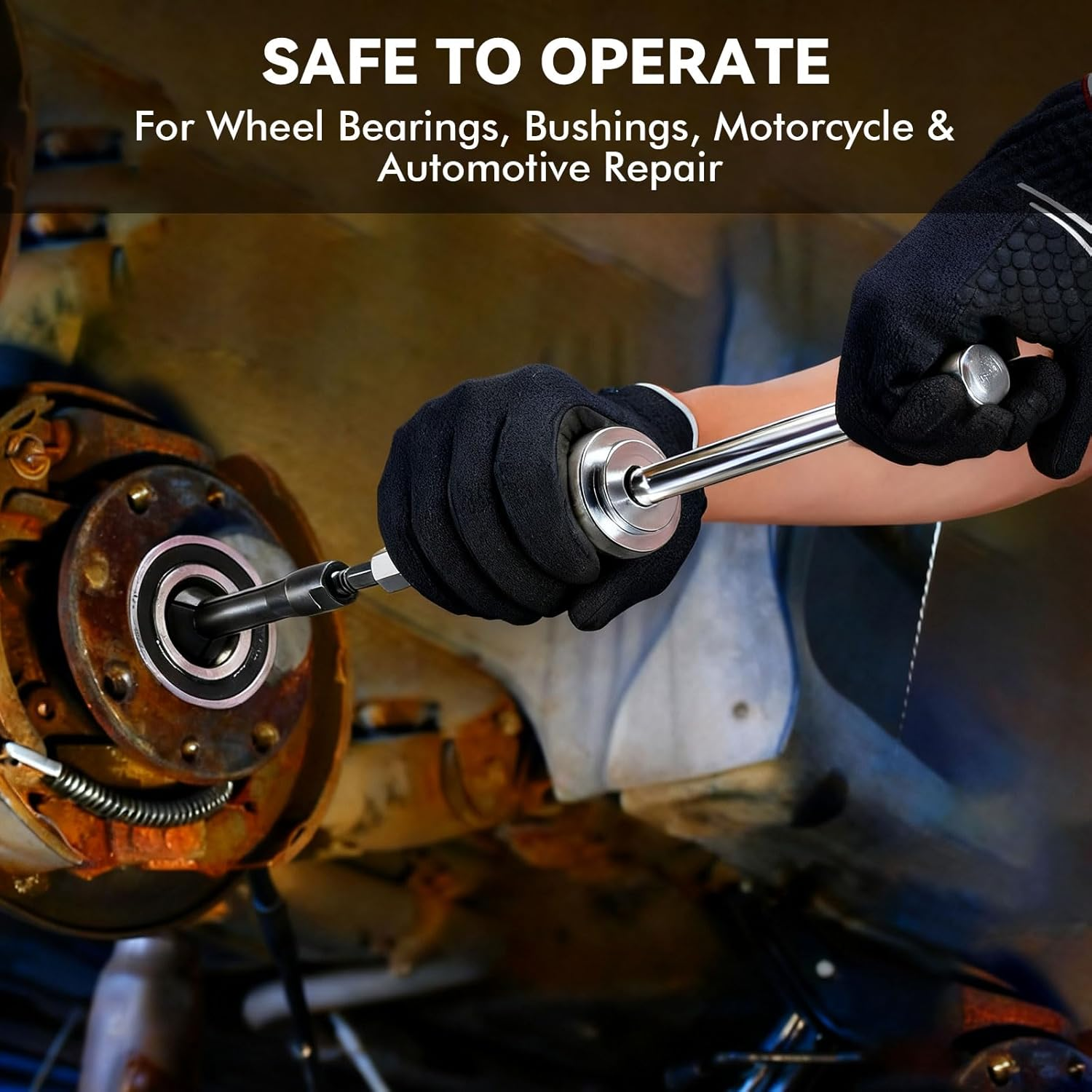

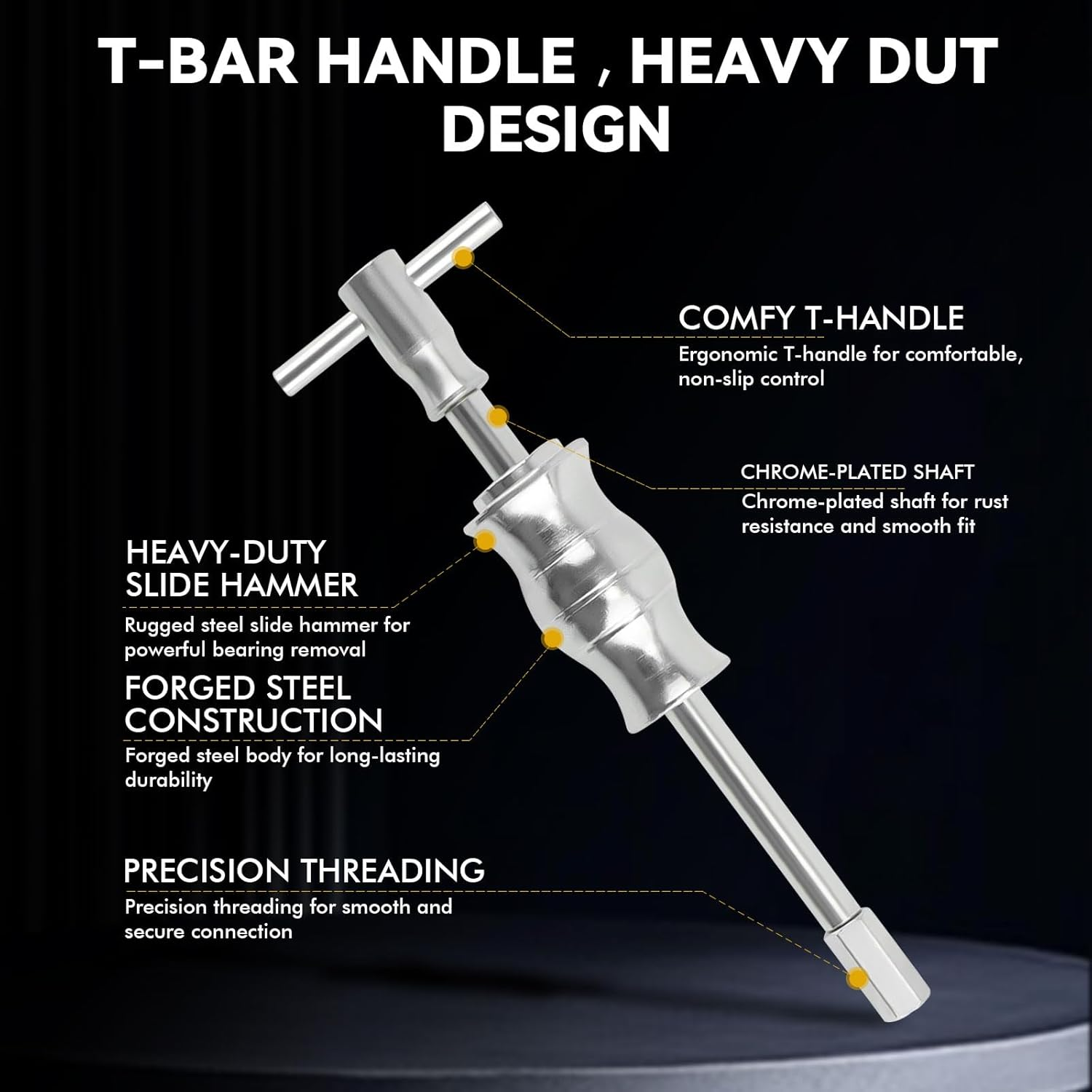

Slide Hammer
Provides pulling force through forward and backward sliding motion. Ideal for removing bearings that are seated tightly or have corrosion and require impact force to break free.
Threaded Forcing Rod
Used with the counterstay system to apply gradual axial pulling force. Turning the rod increases tension slowly, providing smooth extraction where impact is not suitable.
Locking Nuts
Secure the collet and connector assembly to prevent loosening during extraction. Ensure stable working alignment during pulling.
Carry Storage Case
Holds all collets, adapters, and tools in organised positions. Helps with quick identification, prevents loss of small parts, and supports convenient transport between job sites.
FAQ – Blind Hole Bearing Puller Kit
Q1: What types of bearings can this kit remove?
This kit is designed for removing internal bearings, bushings, sleeves, and pilot bearings where external pullers cannot grip. It works inside blind holes and sealed housings.
Q2: When should I use the slide hammer method?
Use the slide hammer when you need faster removal or when the bearing is firmly seated due to corrosion or long-term use.
Q3: When should I use the counterstay (support bridge) method?
Use the counterstay when you want smooth, controlled pulling with minimal vibration. This is recommended for precision components and thin-wall housings.
Q4: Can this tool remove bearings without damaging the housing?
Yes. When used correctly, the internal expansion and axial pulling help protect the bore surface. For sensitive assemblies, the counterstay method is recommended.
Q5: How should I store the components?
Keep all parts in the fitted carry case to prevent misplacing small collets and connectors. Store in a dry environment to maintain tool condition.
- Manufacturer reference: pilot bearing puller attachment
- Colour: Red
- Country of origin: China
- Manufacturer Part Number: pilot bearing puller attachment
- Package Dimensions: 34.7 x 27 x 12.3 cm; 5 kg
- Item Weight: 5 kg
- Model: bearing puller
- Brand: Aruzpy
- Manufacturer: Aruzpy
