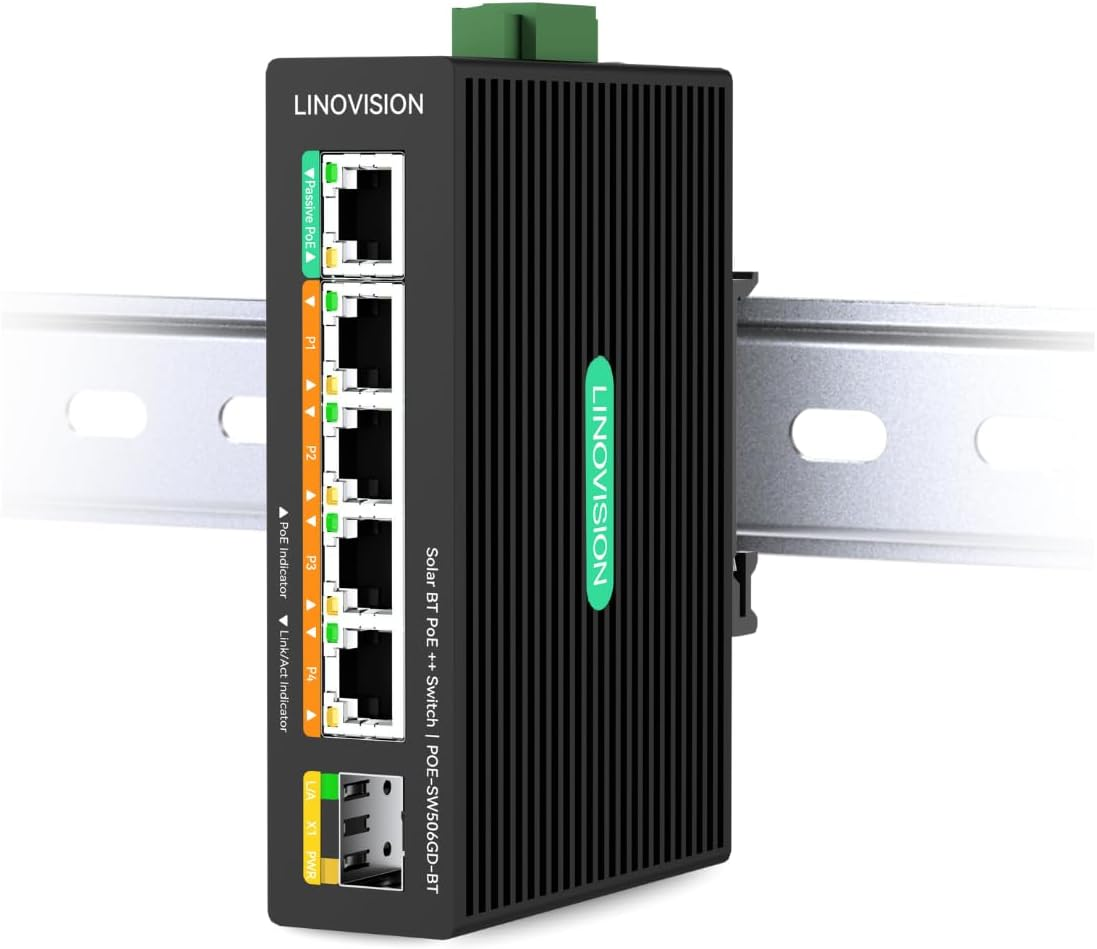

LINOVISION Industrial 5 Ports Full Gigabit DC12V Poe++ Switch for Solar or RV UPS System, Supports DC 9~54V Input, 4 BT90W Poe++ Ports for Poe Lighting and 1 Passive 24V Poe Port for Wireless Bridge
LINOVISION Industrial 5 Ports Full Gigabit DC12V Poe++ Switch for Solar or RV UPS System, Supports DC 9~54V Input, 4 BT90W Poe++ Ports for Poe Lighting and 1 Passive 24V Poe Port for Wireless Bridge
Brand: LINOVISION
A$210.00

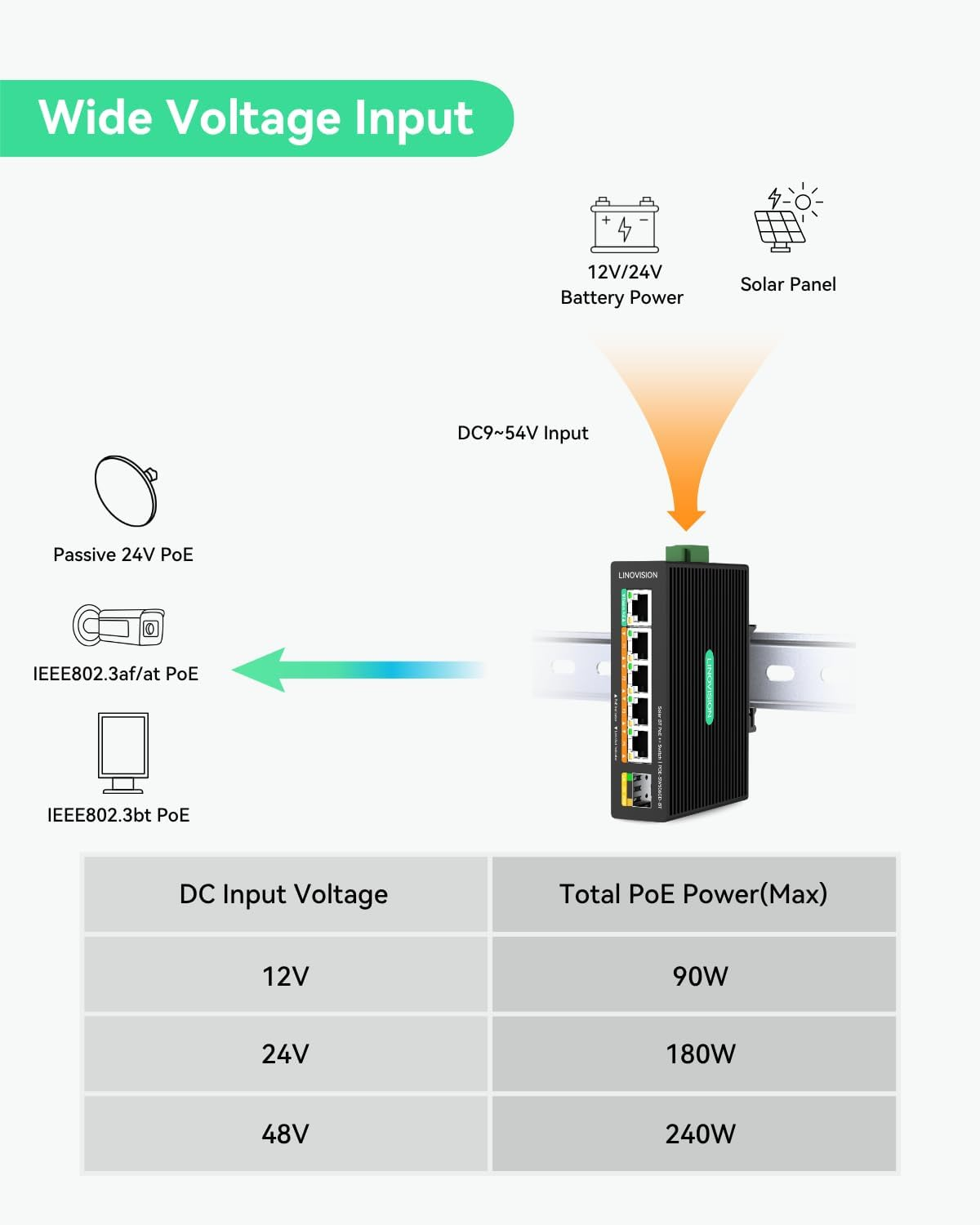

- DC 9～54V Input: Featuring built-in voltage booster, works directly with DC 12V or DC 24V Solar or UPS battery systems, outputs 4 standard 48V BT90W PoE and 1 Passive 24V PoE.

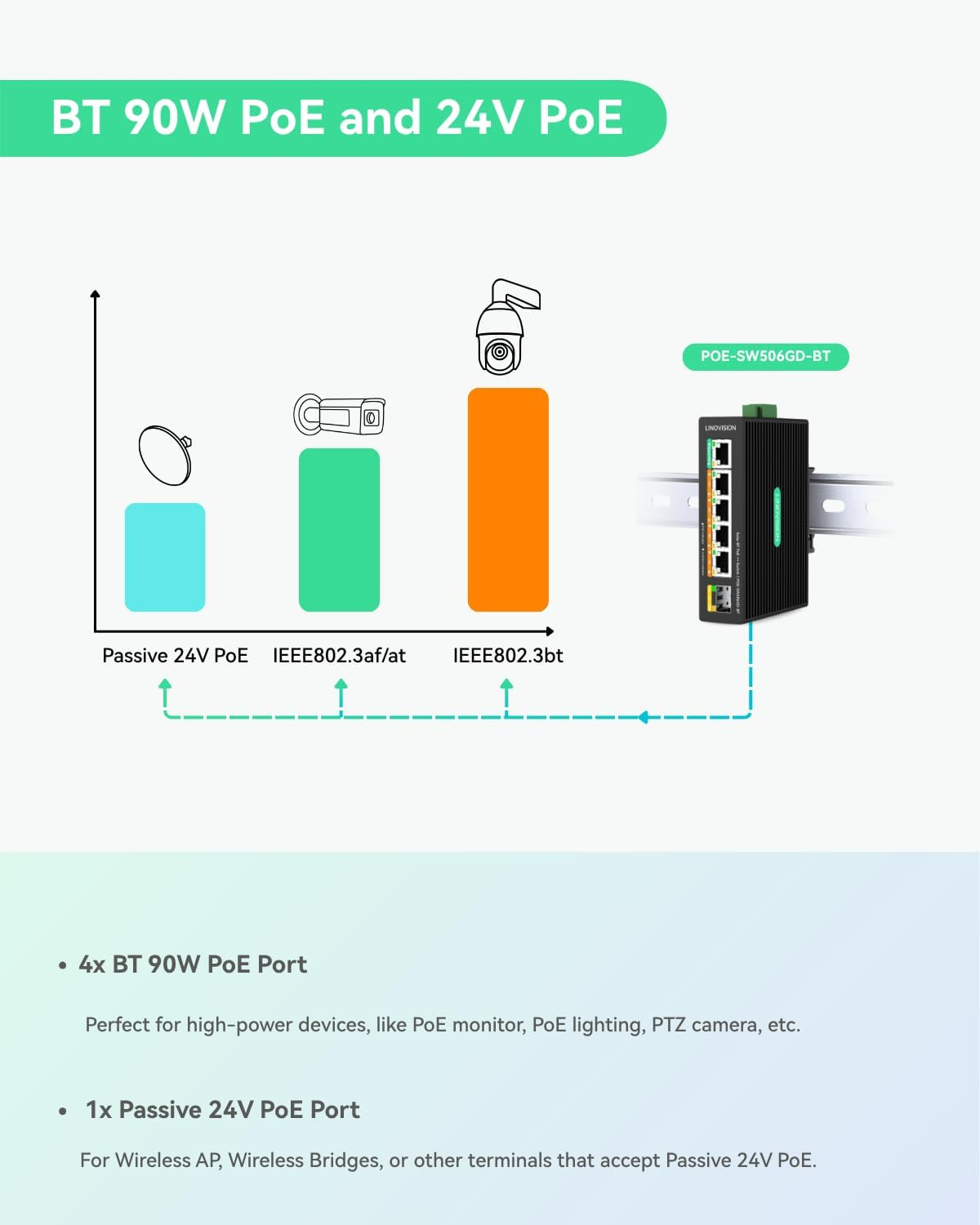

- 4 BT90W PoE Ports: Equipped with 4 Gigabit IEEE802.3af/at/bt PoE ports, delivering up to 90W per port, perfect for high-power devices, like PoE monitor, PoE lighting, PTZ camera, etc.
- Passive 24V PoE: Compatible with Access Points, Bridges, and other devices supporting Passive 24V PoE. No extra PoE injector needed.
- Total PoE Budget: 240W (DC48V input) or 180W (DC24V input) or 90W (DC12V input)
- Redundant Power Input: Support 2 channel DC9～54V independant power inputs and auto failover, ensure high reliability networking system.

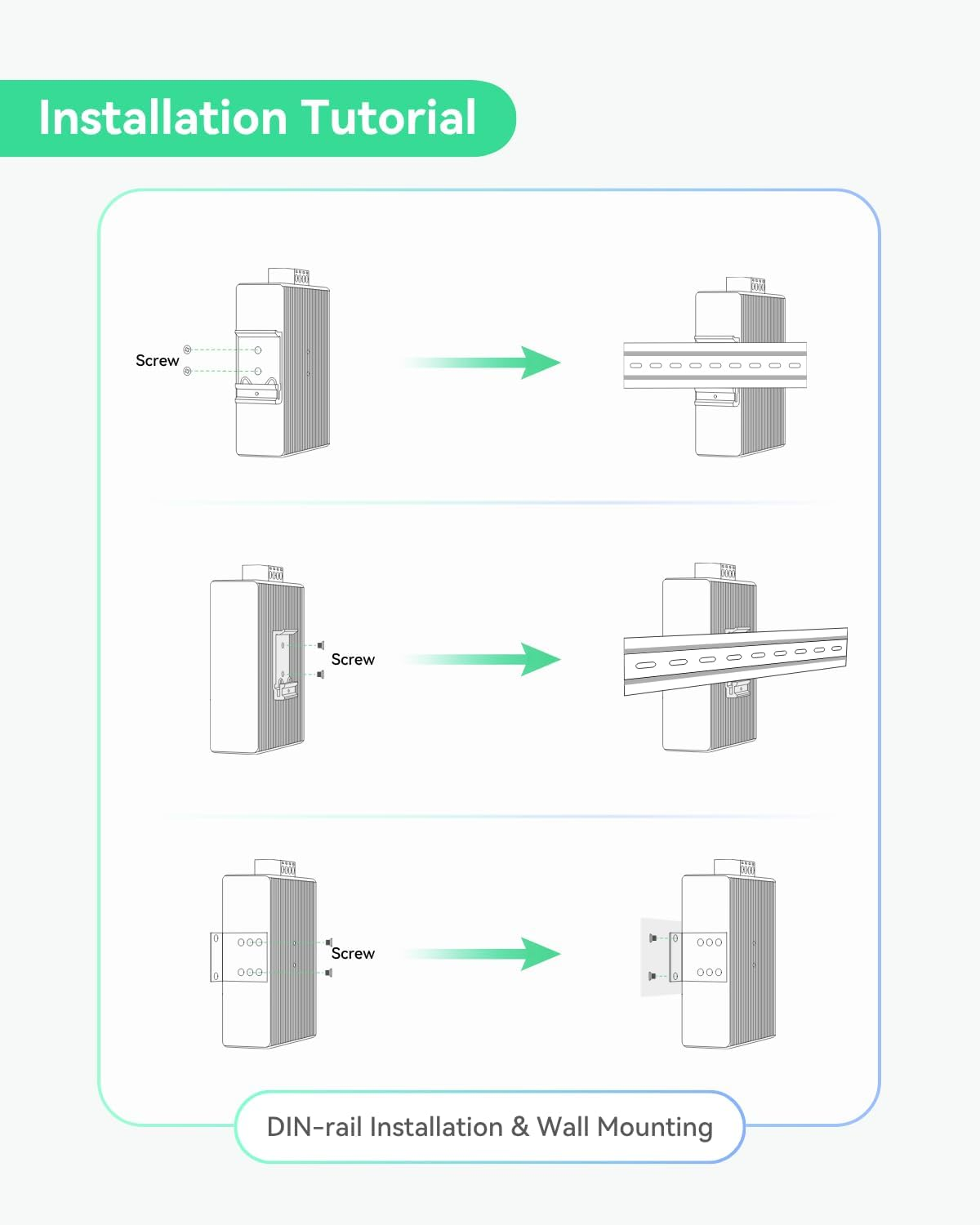

- Industrial Design: Compact IP40 rugged metal enclosure; Wide working temperature -40 ℉ to 167 ℉ (-40°C to 75°C); Support DIN-Rail & Wall Mount.

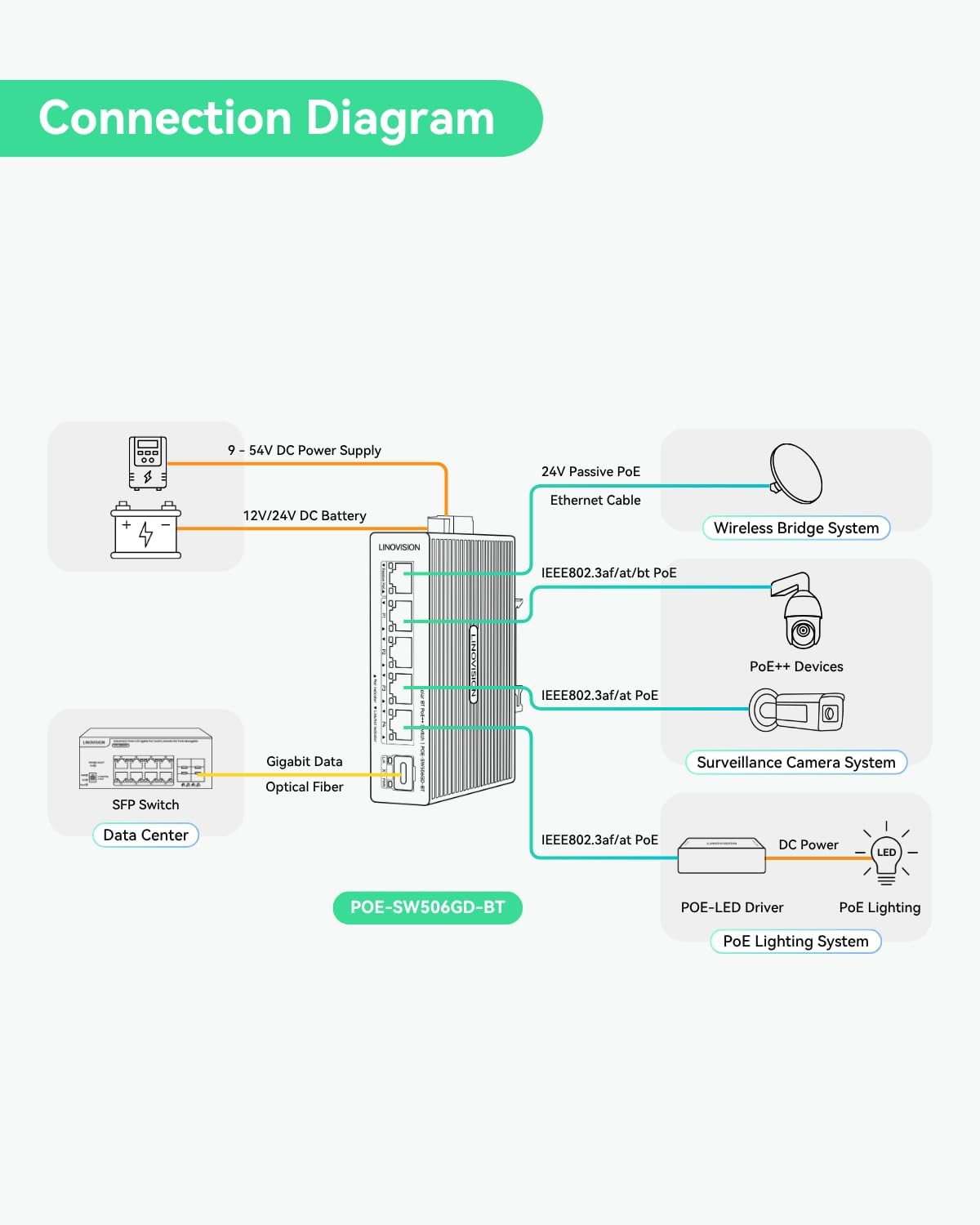

- Application: High-Power PoE and Passive 24V PoE supply in Solar Power System (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control/Robotic Systems (DC24V input).
Product Description

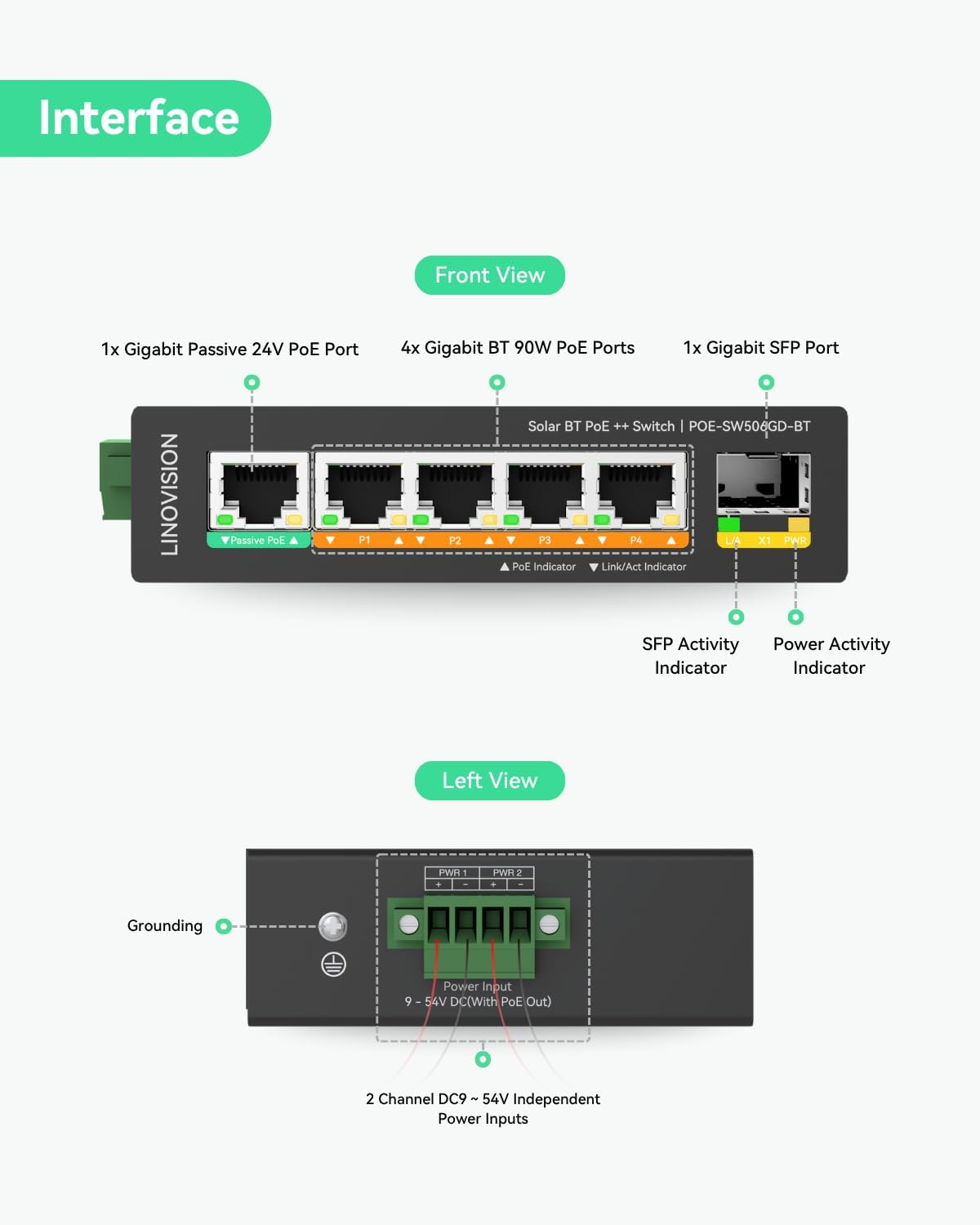

Interface
Outstanding Feature
Package & Installation
LINOVISION Wide Voltage Input POE Switch for your choice！
| Customer Reviews | — | 4.4 out of 5 stars 116 | 5.0 out of 5 stars 1 | 3.8 out of 5 stars 7 | 4.7 out of 5 stars 4 | 3.4 out of 5 stars 4 |
| Price | $249.99$249.99 | $149.99$149.99 | $149.99$149.99 | $189.99$189.99 | $399.00$399.00 | $299.99$299.99 |
| Model | POE-SW506GD-BT | POE-Switch0504GD | POE-Switch0504GDF | POE-SW504GD | POE-SWR612GM-Solar | POE-SW805G5U-Solar |
| Input | Dual DC Input: 9V~54V DC | Dual DC Input: 9V~54V DC | POE-Switch0504GDF | DC 9V~57V | Dual DC Input: 8V~57V | Solar&Batt 12/24V, Ext DC12V |
| Output | IEEE802.3af/at/bt, Passive PoE | 44~57V PoE Standard | 44~57V PoE Standard | IEEE802.3af/at, Passive PoE | 44~57V PoE Standard | IEEE802.3af/at/bt, Passive PoE |
| Uplink Ports | 1 Gigabit SFP | 1 Gigabit Uplink | 1 Gigabit SFP | Any PoE port can be Uplink | 2 Gigabit SFP+ 2 Gigabit RJ45 | 1 * 1.25G SFP |
| POE Ports | 4 Gigabit PoE Ports | 4 Gigabit PoE Ports | 4 Gigabit PoE Ports | 2 * Gigabit PoE Ports | 8 Gigabit PoE Ports | 5 * Gigabit PoE Ports |
| POE++ Ports | 4 * BT90W PoE++ Ports | / | / | 1 * 45W High PoE+ Port | / | 1 * BT 60W Port (Port 1) |
| Passive 24V PoE | 1 * Passive 24V PoE | / | / | 1 * Passive 24V PoE | / | P4-5 Switch to 24V Passive PoE |
| POE budget | 240W@DC48V, 180W@DC24V | 120W (DC24V/48V), 60W (DC12V) | 120W (DC24V/48V), 60W (DC12V) | 100W@DC24V/48V, 50W@DC12V | 240W@48V, 180W@24V, 70W@12V | 65W |
| L2/L3 Management | / | / | / | / | L2+ | / |
| Remote PoE Port Control | / | / | / | / | PoE Port Remote Cloud Control | / |
| Installation Method | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail | DIN-Rail/Wall-Mount | Wall-Mount |
| Waterproof | ✘ | ✘ | ✘ | ✘ | ✘ | ✘ |
- Item Model Number: POE-SW506GD-BT
- Part Number: POE-SW506GD-BT
- Data transfer rate: 1000 Megabits Per Second
- Number of items: 1
- Country/Region of origin: China
- Batteries Included: No
- Batteries Required: No
- Upper temperature rating: 167 Degrees Fahrenheit
- Product dimensions: 12 x 8.5 x 3.05 cm; 390 Grams
- Item weight: 0.39 Kilograms
- Item Weight: 390 g
- Interface type: RJ45
- Model: POE-SW506GD-BT
- Manufacturer: LINOVISION
- Voltage: 48 Volts
