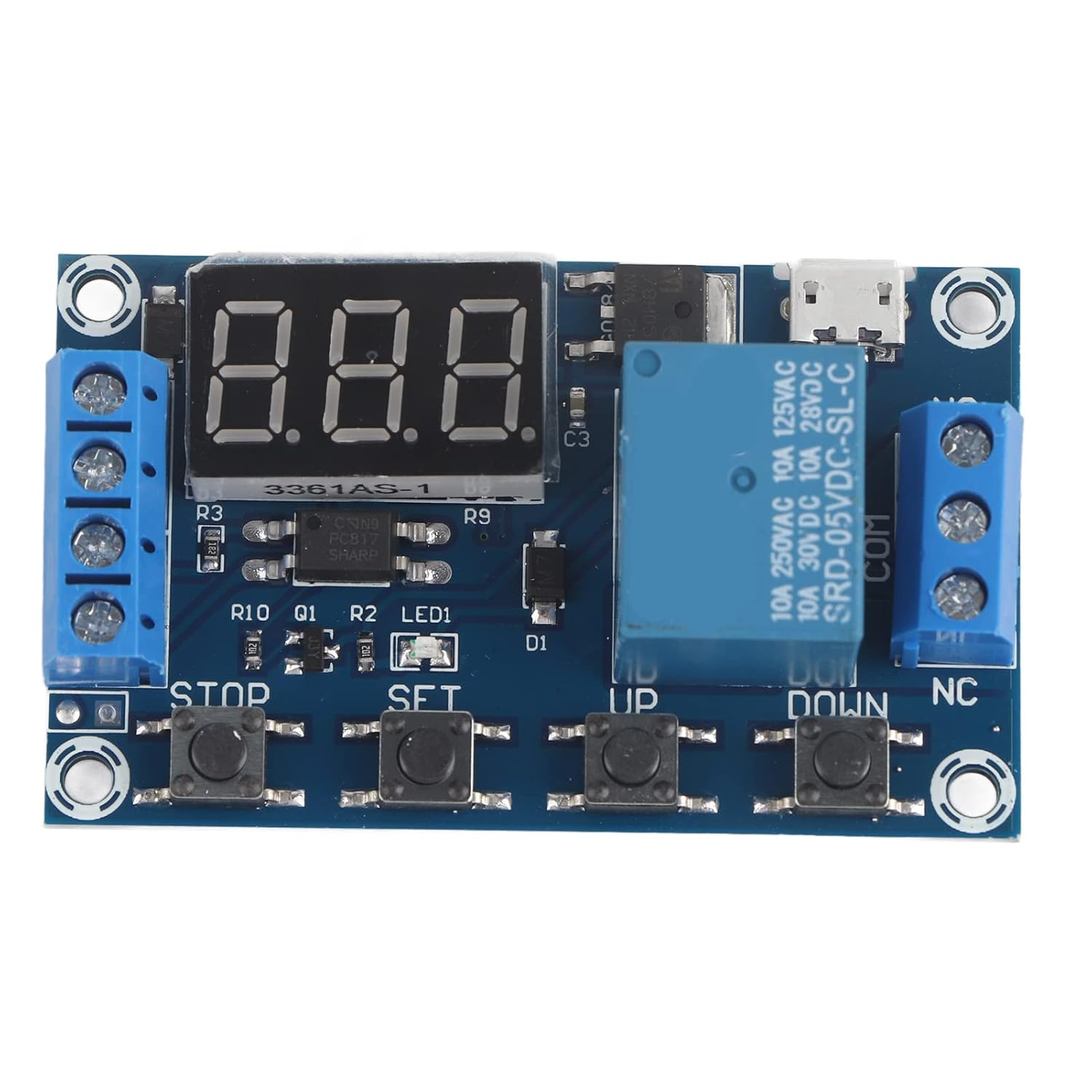

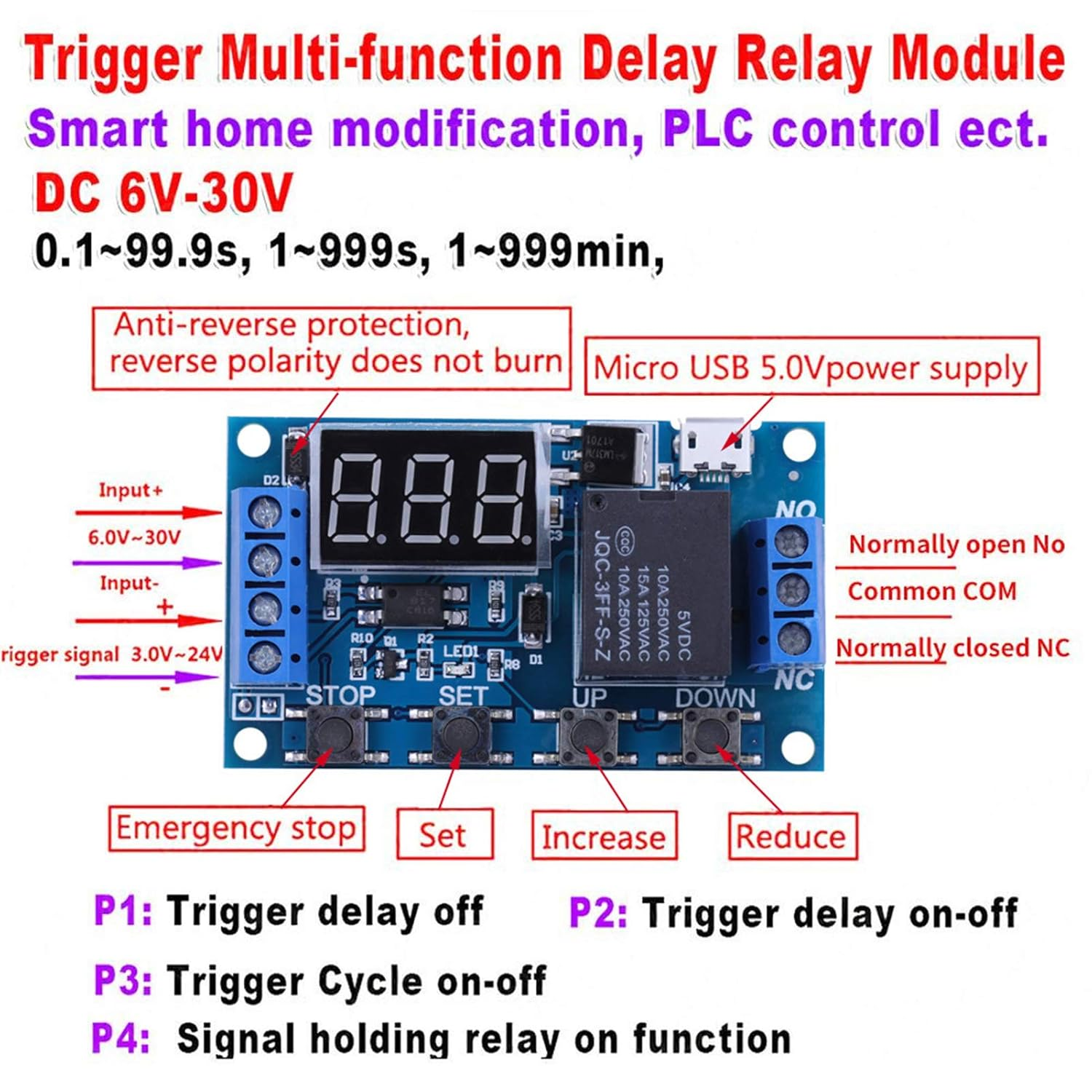

Specifications:
Voltage: 6V~30V(support micro USB 5.0V)
Signal Source: High voltage level (3.0V~24V), signal ground and system ground are not connected to improve system anti-interference ability(or you can connect them).

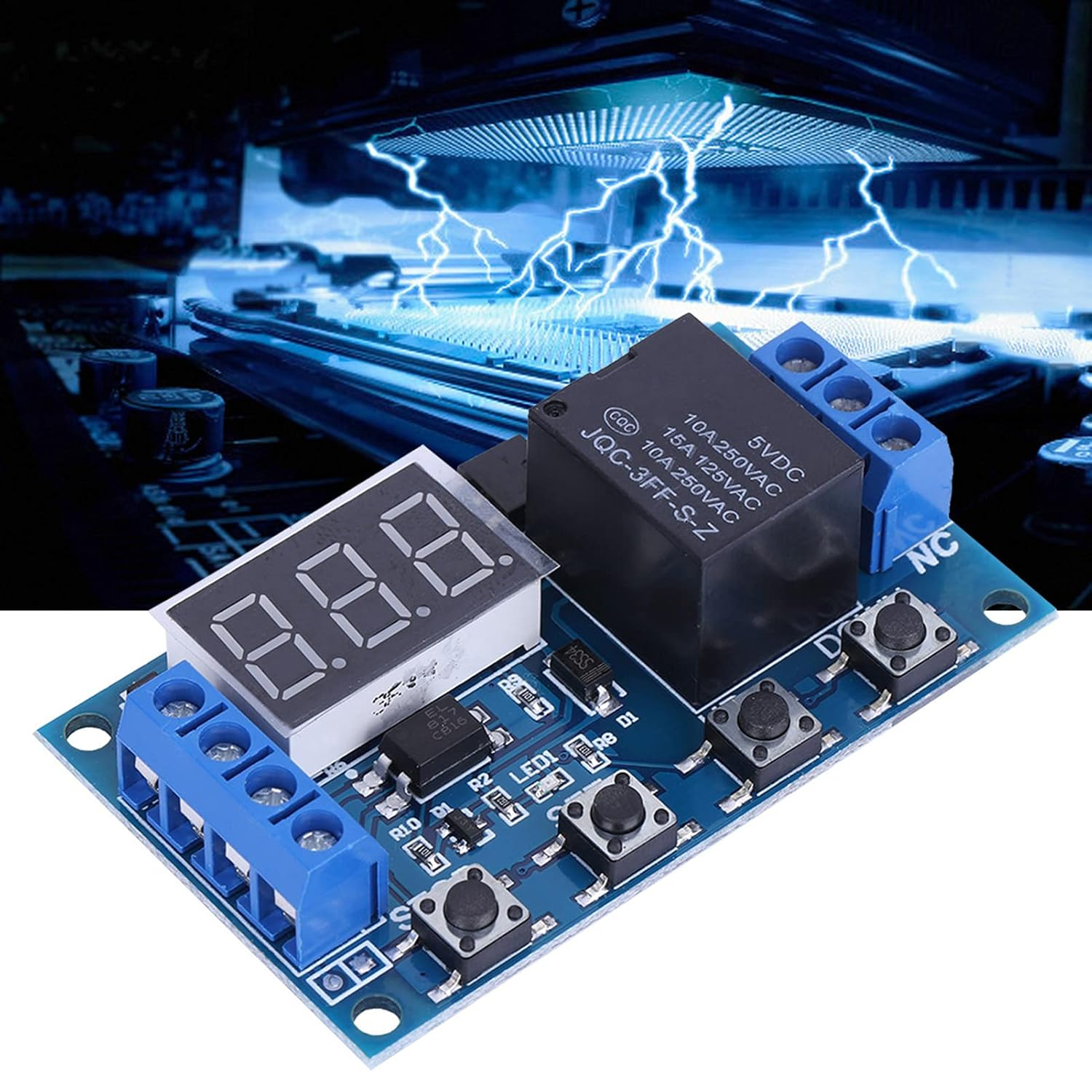

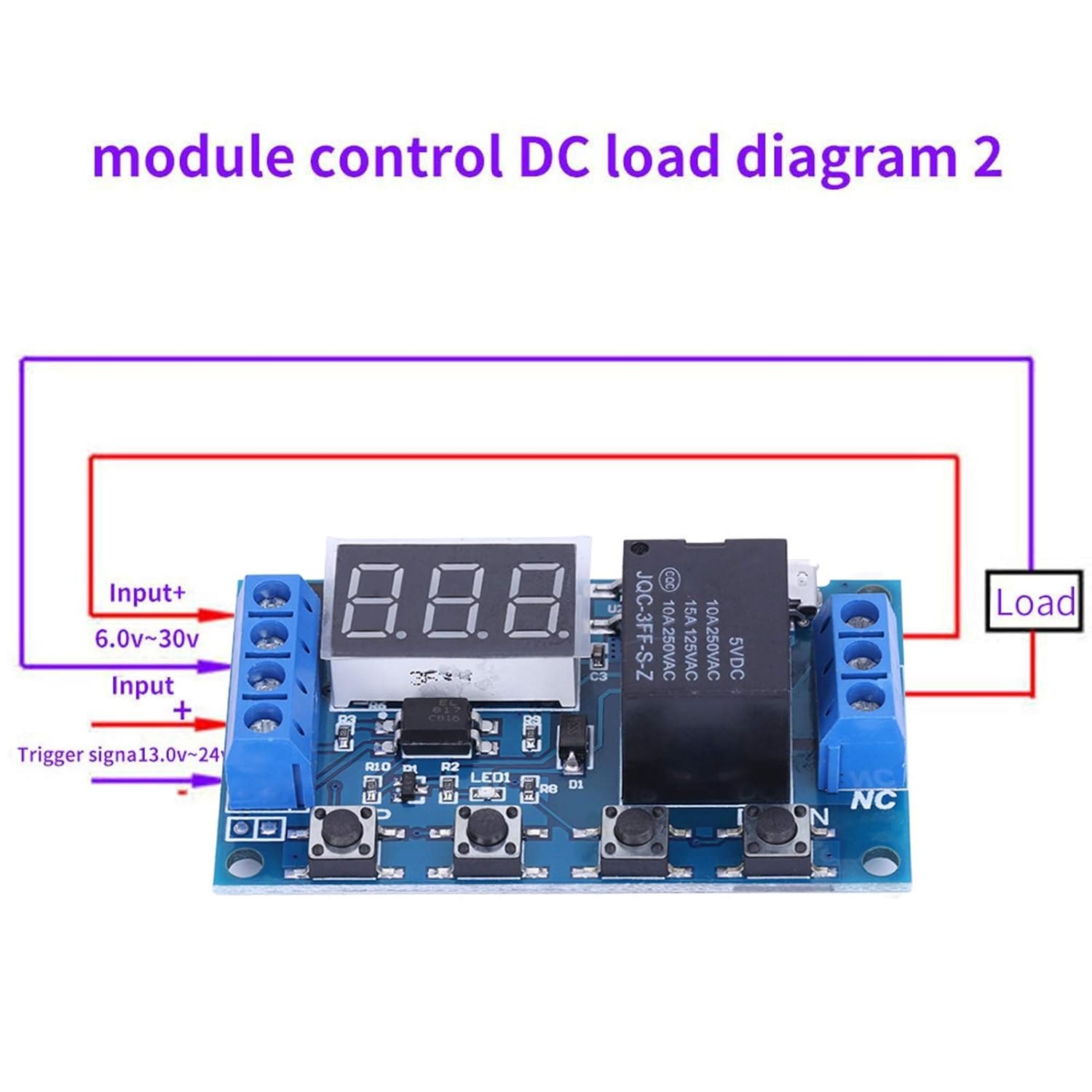

Load Capacity: DC 30V 5A
Quiescent Current: 20mA
Operating Current: 50mA
Operating Temperature: -40℃~85℃

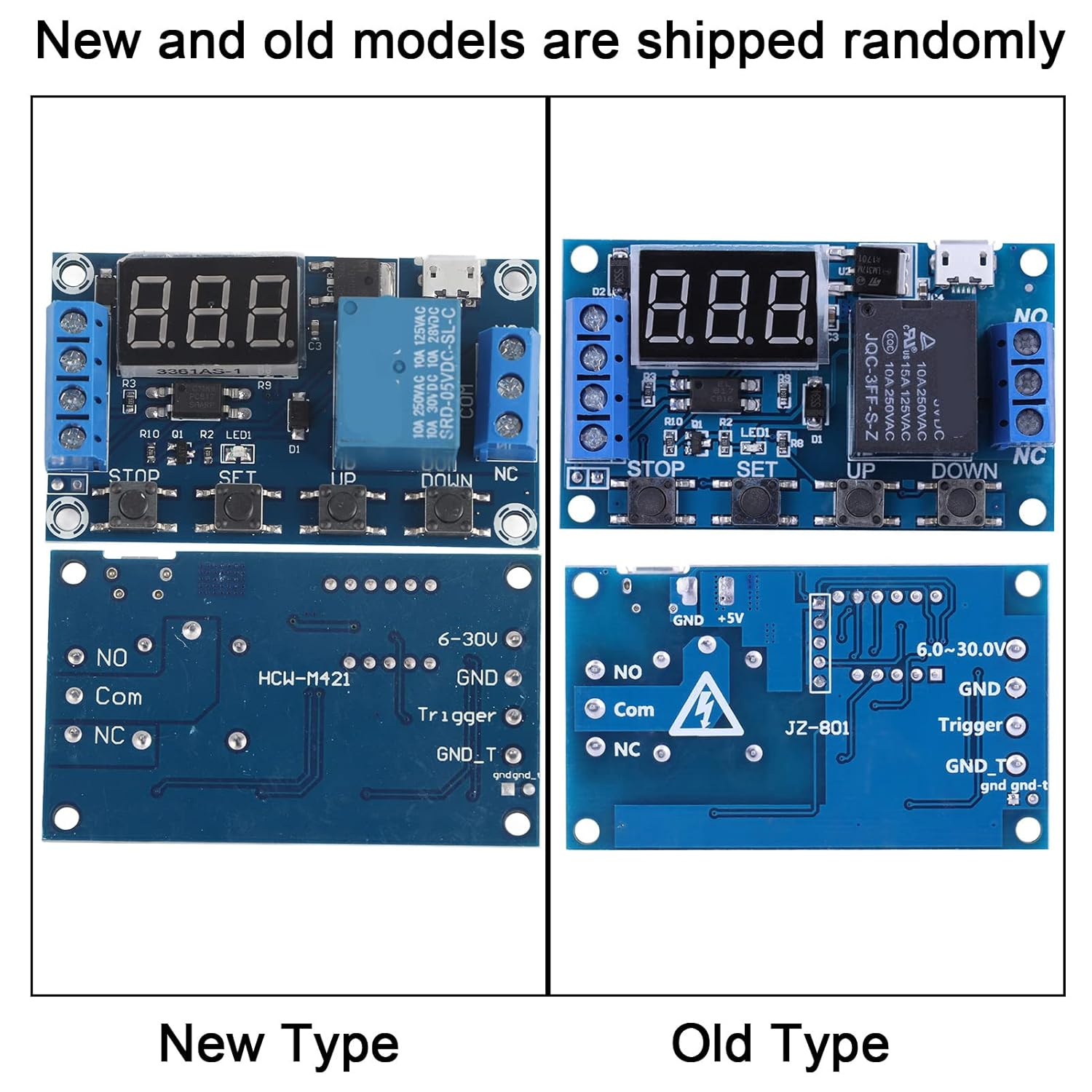

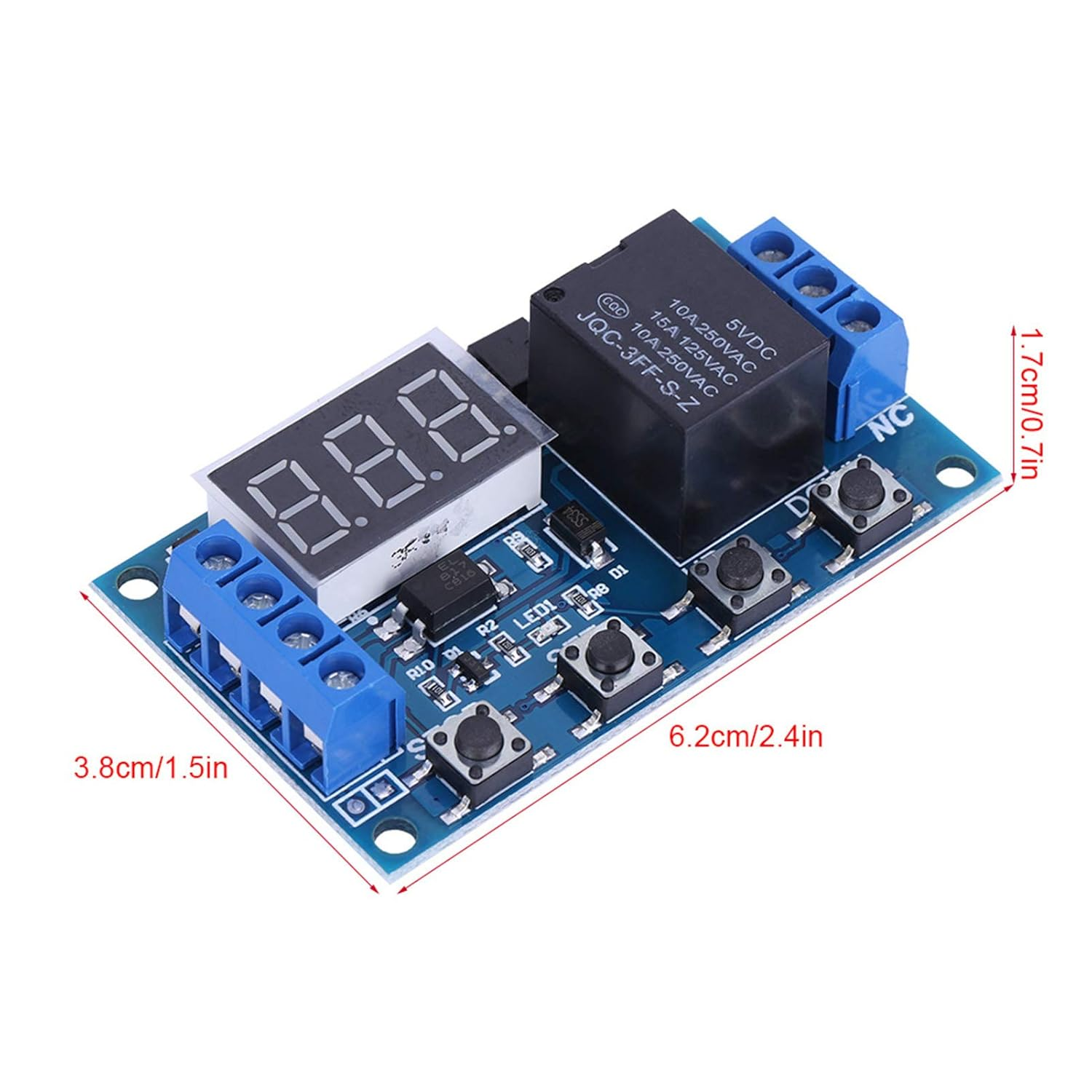

Size: Approx. 6.2*3.8*1.7cm / 2.44*1.49*0.67"
Timing Range: 0.1seconds to 999 minutes(continuously adjustable)
Instruction:
Operation Mode:
Press SET button at the main interface (display000), it will show OP(CL, LOP) and corresponding time.
If there is only OP mode, press SET button todisplay OP and corresponding time only.
If there are OP, CL, LOP modes, press SET button to display OP, CL, LOP and corresponding time.
After setting mode, press SET button at themain interface to check the parameter of present mode.
Relay Enable Mode:
1. NO: Connection is allowed during OP time.
2. OFF: Connection is not allowed, always turnedoff.
Press STOP button at main interface tochange between ON and OFF, the present state will flash then back to maininterface. (This is emergency stop function, used to disconnect relay.)
Sleep Mode:
C-P sleep mode: if no operation within 5minutes; display will close automatically while procedure runs normally.
O-d normal mode: displays always shows.
Press and hold STOP button for 2 seconds tochange between C-P and O-d, present state will flash and then back to the maininterface.
Package Includes:
1 x Timer Switch Module
