Specification:

Features:

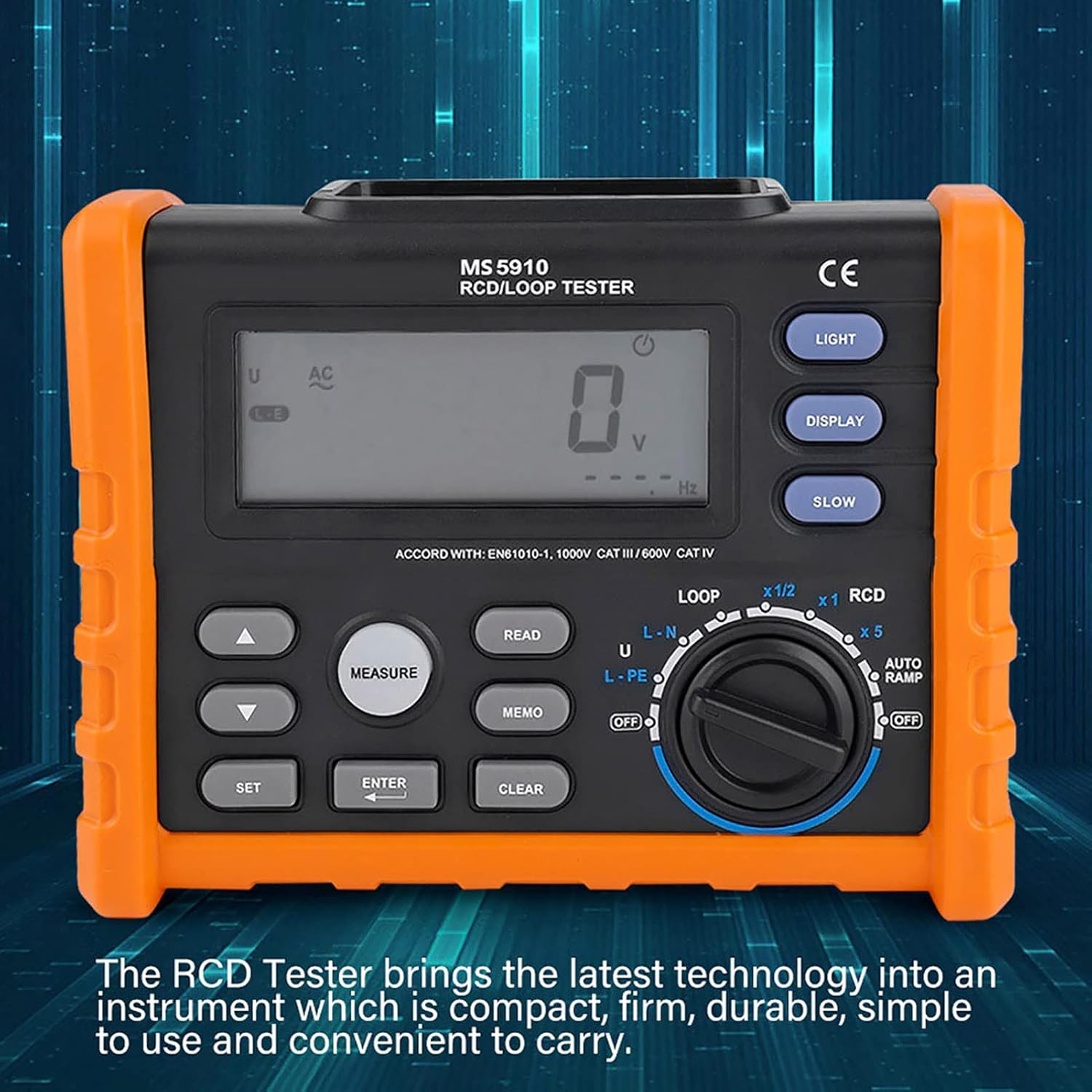

The RCD Tester brings the latest technology into an instrument which is compact, firm, durable, simple to use and convenient to carry.

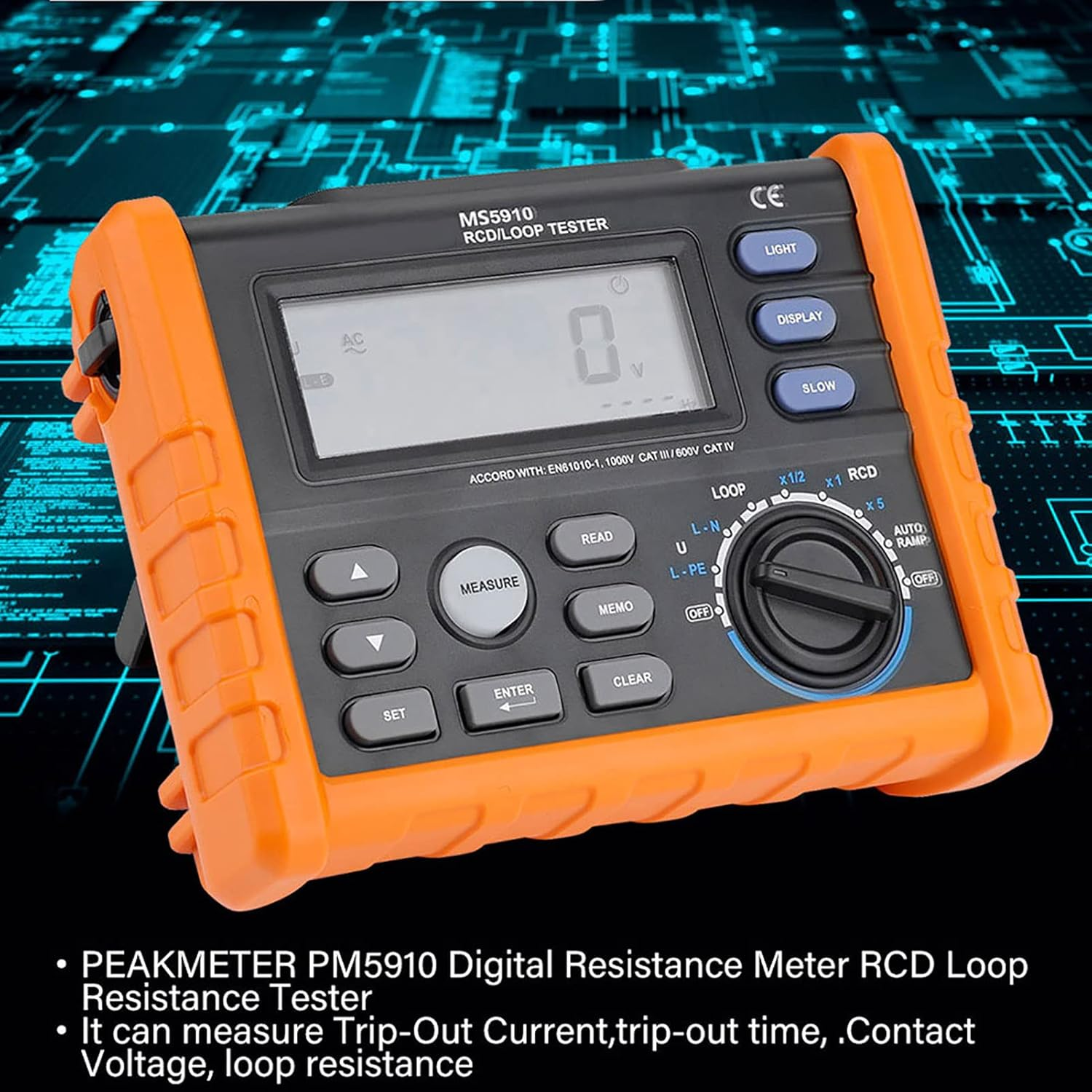

It can measure Trip-Out Current,trip-out time, Touch Voltage, Loop Impedance

100 groups of test result can be stored

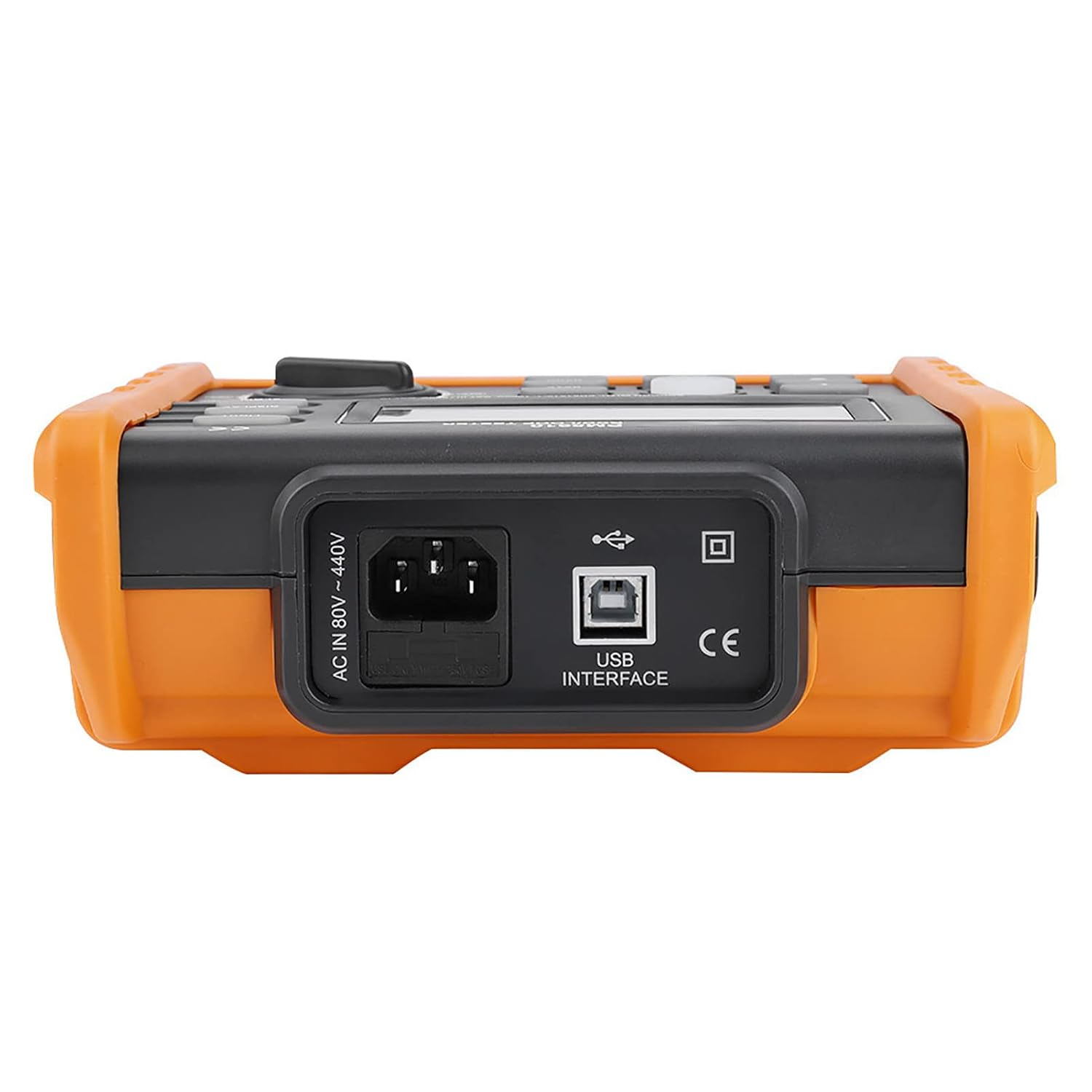

Data stored in host machine can be transmitted to PC via a USB2.0 interface

Features backlight Indication, Auto Power Off, Auto/manual range

With the function of overheating Alarm, Low Battery Voltage Alarm

High reliability, stability and accuracy. It is the ideal tool for electrical inspection and repair.

Specifications:

Brand: PEAKMETER

AC voltage measurement: 0V-440V

Frequency measurement: DC,45Hz-65Hz

Multiplying power of measurement current: 0.5, 1 and 5

Standard/selective type current measurement lever: 10, 30, 100, 300, 500mA

Power supply: 6x 1.5V AA batteries(not included)

Storage elevation: 12,000m

Usage elevation: 2,000m CAT III 600V; 3000 CAT II 600V

Size:195*155*80mm/7.68*6.1*3.15in

Weight: 2194g

Package includes:

1 * RCD/LOOP Tester MS5910(batteries not included)

1 * Test Lead

3 * Spring Clip

1 * USB Cable

1 * CD

1 * Instructions

1 * Black Bag

1 * Lanyard

Note:

It supports Loop Impedance (RL) measurement, and it can be displayed at a minimum of 3 ohms. This model with a measurement result of 1-2 ohms is not supported.

PackageList:

1 * RCD/LOOP Tester MS5910(batteries not included)

1 * Test Lead

3 * Spring Clip

1 * USB Cable

1 * CD

1 * Instructions

1 * Black Bag

1 * Lanyard
