Pyhodi 63A Automatic/Manual Transfer Switch, Dual Power Selector with LED Display, L1 Priority, DIN Rail Mount,50 60Hz CE Certified ATS for Generator and Backup Power
Pyhodi 63A Automatic/Manual Transfer Switch, Dual Power Selector with LED Display, L1 Priority, DIN Rail Mount,50 60Hz CE Certified ATS for Generator and Backup Power
Brand: Pyhodi
A$50.50
- COMPREHENSIVE PROTECTIVE FUNCTION: Equipped with built in safety mechanisms, including over voltage, under voltage, and over current guard, this switch safeguards connected devices from electrical instability. With preset settings suitable for most applications, adjustable parameters allow for fine tuning based on specific requirements, ensuring optimal performance and safety.
- WIDE APPLICATION: Ideal for environments requiring stable and reliable power sources, such as commercial and industrial facilities, data centers, and telecom hubs, maintaining key equipment and systems with stable power supply.

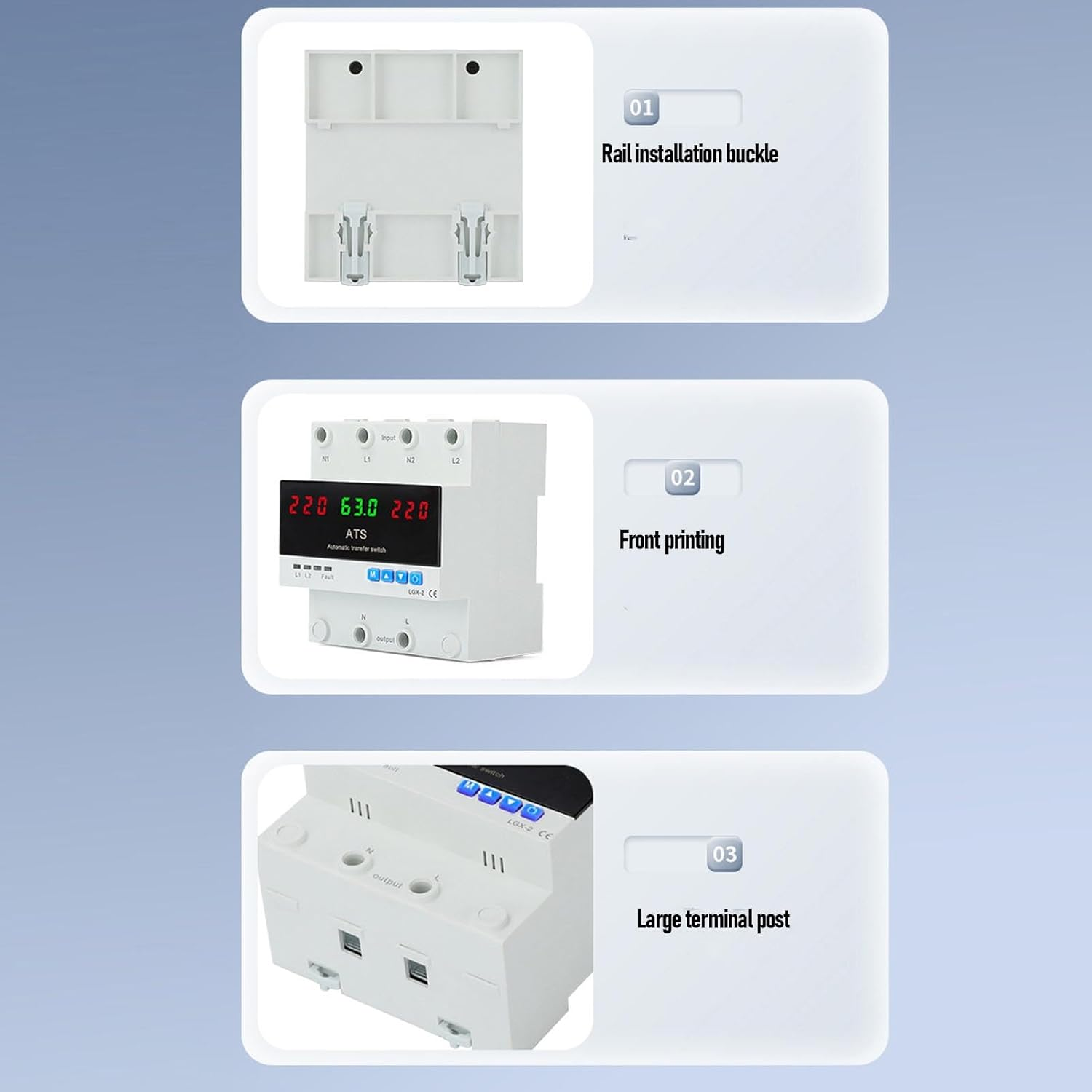

- SIMPLE INSTALLATION: Compact design for easy DIN rail installation, saving space and reducing installation time. Flexible design for convenient adjustment or repositioning to adapt to various system settings and constraints.
- AUTOMATIC OR MANUAL SWITCHING: This switch utilizes advanced microcontroller technology to ensure seamless power management. In the event of a power outage or voltage fluctuation, it automatically switches from the main power source (L1) to the backup power source (L2) and reverts once the main power is recovered. Users also have the option to manually switch between L1 and L2 as needed for personalized control.

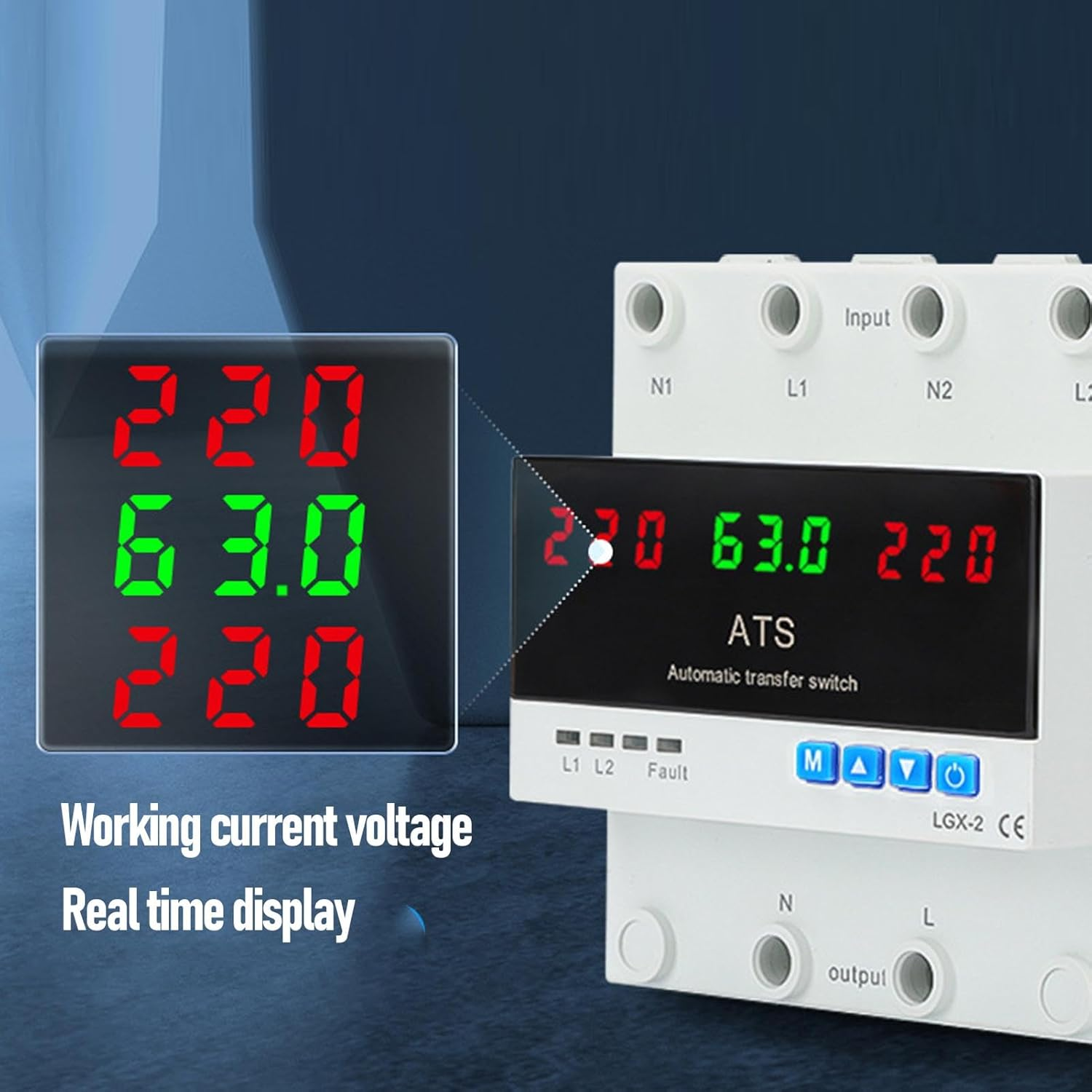

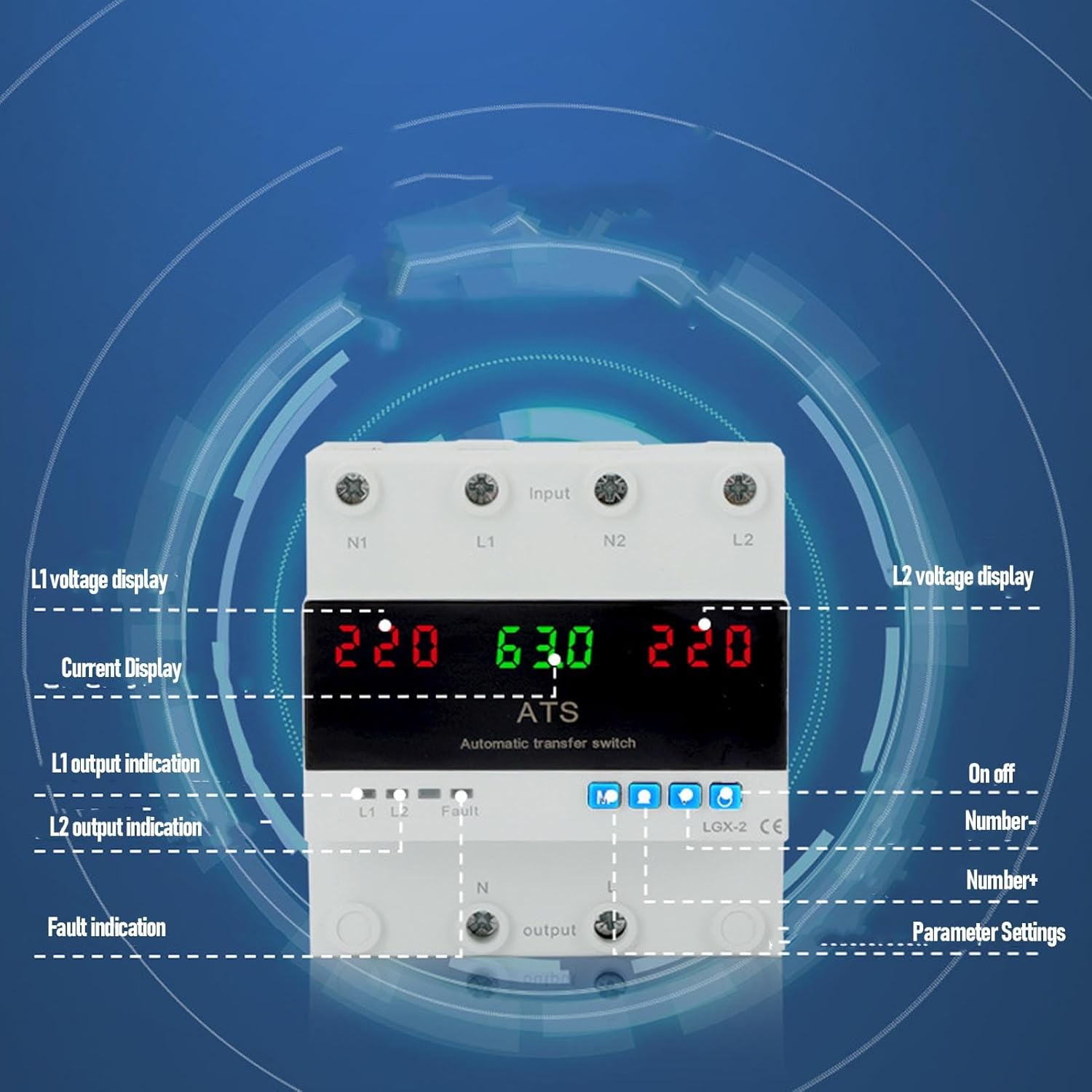

- LED DISPLAY MONITORING: This automatic transfer switch features a high definition LED display and status indicator lights for real time voltage monitoring and operational updates. Get accurate, clear, and immediate feedback on power status, providing peace of mind in power management.
1. AUTOMATIC OR MANUAL SWITCHING: This switch utilizes advanced microcontroller technology to ensure seamless power management. In the event of a power outage or voltage fluctuation, it automatically switches from the main power source (L1) to the backup power source (L2) and reverts once the main power is recovered. Users also have the option to manually switch between L1 and L2 as needed for personalized control.
2. COMPREHENSIVE PROTECTIVE FUNCTION: Equipped with built in safety mechanisms, including over voltage, under voltage, and over current guard, this switch safeguards connected devices from electrical instability. With preset settings suitable for most applications, adjustable parameters allow for fine tuning based on specific requirements, ensuring optimal performance and safety.
3. LED DISPLAY MONITORING: This automatic transfer switch features a high definition LED display and status indicator lights for real time voltage monitoring and operational updates. Get accurate, clear, and immediate feedback on power status, providing peace of mind in power management.
Spec:
Item Type: Automatic Transfer Switch Model: JMRD

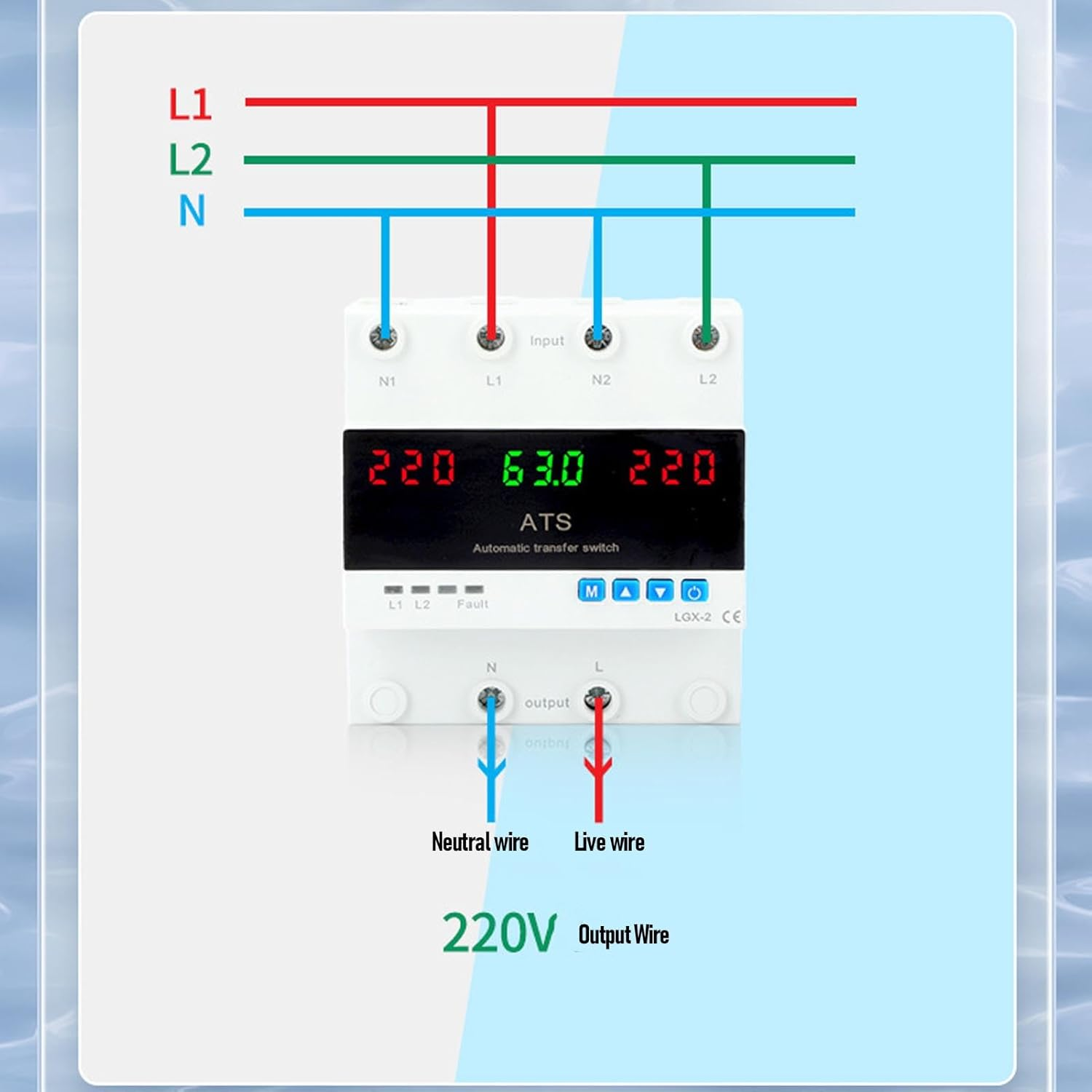

Power Supply Terminals: N1, L1, N2, L2
Frequency: 50 60HZ
Rated Current: 63A
Overcurrent Setting Range: 1-63A
Priority Phase: L1
Over Voltage and Under Voltage Trip Time: 0.1s
Measurement Error: 1%
Protective Recovery Delay: 30s (adjustable from 1-600s)
Mechanical Life: 1x10⁶
Electrical Life: 1x10⁵
Installation Method: 35mm DIN Rail
Ambient Temperature: -25°C to 50°C
Altitude: ≤2000m
Protection Level: Enclosure IP40 Terminals IP20
Installation: 35mm DIN Rail
How to Use:
Follow the instructions manual
PackageList:
1 x Transfer Switch
1 x User Manual
Note:

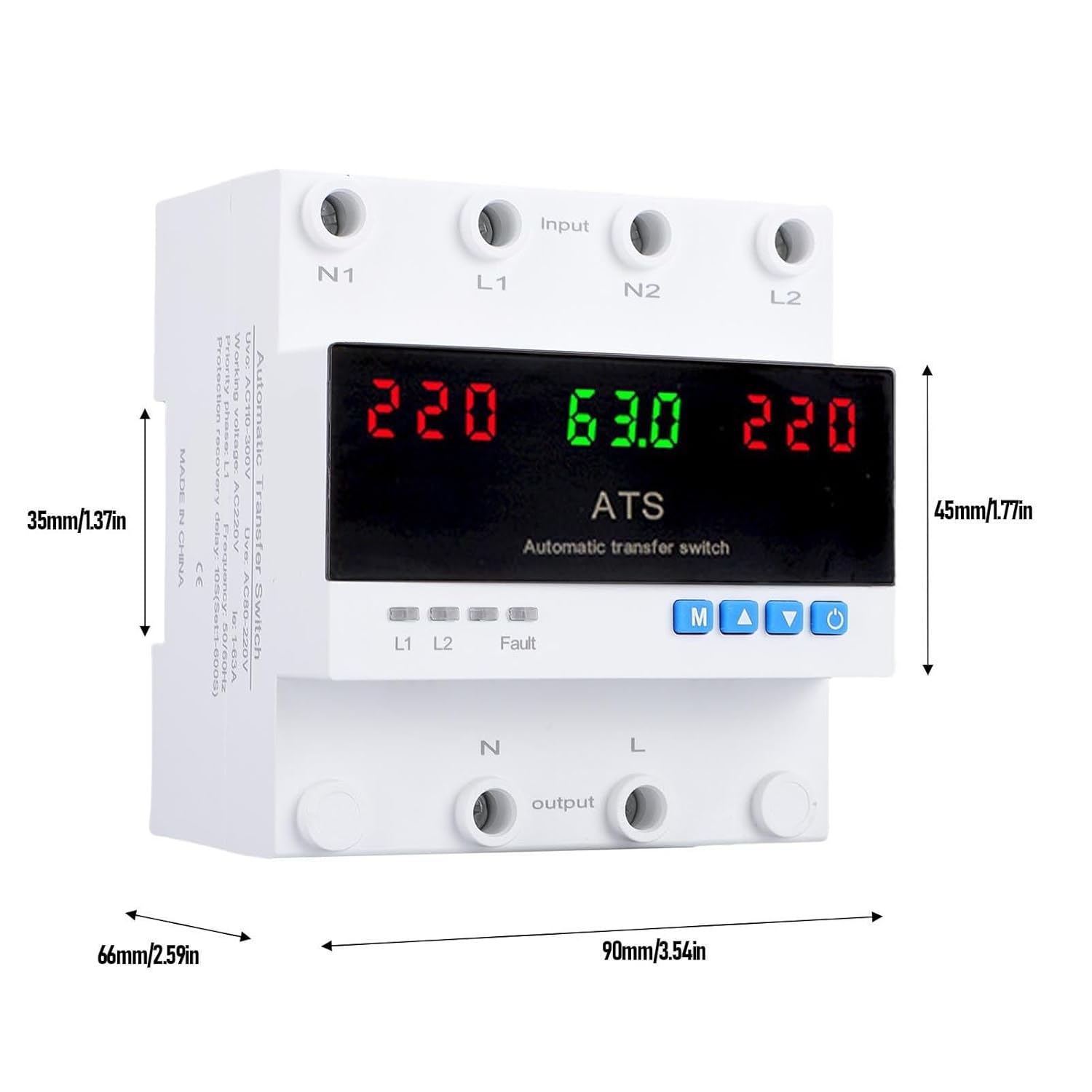

- Product dimensions: 11 x 9.98 x 7.98 cm; 353 Grams
- Country of origin: China
- Manufacturer reference: Pyhodigiy2g5epc0
- Manufacturer: Pyhodi
