1. Instantaneous Power Switch: Experience seamless transitions with our power switch, featuring automatic and manual modes for under 50ms switch time, ensuring no interruption in power supply.

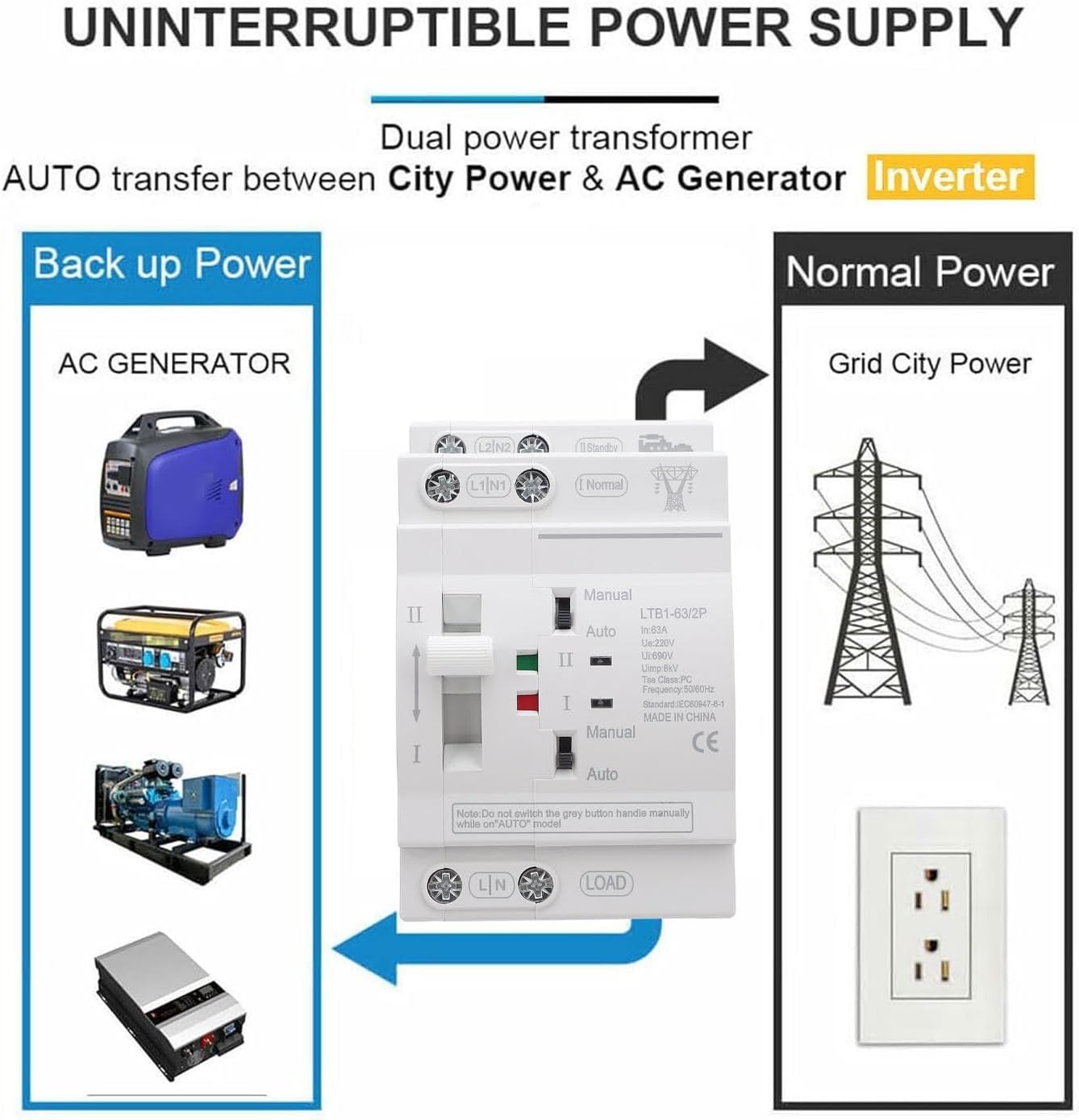

2. Uninterrupted Power: Automatically switch to backup power when disruptions occur, and revert to primary power when restored, maintaining safe and dependable energy flowing constantly.
3. Effortless Installation: Designed for a standard 35mm rail, this switch seamlessly integrates into emergency systems, suited for PZ30 distribution boxes, enhancing setup ease.

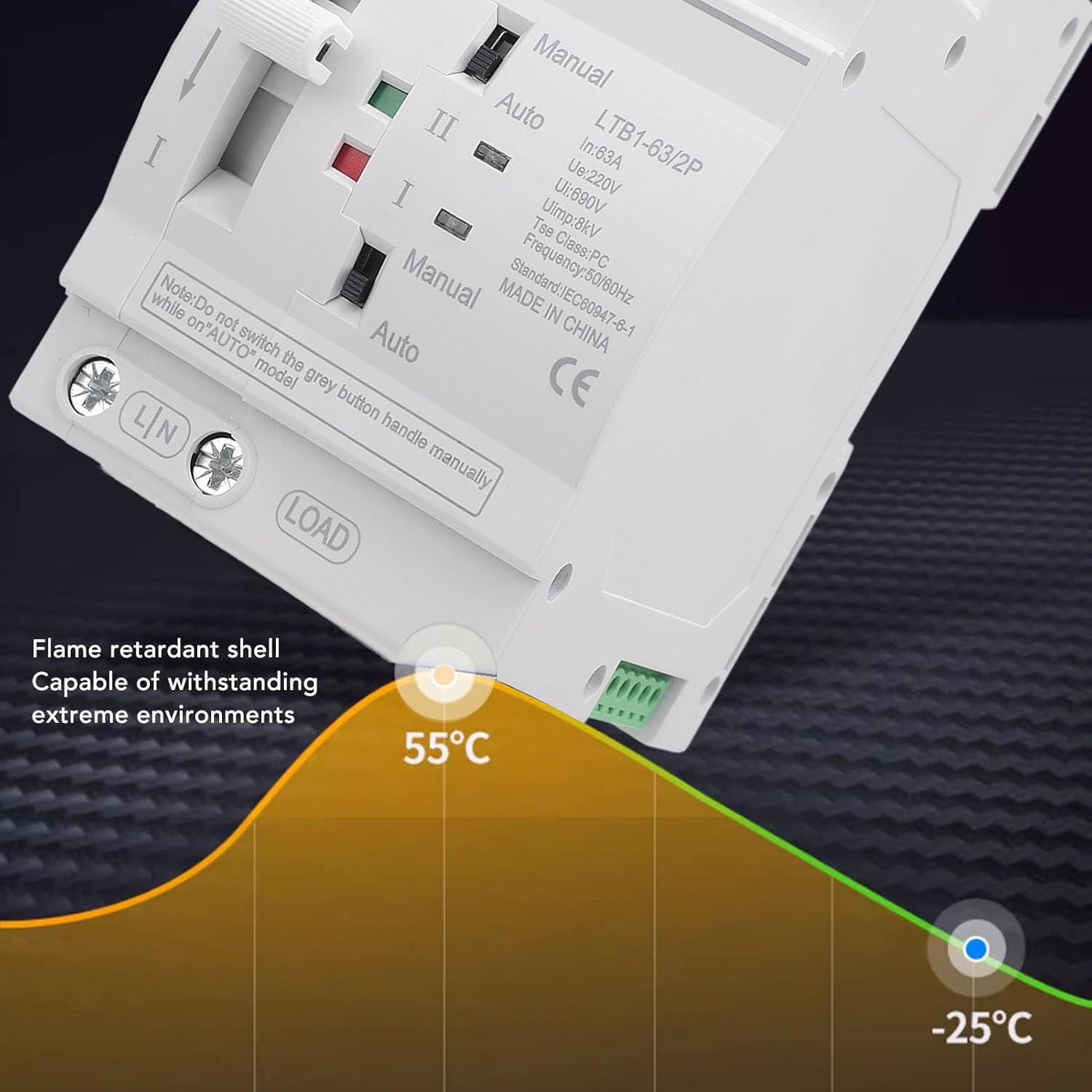

4. Quality Construction: Made with flame​​ retardant PC material and silver contacts, this switch ensures excellent conductivity, heat resist, and longevity, providing a secure operational experience.

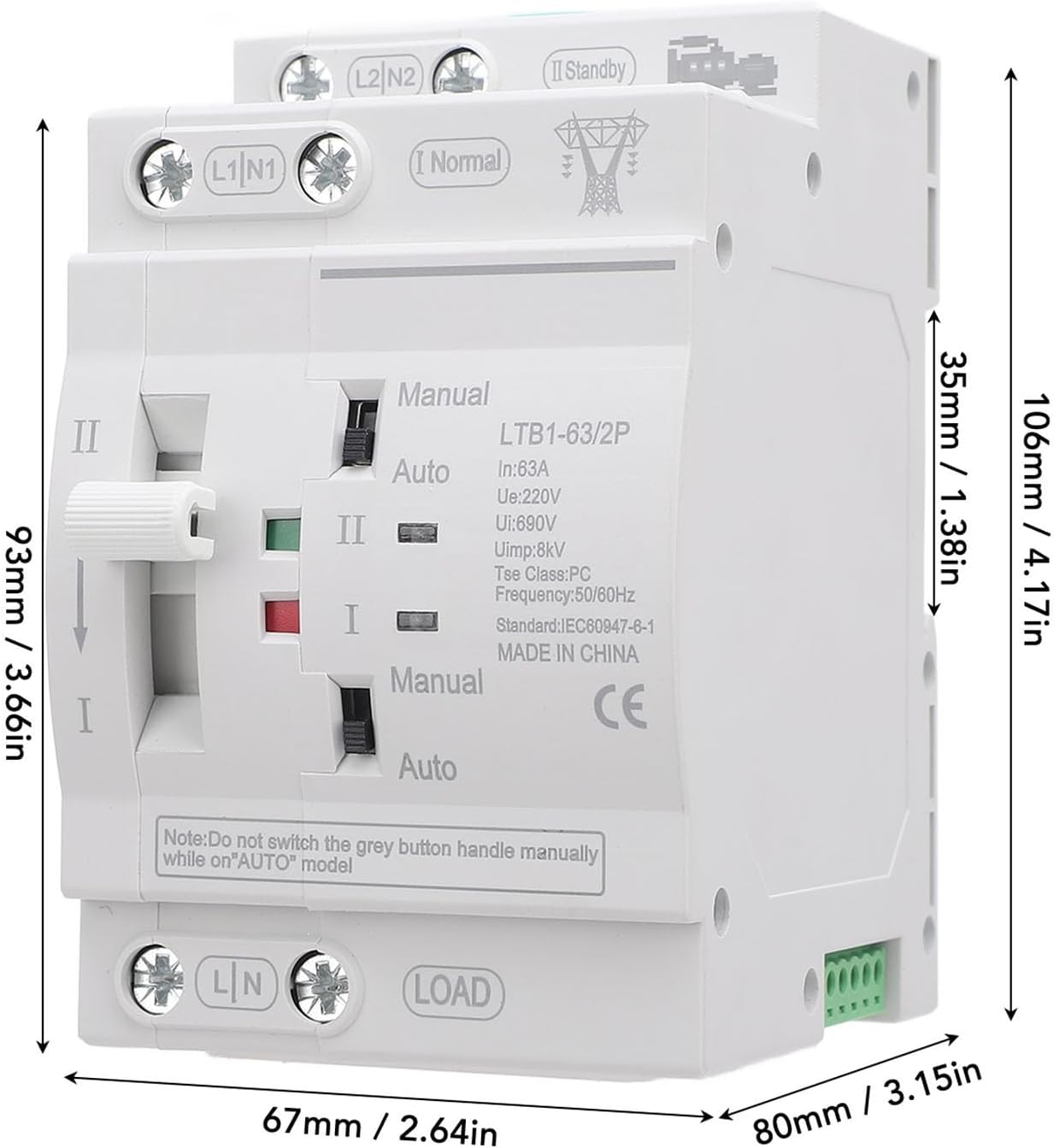

5. Compact and Robust Design: Enjoy a compact structure that facilitates transfer and easy maintenance, promising a long lifespan and efficient working where power continuity is essential.
Spec:

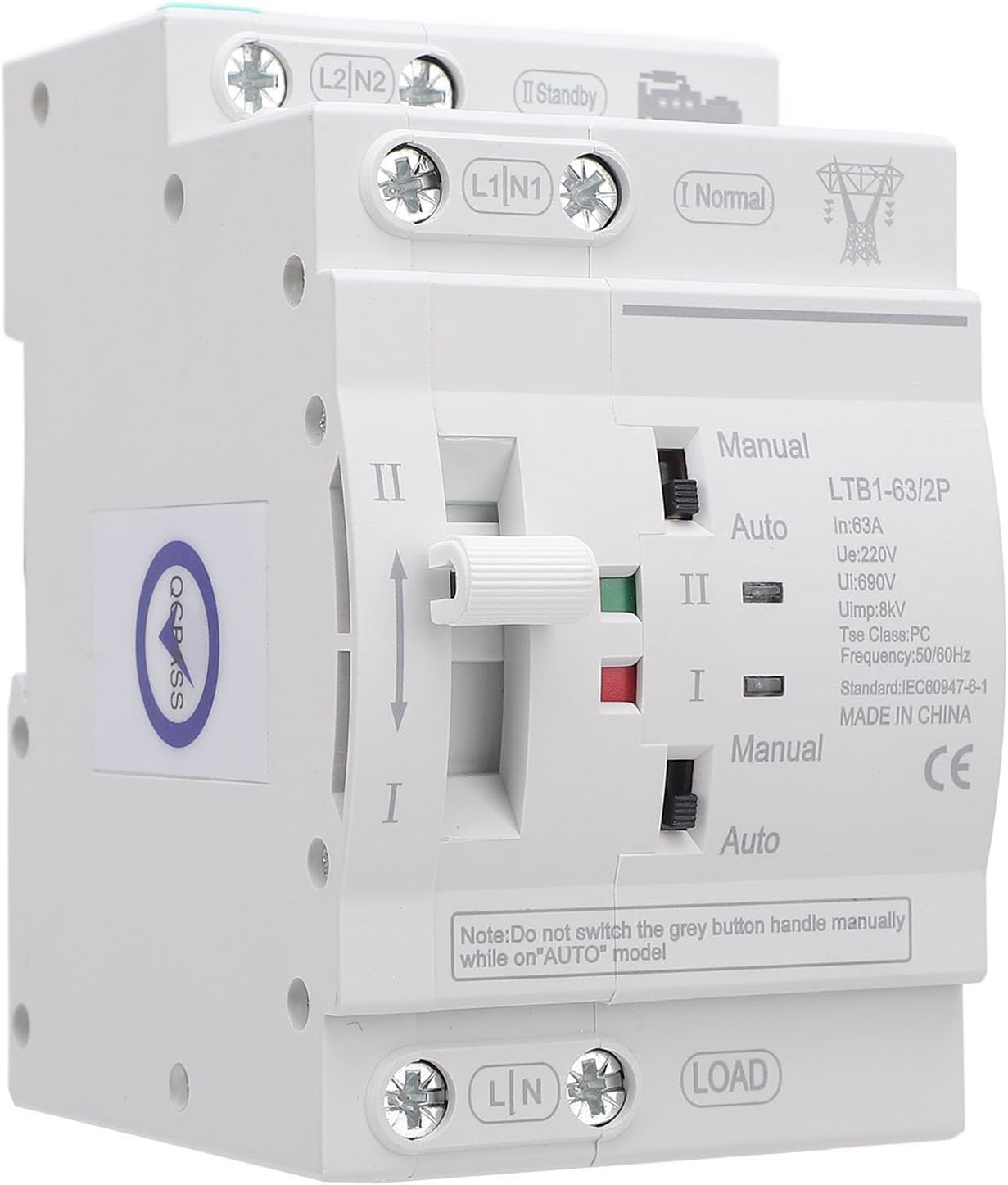

Item Type: Double Power Automatic Transfer Switch
Material: PC Flame​​ Retardant, Silver
Rated Current le: 63A
Insulation Voltage Ui: AC690V
Withstand Voltage Uimp: 8KV
Frequency: 50 60Hz
Class: PC Grade (Can be opened under load without generating short circuit current);
Specification: 2P
Rated Short Circuit Current: 50kA
Rated Short Circuit Current (Fusing): RT16 00 63A
Rated Impulse Withstand Voltage: 8kV
Rated Control Voltage US: 220VAC 85%Us-110%Us
Lifespan:
Electrical: ≥1500 times
Mechanical: ≥5000 times
Touch Time: Conversion Timeime: Return Time: Closing Time:
How to Use:

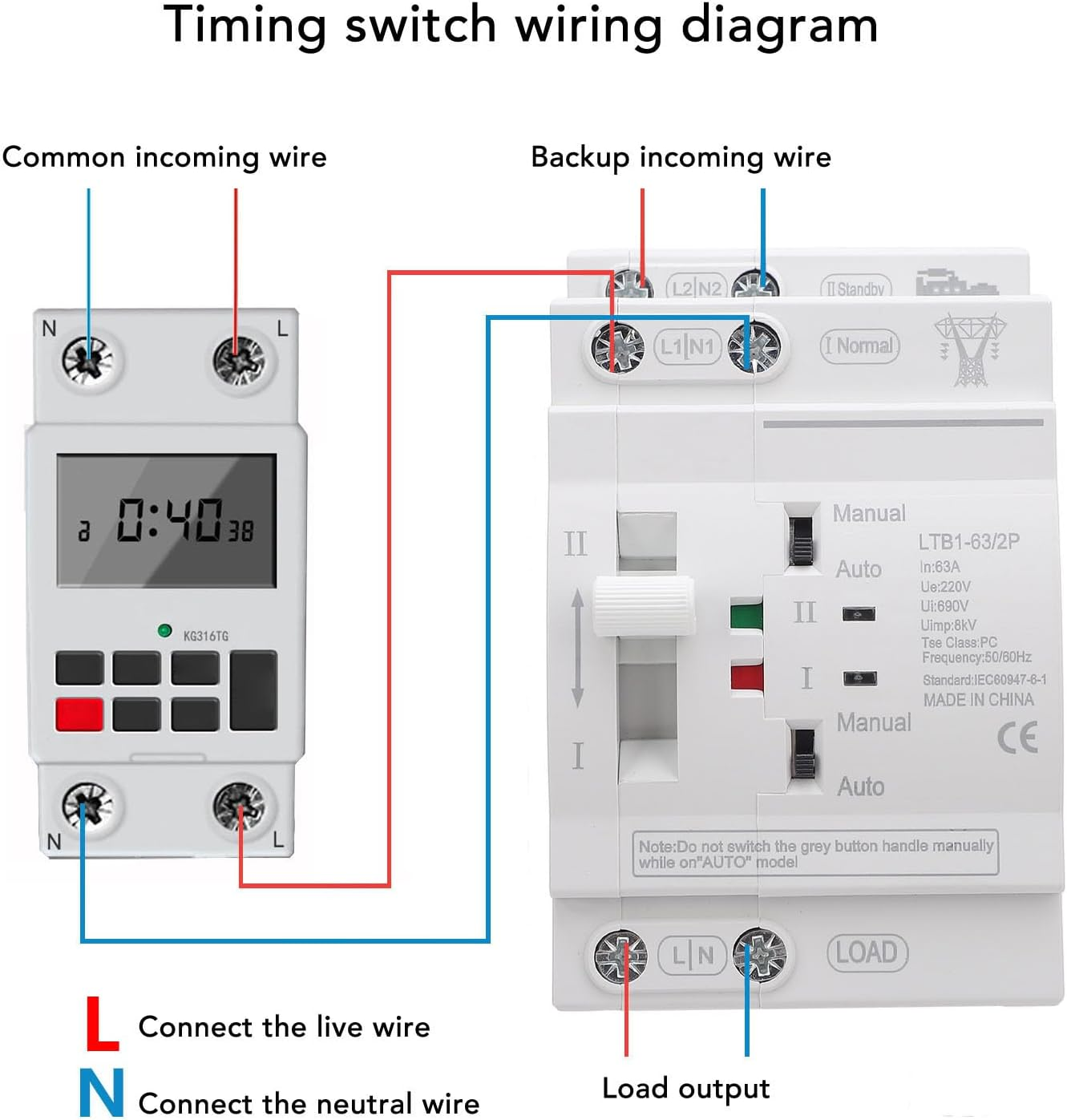

1. Before installation, please check the integrity of the ATS. Use the handle to open or close the ATS, check the flexibility of the transfer device, and test the generation and disconnection conditions of the load for each stage of normal and backup power supply. 2. Connect as shown in the sales d
