Specification:

Item Type: Automotive Circuit Test Leads Kit

Material: ABS, PVC

Features:

1: When measuring the element​, without damaging the line, it can be measured directly behind the harness plug terminal to reduce the damage of the line insulation rubber skin, thereby reducing the impedance caused by line rusts​.

2: Suitable for any meter, oscilloscope probe extension wire, reduce the trouble of wiring when checking the line, help you quickly detect.

3: When measuring the current, there is no need to cut or pull the wire, and the connection of the wire group can be used to reach​ the circuit connected in series.

4: Variable resistors can be modeled like water temperature sensors, throttle position sensor elements are assumed

Signal to the computer, saving the risk of replacement.

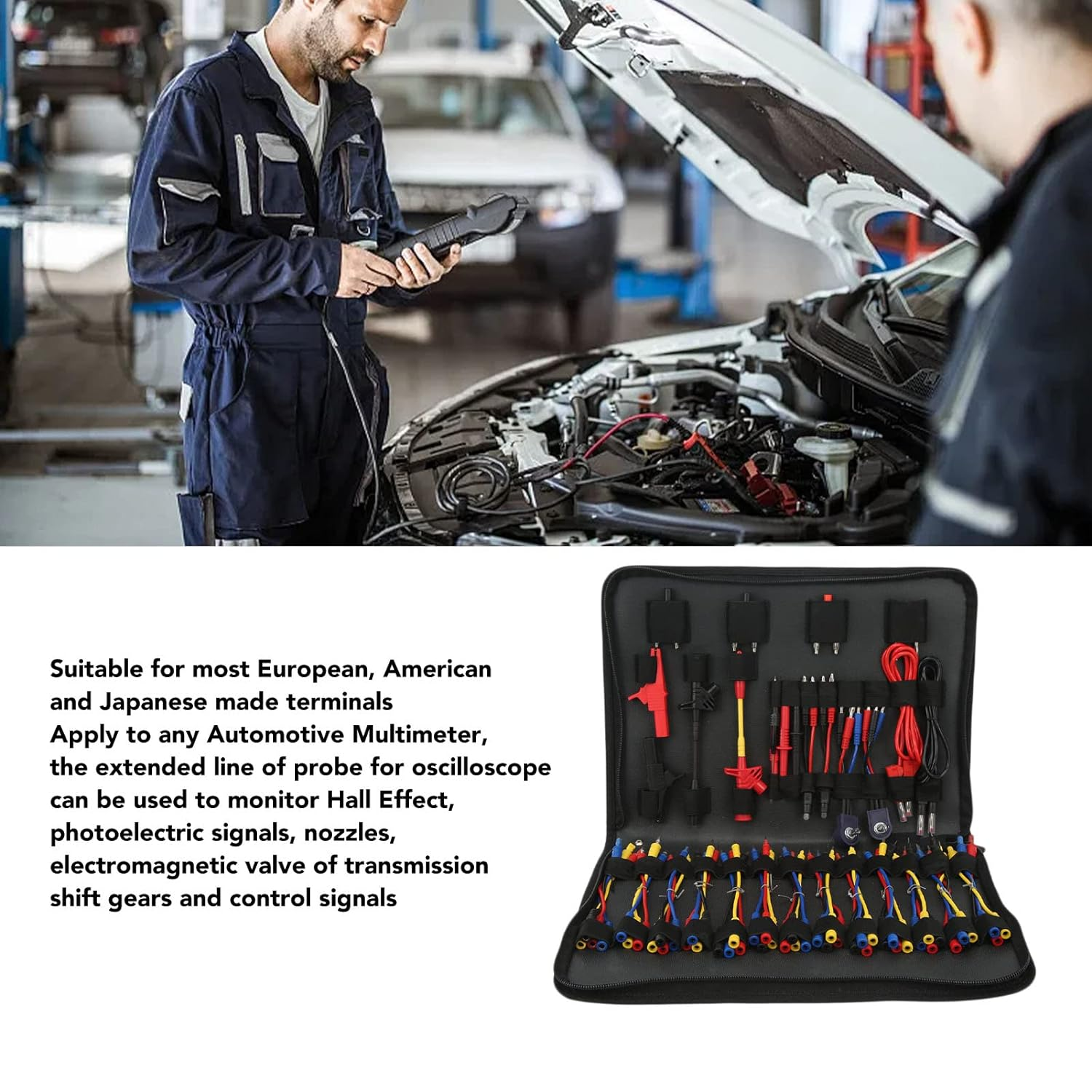

5: Equipped with two sets of LED lights, which can monitor the control signals of Hall, photoelectric signal, fuel injector, solenoid valve, automatic transmission shift: gear solenoid wire and other actuators.

6: SRS replaces resistances, can simulate SRS system, seat​ belt tensioners, avoid accidents and misjudgments during maintenance.

7: Various wire sets in the box can be applied to the plug terminals of various European, ​ and Asian car series, with high versatility and easy to use.

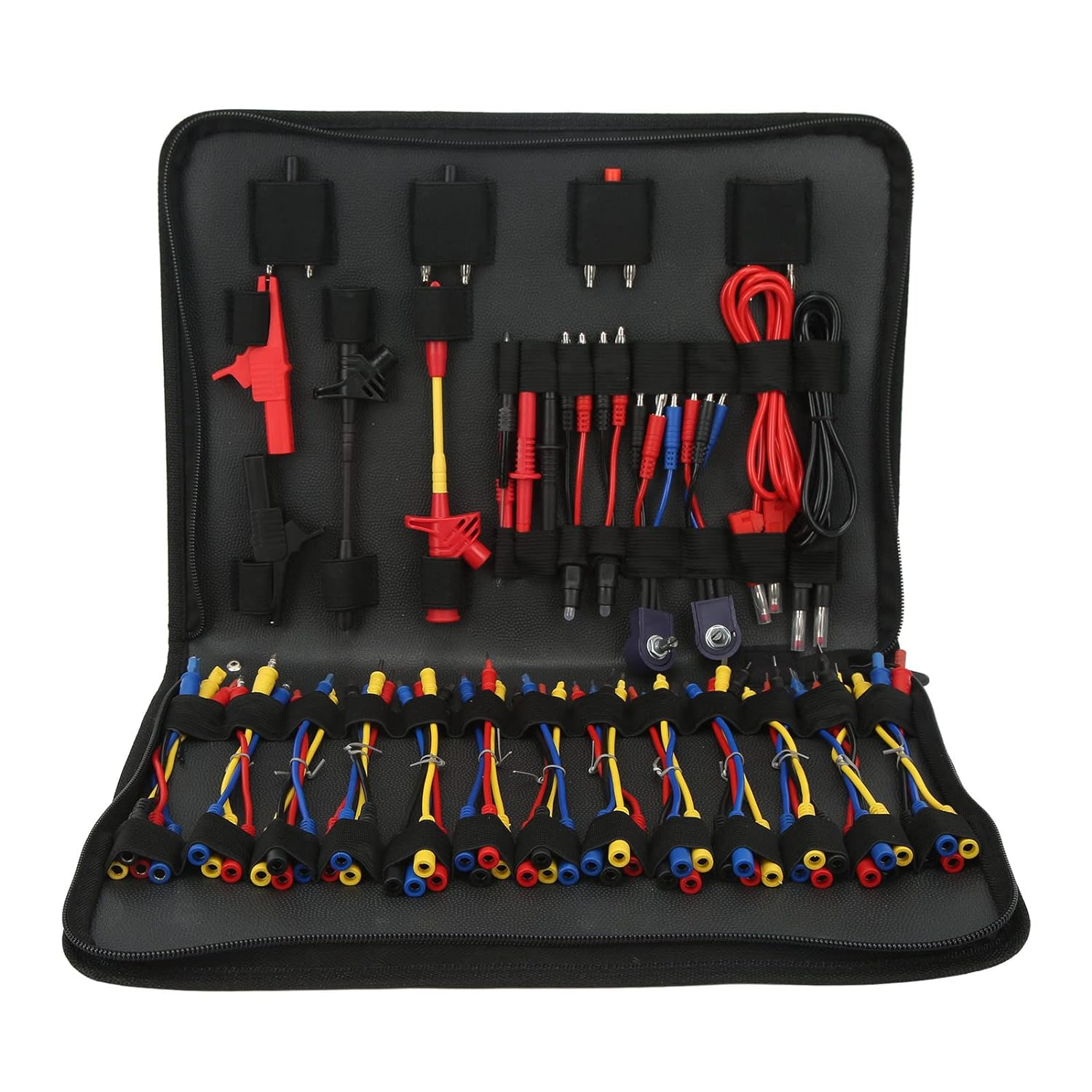

Detailed Configuration:

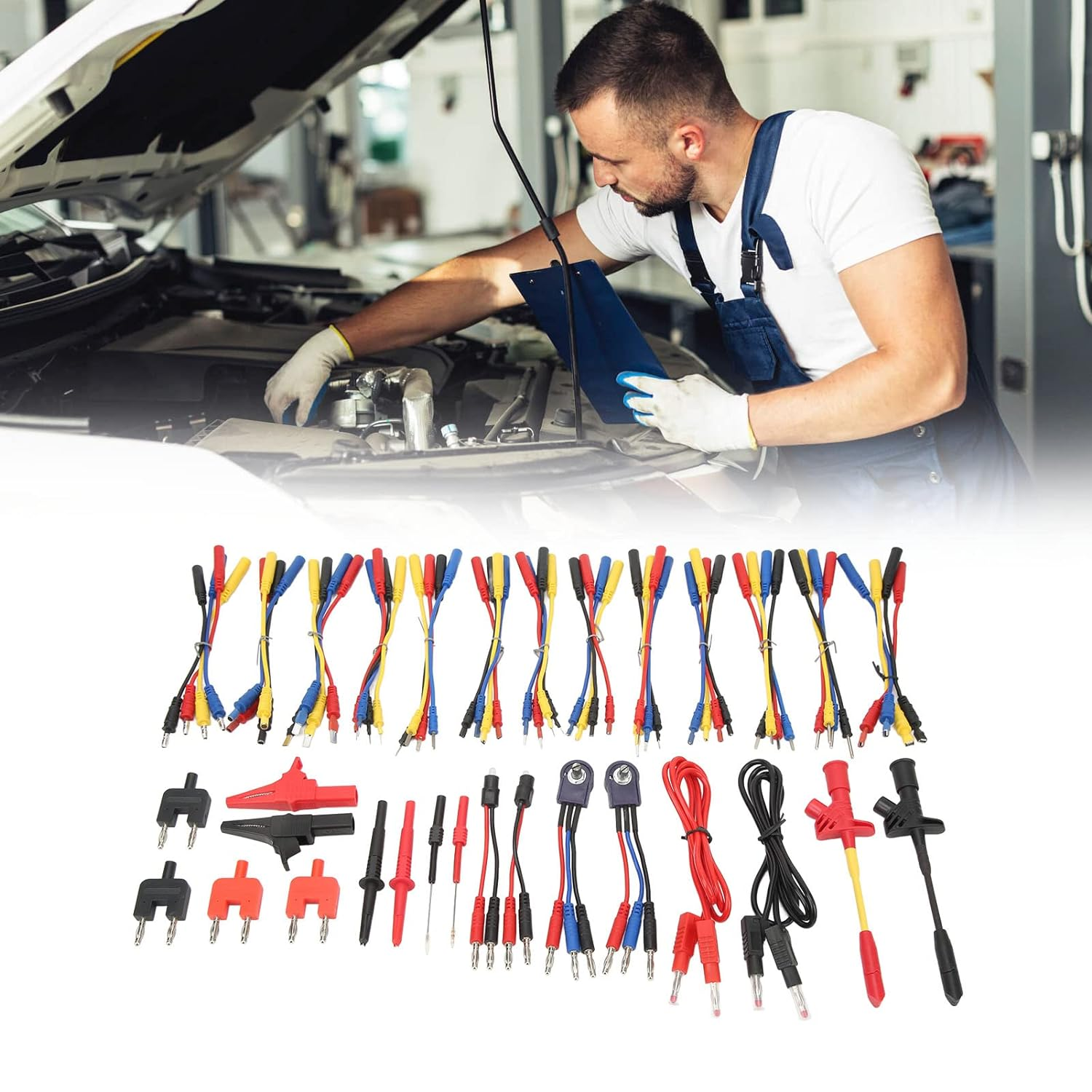

Package List:

2 x 5KQ Variable Resistor

28 x Flat Terminal

24 x Round Terminal

2 x SRS Detection Replacement Device

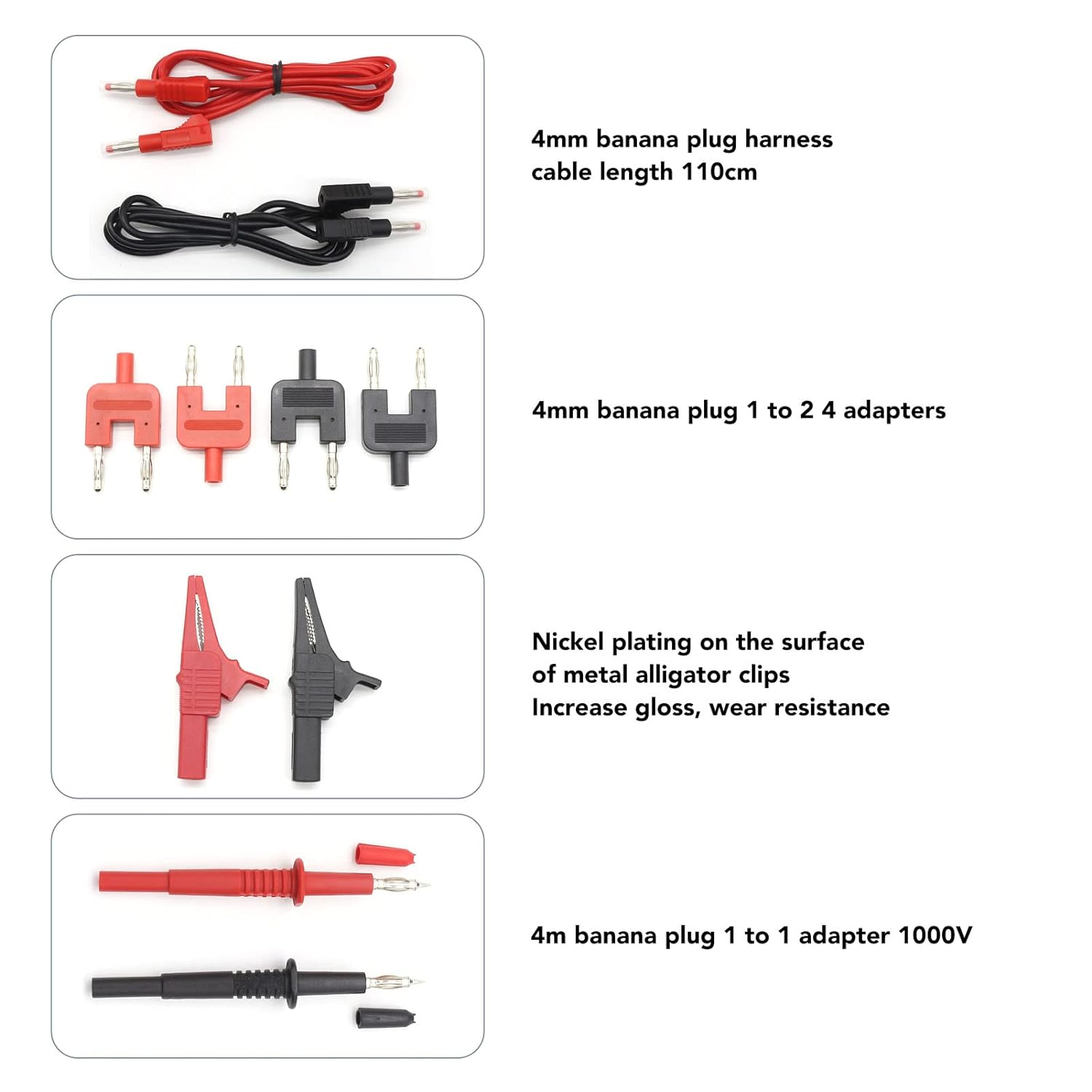

4 x 1 To 2 Adapter

2 x 1 To 1 Adapter

2 x Led Lamp

2 x Clip

2 x Safety Type Test Hook

2 x Probe

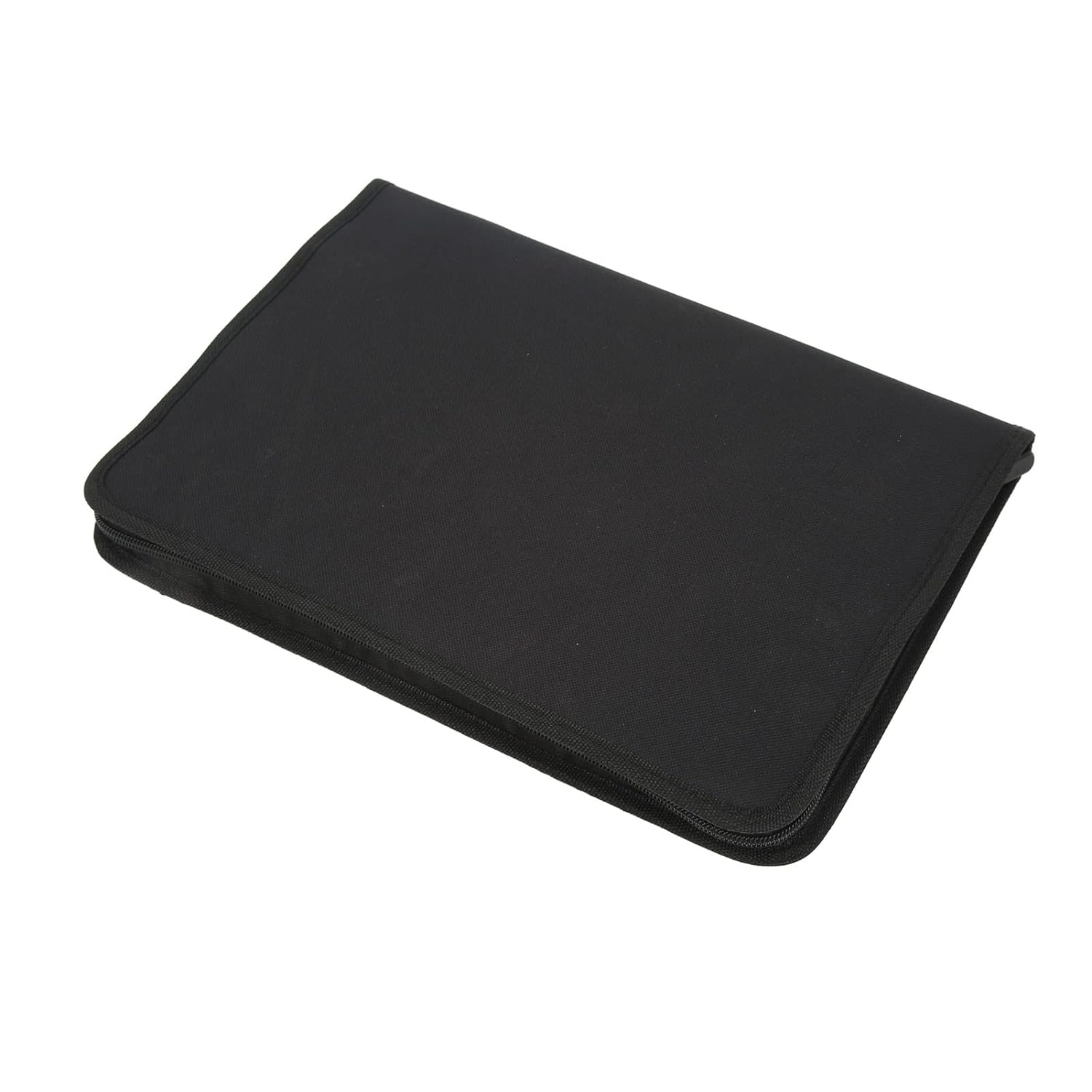

1 x Carrying Bag
