1. Timed Automatic Control: This digital timer box features automatic on and off functionality based on user set schedules, utilizing an internal time control module to preset switching times for seamless device on and off control
2. Versatile Applications: The digital timer box can control a wide range of electrical equipment, including street lights, neon signs, irrigation system, billboards, audible equipment, pumps, warehouse, heating system, TVs, and more

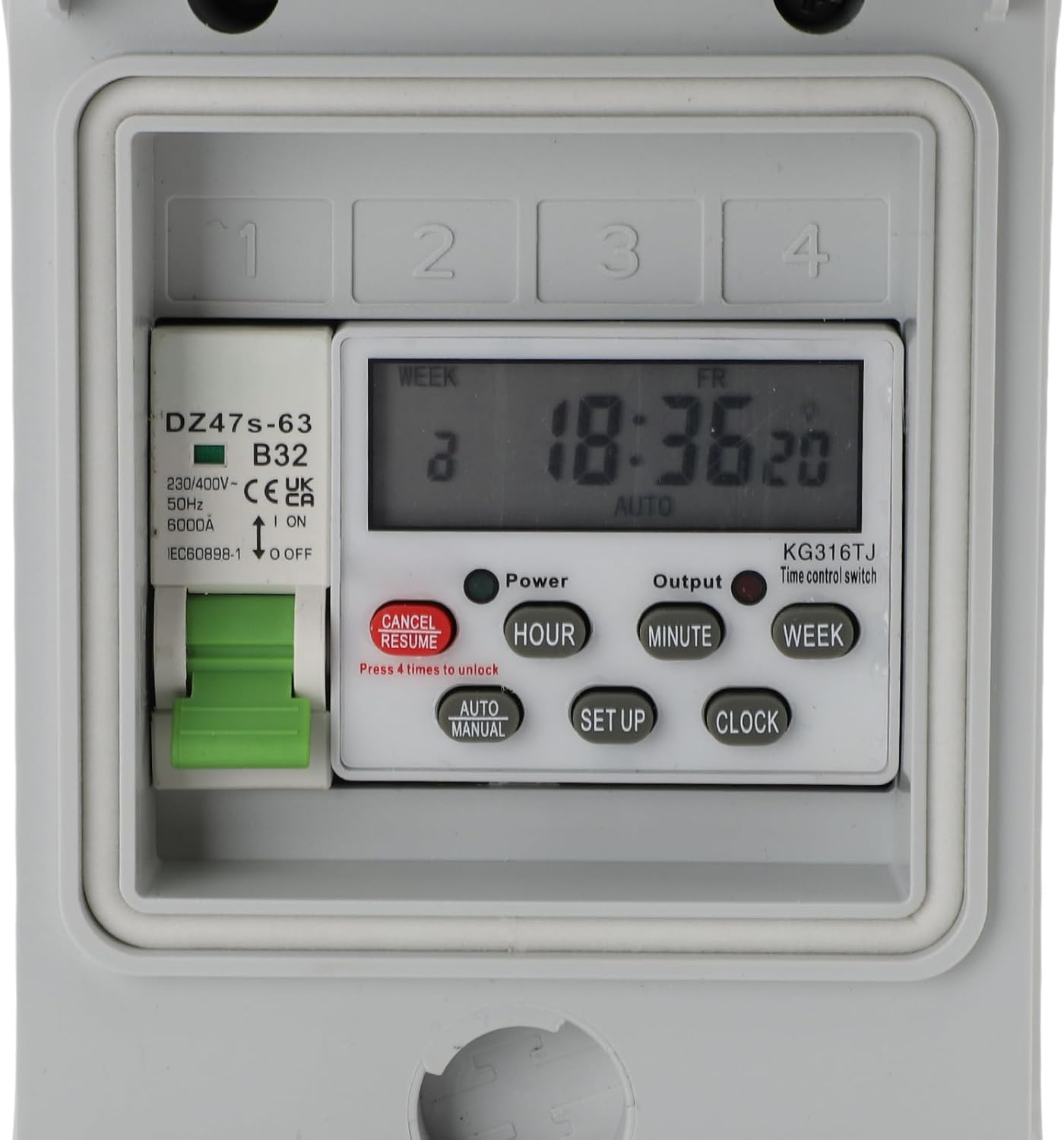

3. Intuitive Key Setting: Easily set the desired on off times by pressing the clock key and setting the date, hour, minute simultaneously. To cancel or modify settings, simply press the cancel key. Invalid settings are indicated by a ----- display
4. Outdoor Friendly: Specifically engineered for outdoor environments, this timer control box ensures dependable timing control of electrical devices while offering water proof and dust proof guard to withstand harsh conditions
5. Energy Saving Management: By precisely controlling the running hours of device, it minimizes unnecessary energy consumption, suitable for energy saving scene such as landscape lighting and public facilities, reducing labor and enhancing efficiency
Spec:

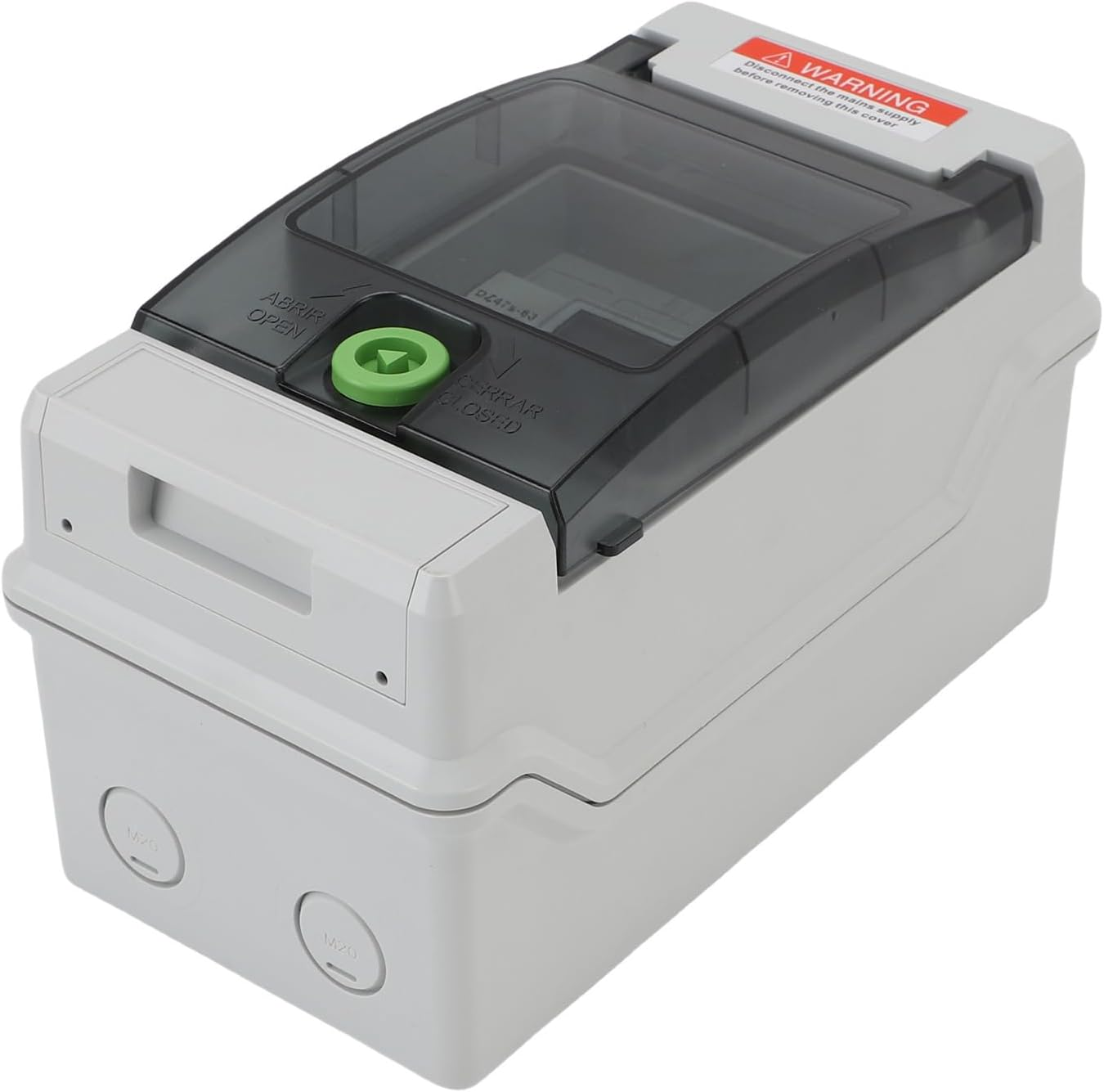

Item Type: Timer Switch Box
Material: ABS, PVC, Pa66
IP Rating: IP65
Air Switch:
Rated Voltage: 230/400V AC
Rated Current: 32A
Time Control Switch:
Rated Insulation Voltage Ui: AC380V
Rated Impulse Withstand Voltage Uimp: AC 1.5kV
Rated Control Power Voltage: AC220V 50/60Hz
Pollution Level: 3
Housing Protecting Level: IP50
Load Power: Resistive Load: 6KW, Inductive Load: 1.8KW, Motor Load: 1.2KW, Lamp Load: 0.9KW
Daily Trip Time Error: ≤ ±2 seconds
16 times opening and 16 times closing per day
Daily or weekly cycle settings
Maximum Time Control: 168 hours
Minimum Time Control: 1 minute
Mechanical Life: ≥ 1000000 times
Electrical Life: ≥ 100000 times
Compatibility with Short Circuit Protector (SCPD): Relay should not cause harm to individuals or equipment in short circuit conditions, should not be continued to be applied before repairing or replacing components
Power Supply Display of Time Control Switch: 1 x 380mAh AAA Battery (built in)
Scope of Use:
1. Public Facilities
Timing control of street lights, landscape lights and festival decorative lights.
Automatic management of park fountains and square audible equipment.
2. Agricultural and Gardens
Timing control of automatic irrigation system for farmland and ventilation, shading equipment for greenhouses.
Landscaping sprinkler irrigation, livestock farm lighting control.
3. Business and Industry
Timing switch for outdoor billboards and neon lights.
Site temporary lighting, equipment power management.
4. Other Outdoor Scenes
Timing control of electric door and parking lot gate.
Aquaculture aerator, outdoor monitoring equipment power management.
Typical Application Scenarios:
Street Lamp Control: Set to open automatically at 18:00 every day and close at 6:00 the next day.

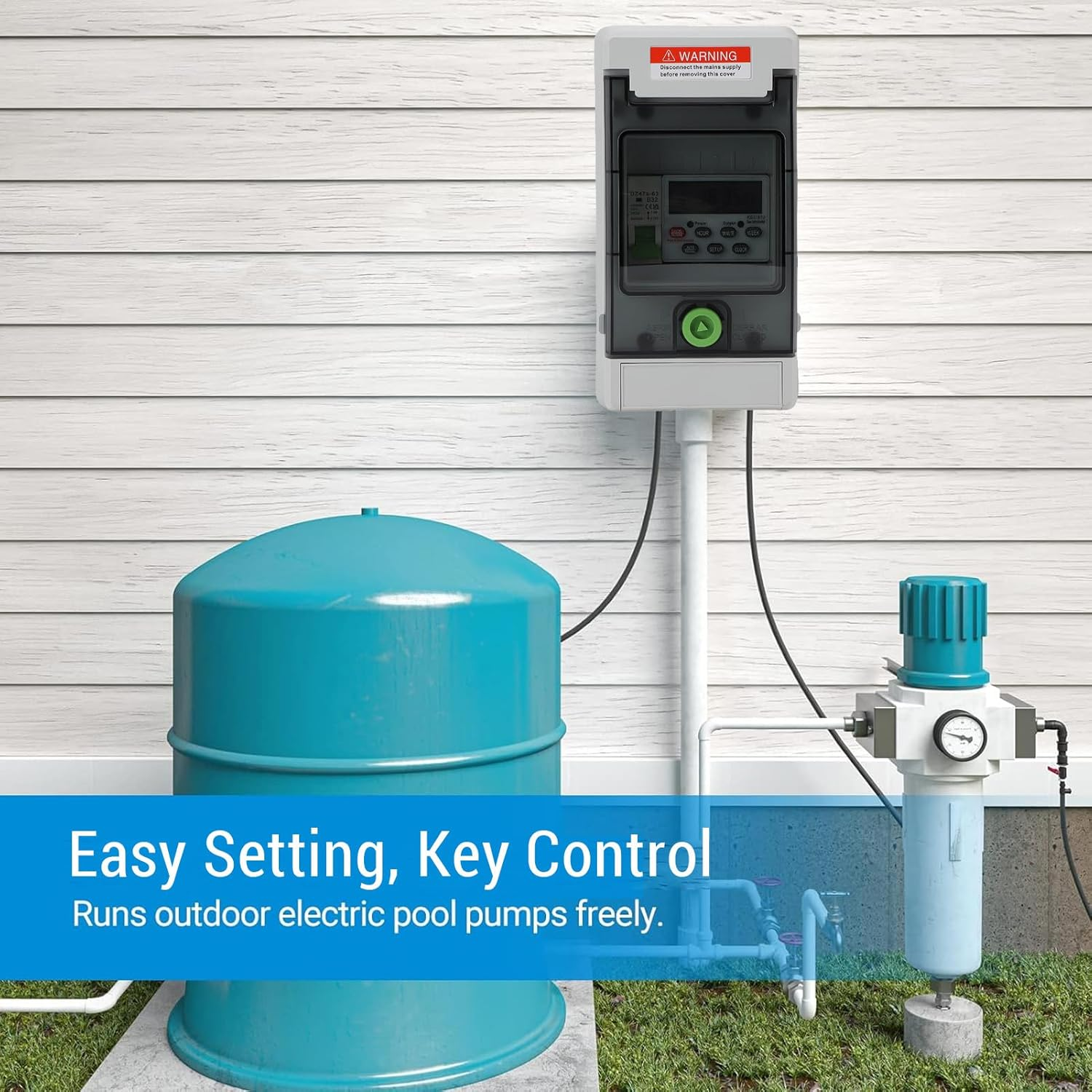

Sprinkler Irrigation System: Start irrigation from 5:00 am to 7:00 am every day to avoid high temperature evaporation.
Advertising Board: Light up from 19:00-23:00 on weekdays, extended to 24:00 on holidays.
How to Use:
Connect the red wire to the power line, and the black wire to the neutral line after opening the product; the other two terminals N and L of the timer switch should be connected to the live wire and neutral wire of the device that needs to be timed.
Package List:
1 x Timer Switch Box
1 x Dust Cover Key
