Reliable 15A Solar Fuse Connectors – ZONADA set of 5 connectors with built-in 15A in-line fuses, designed for solar panel systems, solar controllers, and combiner boxes to ensure circuit protection and stable power distribution.
Waterproof and Weather Resistant – IP67 rated with double seal rings, these solar cable connectors prevent water ingress, resist dust, and deliver consistent performance in outdoor solar installations.
Safe and Efficient Design – Features self-locking connection system for secure attachment, low transition resistance for efficient current transfer, and flame-retardant UL94-V0 insulation for added safety.
Wide Compatibility and High Capacity – Supports 2.5mm² / 4mm² / 6mm² (AWG14/12/10) solar cables, rated at 1000V DC, 30A (with 4mm² or 6mm² cable), and withstands high and low temperatures from -40°C to +90°C.
Durable and Long Lasting – Constructed with PPO insulation and copper silver-plated contacts, ensuring high conductivity, mechanical endurance, and long-term reliability in demanding solar power systems.
Product Description

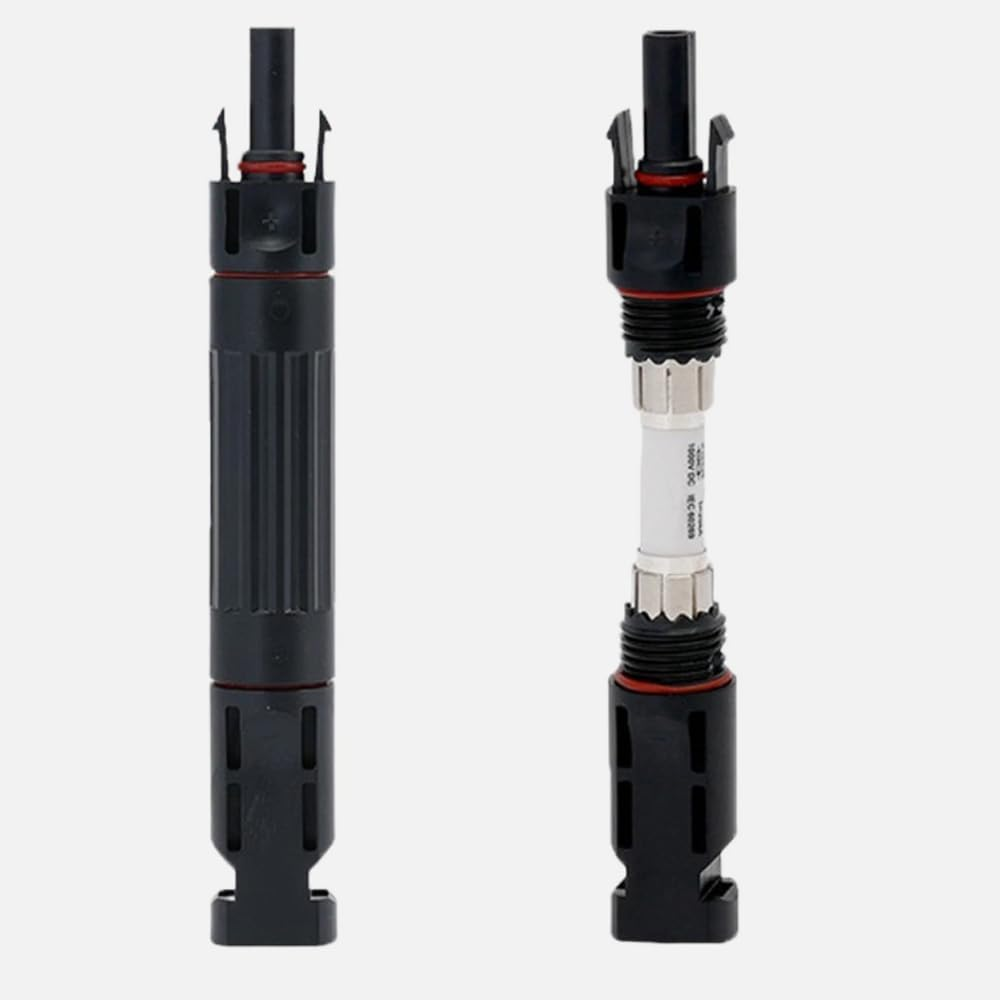

The ZONADA 15A Solar Fuse Connector Set provides a secure and efficient solution for protecting solar power systems from overcurrent and electrical faults. Each connector features a built-in 15A in-line fuse, ensuring safe energy transfer between solar panels, controllers, inverters, and combiner boxes. With an IP67 waterproof rating, double sealing rings, and a robust PPO insulated housing, these connectors are designed to withstand harsh outdoor conditions while maintaining excellent electrical performance. The self-locking mechanism allows quick and reliable field assembly without special tools, while the copper silver-plated contacts deliver low contact resistance and high current carrying capacity. Compatible with multiple solar cable sizes (2.5mm², 4mm², 6mm²), these connectors provide stable, efficient, and durable connections for residential, commercial, and off-grid solar installations.
Specifications
Brand: ZONADA Product Type: 15A Solar Fuse Connector Set Rated Voltage: 1000V DC
Rated Current: 30A (with 4mm², 6mm² cable)
Built-in Fuse: 15A in-line
Test Voltage: 6KV (50Hz)
Protection Degree: IP67
Insulation Material: PPO

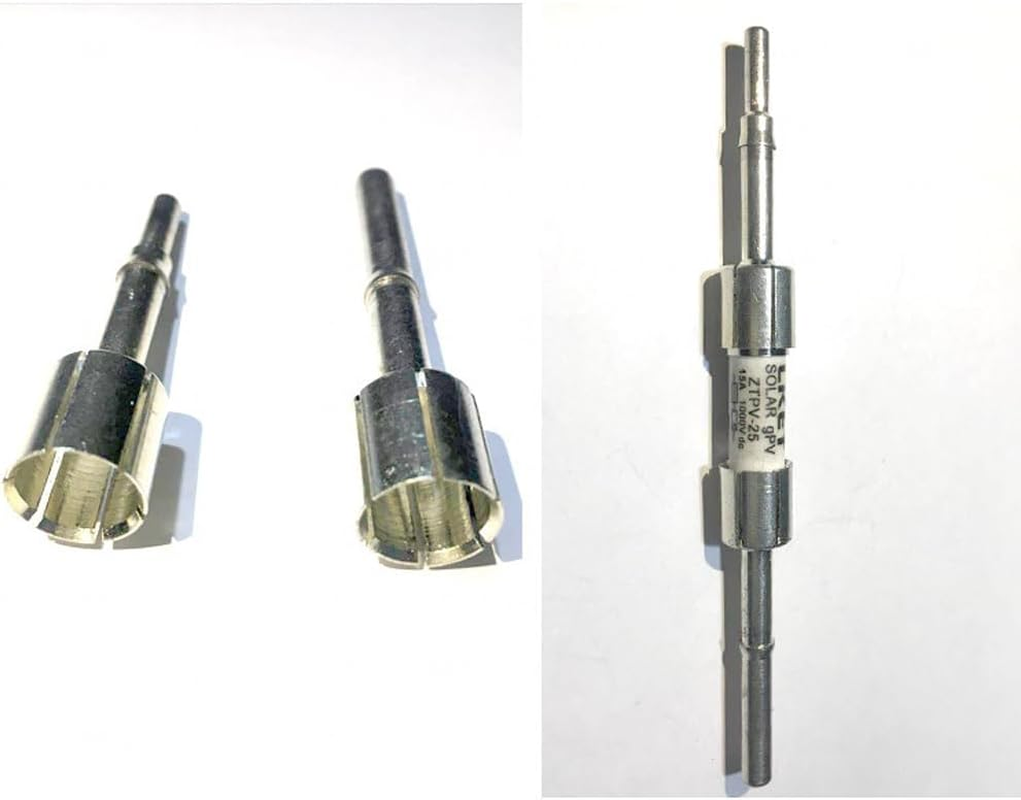

Contact Material: Copper silver-plated
Operating Temperature: -40°C ~ +90°C
Safe Class: 2
Flame Class: UL94-V0
Contact Resistance: ≤5mΩ
Insertion Force: ≤50N
Withdraw Force: ≥50N
Suitable Cable: 2.5mm² / 4mm² / 6mm² (AWG14/12/10)
Locking System: Snap-in
Package Includes

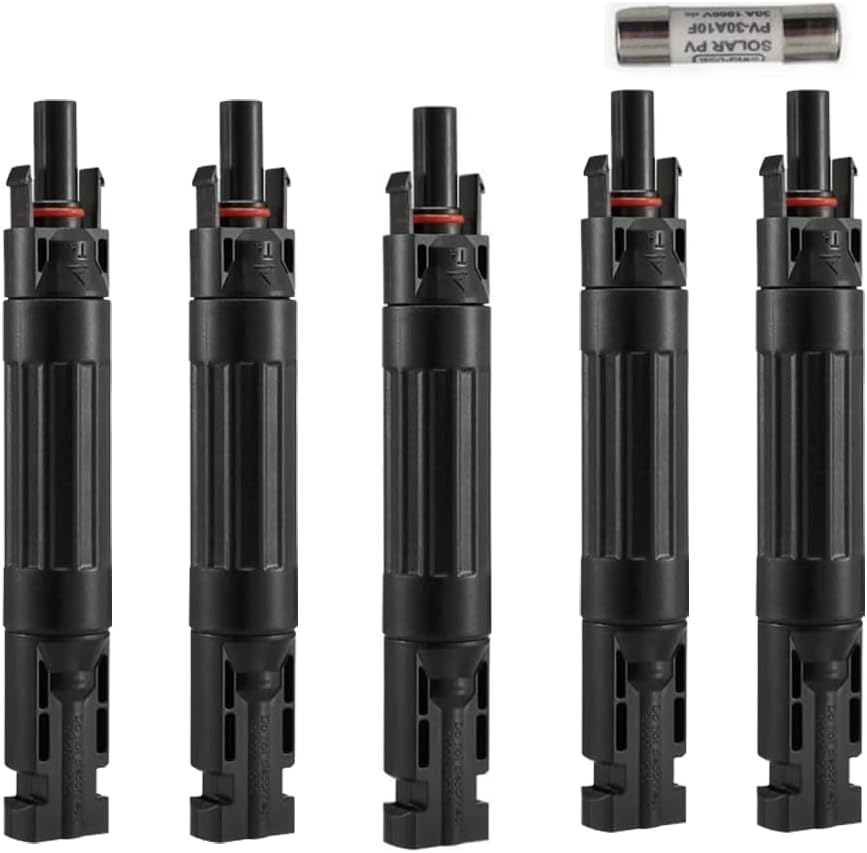

5 x ZONADA 15A Solar Fuse Cable Connectors
