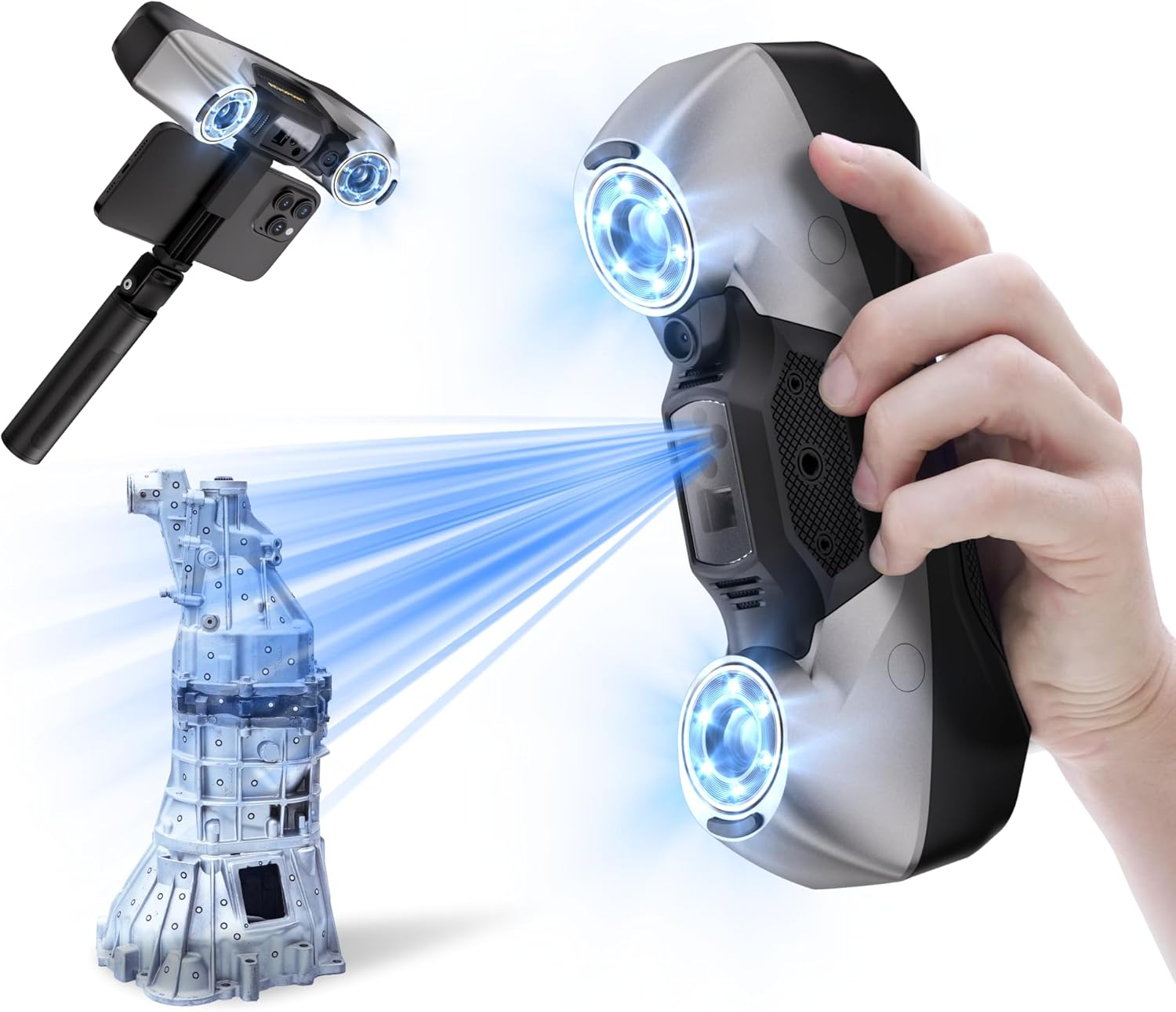

Revopoint Metroy Pro 3D Scanner for 3D Printing, up to 0.01Mm Precision, 34+15+1 Industrial Blue Laser Handheld Scanner, 62-Line Full-Field, Full-Color 3D Scan

Revopoint Metroy Pro 3D Scanner for 3D Printing, up to 0.01Mm Precision, 34+15+1 Industrial Blue Laser Handheld Scanner, 62-Line Full-Field, Full-Color 3D Scan

Brand: Revopoint
3.7
A$2,728.95
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Industrial-Grade Accuracy: Capture every detail flawlessly with MetroY's advanced blue lasers, offering precision of up to 0.01 mm, accuracy of up to 0.02 mm, and volumetric accuracy of up to 0.02 mm + 0.04 mm x L(m). It ensures accurate, reliable results for reverse engineering, metrology, and 3D printing.

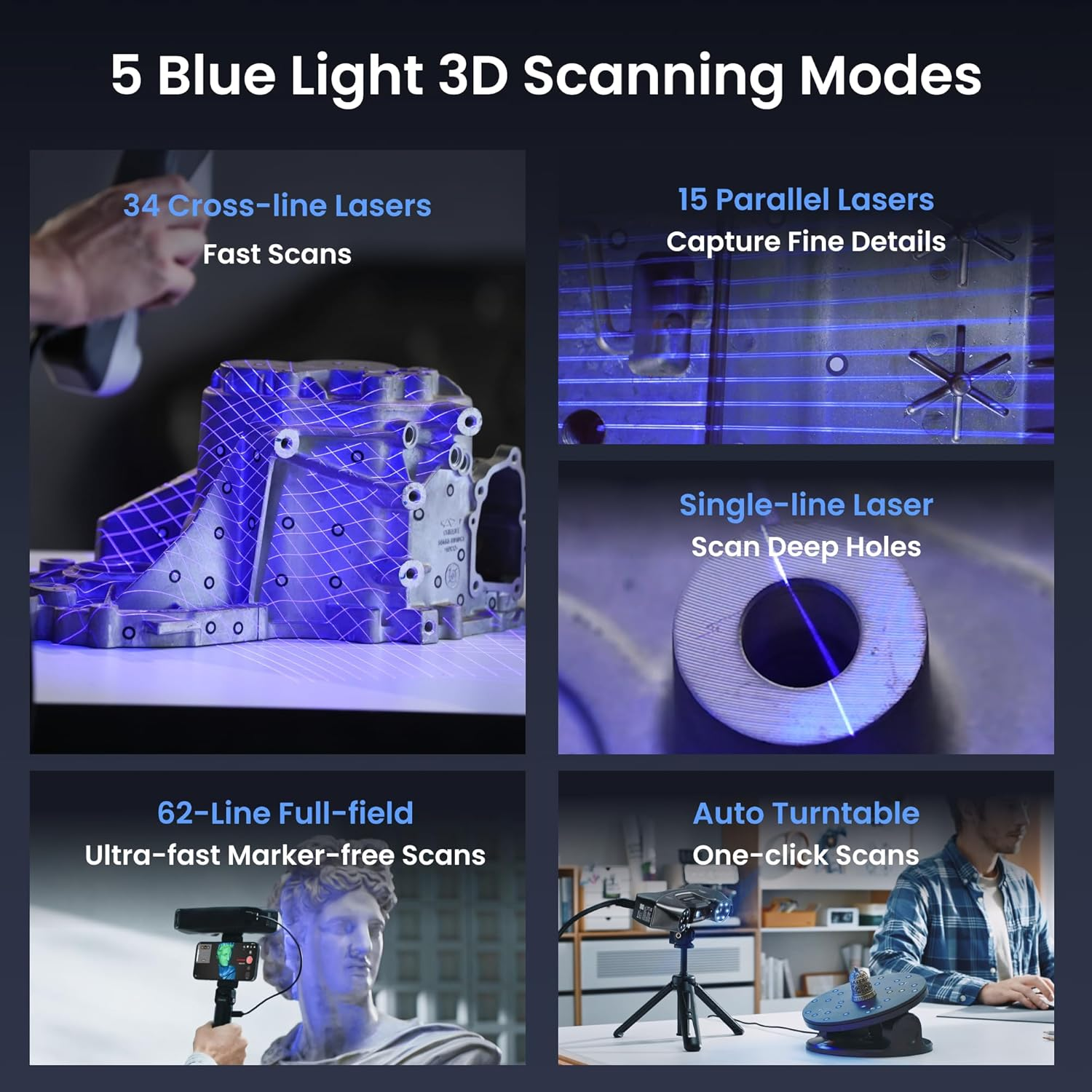

  • Five Powerful Scanning Modes: Handle all scanning scenarios with MetroY Pro's 34 cross-lines for quickly capturing surfaces, 15 parallel lines for detailed scanning, single-line deep hole scanning, ultra-fast 62-line full-field blue structured light, and ultra-detailed auto turntable modes.

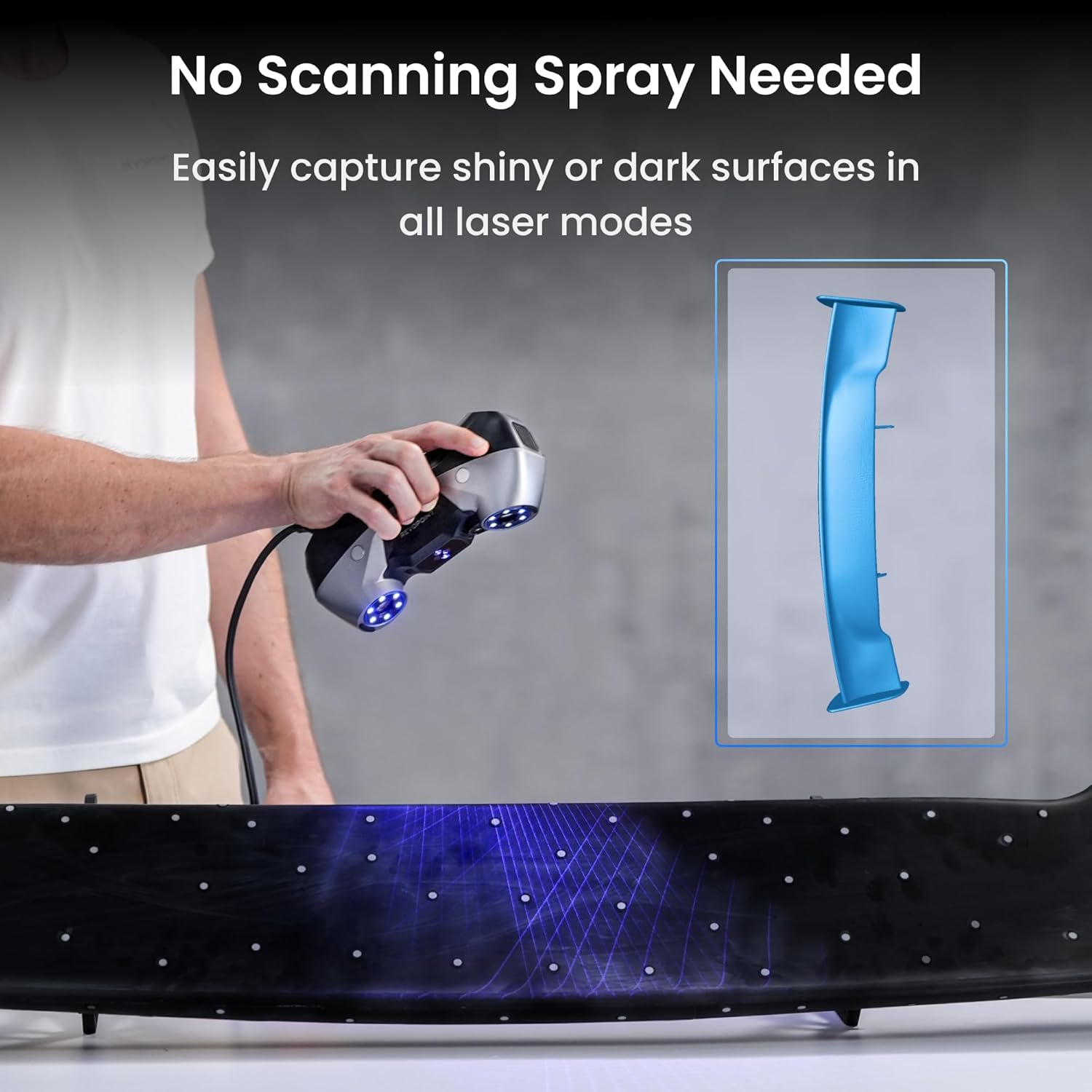

  • Fast Scans, No Scanning Spray Needed: Capture shiny and dark surfaces with ease, no scanning spray needed in any laser mode. Achieve high-efficiency results with scanning speeds of up to 2,000,000 points per second.
  • Marker-Free Scanning: Perform ultra-fast scans at up to 7 million points/second of feature-rich objects without using markers with the 62-line full-field blue light structured light mode.
  • One-Click Auto Turntable Scans: Make capturing even the most complex objects easy. Simply place an object on the Dual-axis Turntable and let the one-click Auto Turntable mode do the rest.
  • Professional Software: Simplify scanning, meshing, and editing with Revo Metro's intuitive tools to process and refine your scan. With one-click export, seamlessly transfer scans to Revo Measure or Revo Design for measurement and reverse engineering. The software also integrates effortlessly with Quicksurface, Geomagic Control, and other professional platforms.
  • Wi-Fi 6 & Real-Time Streaming: Fast Wi-Fi 6 enables wireless scanner-to-PC connections, removing cables for more flexible scanning. Stream scans from your PC and control them live on your phone or other screens for easier movement and scan monitoring.
  • Package Contents: MetroY Pro Scanner, Mobile Kit (Power Bank Handle, Power Cable, Phone Holder, Quick Release Plate), USB Type-C Cable, Power Adapter, Markers, Carrying Case, Calibration Board, Tripod, Dual-axis Turntable, Sample Bust, Quick Start Guide. Everything you need is included, ready to use out of the box with 24/7 customer service support.
  • Real-time Temperature Monitoring: Built-in high-sensitivity sensors monitor temperature changes in real time, automatically adjusting fan speed to prevent accuracy drift. The temperature visualization interface's status indicators help ensure smooth operation and high scanning accuracy.

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Revopoint MetroY Pro 3D Scanner for 3D Printing

Merchant video

Specifications

Technology Multi-line Laser Scan and Full-field Structured Light Scan
Single-frame Precision, up to 0.01 mm
Fused Point Distance, up to 0.05 mm
Volumetric Accuracy 0.02 mm + 0.04 mm × L (m) L is the length of the object
Working Distance 200 ~ 400 mm
Single Capture Area(Min) 152 × 138 mm at 200 mm
Single Capture Area(Max) 332 × 276 mm at 400 mm
Scanning Speed, up to Multi-line Laser Scan: 2,000,000 Points/s; Full-field Structured Light Scan: 7,000,000 Points/s
Fill Lights 12 Blue LEDs
3D Light Source 34 Blue Cross Laser Lines+15 Blue Parallel Laser Lines+1 Blue Single Laser Line+62 Line Blue Full-field Structured Light

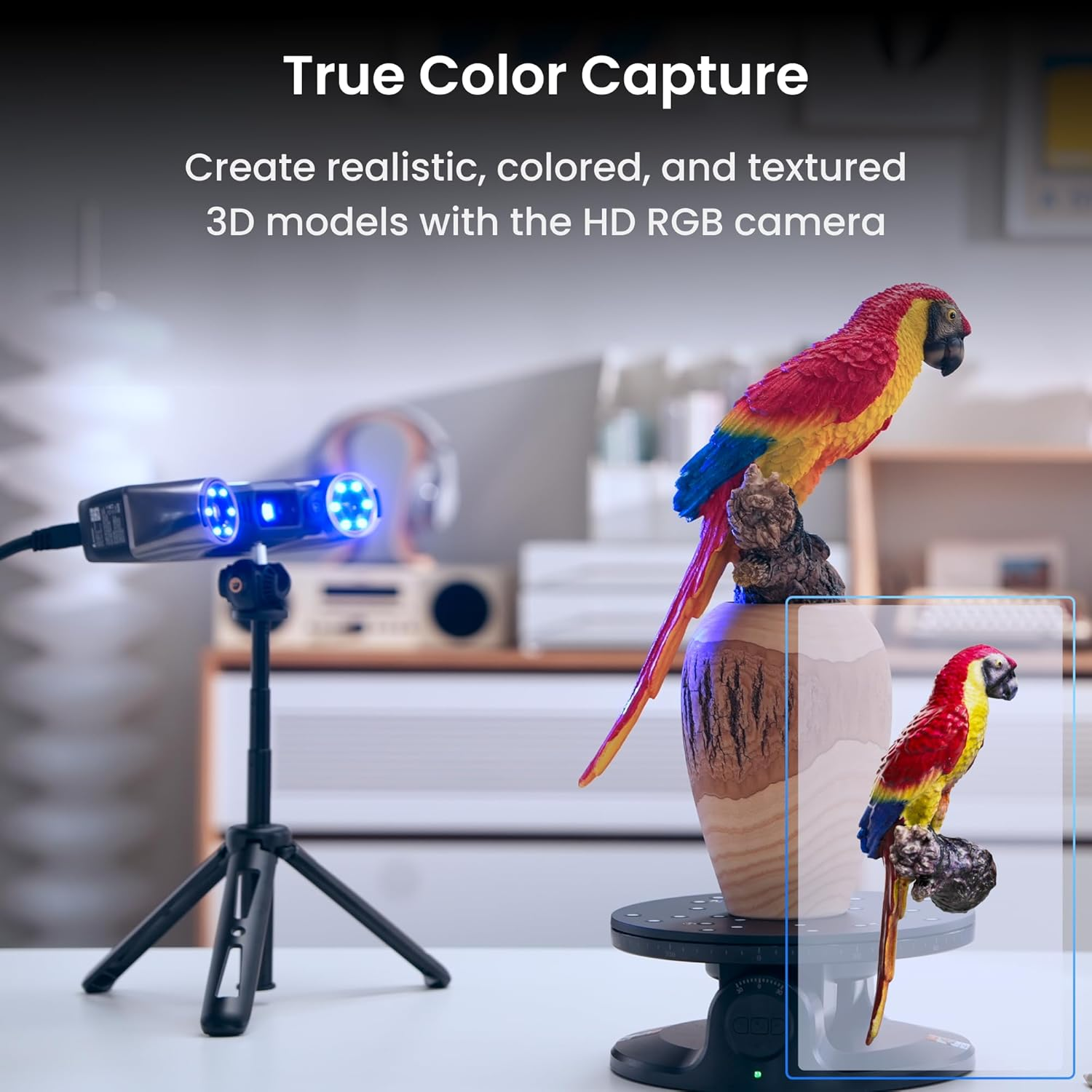

Color Scanning Yes
Dimensions (L × W × H) 211 × 94 × 47 mm
Compatible Operating Systems Windows 10/11 (64-bit), Android, iOS, macOS 11.0 or better
Output Formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Special object scanning Please use scanning spray when scanning transparent or specular surfaces in Laser Line modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
Tracking Methods Feature, Marker, Global Marker

Choose your 3D Scanner

Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars 22
2.9 out of 5 stars 4
4.2 out of 5 stars 159
4.3 out of 5 stars 171
4.4 out of 5 stars 77
4.3 out of 5 stars 749
4.3 out of 5 stars 749
Price
$2,729.00$2,729.00 — $3,720.00$3,720.00 $2,029.00$2,029.00 $1,195.00$1,195.00 $1,599.00$1,599.00 $159.00$159.00
Application
Small to Medium Small to Medium Small to large sized objects Small to Medium Medium-sized objects Small-sized objects for small-medium Objects
Single-frame Precision, up to
0.01 mm 0.03 mm 0.02 mm 0.01 mm 0.04 mm 0.02 mm —
Fused Point Distance, up to
0.05 mm 0.1 mm 0.05 mm 0.05 mm 0.05 mm 0.02 mm —
Working Distance
200 ~ 400 mm In: 200~400mm; Out: 150 ~250mm 100 ~ 1000 mm 200 ~ 400 mm 150 ~ 400 mm 120 ~ 250 mm —
Minimum Scan Volume
10 × 10 × 10 mm 20 × 20 × 20 mm 10 x 10 x 10 mm 10 × 10 × 10 mm 20 x 20 x 20 mm 10 x 10 x 10 mm —
Scanning Speed, up to
Laser: 2,000,000 Points/s Laser:90 fps(GPU), 40 fps(CPU) 20 fps Laser: 800,000 Points/s 18 fps 16 fps —
Scanning Speed, up to
Structured Light: 7M Points/s Structured Light: 18 fps 20 fps Structured Light: 7M Points/s 18 fps 16 fps —
Outdoor Scanning
✘ ✔ ✔ ✘ ✔ ✘ ✔
Compatible Systems
Win10/11, macOS Win10/11/Android/iOS/macOS Win10/11, macOS Win10/11, macOS 11.0 Win10/11/Android/iOS/macOS Win10/11/Android/iOS/macOS —
Power Source
DC 12V, 3A DC 5V, 1A DC 7-11V,5A, 65w Fast Charging DC 12V, 3A DC 5V, 1A DC 5V, 1A —
Scanner Weight
450 g 190 g 750 g 508 g 190 g 175 g —
  • Item Model Number: MetroY Pro
  • Part Number: RevoScan MetroY
  • Scanner Resolution: 0.05 mm Fused Point Distance
  • Country/Region of origin: China
  • Batteries Included: Yes
  • Batteries Required: No
  • Brand: Revopoint
  • Connector Type: USB
  • Product dimensions: 21.1 x 4.7 x 9.4 cm; 6.04 kg
  • Item Weight: 6.04 kg
  • Batteries: 3 Nonstandard Battery batteries required. (included)
  • Model: MetroY Pro
  • Size Name: MetroY Pro
  • Manufacturer: Revopoint
