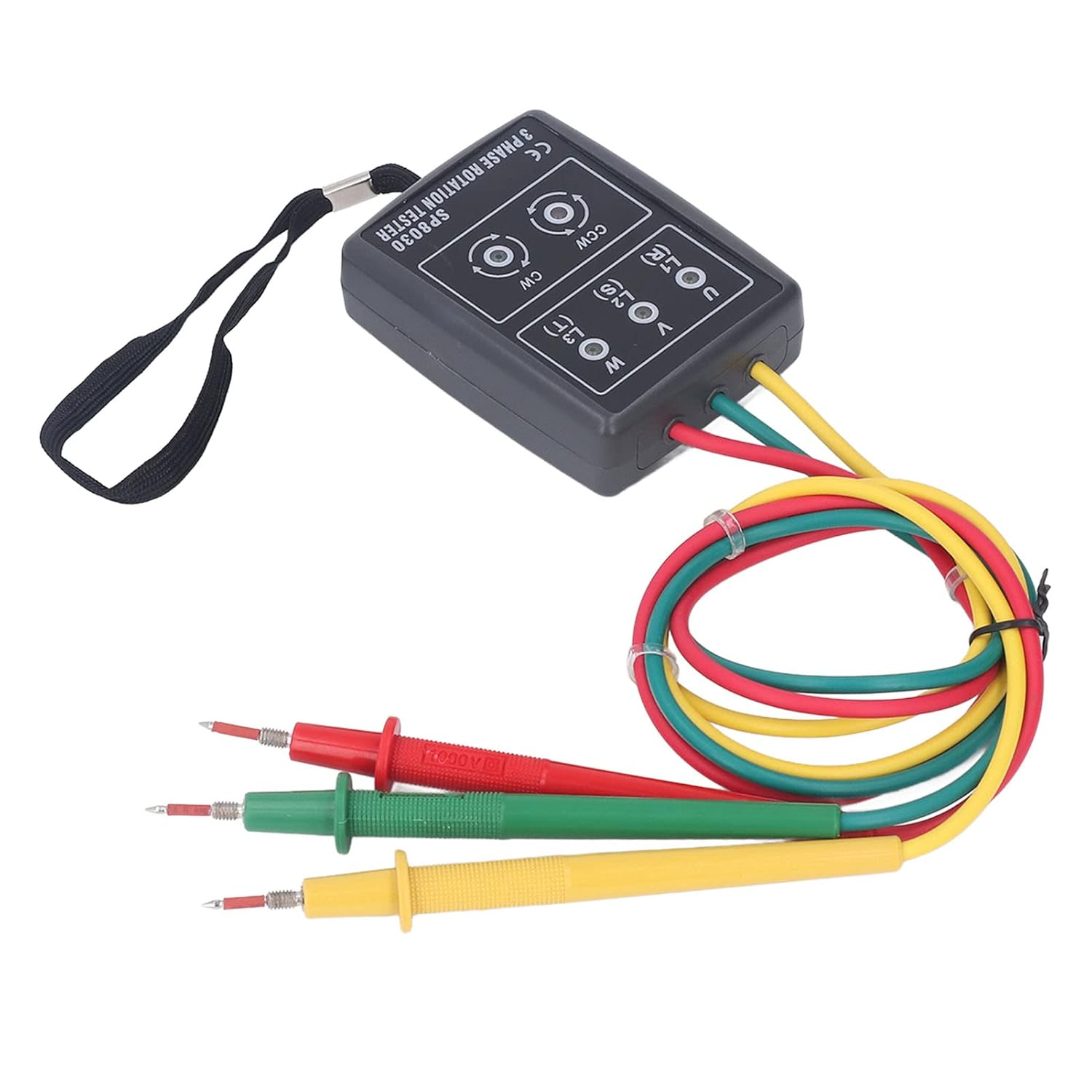

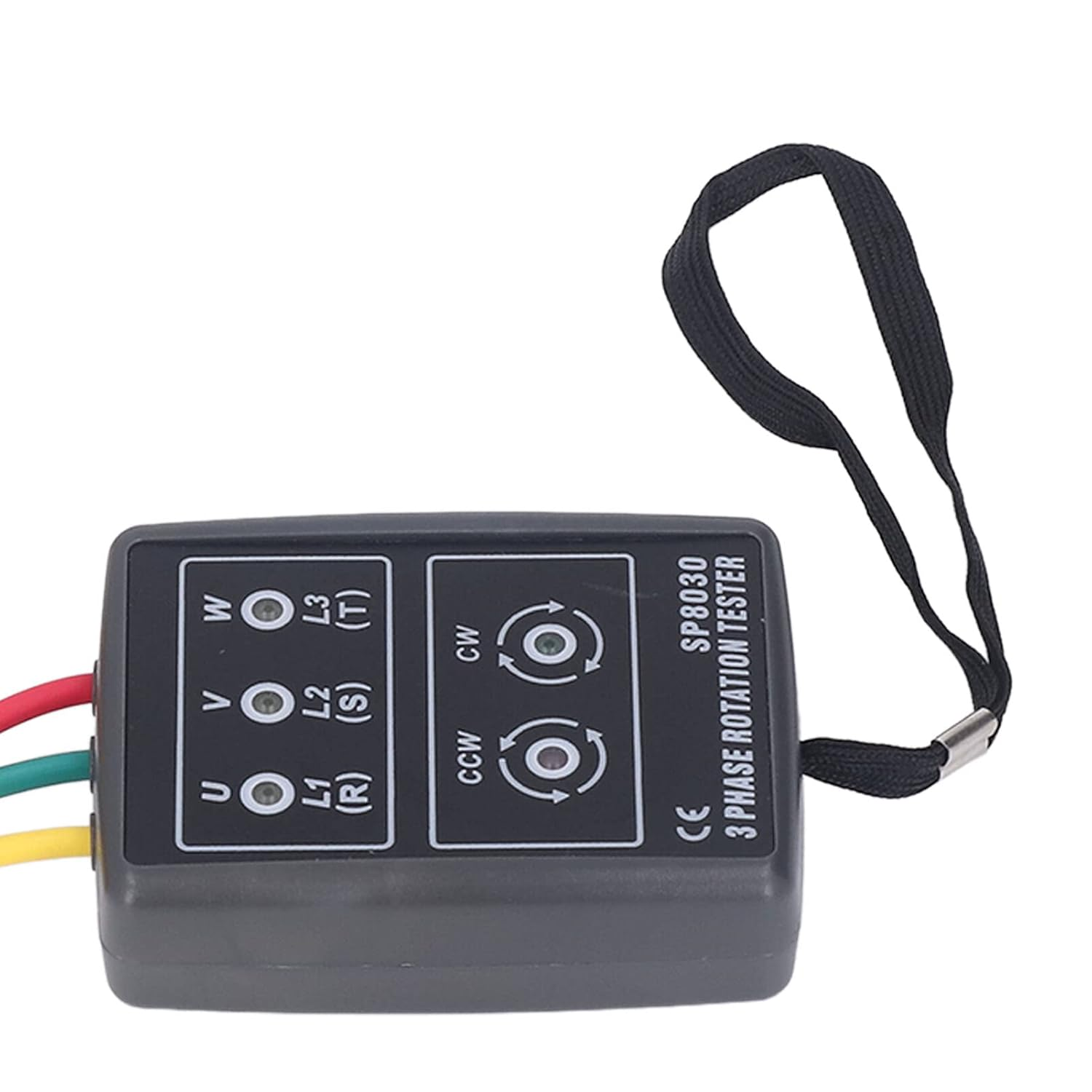

[LED INDICATOR] This phase rotation meter features 5 LED indicators, providing clear testing results.
[NO BATTERY REQUIRED] The 3 phase sequence rotation tester has a no-battery design, ensuring it can operate without the need for batteries.

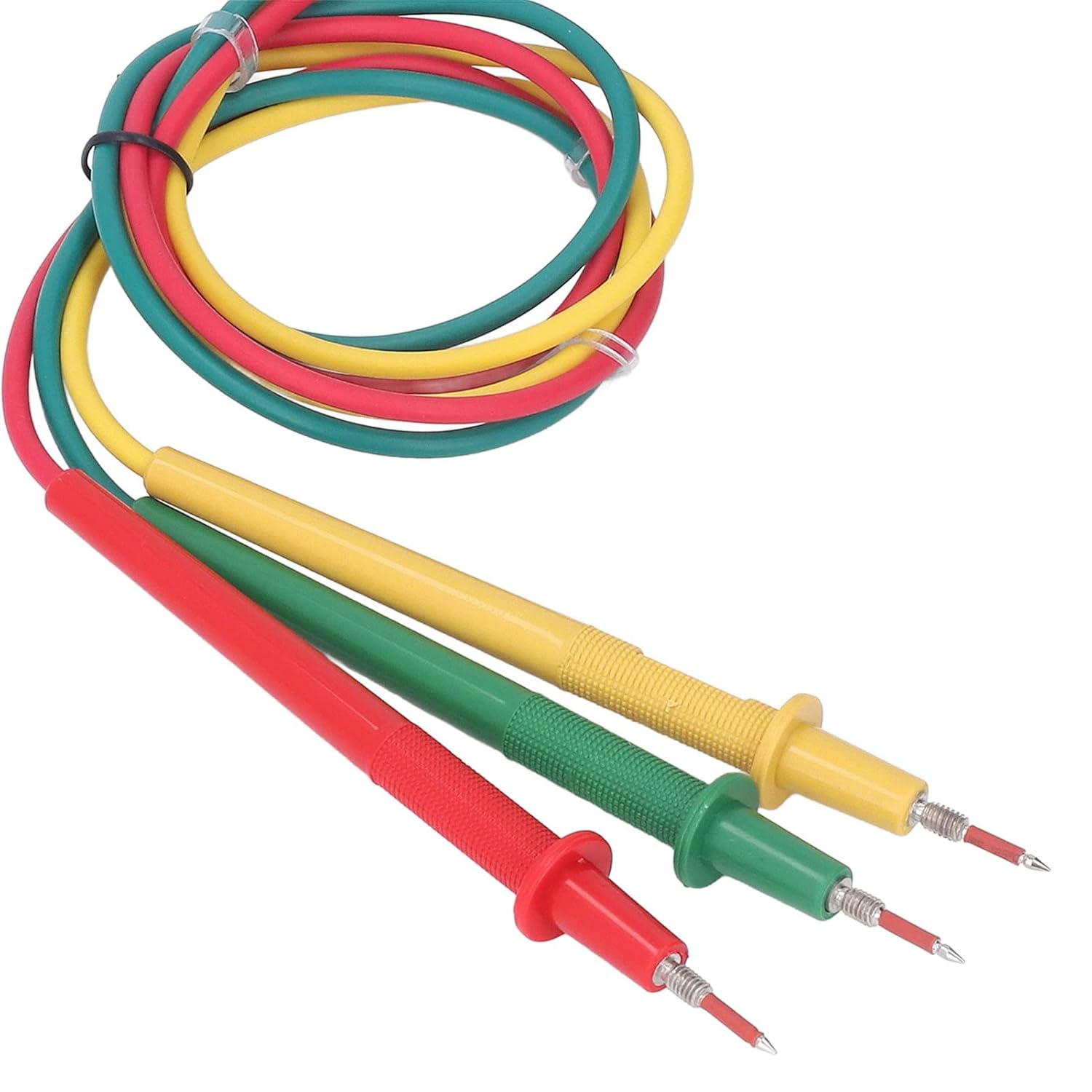

[3 TEST LEADS] Equipped with 3 test leads with threaded design for easy connection to crocodilian clips.
[DOUBLE INSULATION] The test leads of this rotation tester have double insulation and are approximately 700mm long for safety.
[WIDE APPLICATION] Ideal for checking phase sequences, this phase rotation meter is versatile and suitable for use in homes, factories, and maintenance of devices.
Spec:
Item Type: Phase Rotation Meter
Material: ABS
Operating Voltage: 60V to 600V AC
Frequency Range: 20Hz to 400hHz
Continuous Measurement Time Limit: 60 Minutes for 200V AC and 4 Minutes for 600V AC
Test Leads: Double Insulated, 700mm / 27.56in Long
Product Size: Approx. 85 x 64 x 23mm / 3.35 x 2.52 x 0.91in ( Manual Measurement, Slight Error May Exist )
Weight: Approx. 225g / 7.94oz
Package List：
1 x
Phase Rotation Meter3 x Accessory

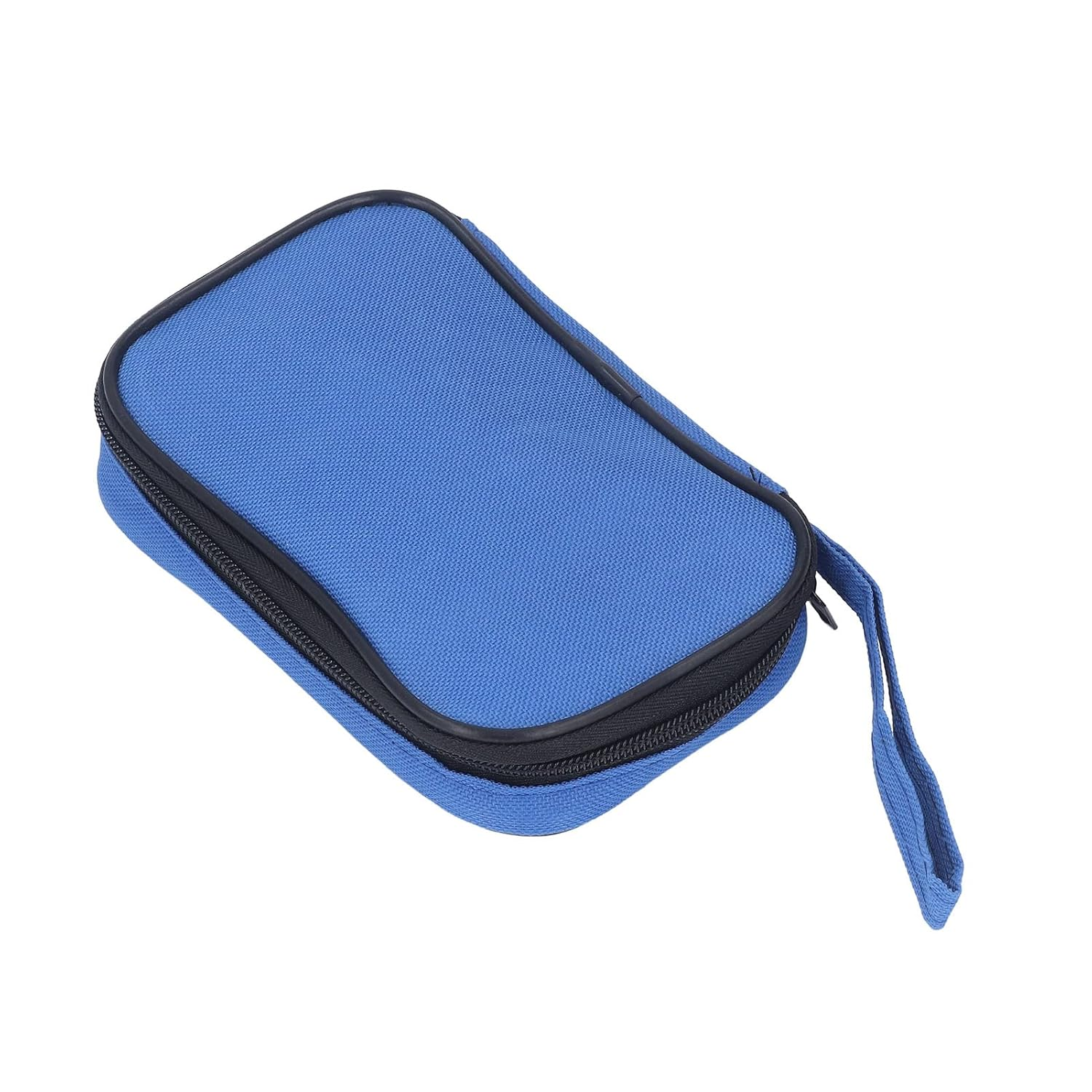

1 x Bag
Note：
Cannot be used as a voltage detector A phase may be present even when all orange leds are turned off during an open phase check. Disconnection and phase sequence can be checked by LED and buzzer.
