1. HIGH COMPATIBILITY: Supports IEEE802.3af/at standard PoE power supply, suitable for network transmission needs within 200 meters, ideal for various networking scenarios.

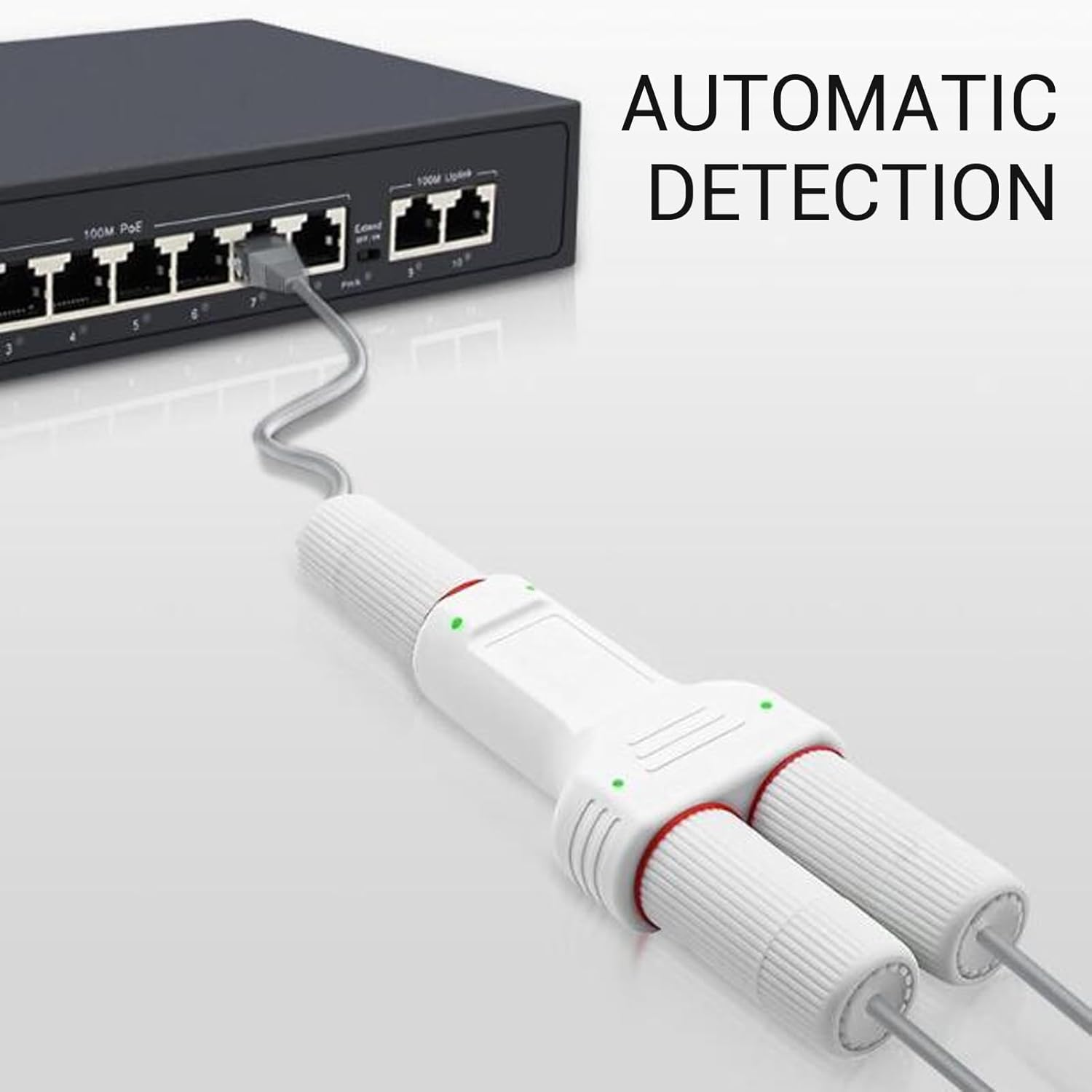

2. AUTOMATIC DETECTION: Automatically detects and identifies standard power receiving devices, providing a secure power supply without the ​ of damaging sensitive equipment.

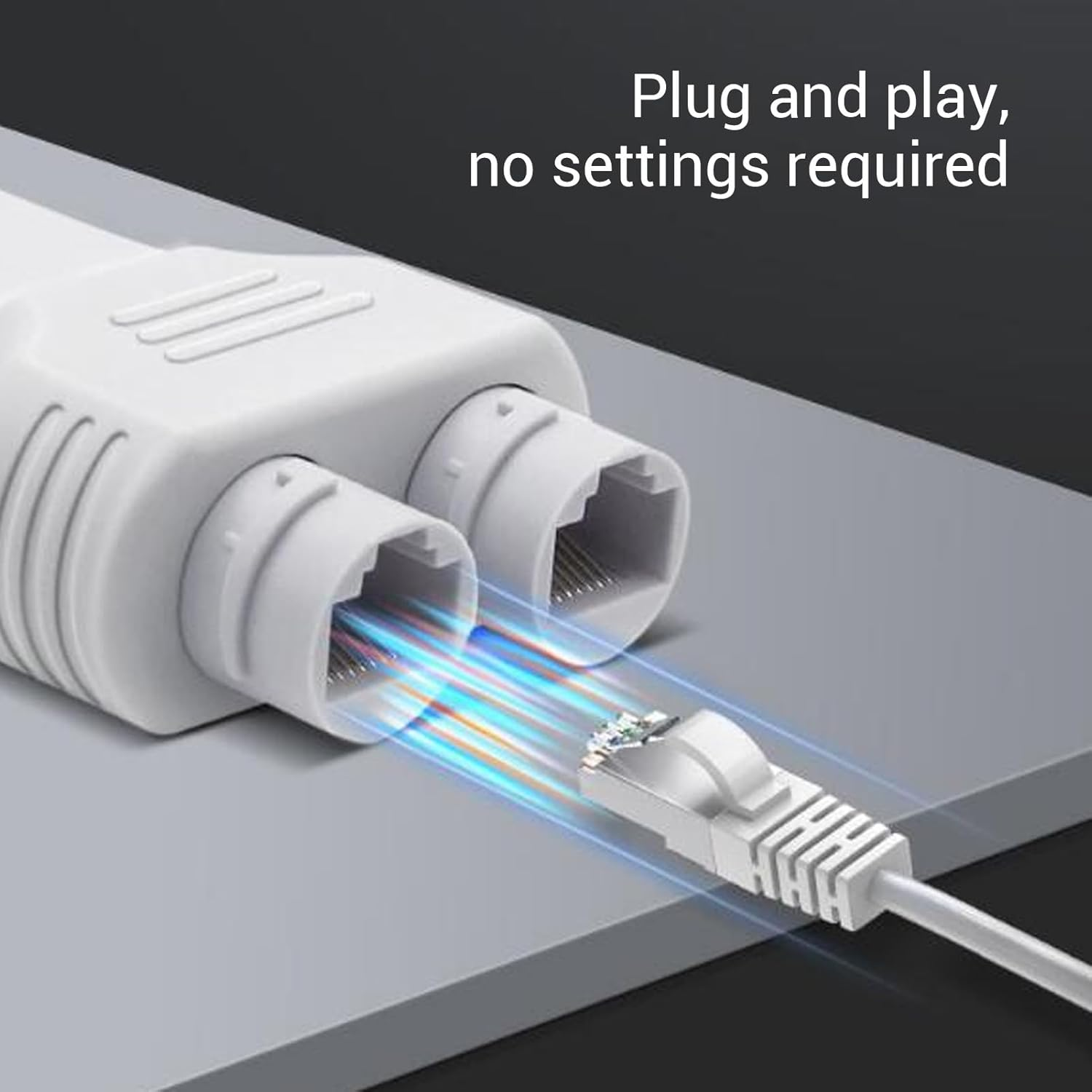

3. PLUG AND PLAY CONVENIENCE: Plug and play, no settings required, suitable for different network environments, making installation quick and convenient.

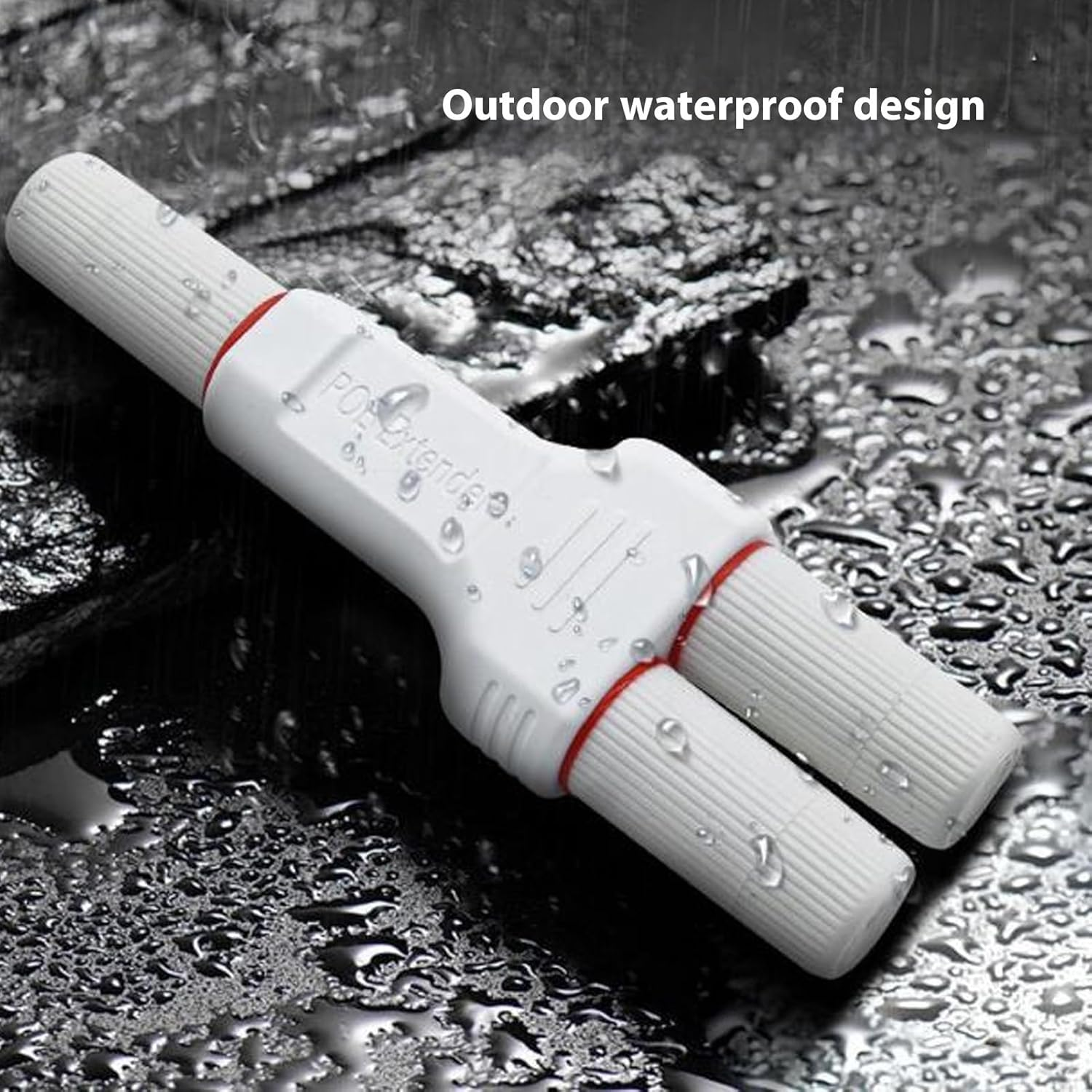

4. ENDURING DESIGN: Featuring a waterproofing design that ensures stability and reliability, the kit is suitable for use in harsh environmental conditions, ensuring uninterrupted performance.

5. LABOR EFFICIENT: Adopts a POE network cascading solution, saving network cables, reducing construction difficulty, and making later maintenance more convenient.

Specification:

Item Type: POE Extender

POE Port: IEEE802.3AF/AT standard POE power supply

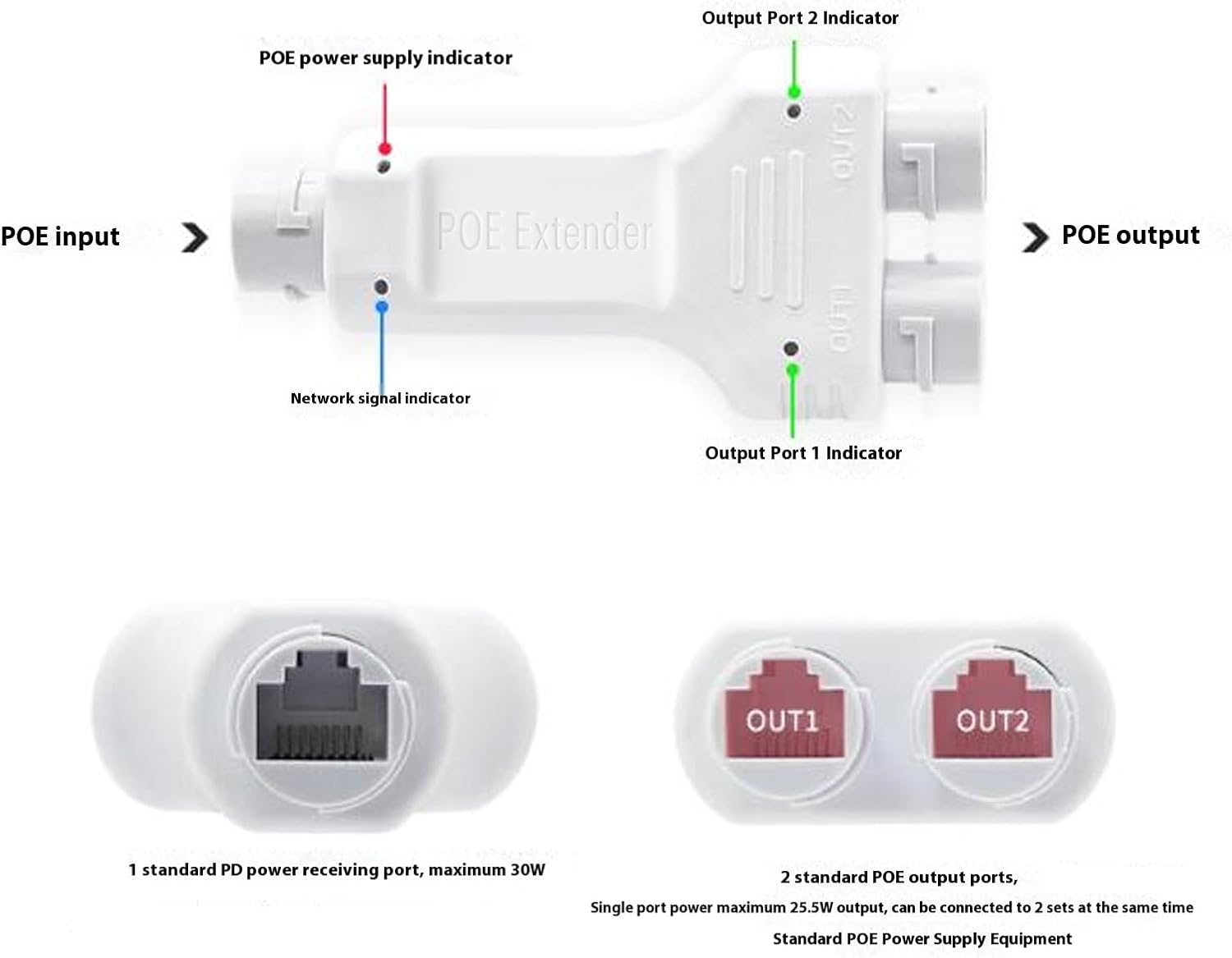

Network Interface: 2 x 10/100Base-TX POE ports, 1 x 10/100Base-TX Upline​ PD Receiving Port

Forwarding Mode: Store and Forward

​rk>MAC​ Address Table: 1K

Switching Capacity: 0.6Gbps

Transmission Rate: 100Mbps

POE Port Input Power: 30W (maximum)

POE Port Output Power: 25.5W (maximum)

Thunder Protecting Level: 2kV 8/20us

Operating Temperature: -10°C to 60°C

How to Use:

Plug and play

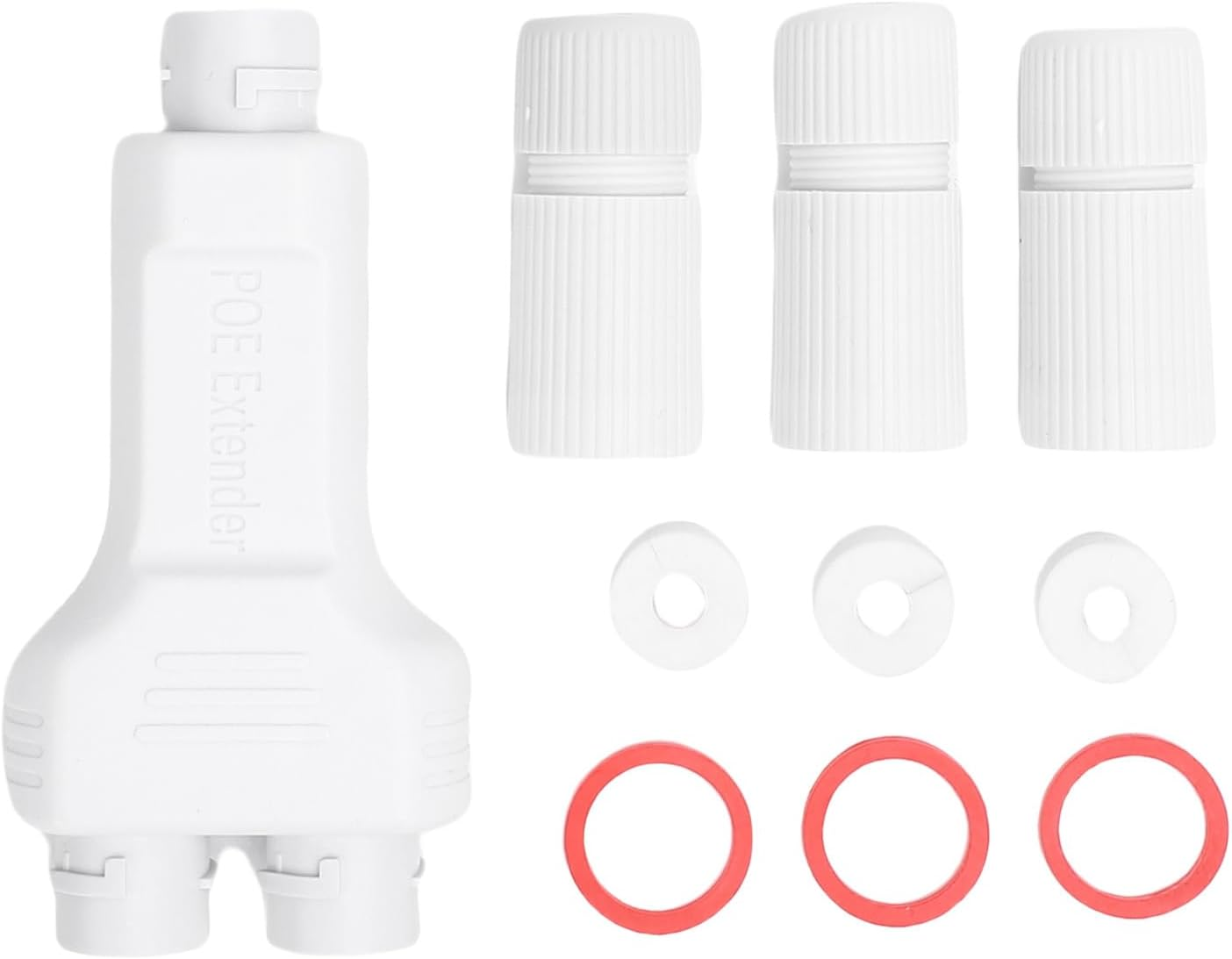

packing list:

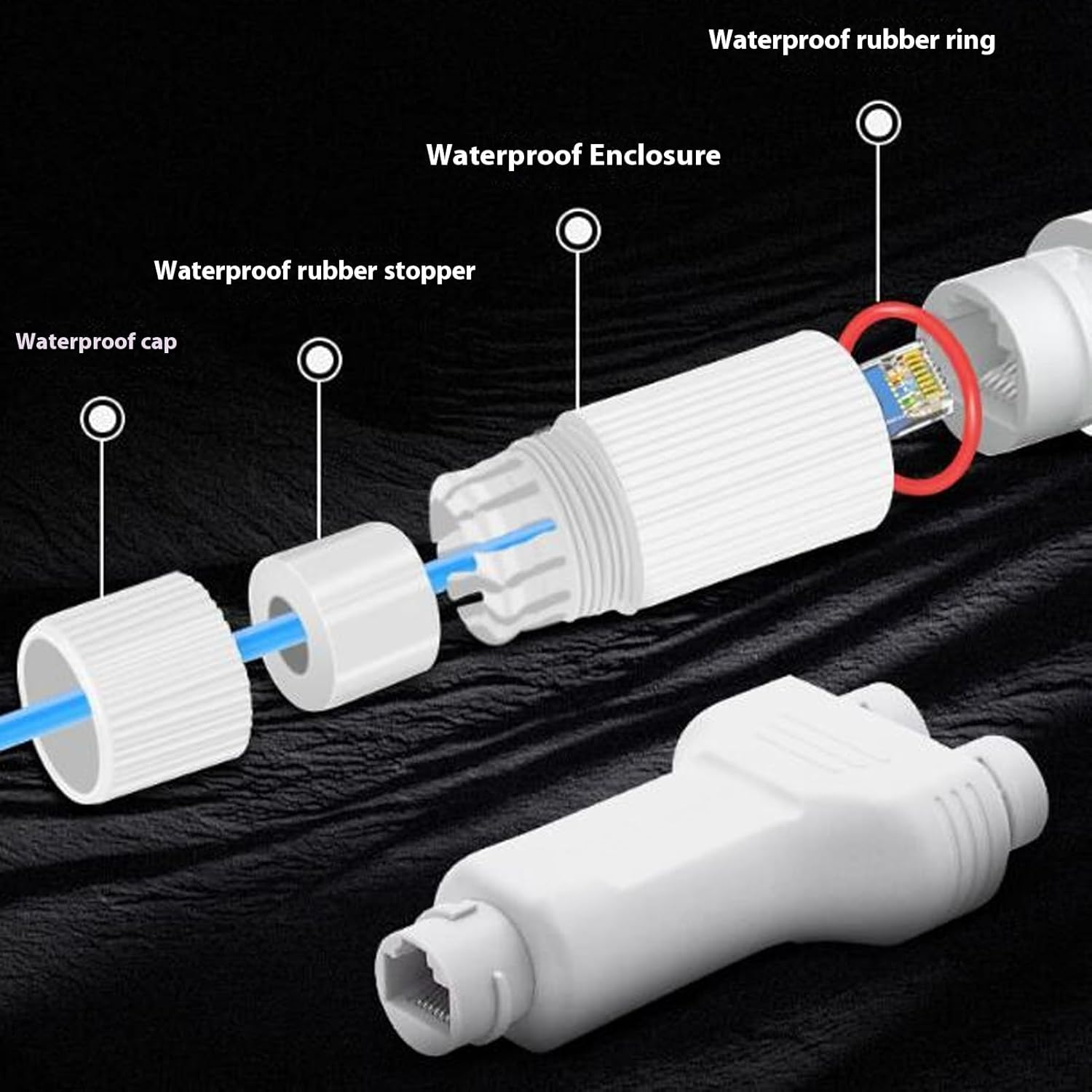

3 x Waterproofing Housing

3 x Waterproofing Plug

3 x Waterproofing Gasket

3 x Waterproofing Cap

1 x POE Extender
