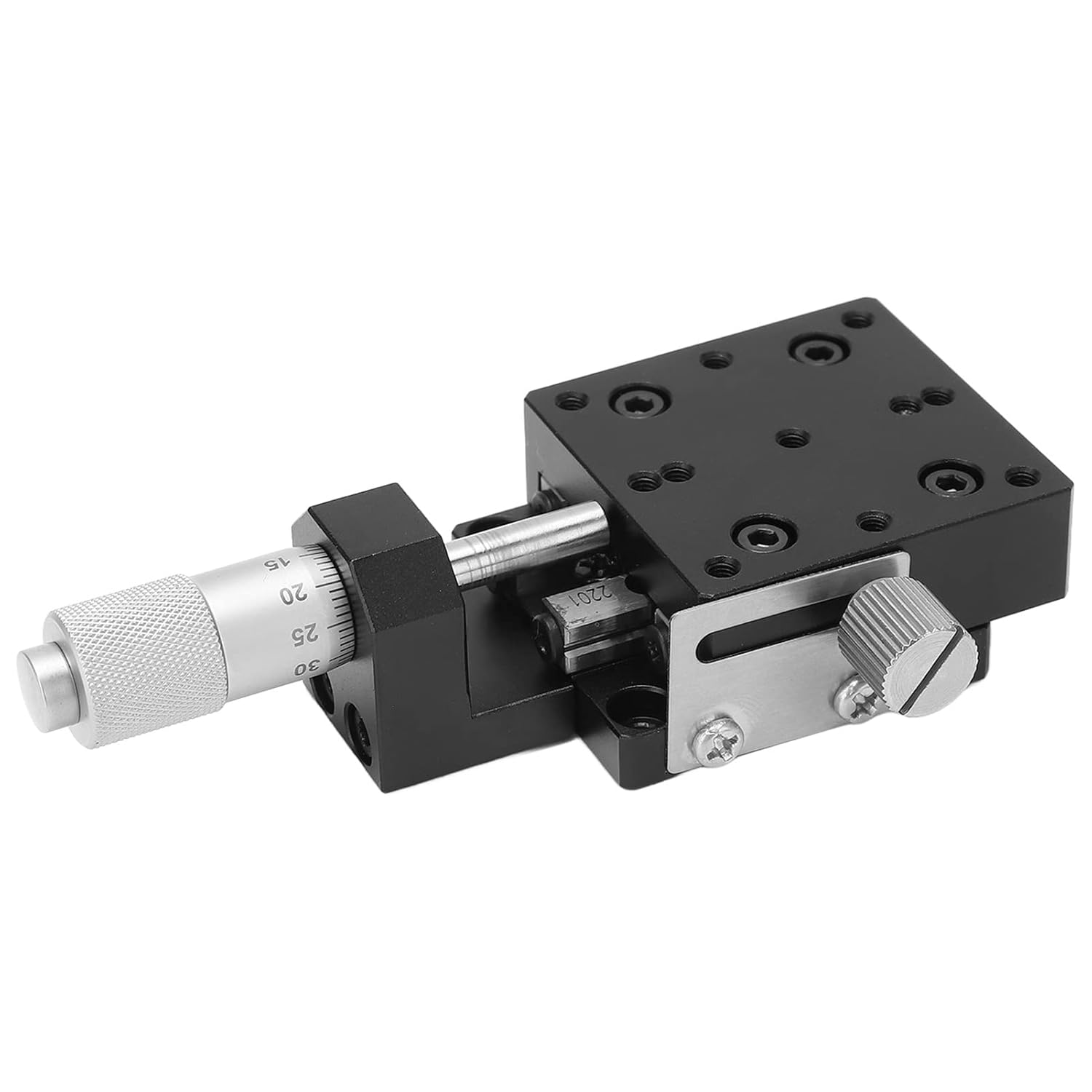

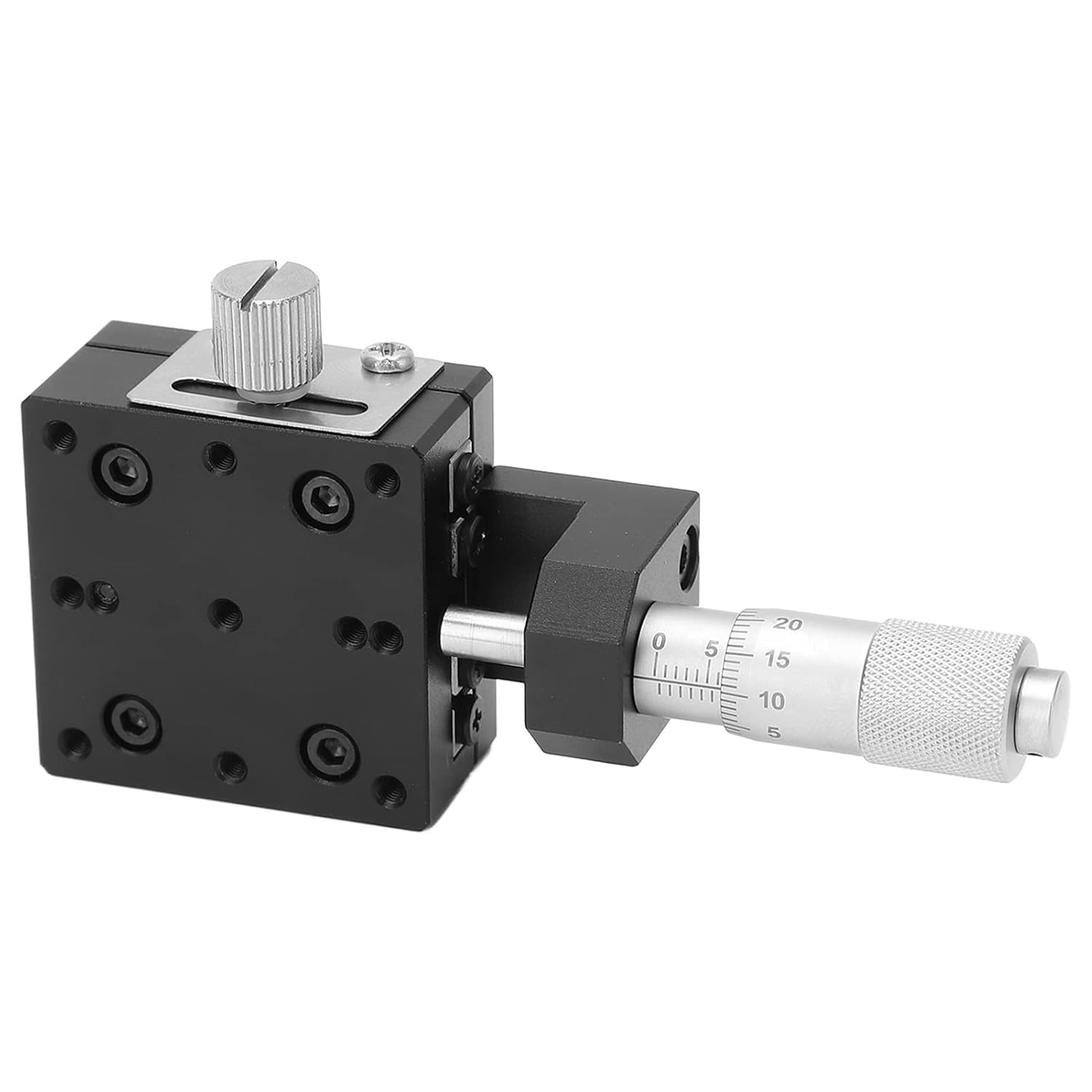

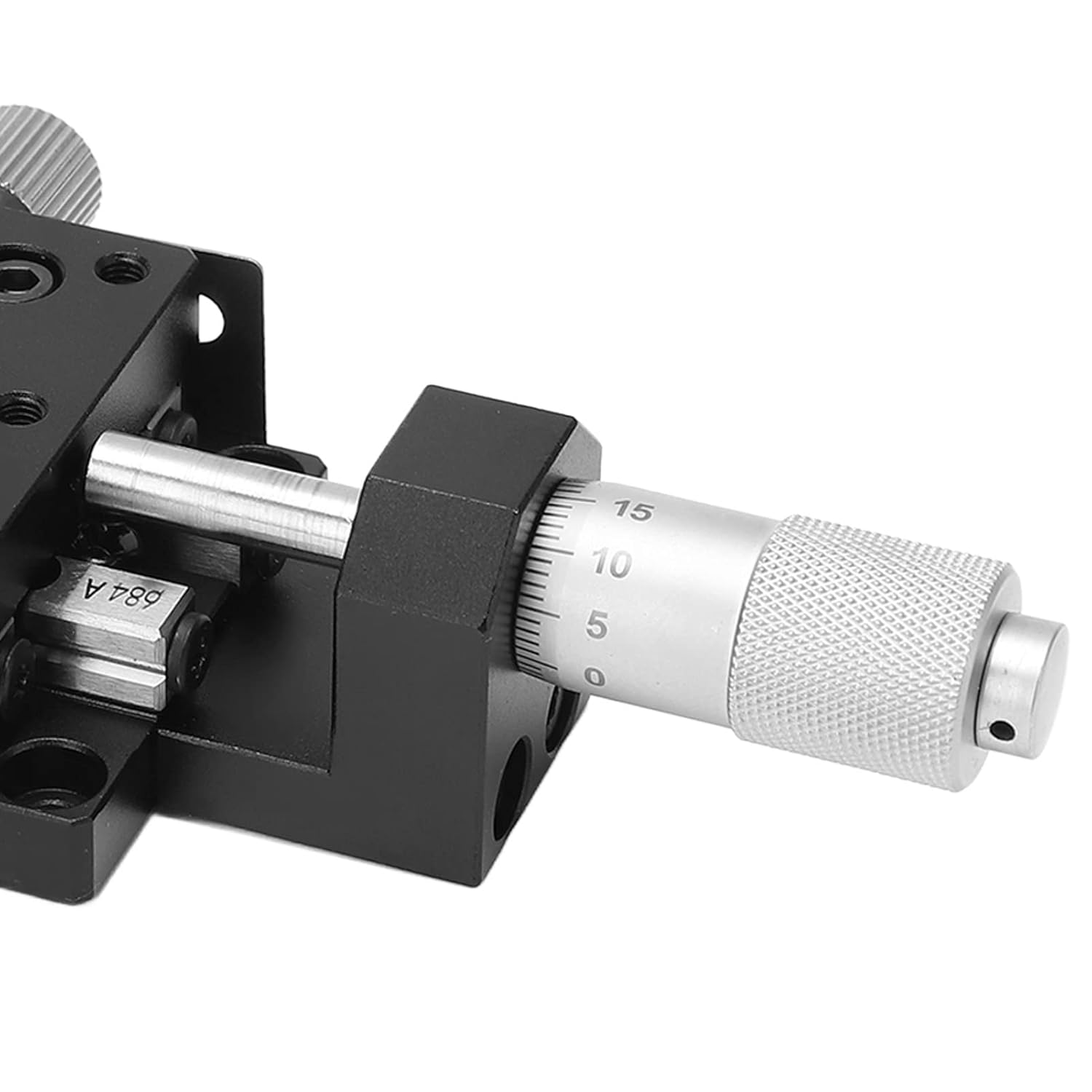

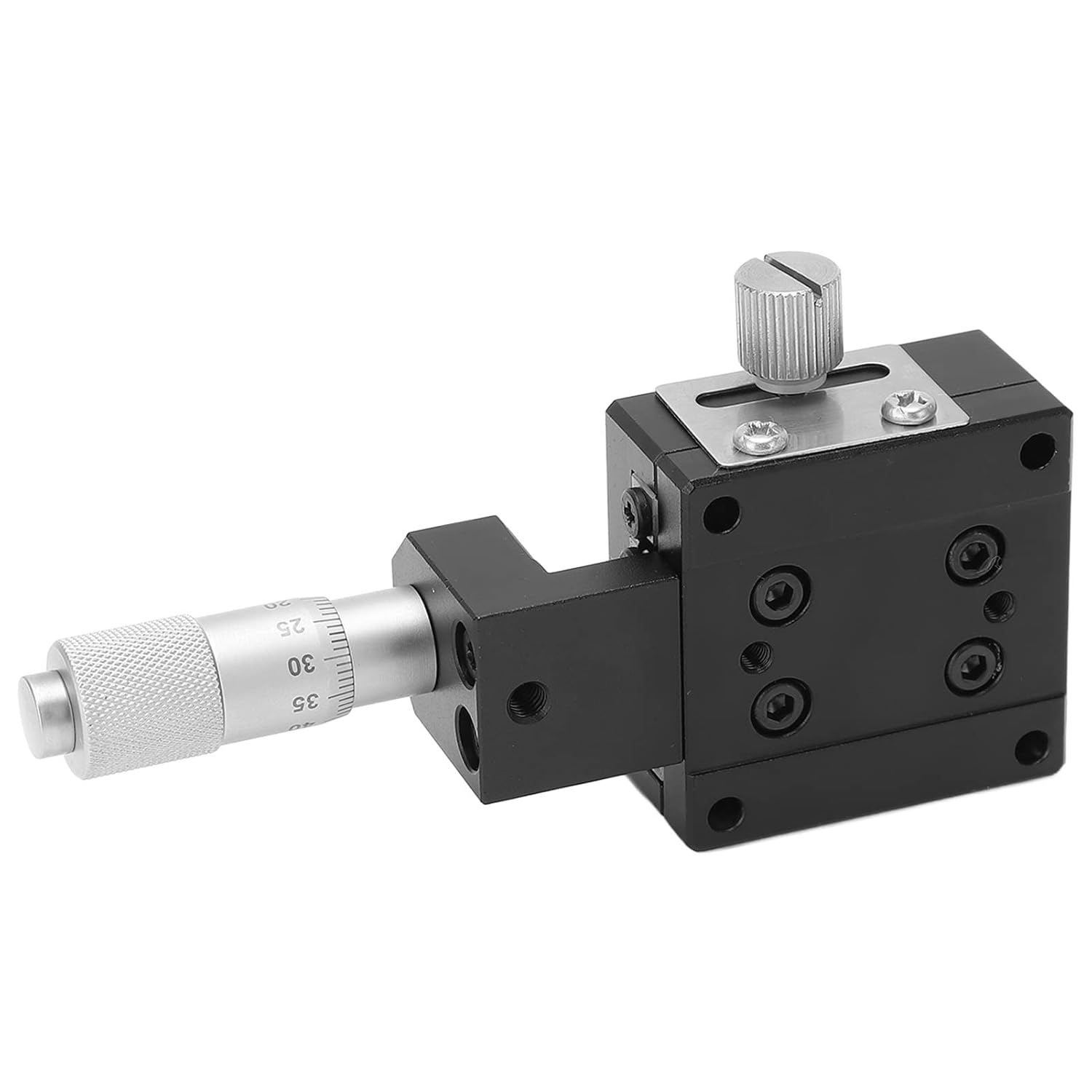

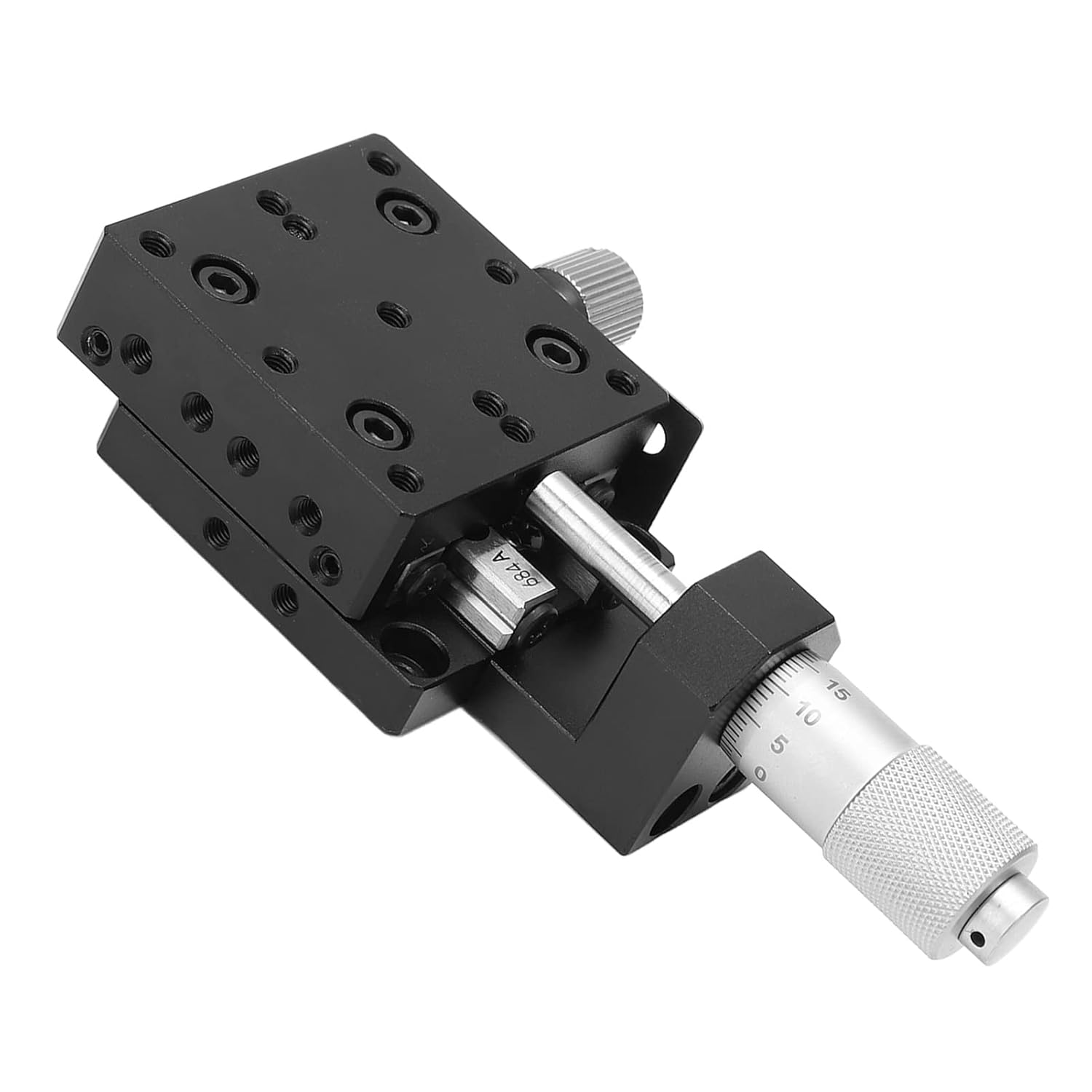

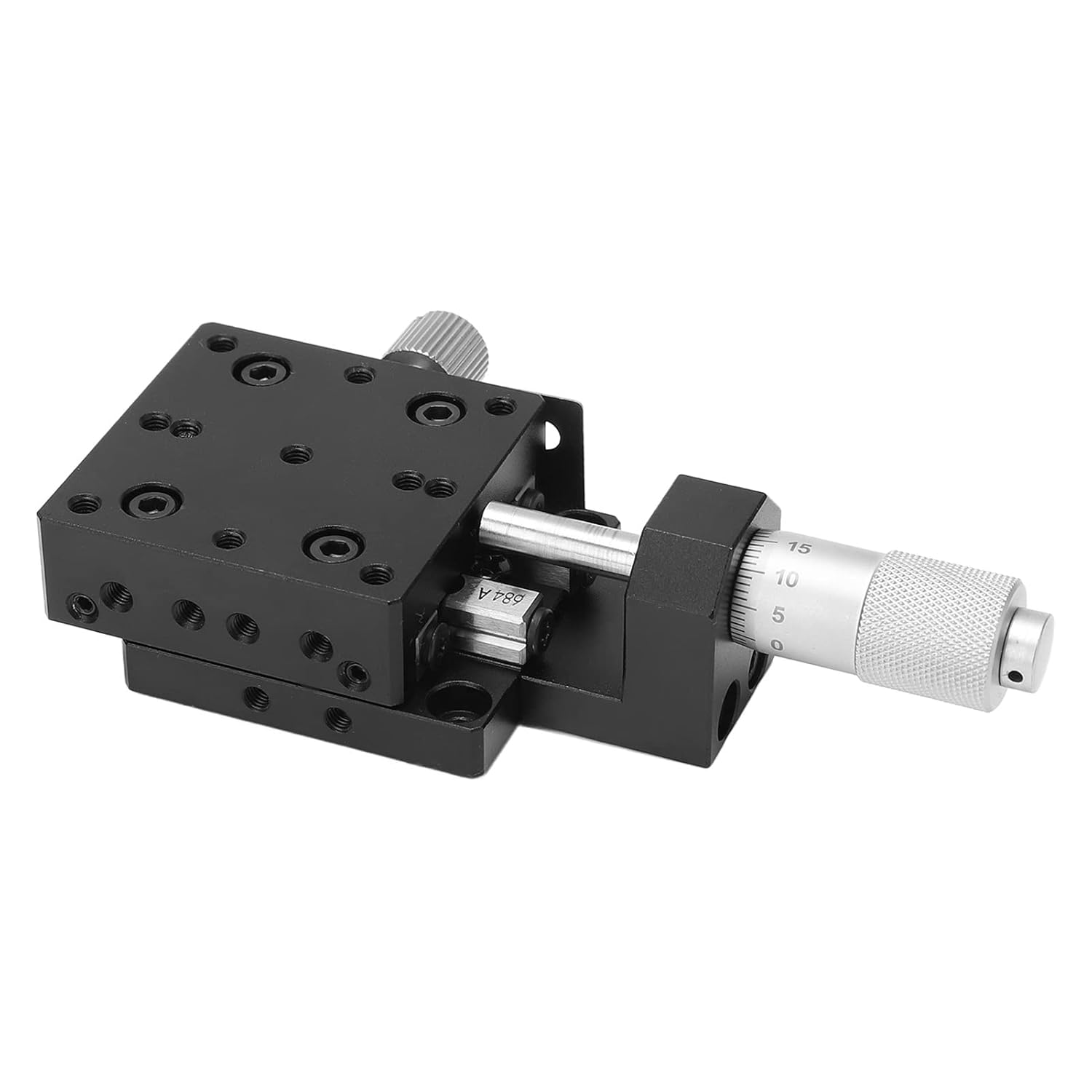

[MANUALLY PRECISE LINEAR STAGE]: This manually precise linear stage features a single X axes rail and fine machining for stable performance. It ensures accurate and smooth movement for various applications.
[ALUMINUM ALLOY MATERIAL]: Made of high-quality aluminum alloy material, this sliding stage offers exceptional strength and durability for long-lasting performance. It is built to withstand rigorous use.
[SUPERIOR BLACK ANODIZED FINISH]: The sliding table is black anodized, providing excellent wear and corrosion . The sleek black finish adds a professional look while enhancing longevity.
[VERSATILE APPLICATIONS]: Suitable for capacitive touch screen production equipment, fixtures, and optical instruments. This linear stage offers precise positioning and smooth movement for various industrial applications.
[WIDE RANGE OF USES]: From production machinery to testing equipment and optical experimental measurement, this linear stage is ideal for fine-tuning displacement, precise positioning, and quantitative movement. It caters to diverse operational needs with high precision.
Spec:
Item Type: Manual Precise Linear Stage
Material: Aluminum Alloy
Scale: 0.01mm
Table Size: Approx.40x40mm/1.6x1.6in
Guide Way: Cross Roller Type
Axes: X Axes (Single Axes)
Load Bearing Capacity: 19.6N
Stroke: ±6.5mm
Parallelism: 30μm
Movement Parallelism: 10μm
Straightness: 3μm
Vertical Yaw: 25second
Lateral Yaw: 15second
Package List：
1 x
Manual Precise Linear Stage
Note：
Pay attention to correct operation.
