Y&H 600W Grid Tie Inverter Stackable DC10.5-28V Input AC230V MPPT Pure Sine Wave Micro Inverter Fit for 12V Solar Panel/24V Battery
Y&H 600W Grid Tie Inverter Stackable DC10.5-28V Input AC230V MPPT Pure Sine Wave Micro Inverter Fit for 12V Solar Panel/24V Battery
Brand: Y&H
A$399.00
- 【600W Grid Tie Inverter】Experience reliable and clean pure sine wave power with our high-performance inverter. Designed to convert DC 11V–32V to AC 190–260V, it automatically adapts to 50Hz/60Hz grids. Perfectly matched with 12V solar panels (Voc 20V–24V; Vmp 18V–21V), it delivers efficient energy wherever and whenever you need.
- 【Innovative MPPT Technology】Featuring an MPPT voltage range of 15–22V, this MPPT Grid Tie Inverter optimises energy harvest with high efficiency. (Note: Do not connect via solar controller load ports.) Ideal for powering laptops, smartphones, TVs, and power tools—keeping all your essential devices running seamlessly.
- 【Advanced Protection Systems】Equipped with over-temperature protection, intelligent fan control, and a durable aluminium alloy casing for superior heat dissipation, this micro inverter ensures safety and reliability. Its built-in island protection and stackable design offer peace of mind for you and your devices.

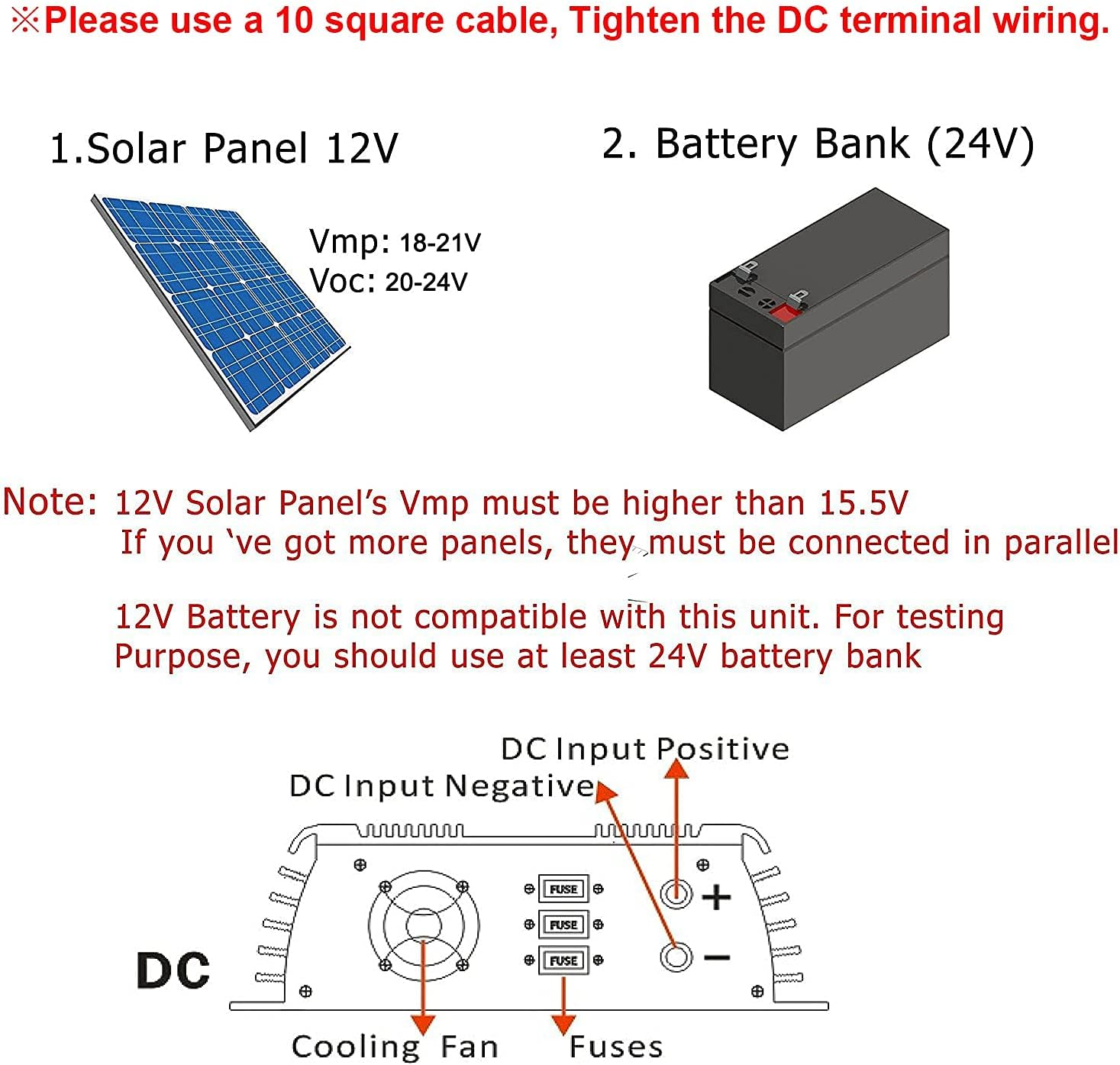

- 【Thoughtful Design Features】Compatible with 12V solar panels (Voc 21V, Vmp 18V), this 600W grid tie inverter is engineered for easy setup. Please note: Incorrect polarity when connecting extended panel cables may result in the LED not lighting up. Always verify connections before operation.
- 【Important Usage Note】Please note: This inverter is designed solely for grid-connected systems and cannot function as an off-grid or standalone unit. The output must be connected to grid power—it does not directly supply AC loads.
- 【Package & Support】Your satisfaction is our priority. This 600W MPPT Grid Tie Inverter comes with a 1-year warranty. For any questions, reach out via email—we promise a response and solution within 24 hours.
Product Description
Features
1. Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.
2. Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.
3. Parallel type design for DC input and modularization design for inverter, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.
4. Adopting high-frequency isolation transformer type, high efficiency, and high security.
5. Perfect electrical protection function.
600W Grid tie inverter,pure sine wave inverter.
DC11V-32V to AC110V or 220V,50Hz/60Hz AUTO.
For 18V/36cells Solar Panel.
With MPPT Functions.
Parameter Index
| Solar panels | 600W |
| DC input range | 11-32VDC |
| MPPT Voltage | 15-22V |
| DC MAX current | 38A |
| AC MAX output | 650W |
| AC output range | 120VAC(90-140VAC) or 230VAC(190-260VAC) |
| Power Factor | >98% |
| THD | <5% |
| Phase Shift | <2% |
| Efficiency | 120VAC(90-140VAC) Version |
| Peak Efficiency | >86 |
| Stable Efficiency | >85 |
| Efficiency | 230VAC(190-260VAC) Version |
| Peak Efficiency | >87 |
| Stable Efficiency | >86 |
- Item Model Number: GTI-600W-18V-220V-AU
- Number of items: 1
- Country/Region of origin: China
- Batteries Required: No
- Brand: Y&H
- Item Weight: 1.36 kg
- Model: GTI-600W-18V-220V-AU
- Package Dimensions: 30.99 x 22.35 x 12.45 cm; 1.36 kg
- Manufacturer: Y&H
