HEUER Hex Attachment - for 160/180 Vice with Spindle Wrench

• The HEUER hex attachment is the perfect accessory for anyone who needs a defined and consistent clamping force when clamping workpieces.

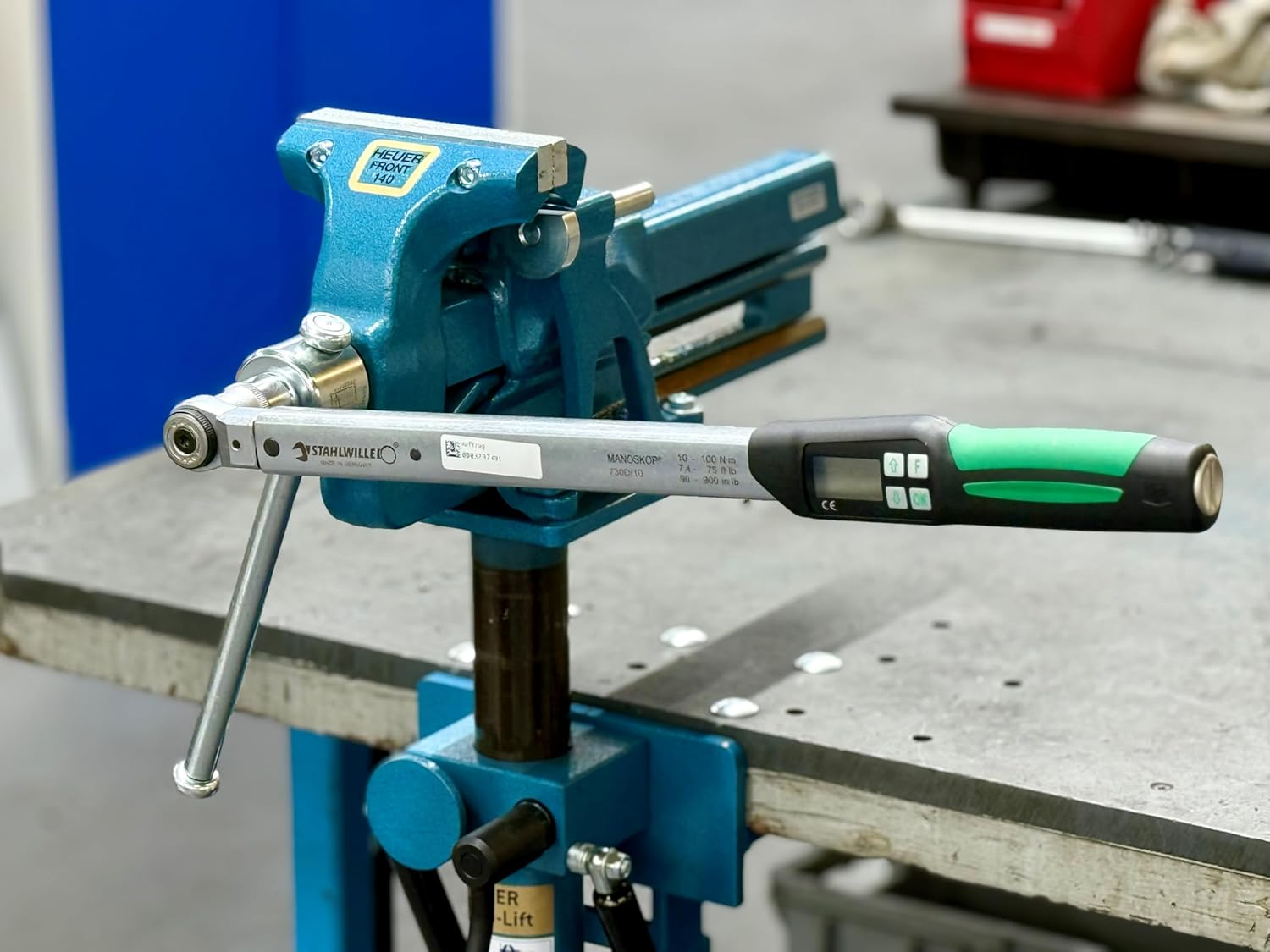

• Whether with torque wrench, ratchet, compressed air or cordless screwdriver - with this attachment the classic HEUER vice is even more versatile.

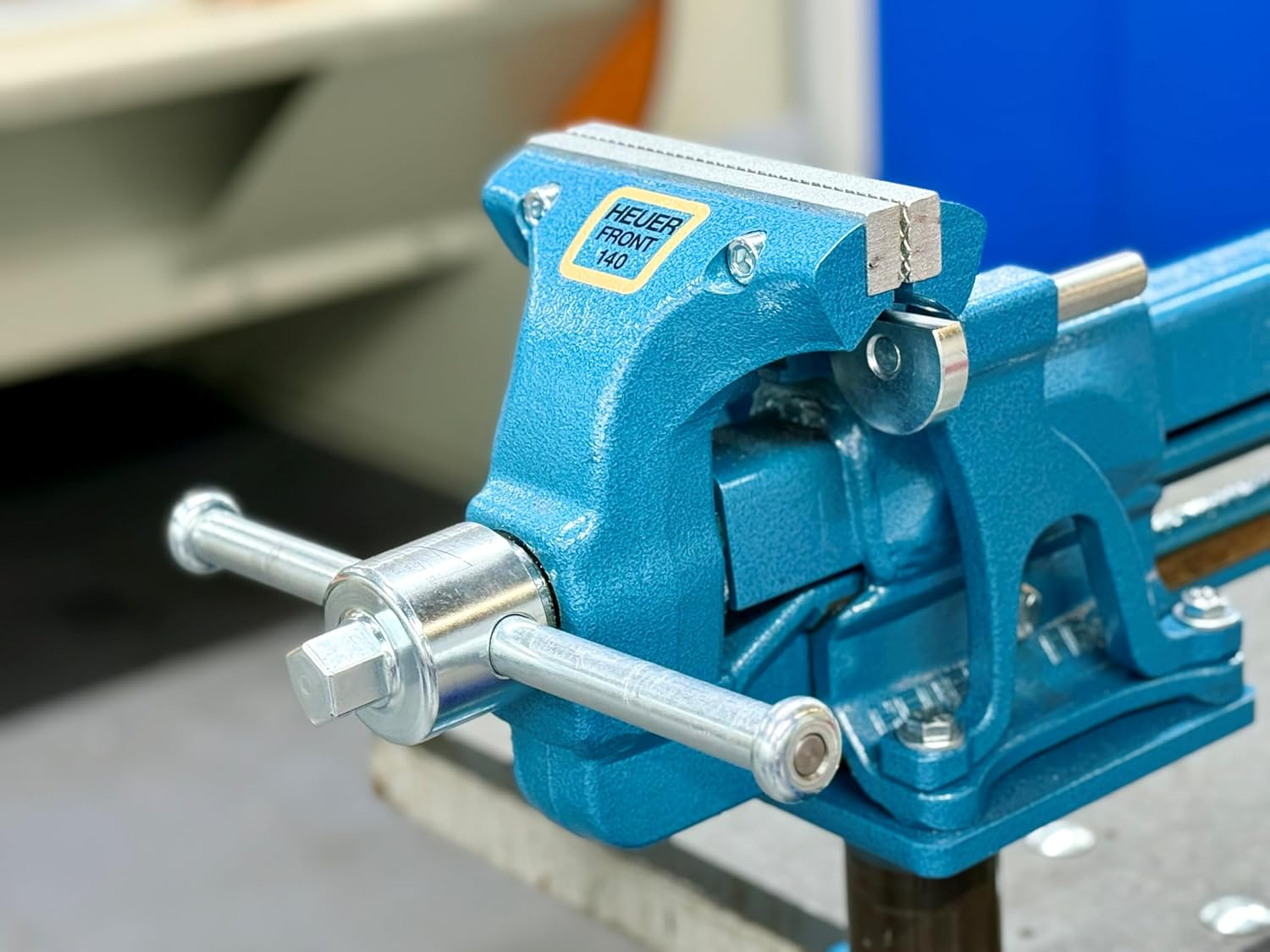

• Made of high-quality steel, the hardened and galvanised hex attachment can be easily mounted on the spindle head of the vice.

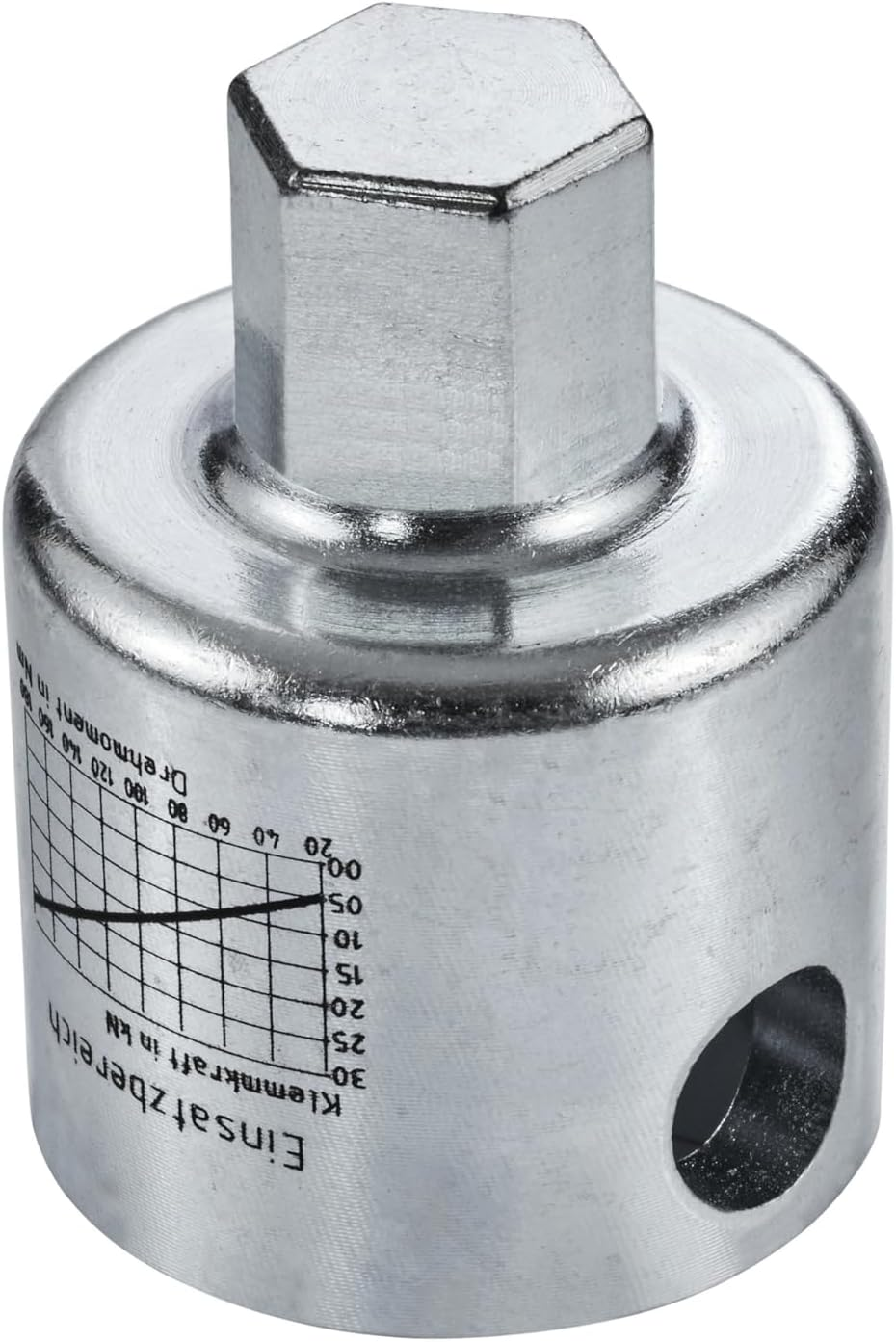

• Thanks to the hexagonal socket (SW 21 mm), controlled clamping with up to 200 Nm of torque can be carried out - ideal for fine work where a precisely dosed clamping force is required.
• The included spindle wrench with screw-on locking rings provides additional flexibility and security.
• The attachment is suitable for HEUER vices with 160/180 mm jaw width and makes the vice the ideal clamping solution for demanding, torque-guided applications.

• Dimensions (L x W x H): approx. 5.5 x 6.5 x 0.4 cm.
• Weight: 0.4 kg
• Hexagon: SW 21 mm.
• For spindle head diameter: 42 mm.
• For spindle wrench diameter: 19 mm.
• Max. Torque: 200 Nm.
• Max. Clamping force vice: 40 kN.
• Suitable for: HEUER vice 160/180 mm.

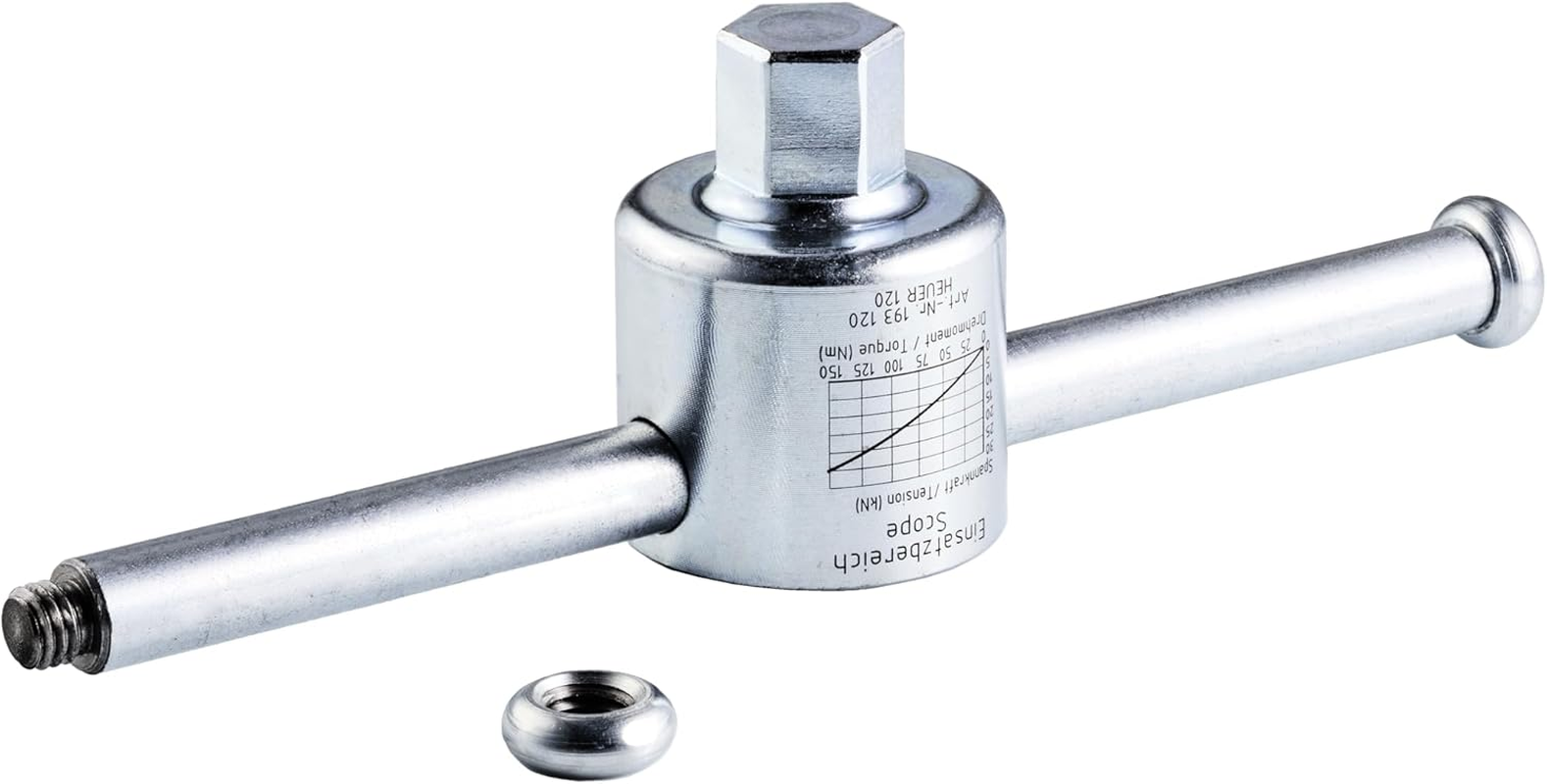

• 1 x HEUER hex attachment, including 1 x spindle key, 2 x locking ring.
