How to connect to Alexa:
1st Go to the control page of the WLED controller, click on "Configuration" in the upper right corner to open the settings, and then click "Sync Interfaces".
2nd Scroll up to find "Alexa Voice Assistant", activate the checkbox next to "Emulate Alexa Device" and save.
3rd Restart the WLED controller after saving by turning it off and on again.
4th Open "Amazon Alexa", click on "Devices" with the "+" symbol in the upper right corner and click on "Add device".
5. Scroll to the top, click "Other", select "WLAN" and click "Find devices" to search for the lamp.

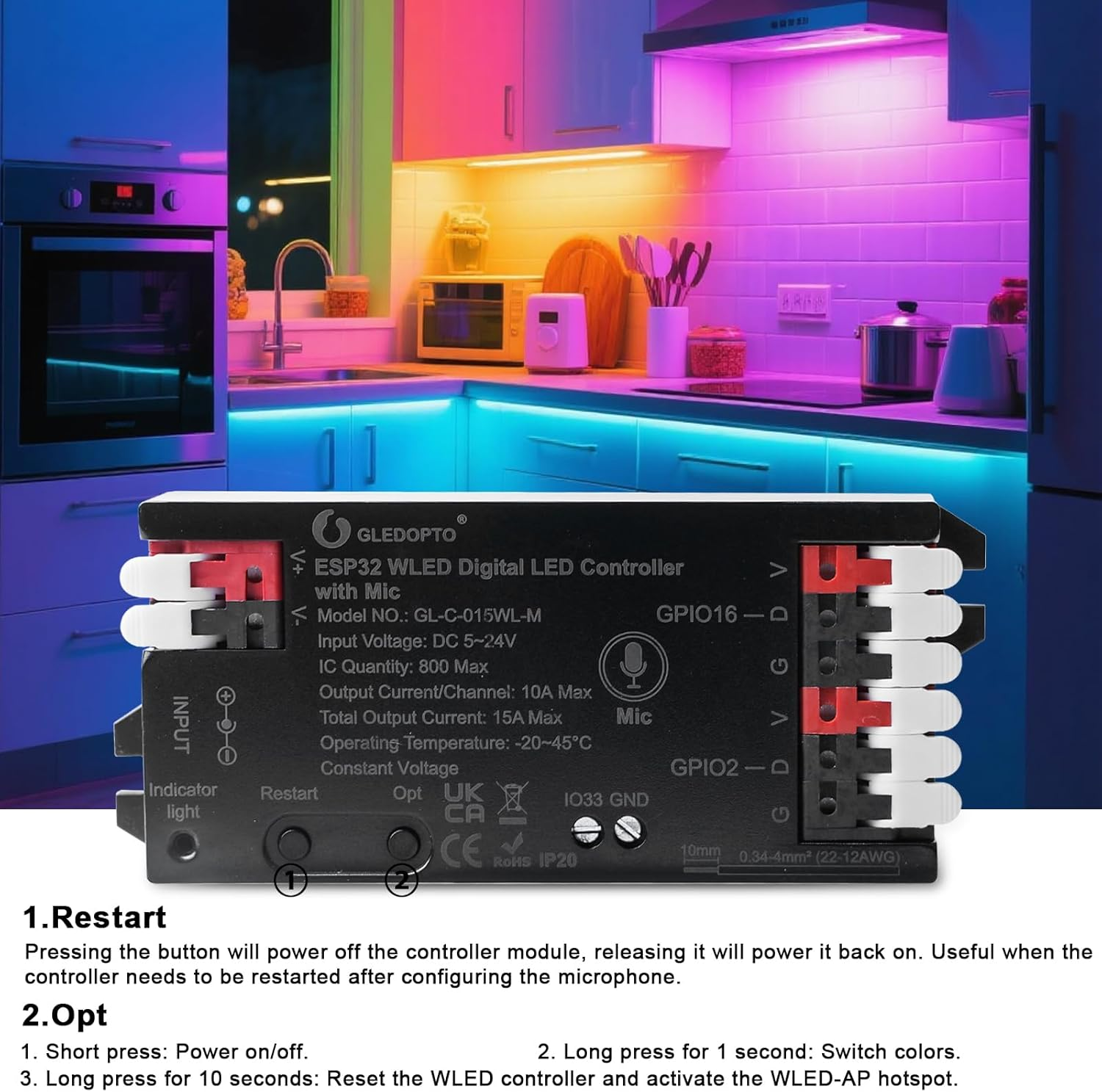

Key Functions
1st Restart: Pressing the button will disable the controller module, by releasing it again. This is useful if you need to restart the controller after the microphone configuration.
2nd Function 1 Short press: Turn on/off.
3rd Long press (1 second): change colors.
4th Long press (10 seconds): Reset WLED controller and activate WLED-AP hotspot.
Specifications:
Output current/channel: maximum 10 A
Communication protocol: WLAN
Recommended Cable Type: 0.34-4 mm² (22-12 AWG)
Operating temperature: -20 to 45 degrees C
Input Voltage: DC 5–12–24 V
Total output current: maximum 15 A
Material: Flame Retardant PC
Strip Length:10mm
Gross weight: 57.5 g
Dimensions: about 108 x 45 x 18 mm
Note:
1. Please allow for slight size differences due to manual measurement. Thank you for your understanding
2. Through different monitors and different lighting,
The image may not reflect the actual colour of the item.
Thank you for your understanding
