Double Clip+ USB SOIC8 SOP8 Flash Chip IC Test Clips Socket Adpter Programmer BIOS + CH341A 24 25 Series for EEPROM Flash BIOS USB Programmer Module
Double Clip+ USB SOIC8 SOP8 Flash Chip IC Test Clips Socket Adpter Programmer BIOS + CH341A 24 25 Series for EEPROM Flash BIOS USB Programmer Module
Brand: A-DIGISHUO
A$21.00
- *High Work Eefficiency: SOP8 can achieve EEPROM online programming without disassembling the chip, making refreshing more efficient and simple.
- *Performance Support: The CH341A programmer supports most 24/25 series EEPROM BIOS SOP8 SOP16 chips on the market. Attention: Due to the characteristics of CH341A chip, ESMT SST class 25 chip can only be read and not written!
- *Online Programming: SOIC8 SOP93 Test Clip for EEPROM 24CXX/25CXX/93CXX Online Programming.
- *Tip: Some chips may be affected by peripheral circuits, making it impossible to directly clip them. Please carefully check the chip position on the motherboard before purchasing.
- *Application: The CH341A programmer is mainly used for calibrating, erasing, programming, backing up, and other tasks of various software. Free DuPont wires are provided so that you can meet other needs.
Product Description
- This programmer is suitable for SOP8 chips, such as S5C, 24C, 93C, etc. It can be used for online SOP8-DIP8 adapters for programming SOP8 chips that have already been soldered onto circuit boards. It can program SOP8 chips online without removing the chips from the circuit board, working efficiently and saving you time. Suitable for various color TV memory (24 series IC), LCD (24.25 series IC), desktop motherboard (25 series IC), laptop (25 series IC), router (25 series IC), card (25 series IC), DVD (25 series IC), set-top box (25 series IC), software for unlocking, backup, erasing, burning, and checking.
Specification:
- Connector type: Test clip (Test clip, SOIC 8/SOP8)
- Pin format: SOIC/SOP Used for 24 25 93 chip online programming FT232BL chip, external EERON (93C46) Supports Windows 10,
- Supports 3 power supply modes: 5V external power supply; 3.3V external power supply;
- Using an external power supply (requiring 3.3V-5V) with 3 LEDs: TXD LED, RXD LED, POWER LEDGND, RXD, TXD, 3V3, 5V;
- Use a bent row of pins to lead out the remaining functions PIN: Reserved solder pads CTS, RTS
- Instructions for use: (Taking MCU access as an example) GND: Connect to GNDRXD: Connect to MCU. TX (signal stream: MCU). TX >> FT232 >> PC. RX) TXD: Connected to MCU. RX (Signal Stream: MCU). RX <> FT232 >> PC
You Will Receive:

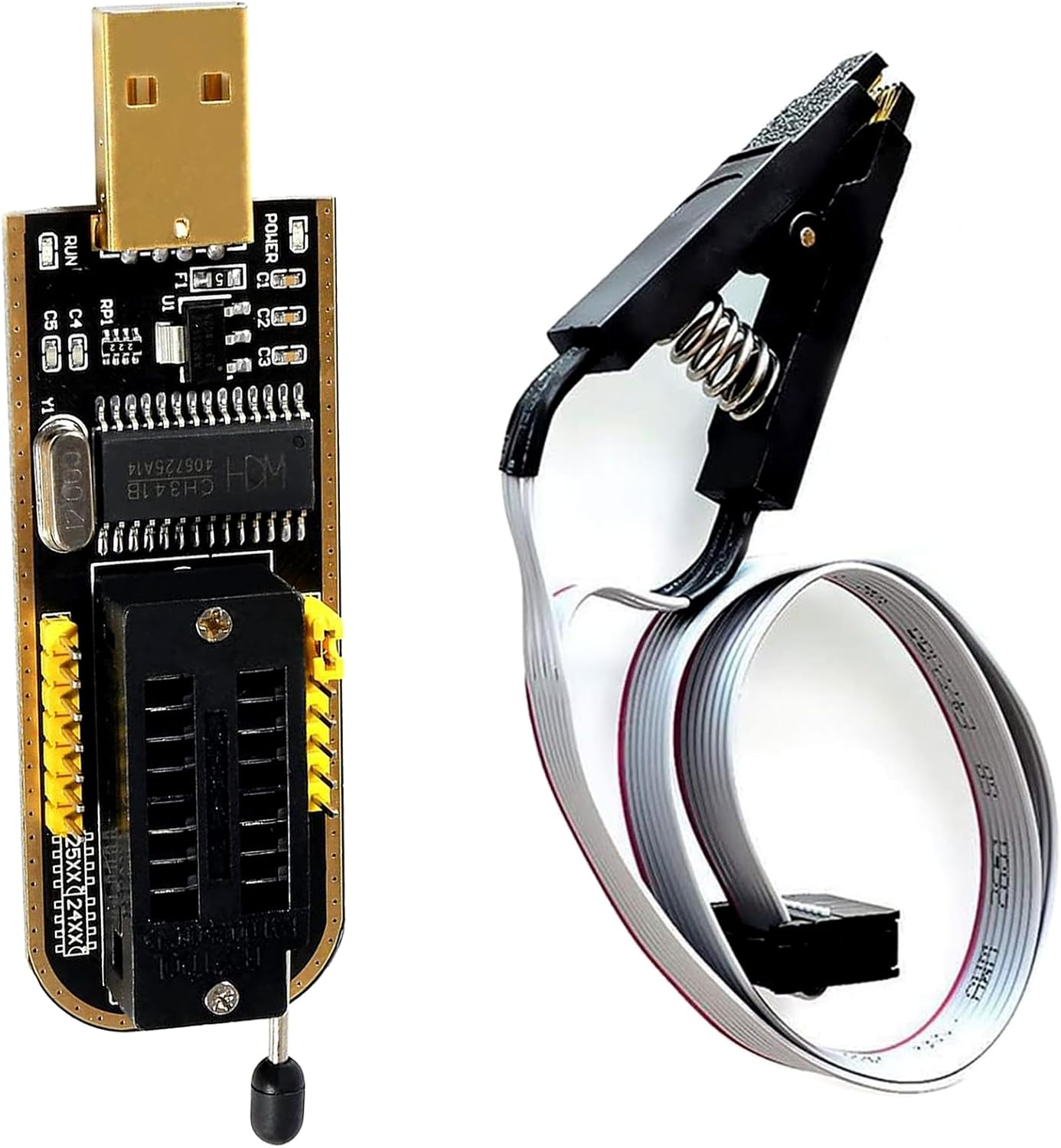

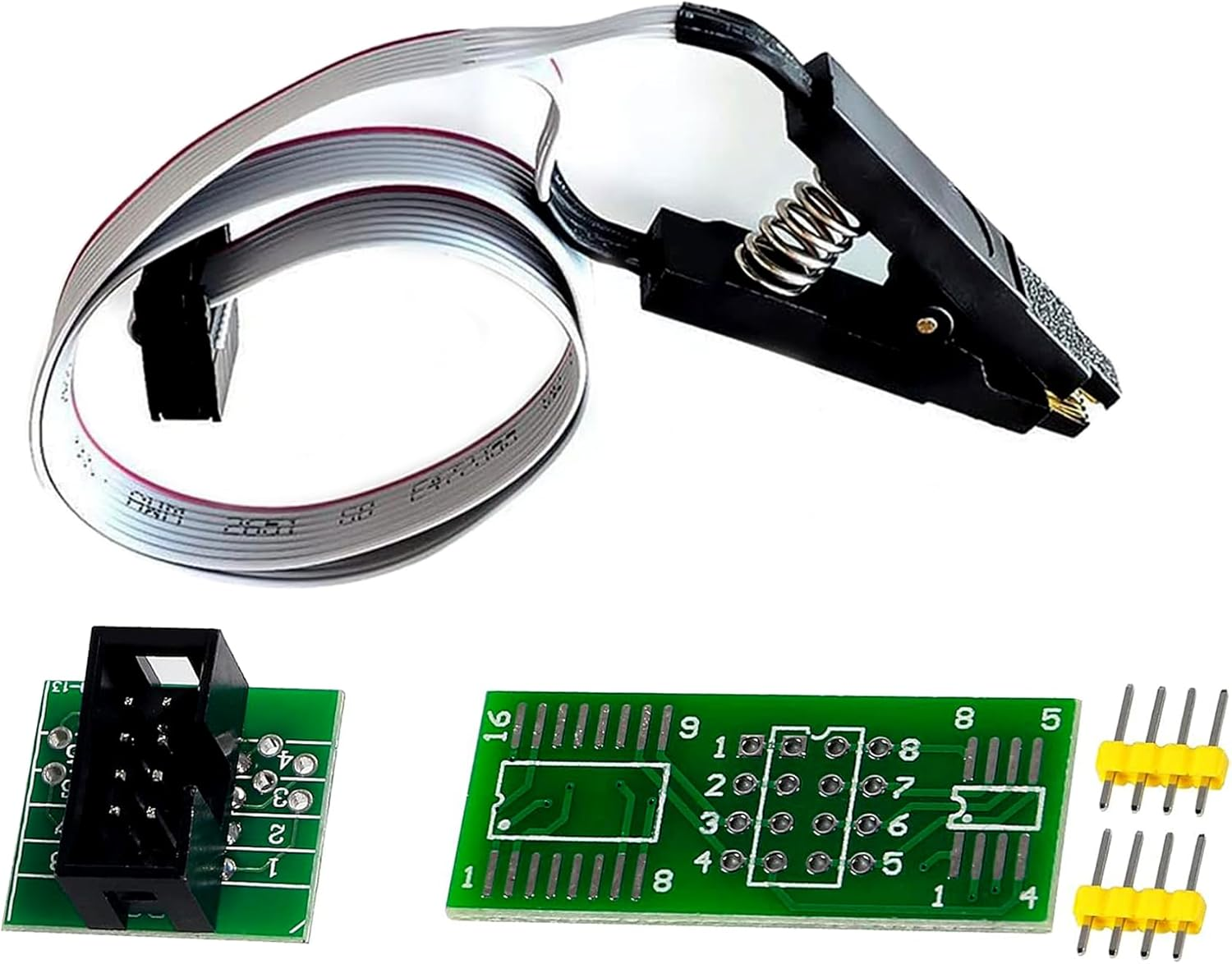

- 1Pcs SOIC8 SOP8 flash chip IC test clip

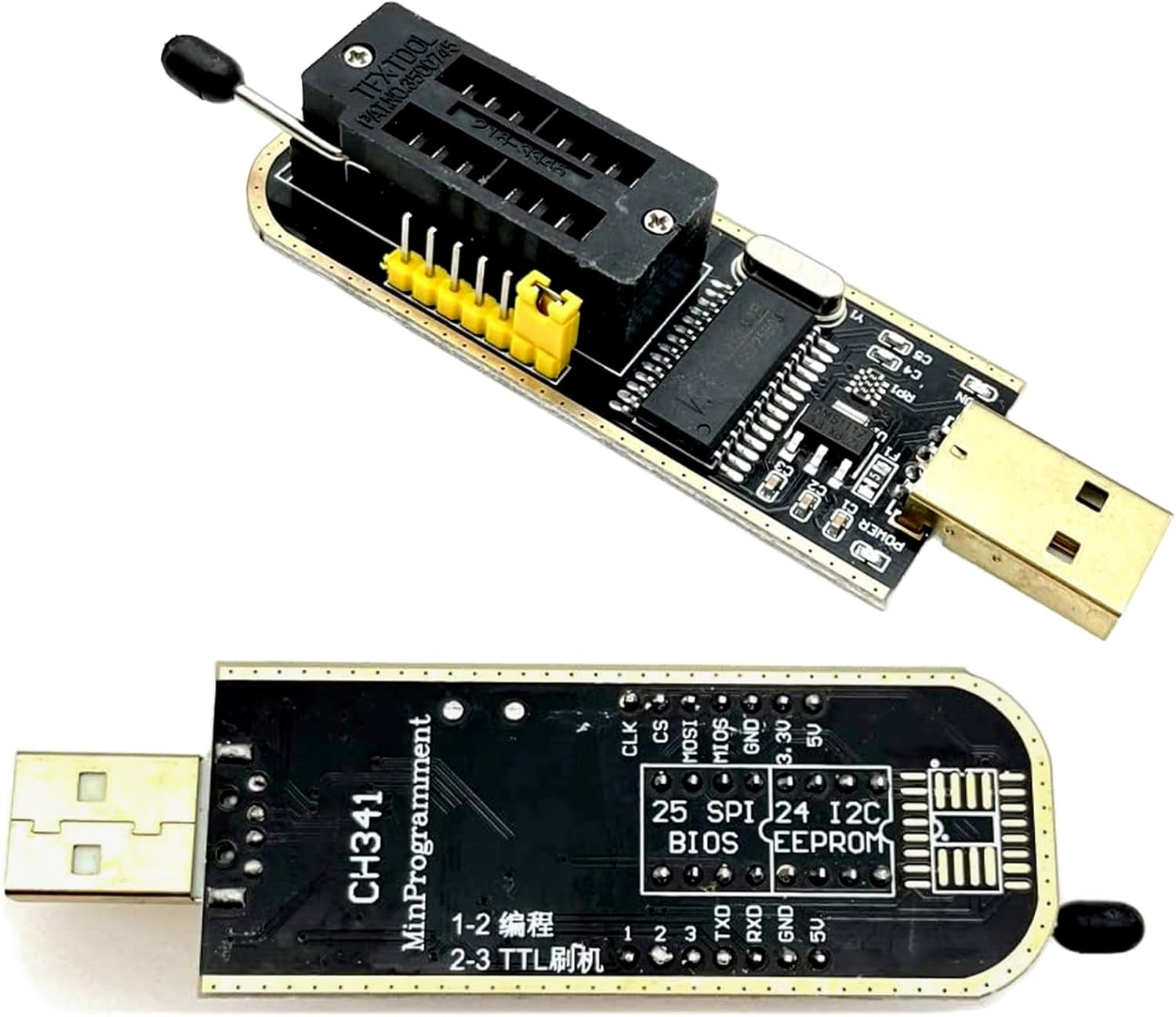

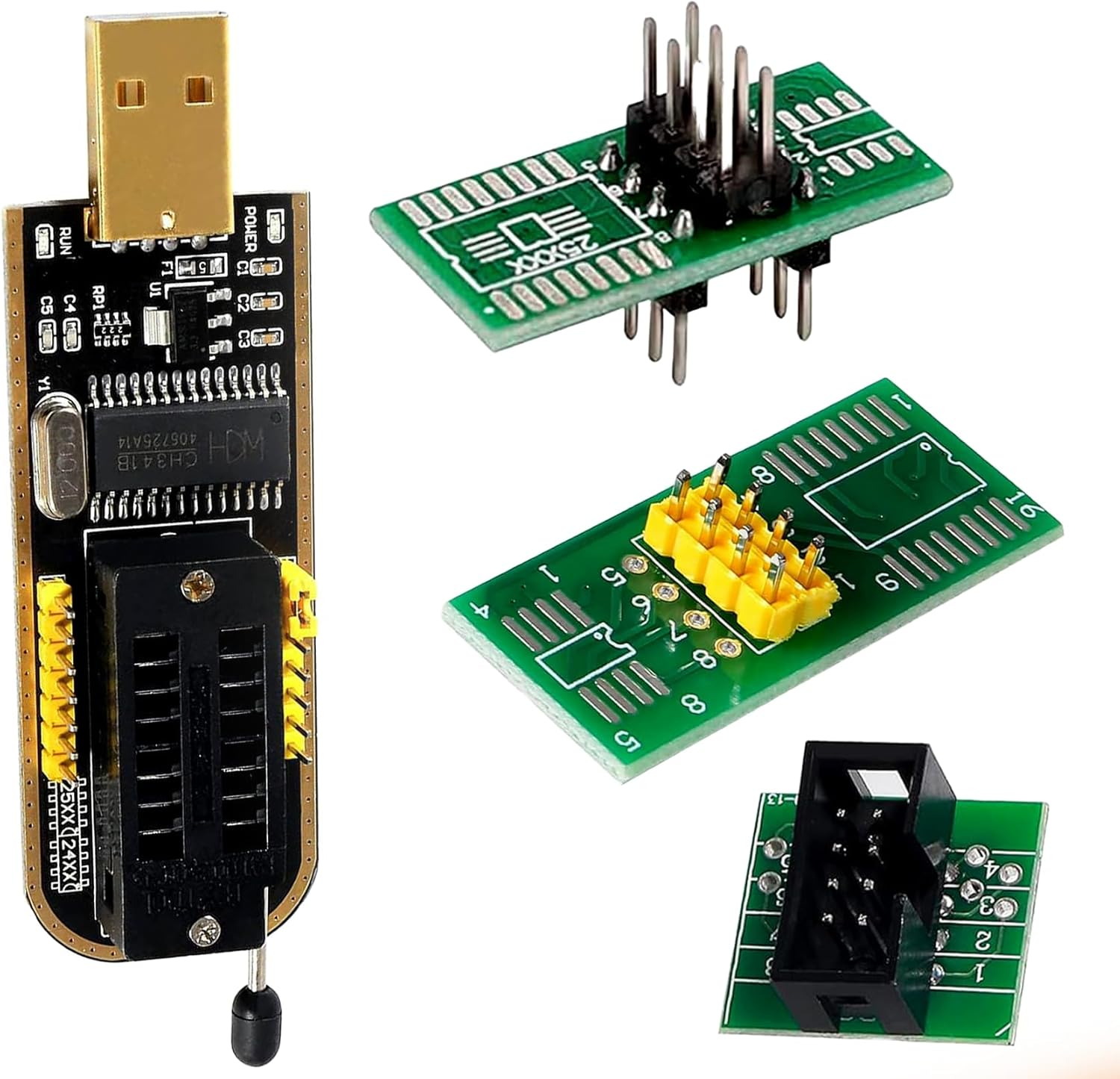

- 1Pcs CH341A 24 25 series EEPROM flash BIOS USB programmer

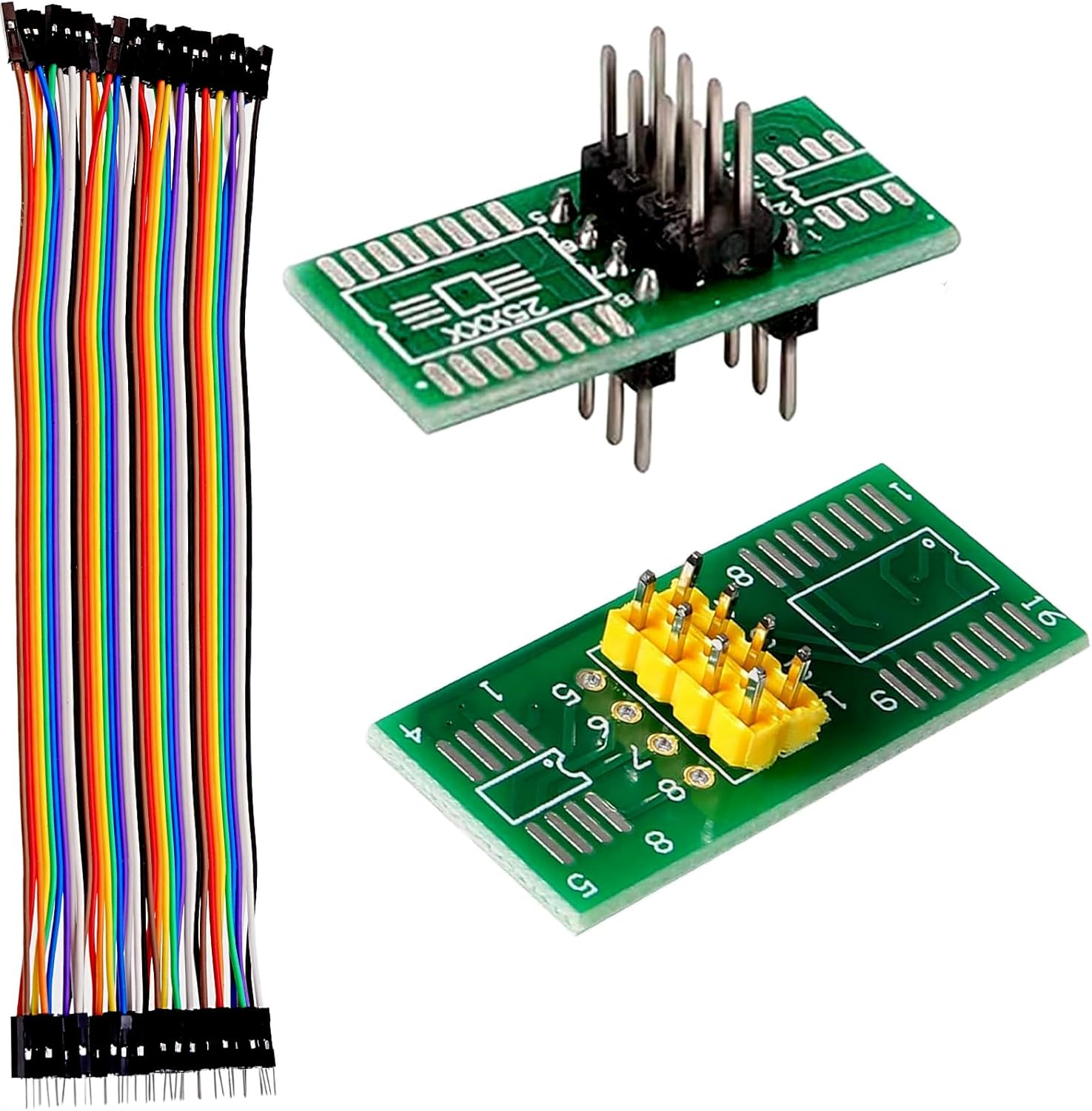

- 1Pcs 8-pin to 8-pin converter
- 2Pcs SOP8 SOP16 to 8-pin converter
- 2Pcs 2.54mm 4-pin connector
- 1Pcs DuPont wire
- Item Model Number: H056
- Part Number: H056
- Operating System: Windows 10
- Number of items: 1
- Mounting Hardware: BIOS Programmer SOP8 Clip Conversion Plate
- Batteries Required: No
- Brand: A-DIGISHUO
- Compatible Devices: Desktop, Laptop, Tablet, Router, Set-top Box
- Item Weight: 70 g
- Model: H056
- Product dimensions: 9.5 x 2.8 x 1.4 cm; 70 Grams
- Country/Region of origin: China
- Manufacturer: A-DIGISHUO
