A-DIGISHUO 3Pcs MAX4466 Electret Microphone Sensor Compatible with for Arduino Raspberry Pi ESP32 Sound Sensor Amplifier
A-DIGISHUO 3Pcs MAX4466 Electret Microphone Sensor Compatible with for Arduino Raspberry Pi ESP32 Sound Sensor Amplifier
Brand: A-DIGISHUO
A$10.50
- ※MAX4466 Sound Sensor: Realize sound detection, analysis and recognition, and effectively amplify and preprocess weak sound signals so that subsequent algorithms can extract and analyze sound features
- ※Supply voltage: 2.4 - 5.5V | Static supply current: 24μA| Gain bandwidth: 600kHz
- ※Widely used in music playback, speech recognition, voice communication and other fields, it can improve the sensitivity and sound quality of the audio system
- ※The board comes with a 20-20KHz electret microphone soldered on
- ※For the best performance, use the "quietest" supply available (on an for Arduino, this would be the 3.3V supply)
Product Description

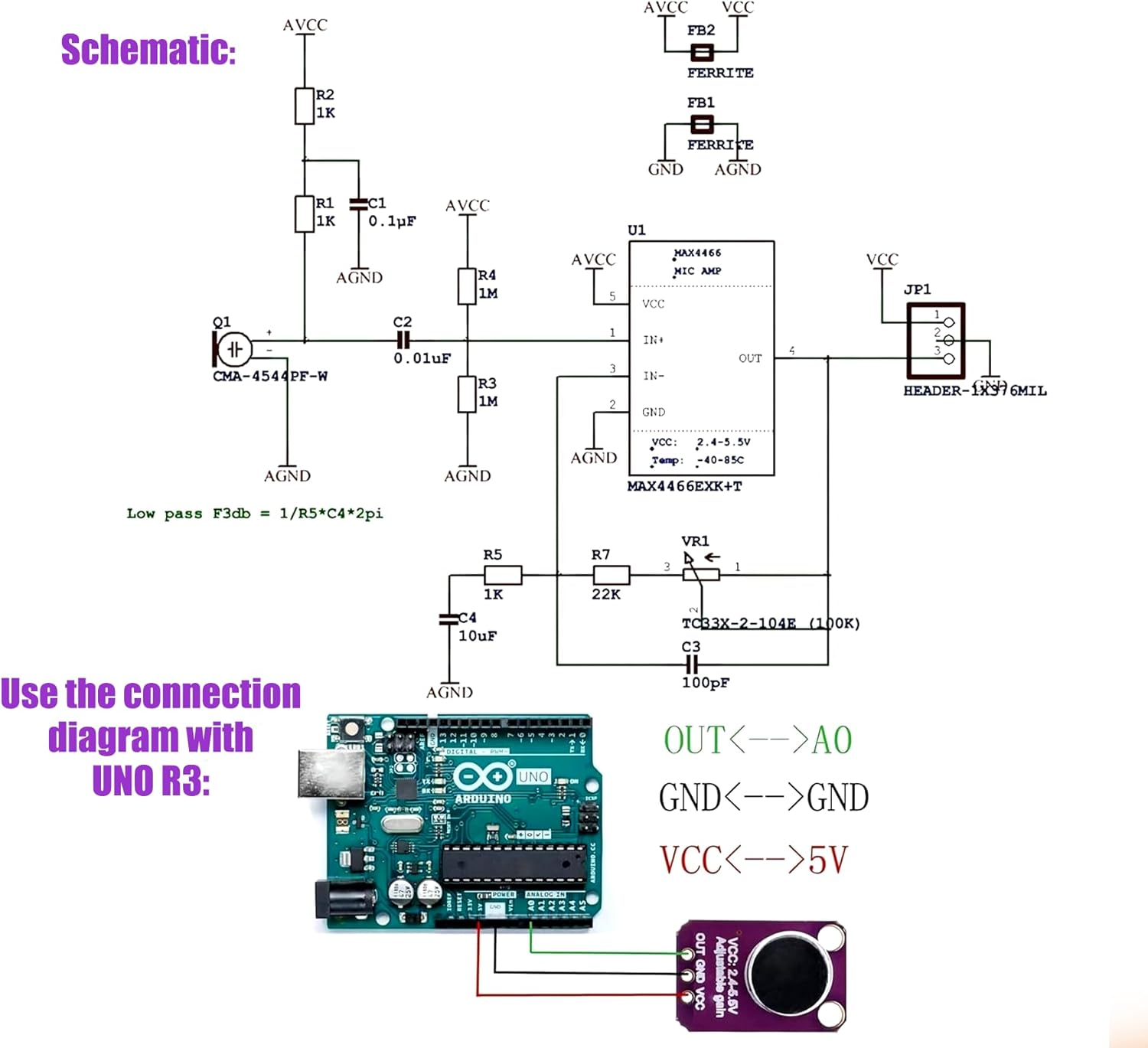

Instructions:
- Ground GND and connect VCC to 2.4-5VDC.
- The audio waveform will come out from the OUT pin. The output will have a DC bias of VCC/2, so when it is completely quiet, the voltage will be stable at VCC/2 volts (it is DC coupled).
- If the audio device you are using requires AC coupled audio, please place a 100uF capacitor between the output pin and input of the device.
- If you want to connect to an audio amplifier with differential input or containing decoupling capacitors, you do not need a 100uF capacitor.
- The output pins are not designed to drive speakers or anything, but rather the smallest in ear headphones - if you want to connect the amplifier directly to the speaker, you will need an audio amplifier (such as a 3.7W stereo amplifier).
- If you want to connect to the microcontroller pin, you don't need an amplifier or decoupling capacitor - connect the OUT pin directly to the microcontroller ADC pin.
- For audio response projects, we recommend using the FFT driver library, which can take audio input and 'convert' it to frequency.
Description:

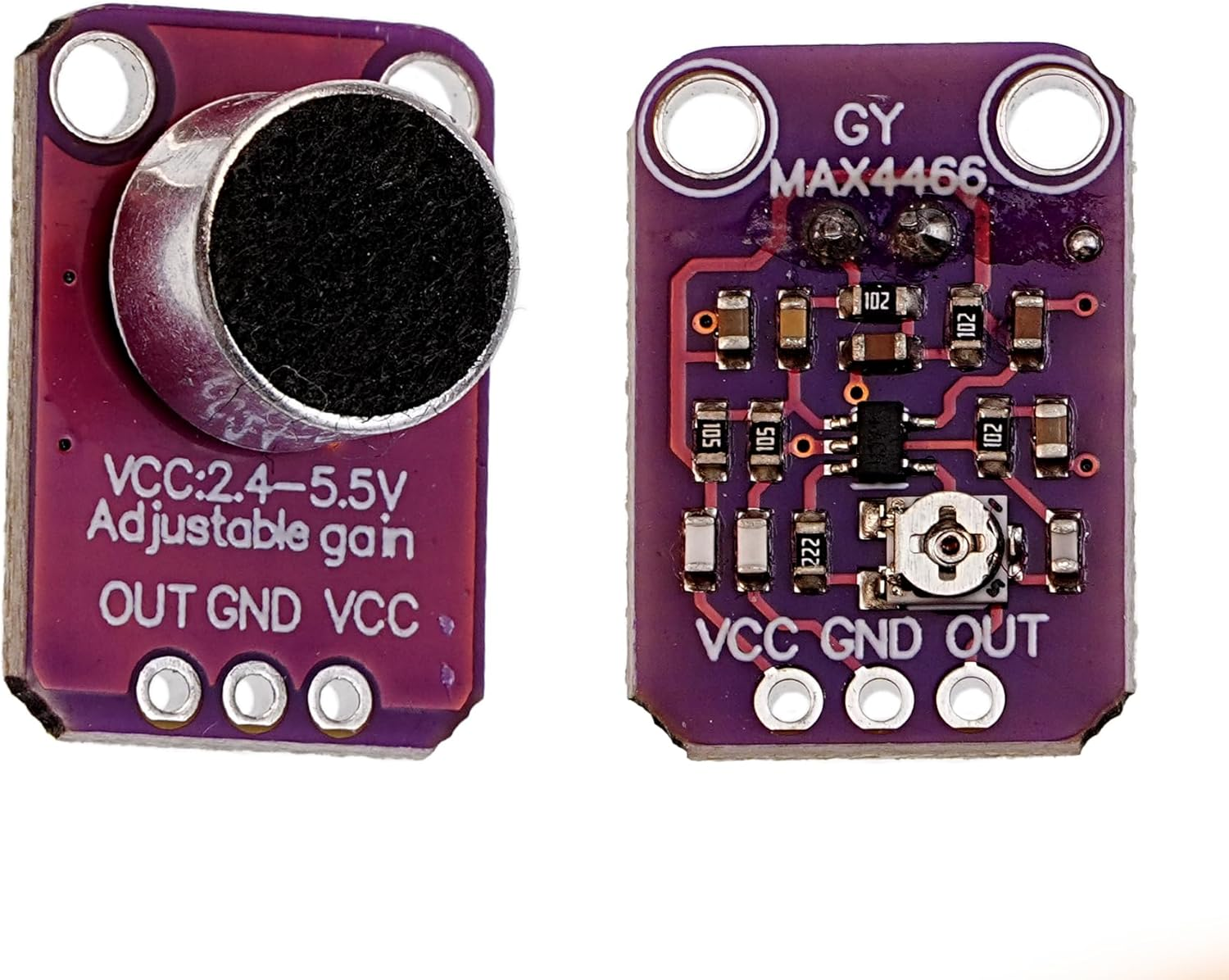

- On the back, we include a small trimmer pot to adjust the gain.
- The output is track to track, so if the sound becomes louder, the output can reach 5Vpp!
- You can set the gain to 25 to 125 times. This is reduced to approximately 200mVpp (for normal speaking volumes about 6 inches away), which is very suitable for connecting to objects that require a desired "line level" input without clipping, or up to approximately 1Vpp, which is very suitable for reading from microcontroller ADCs.

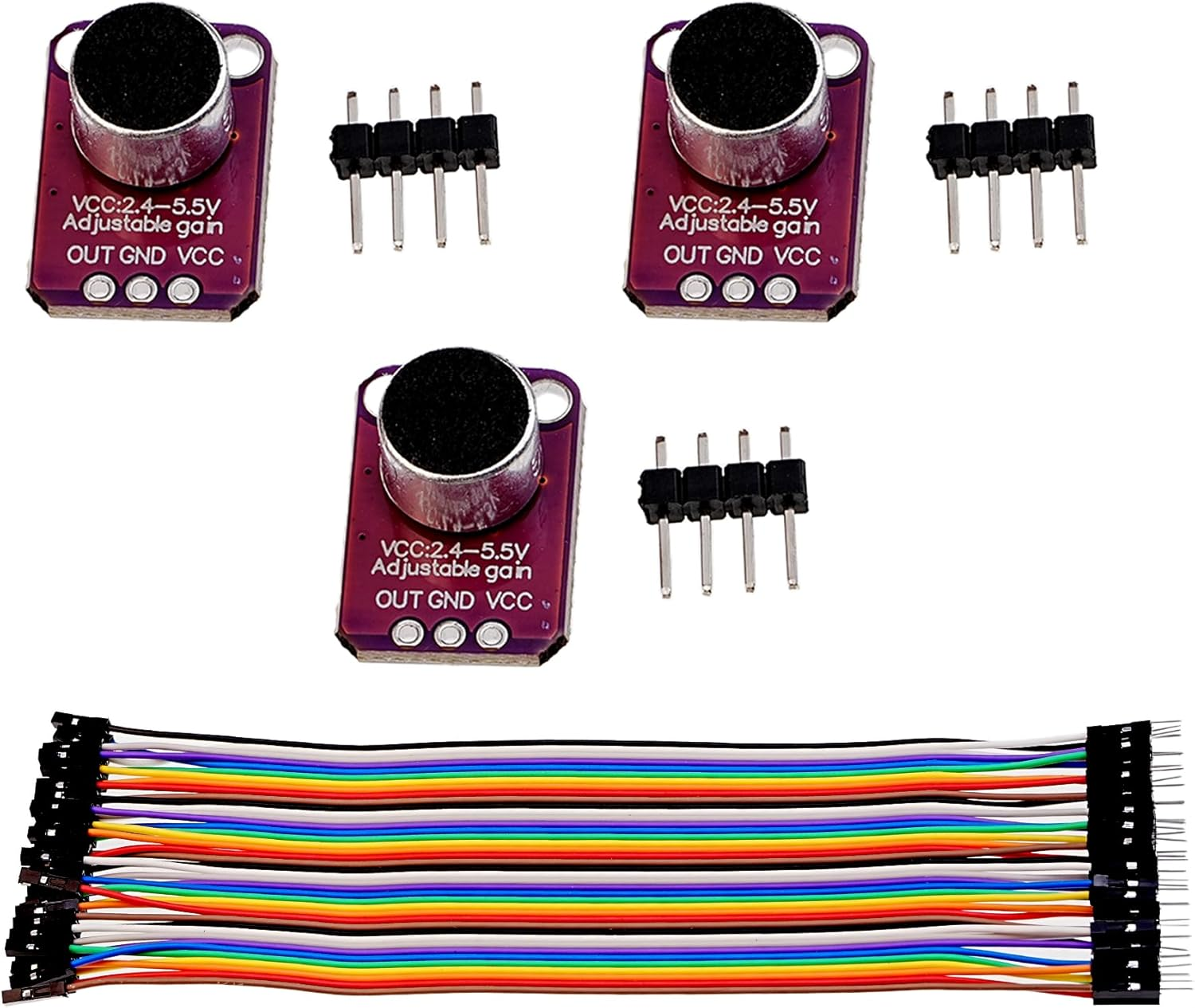

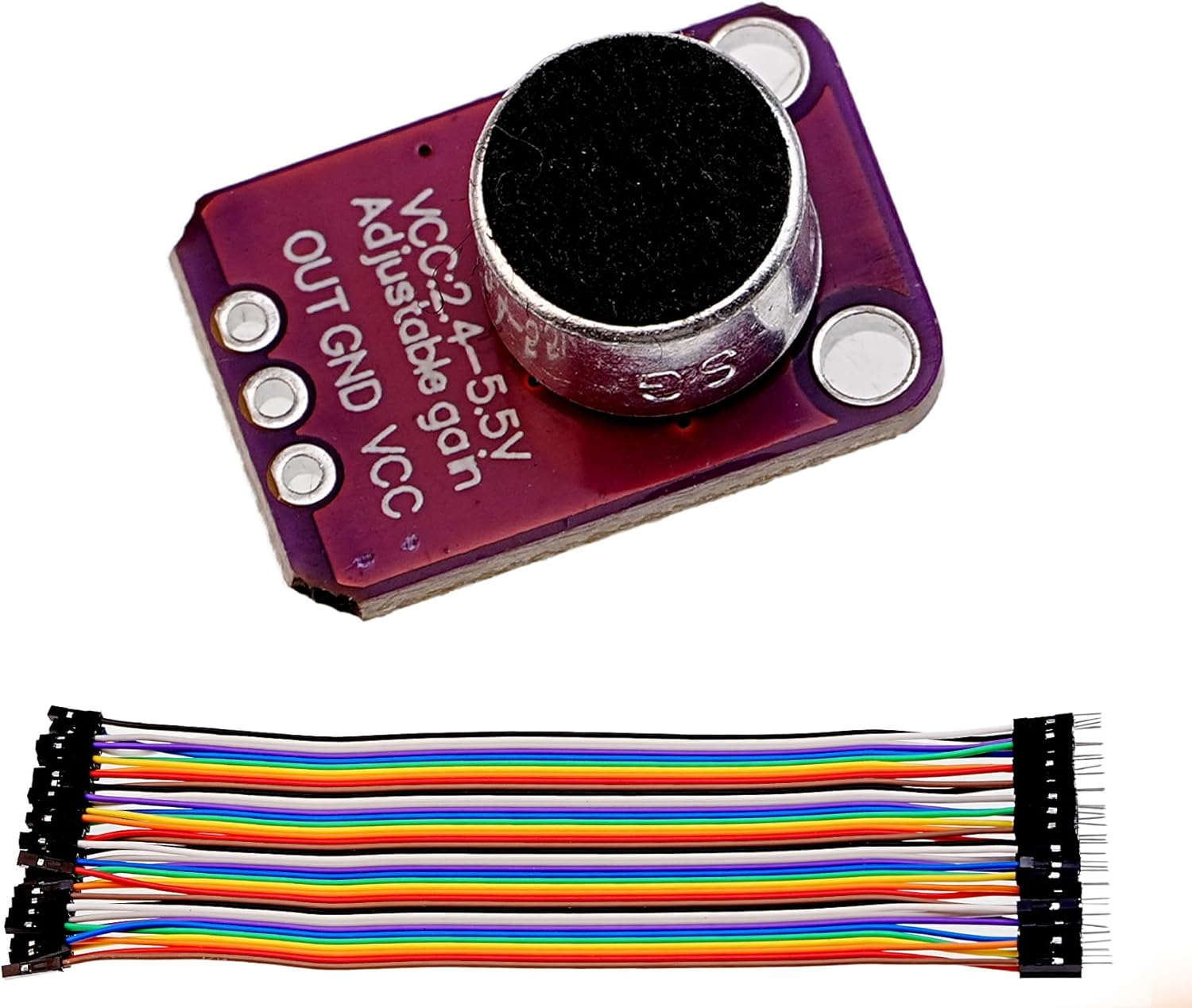

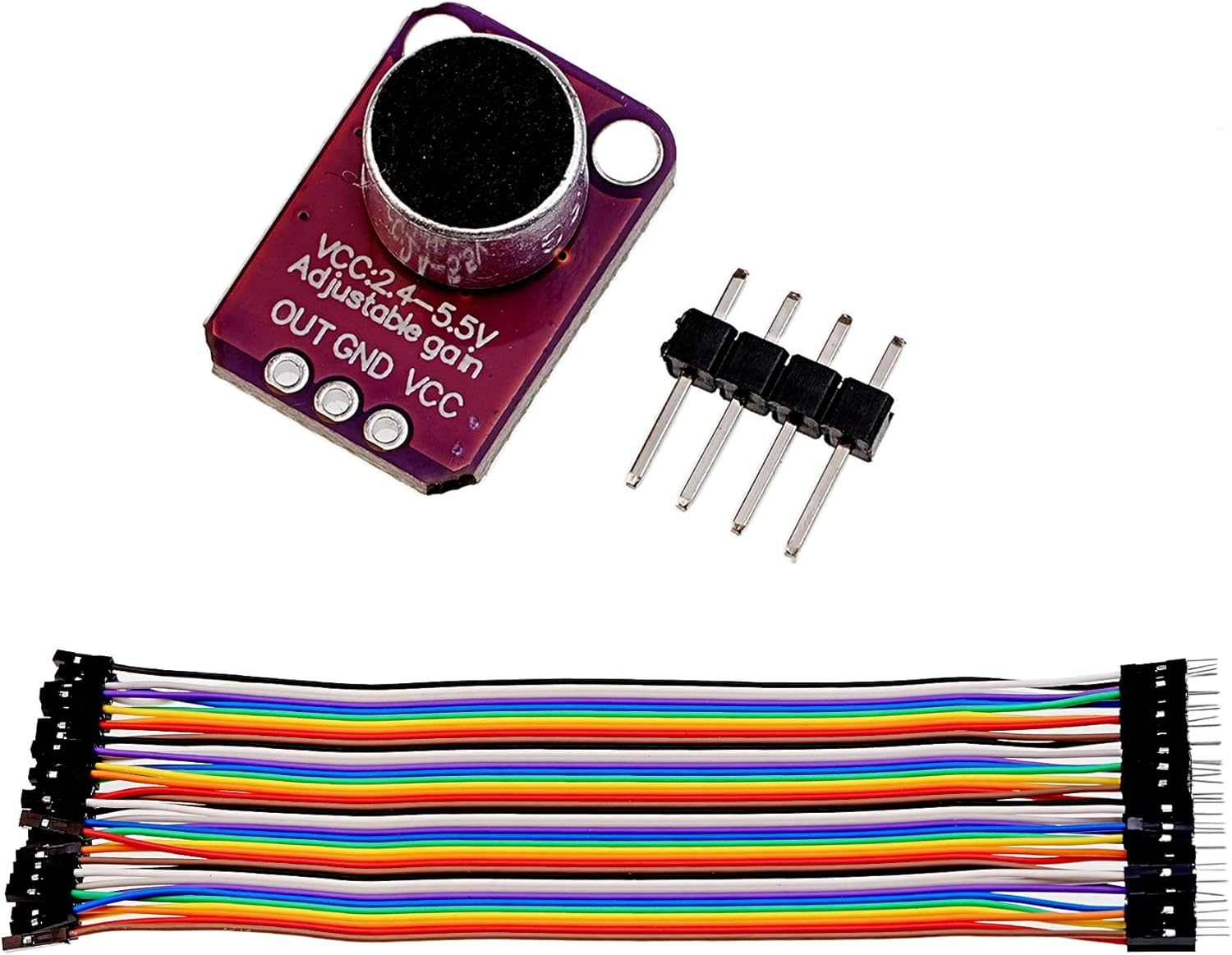

You Will Receive:
- 3Pcs MAX4466 Electret Microphone Amplifier Module
- 1Pcs Male and Female DuPont Thread
- Number of items: 1
- Mounting Hardware: Electret Microphone Amplifier, Pin Wire
- Batteries Required: No
- Brand: A-DIGISHUO
- Item Weight: 30 g
- Ram Memory Technology: DDR3
- Voltage: 5 Volts
- Model Name: Microphone Sensor
- Package Dimensions: 10.2 x 10.1 x 2.2 cm; 30 Grams
- Country/Region of origin: China
- Manufacturer: A-DIGISHUO
