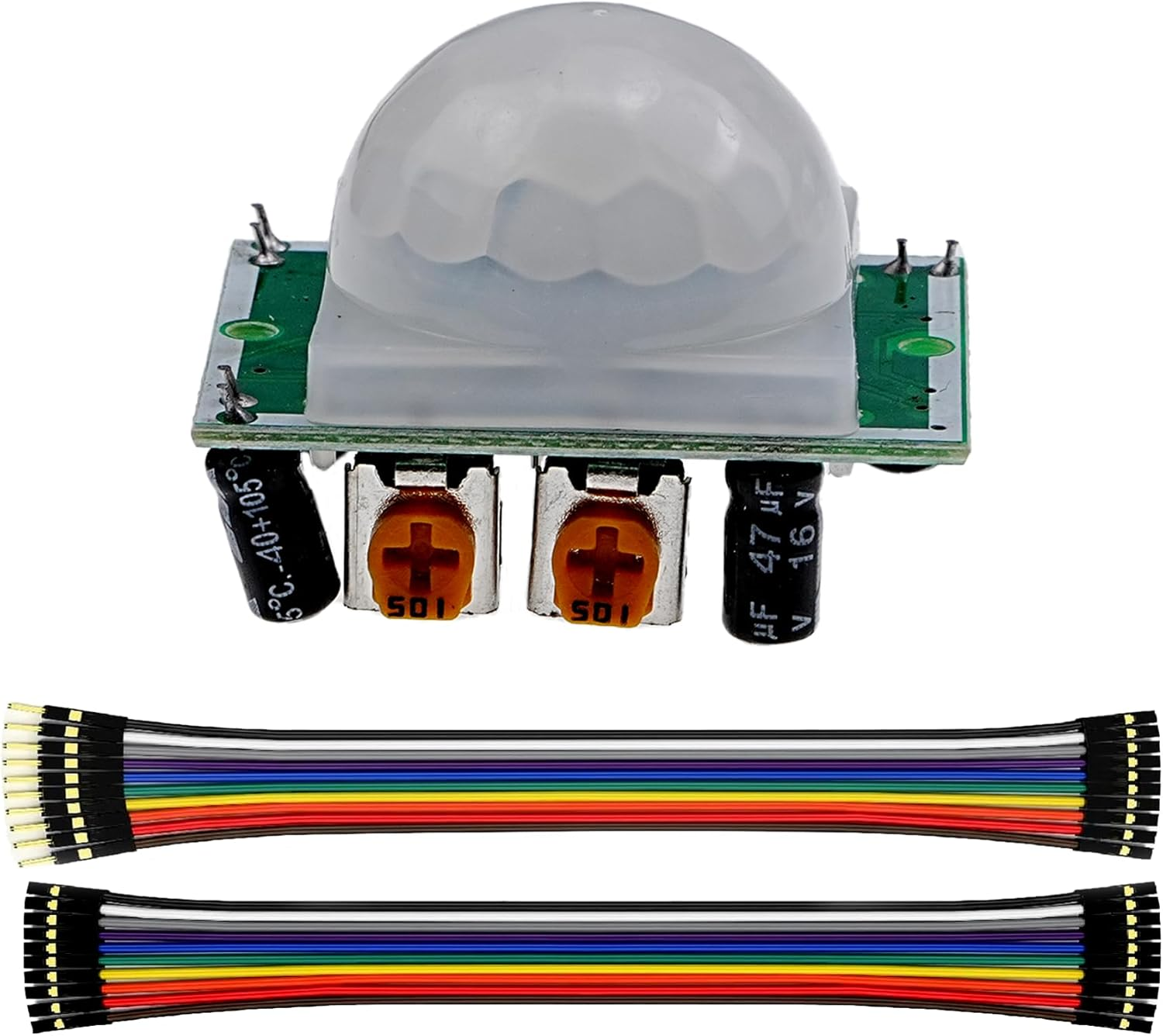

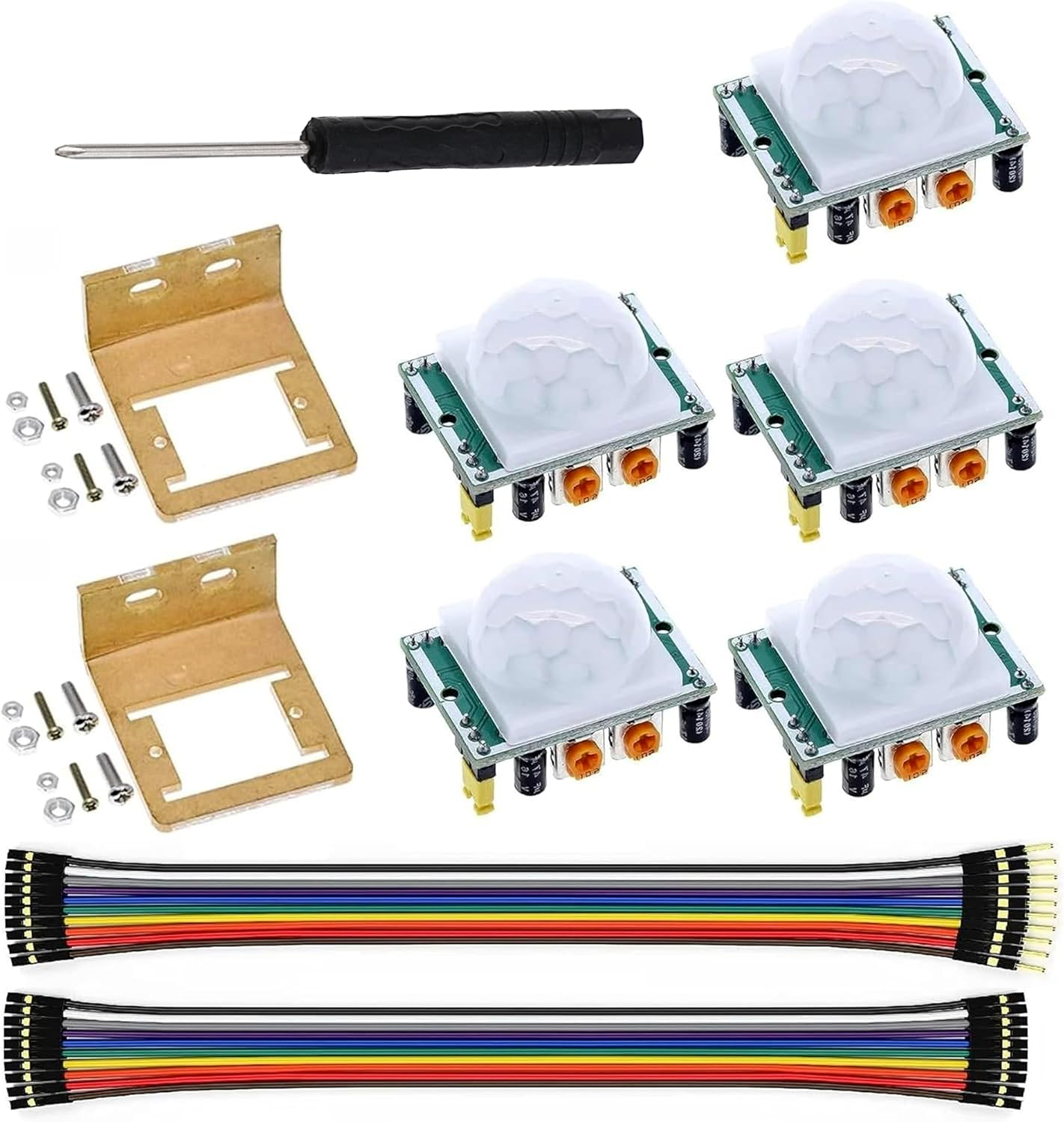

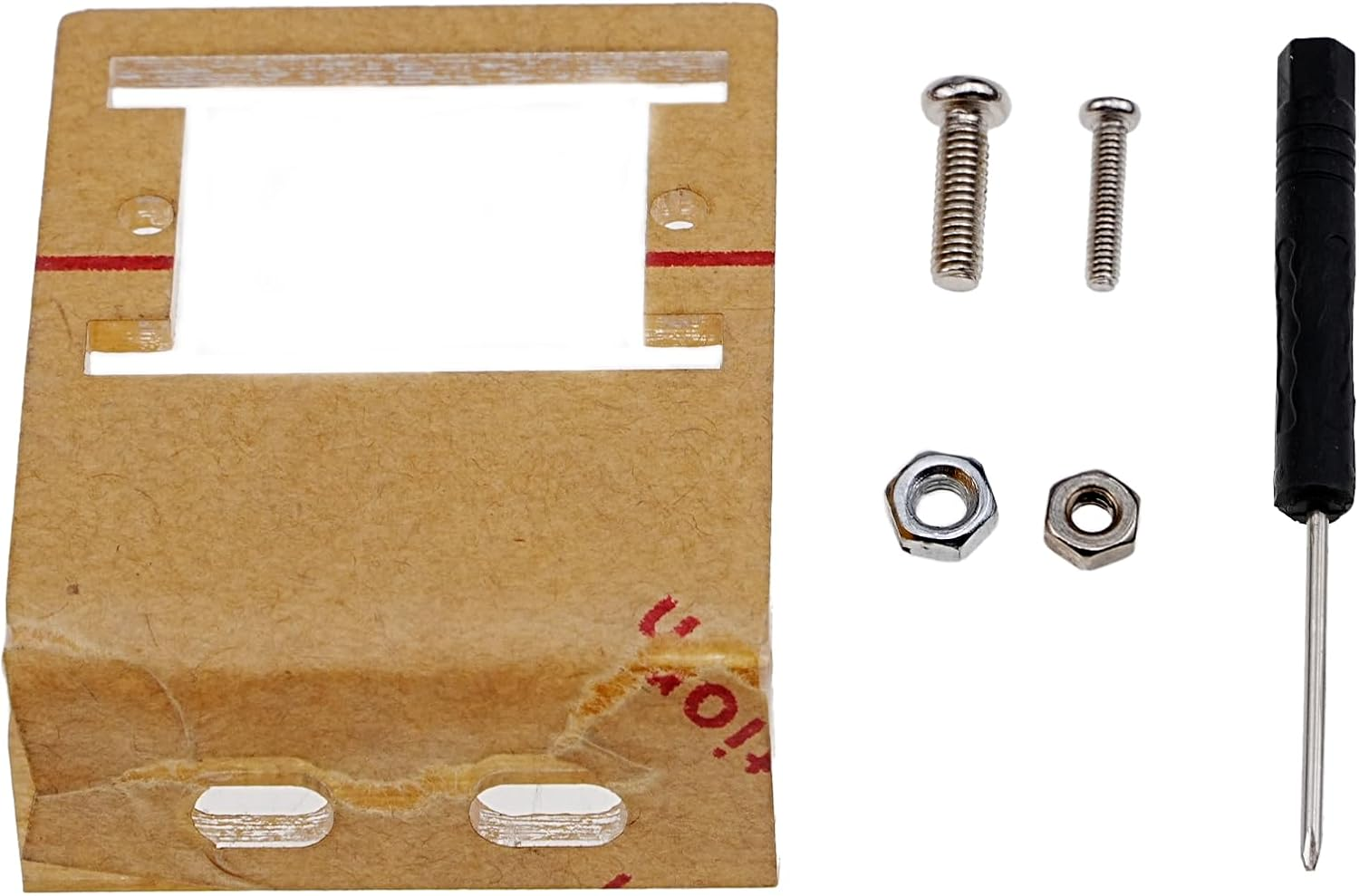

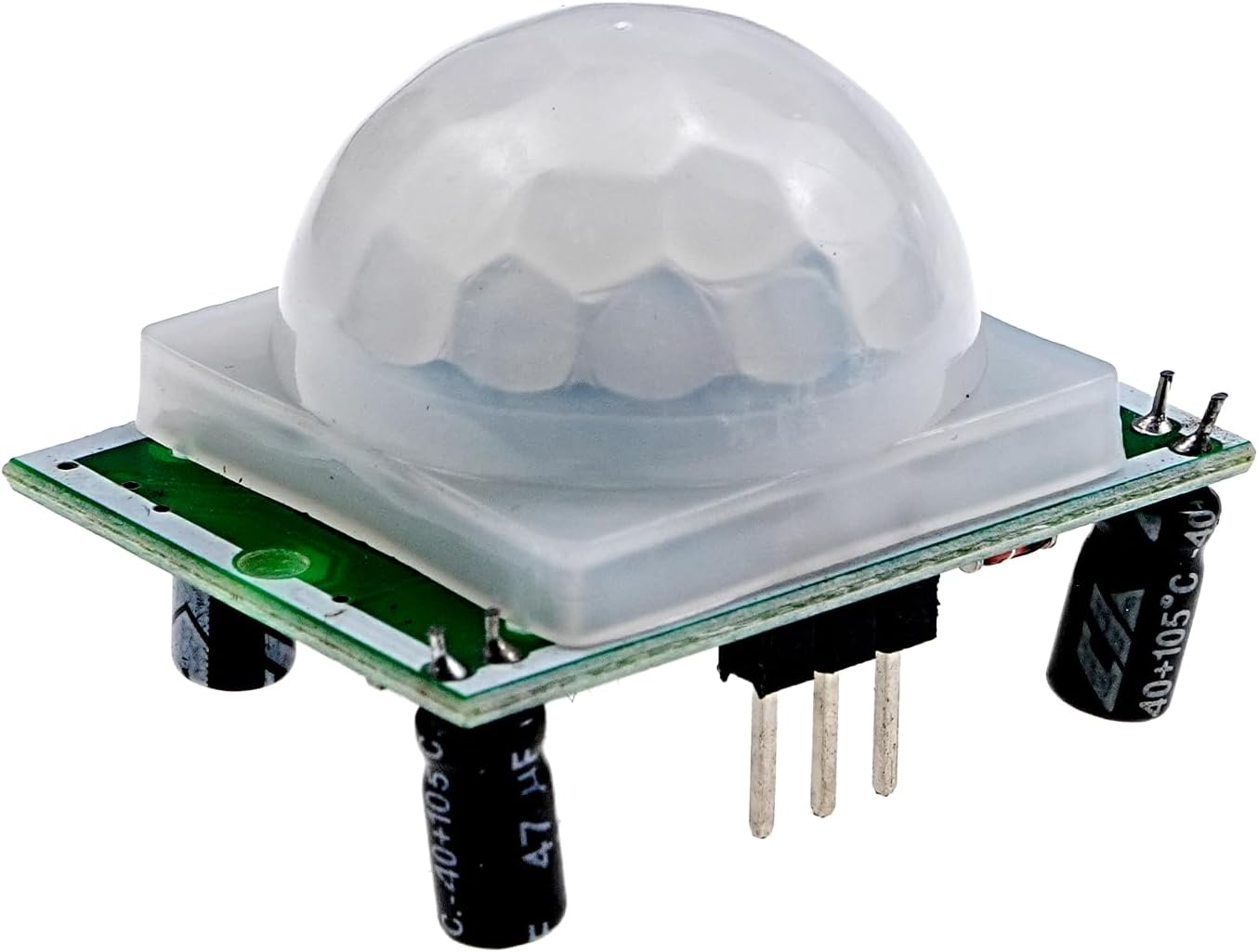

A-DIGISHUO 5Pcs HC-SR501 PIR Motion Sensor Module + 2Pcs Exclusive Housing for Arduino Raspberry Pi Toys, Lamps, Electronic Equipment
A-DIGISHUO 5Pcs HC-SR501 PIR Motion Sensor Module + 2Pcs Exclusive Housing for Arduino Raspberry Pi Toys, Lamps, Electronic Equipment
Brand: A-DIGISHUO
A$21.00
- ※HC-SR501 PIR Motion Sensor Module: human body infrared motion module is an automatic control module that based on infrared technology, with high sensitivity, strong reliability and low voltage working mode, High practicality in daily life
- ※Angle Sensor: <100 ° cone angle Lens size
- ※Application: HC-SR501 PIR sensor module can be applied in all kinds of automatic induction electrical equipment, especially automatic control products powered by dry batteries; It can help you turn on lights, automatic doors, electric fans and more by detected
- ※Sensor Diameter: 23mm(Default)| Voltage：DC 4.5-20V
- ※Delay time: 0.5-200S (adjustable) the range is (0.xx second to tens of second) ,You can adjust the delay time ， Block time: 2.5S (default) ， Can be made a range (0.xx to tens of seconds)
- Photosensitive control (optional): The module has a reserved position, which can be set for photosensitive control, and does not sense during the day or when the light is strong. Photosensitive control is an optional function, and no photoresistor is installed at the factory. If necessary, please purchase the photoresistor separately and install it yourself.
Product Description
Product Description:
- Condition: 100% brand new
- Product Type: HC -- SR501 Human Sensor Module
- Working voltage range: DC 4.5-20V
- Static current:<50uA Trigger: L cannot be triggered repeatedly/H can be triggered repeatedly (default repeated triggering)
- Delay time: 5-18S (adjustable) with a range of (0.xx seconds to tens of seconds)
- Blocking time: 2.5 seconds (default) can be set within a range (from 0. xx to several tens of seconds)
- Size: 32mm * 24mm * 23mm
- Angle sensor:<100 ° cone angle lens size
- Sensor diameter: 23mm (default)
Application:
- Security products
- Human body sensor
- Toys, human body sensors, lighting, industrial automation and control, etc
- Purpose:
- Can automatically and quickly turn on various incandescent lamps, fluorescent lamps
- Buzzer, automatic door, electric fan, automatic washing machine, dryer
- Item Model Number: HC-SR501
- Batteries Required?: No
- Plug Profile: Wall Mount
- Product dimensions: 3.2 x 2.4 x 2.3 cm; 5 Grams
- Country of origin: China
- Warranty description: 1 Year Warranty
- Item Weight: 5 g
- Voltage: 5 Volts (DC)
- Colour: raw metal
- Manufacturer: A-DIGISHUO
