1. This VFD uses unique control method to realize high moment of force, high accuracy and wide speed regulating range driving, with high performance

2. It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability

3. By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference

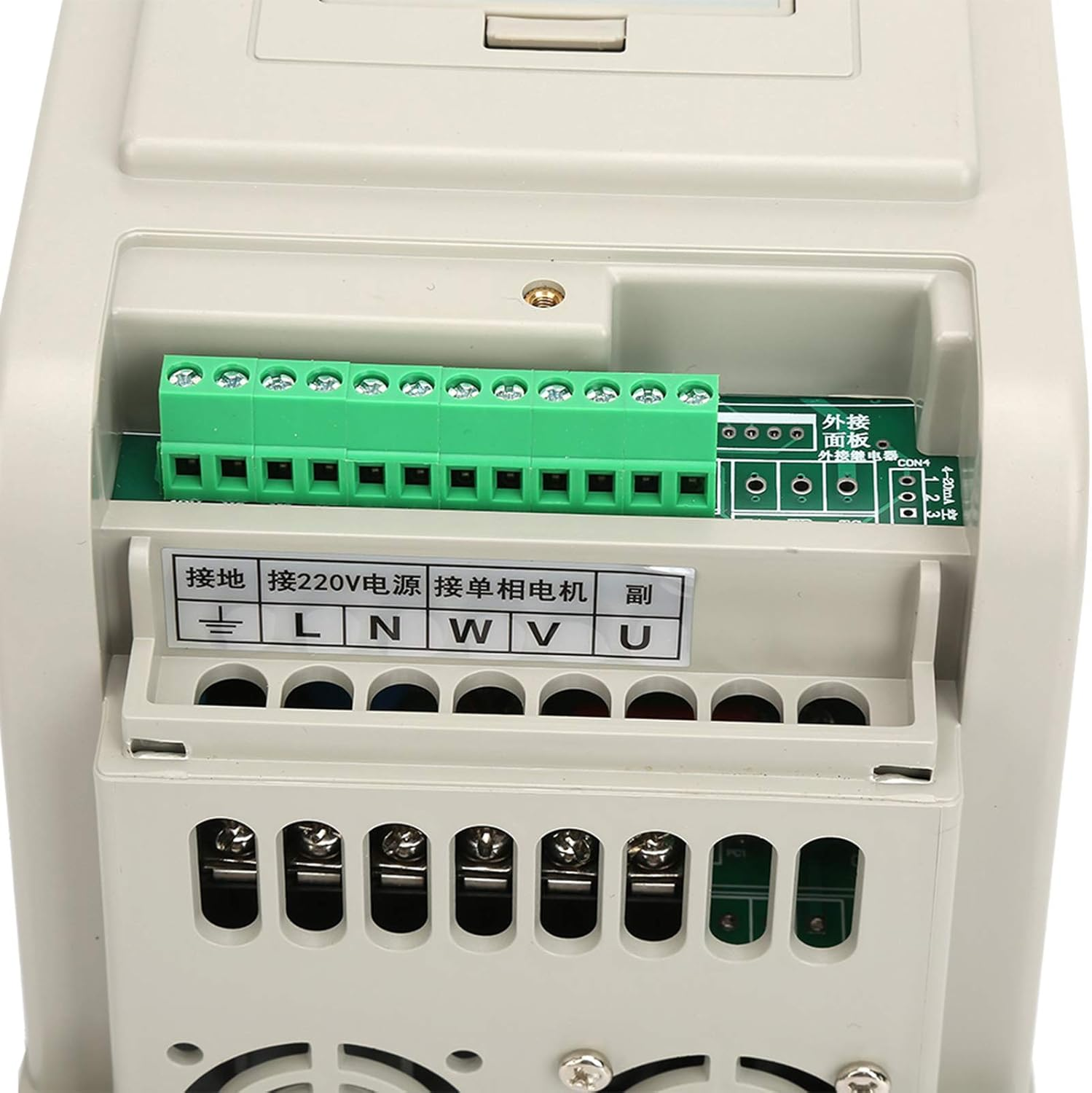

4. Simple to operate and wire, connect to wires by screw terminals which are more convenient

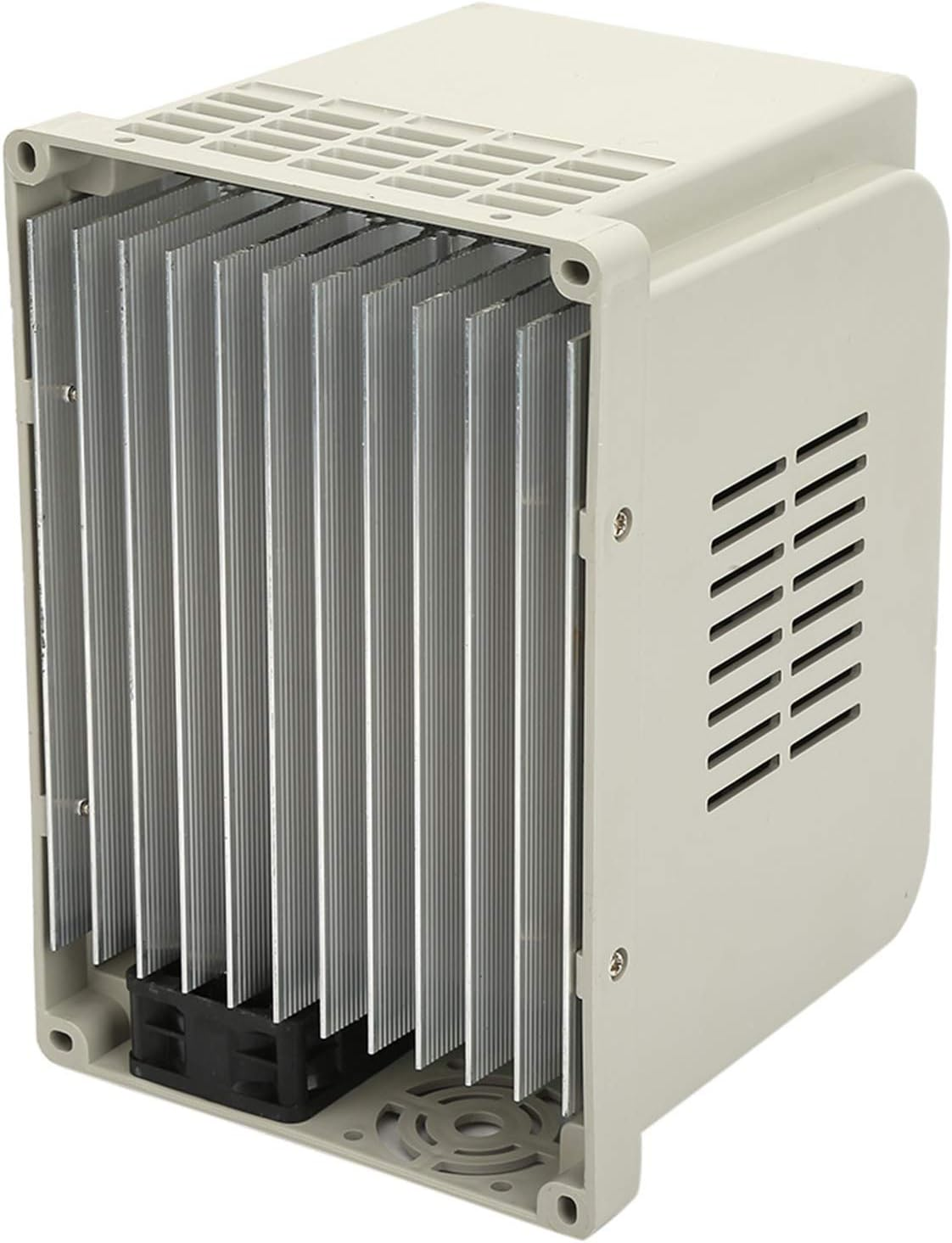

5. Designed with large heat sink for better heat dissipation

Spec:

Features:

This VFD uses unique control method to realize high moment of force, high accuracy and wide speed regulating range driving, with high performance.

It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability.

By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference.

Simple to operate and wire, connect to wires by screw terminals which are more convenient.

Designed with large heat sink for better heat dissipation.

Specifications:

Model: AT2-0750X

Application range: Universal

Power supply phrase: Single phrase

Rated current: 5A

Rated voltage: AC(single phrase)

Power supply voltage: Low voltage

Suitable motor power: 0.75kW

Filter: No

DC power supply: Voltage type

Control method: V/F open-loop

Output voltage adjustable method: PWM control

Size: Approx. 16.5 x 11.5 x 10cm / 6.4 x 4.5 x 3.9inch

Quantity: 1pc

Weight: 1.2kg(approx.)

Note:

1. When adjusting parameter, the VFD must stop working, otherwise it will not be able to save parameter setting.

2. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

Package Includes:

1 x Variable Frequency Drive
