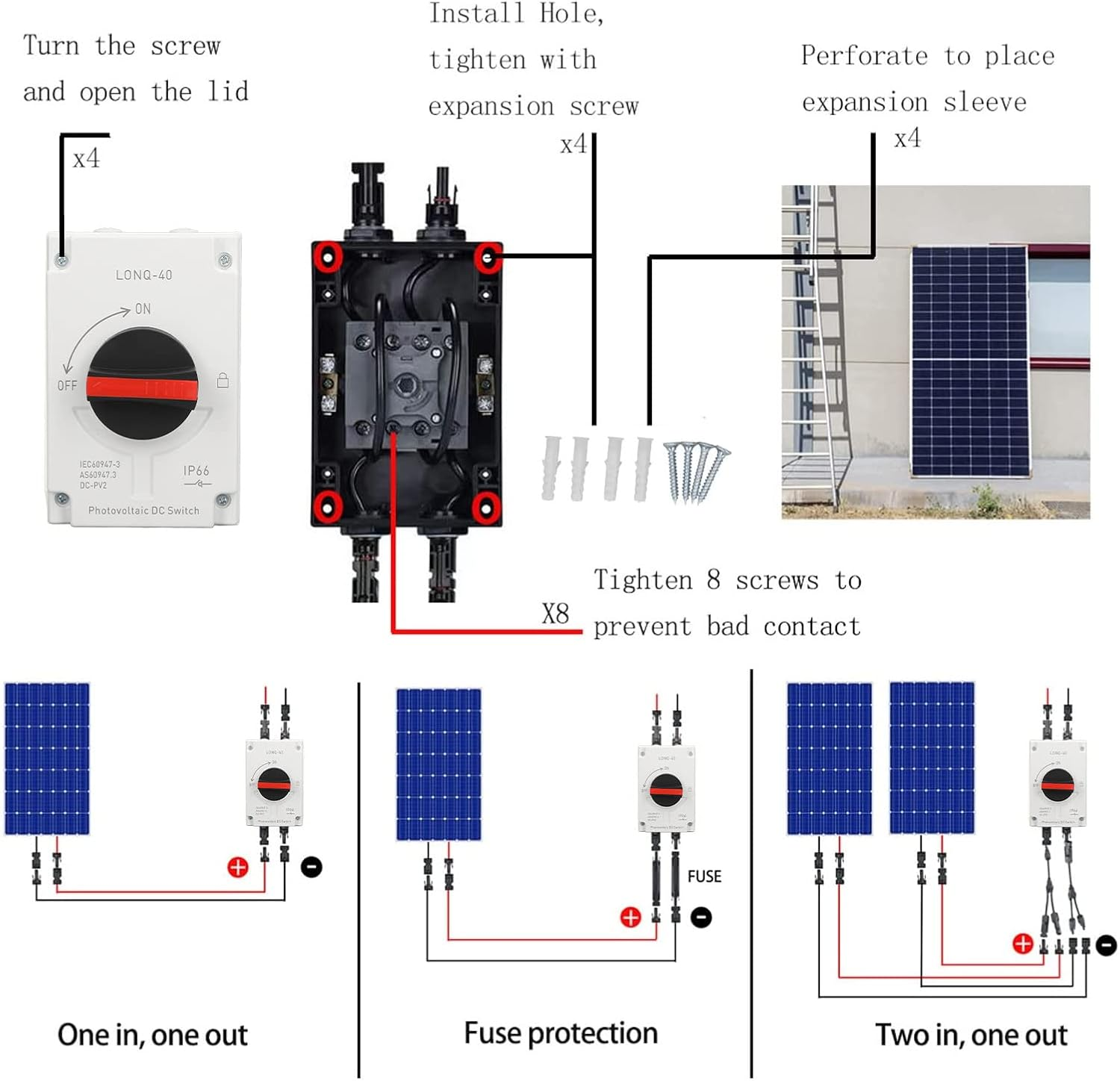

1. Scope of Application: DC switch is used to switch off all poles of the solar module. It is installed on the string line between the module and the grid inverter or charge controller.
2. Powerful Function: Depending on the configuration, this switch can switch the switching current up to 32A at a voltage up to 1500V, and it has a load breaking up to 8 times the rated current, making it ideal for motor isolation.
3. PC Material: Made of PC material, this switch is flames retardant, possesses premium insulation, heat , acids and alkali , ensuring a long life span.

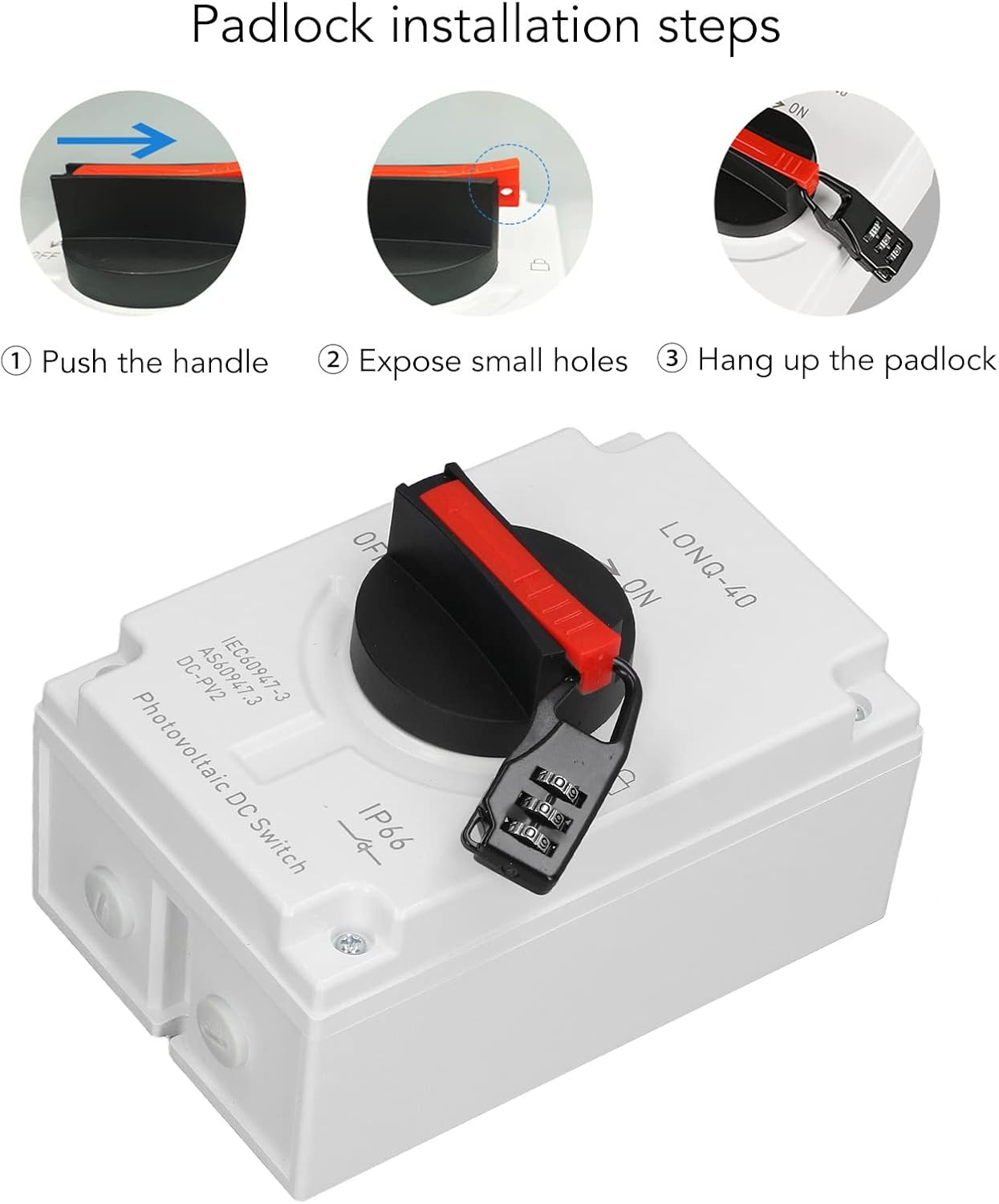

4. Equipped with Password Lock: When manually turned back and closed, pull out the pull bolts to lock it, the lock can be repeatedly inserted and pulled out to prevent misoperation. It is safer to provide safes docking and has a long service life.

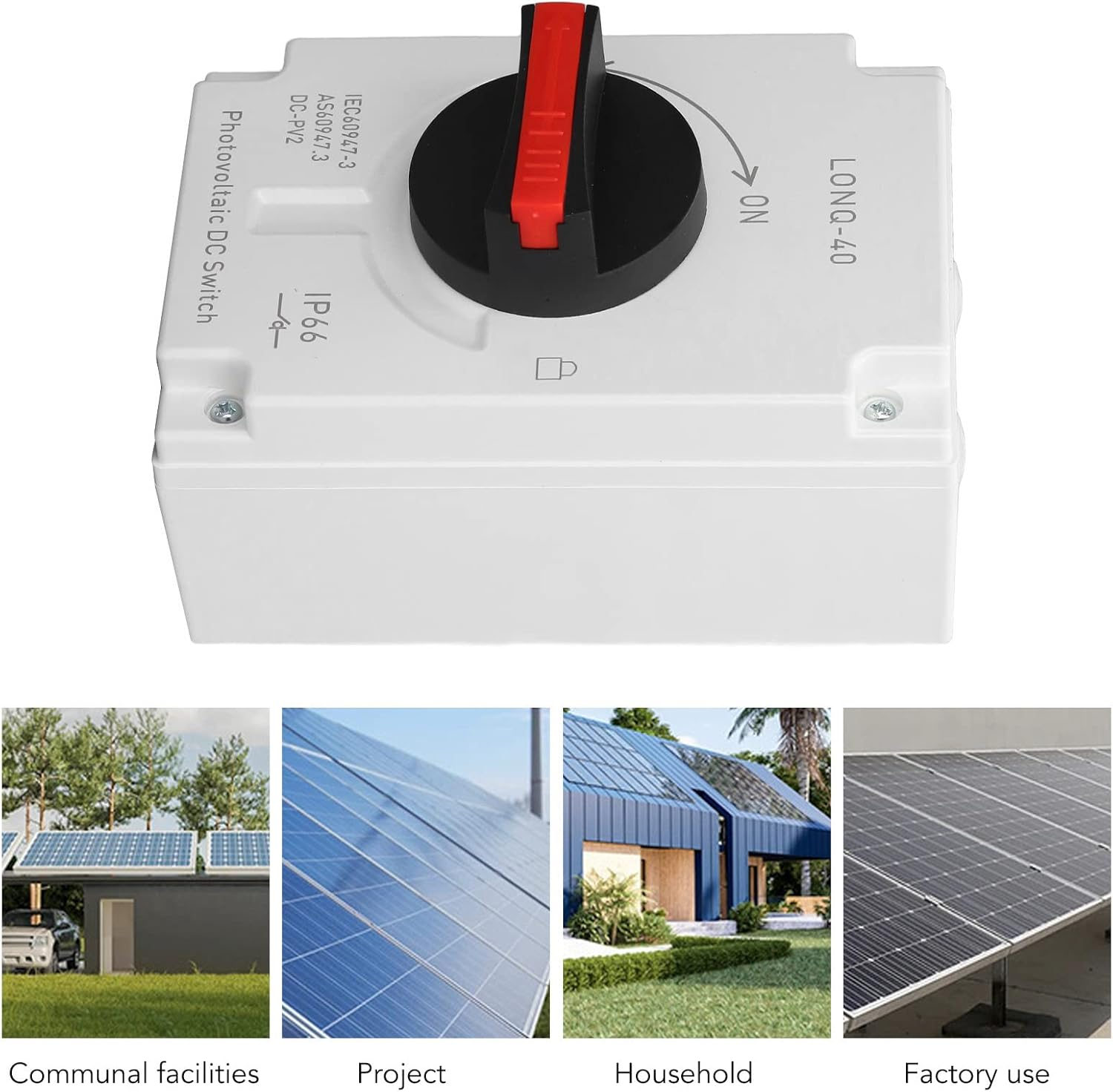

5. Wide Application: This switch is widely used in RV, ship and off grid solar systems, grid connected solar systems, DC power systems, ship power systems, solar photovoltaic systems or other DC systems.
Specification:

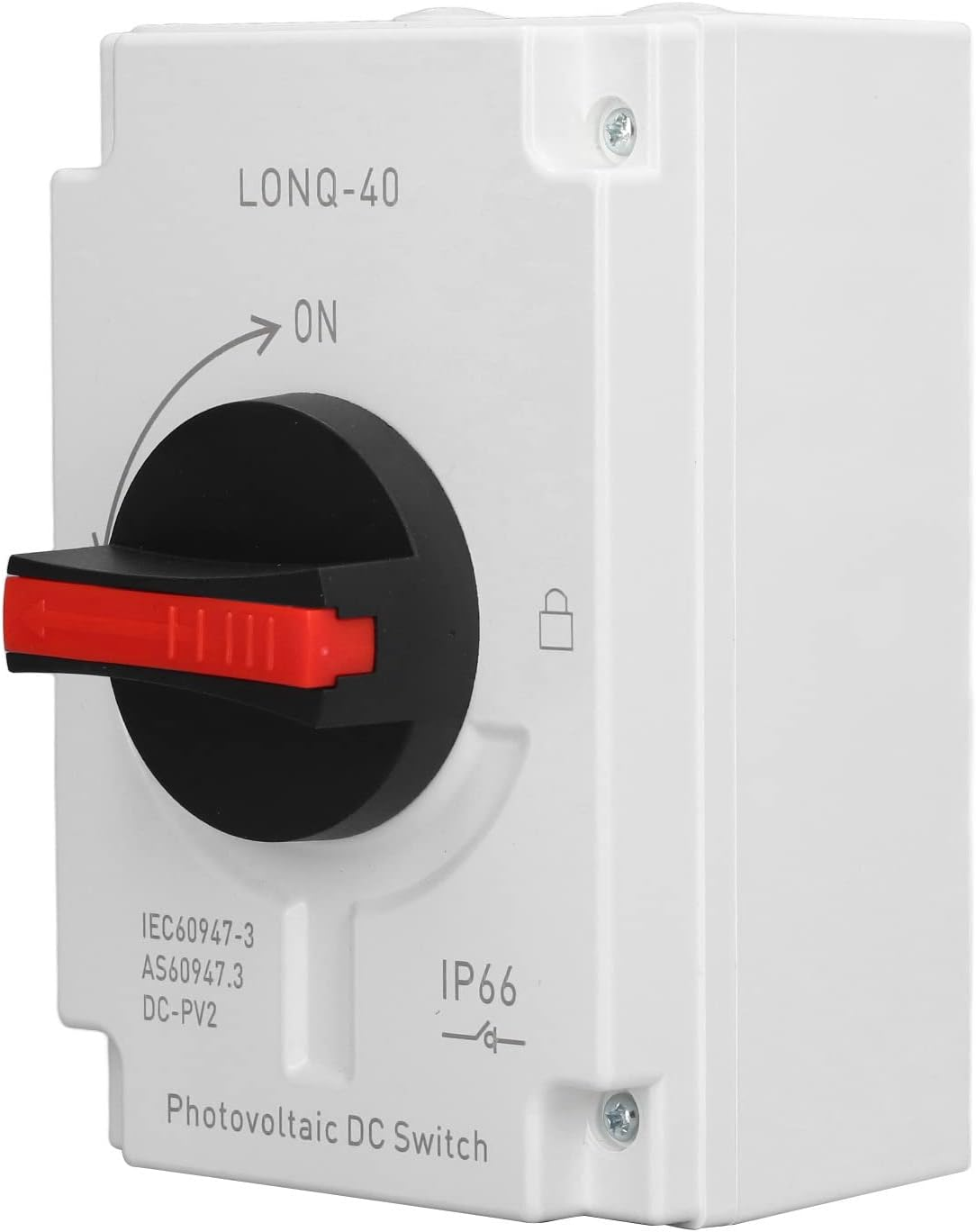

Item Type: PV Solar Disconnect Switch
Model: LONQ 40
Material: PC
Electric Stage: 4P
Rated Voltage: DC1200V
Insulation Voltage Ui: DC1500V
Rated Impulse Withstand Voltage Uimp: 8kV
Rated Current: 32A
Product Size: Approx. 111 x 104 x 161mm / 4.37 x 4.09 x 6.34in
Waterproof Grade: IP66
Falling : 1000/1700
Ambient Temperature: - 40℃ to +85℃
Connection Type: M20 connector

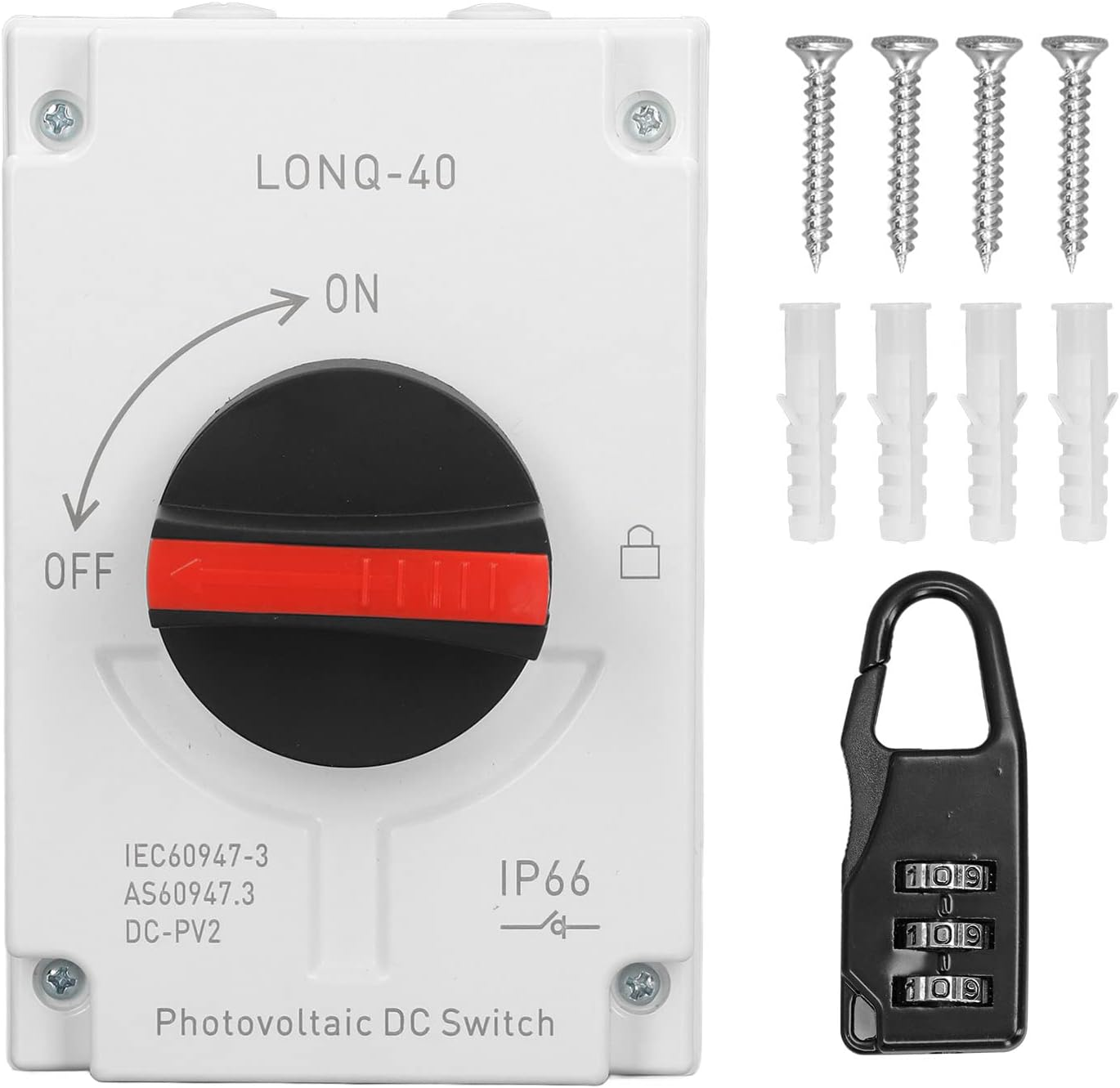

PackageList:
1 x PV Solar Disconnect Switch
1 x Password Lock
4 x Screw
4 x Expansion Tube
1 x Manual
