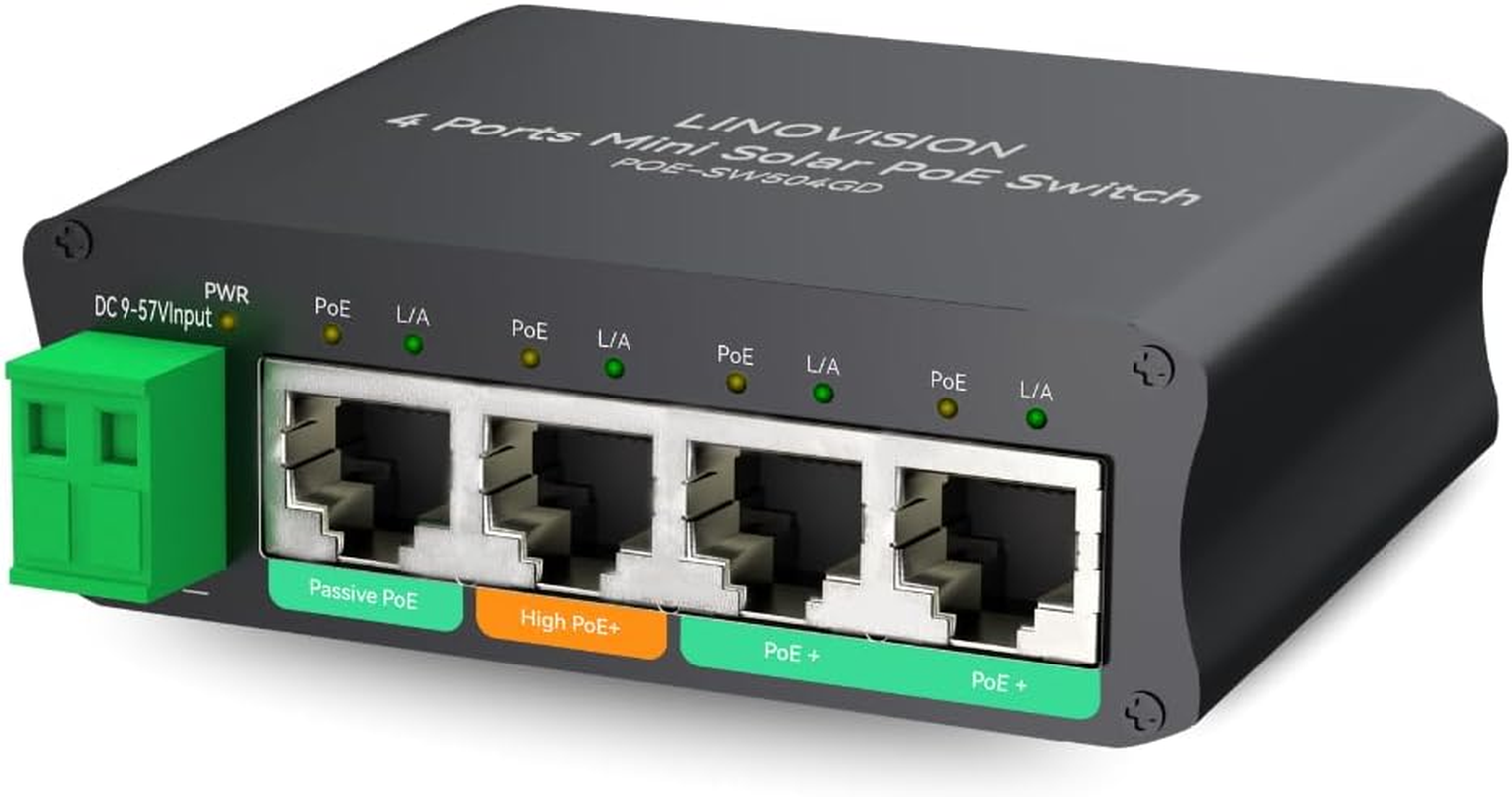

LINOVISION 4 Ports Mini Solar Poe Switch Works Directly with DC12V or DC24V Batteries, Provide 2 30W Ports, 1 High 45W Port for Big PTZ Cameras and 1 Passive 24V Poe Port for Wireless Bridge

LINOVISION 4 Ports Mini Solar Poe Switch Works Directly with DC12V or DC24V Batteries, Provide 2 30W Ports, 1 High 45W Port for Big PTZ Cameras and 1 Passive 24V Poe Port for Wireless Bridge

Brand: LINOVISION
3.6
A$199.50
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • DC 9～57V Input: Featuring built-in voltage booster, works directly with DC 12V or DC 24V solar battery systems, and outputs standard 48V PoE for regular PoE cameras.

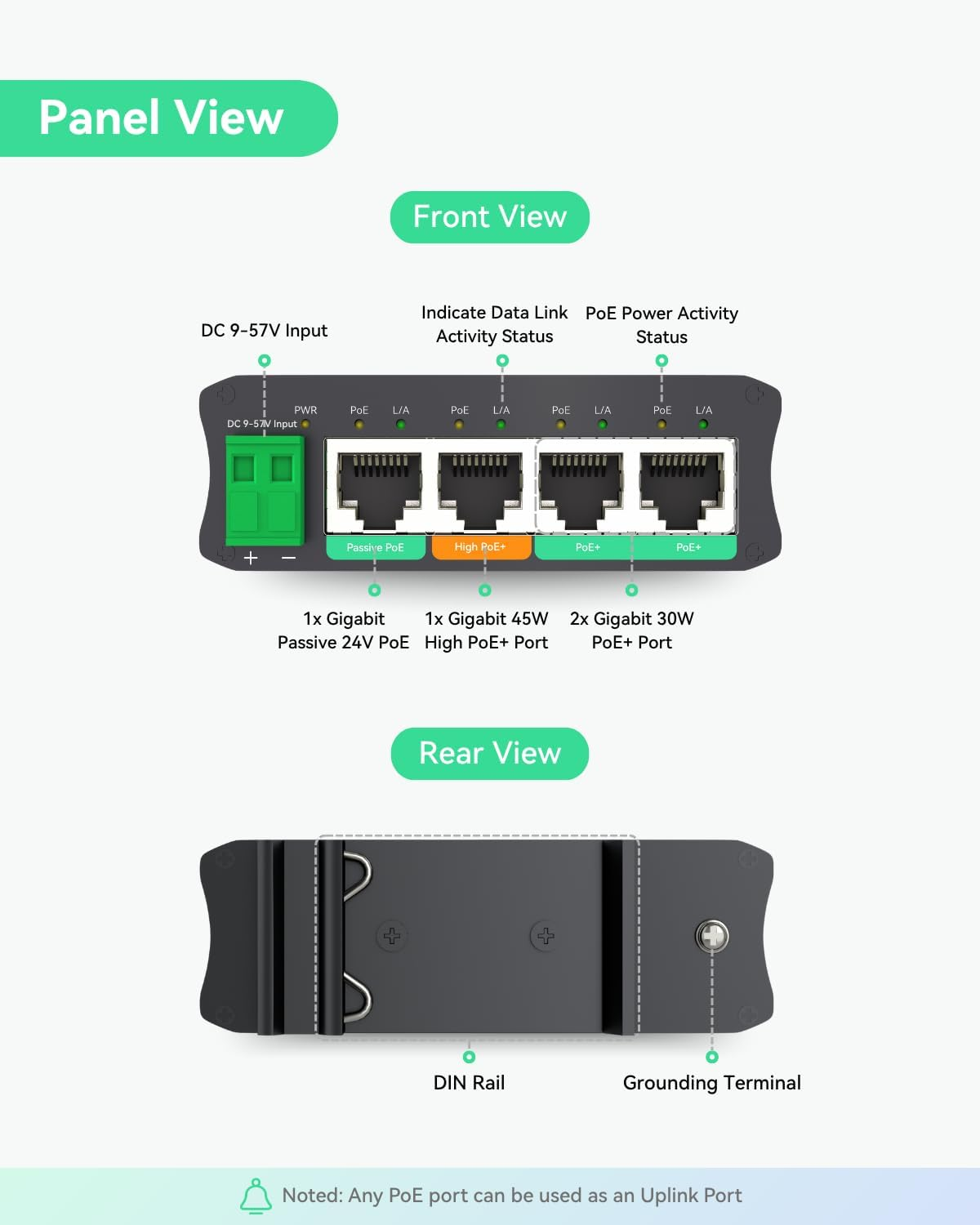

  • 4 Ports Full Gigabit PoE: 2x IEEE802.3af/at PoE, 1x 45W High PoE and 1x Passive 24V PoE output (Any PoE port can be used as an Uplink Port)

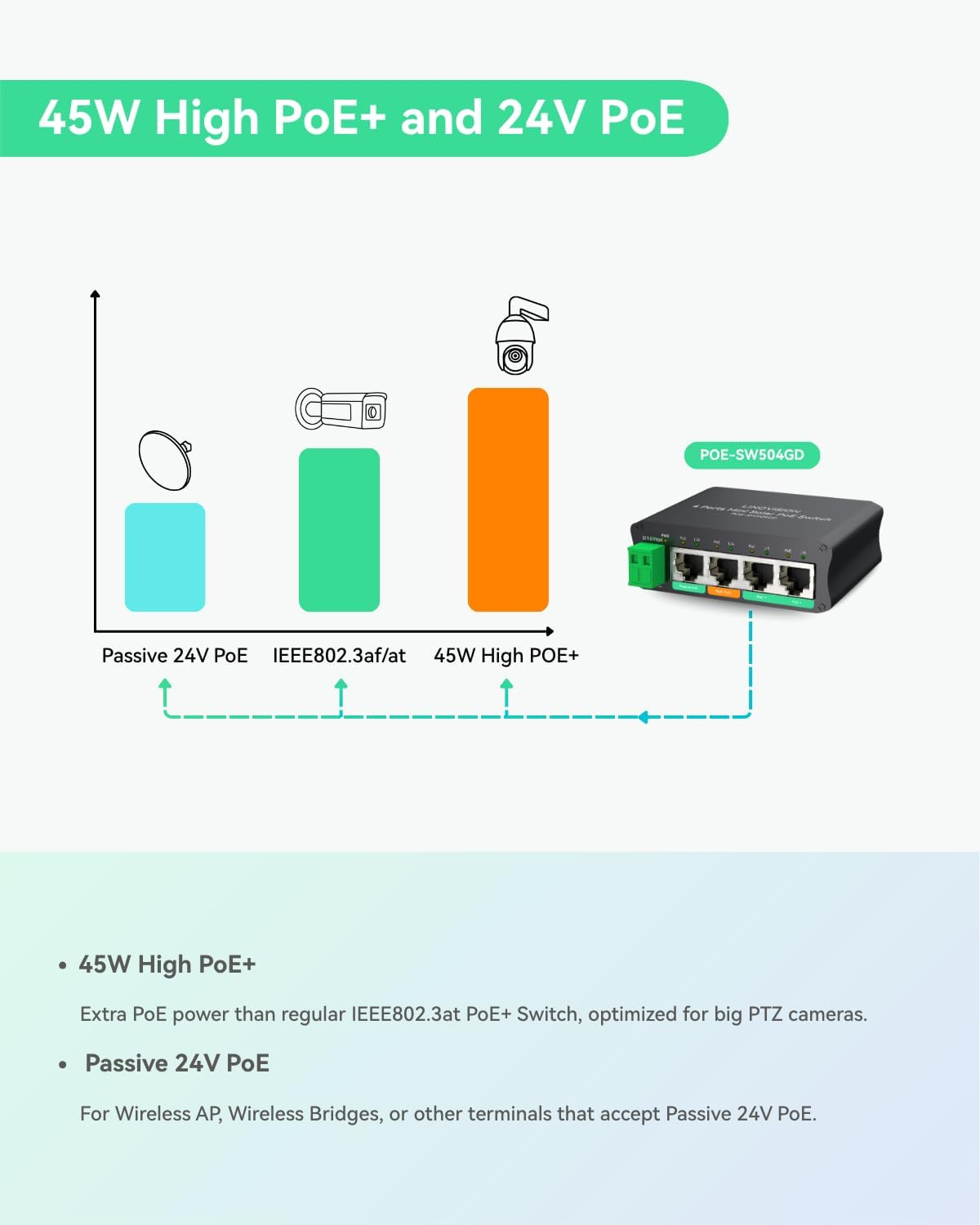

  • 45W HIGH PoE+ OUTPUT: Optimized for big PTZ cameras, such as multiple-lens PTZ cameras, high speed dome cameras, cameras with big white LED light.
  • PASSIVE 24V PoE Output: For Wireless AP, Wireless Bridges, or other terminals that accept Passive 24V PoE. No extra PoE injector needed.

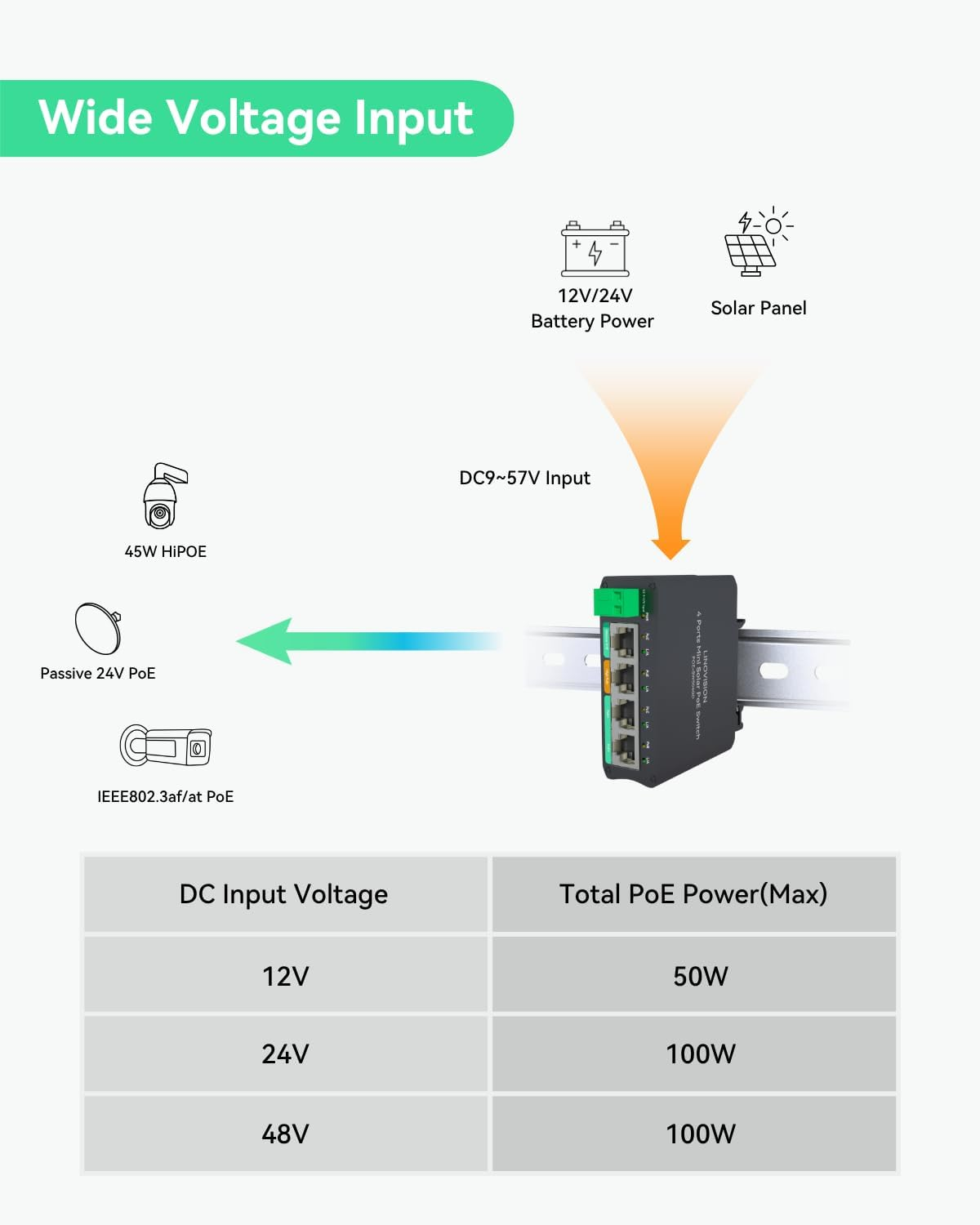

  • TOTAL PoE BUDGET: 100W (DC24V/48V input) or 50W (DC12V input) or 40W(DC9V input).

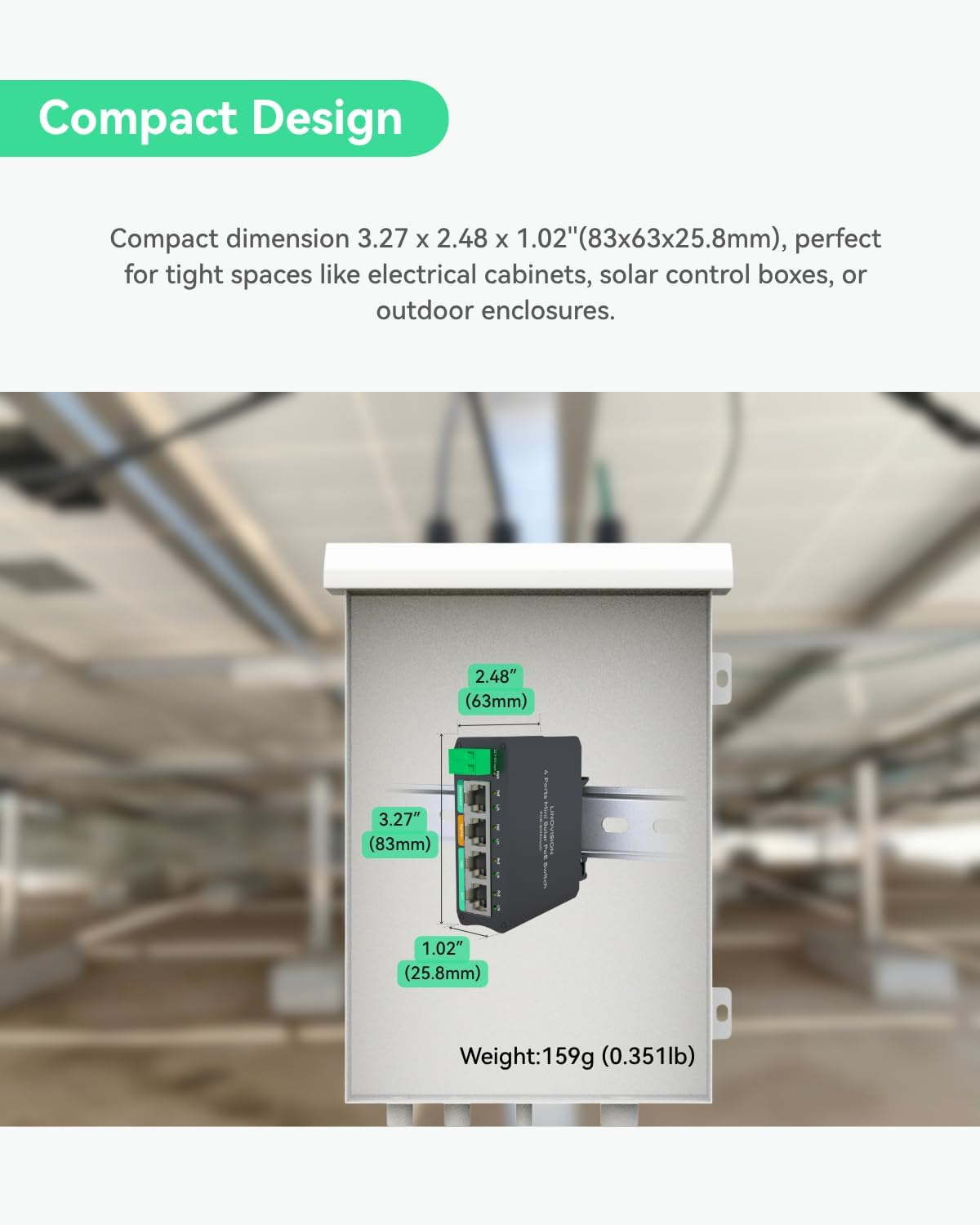

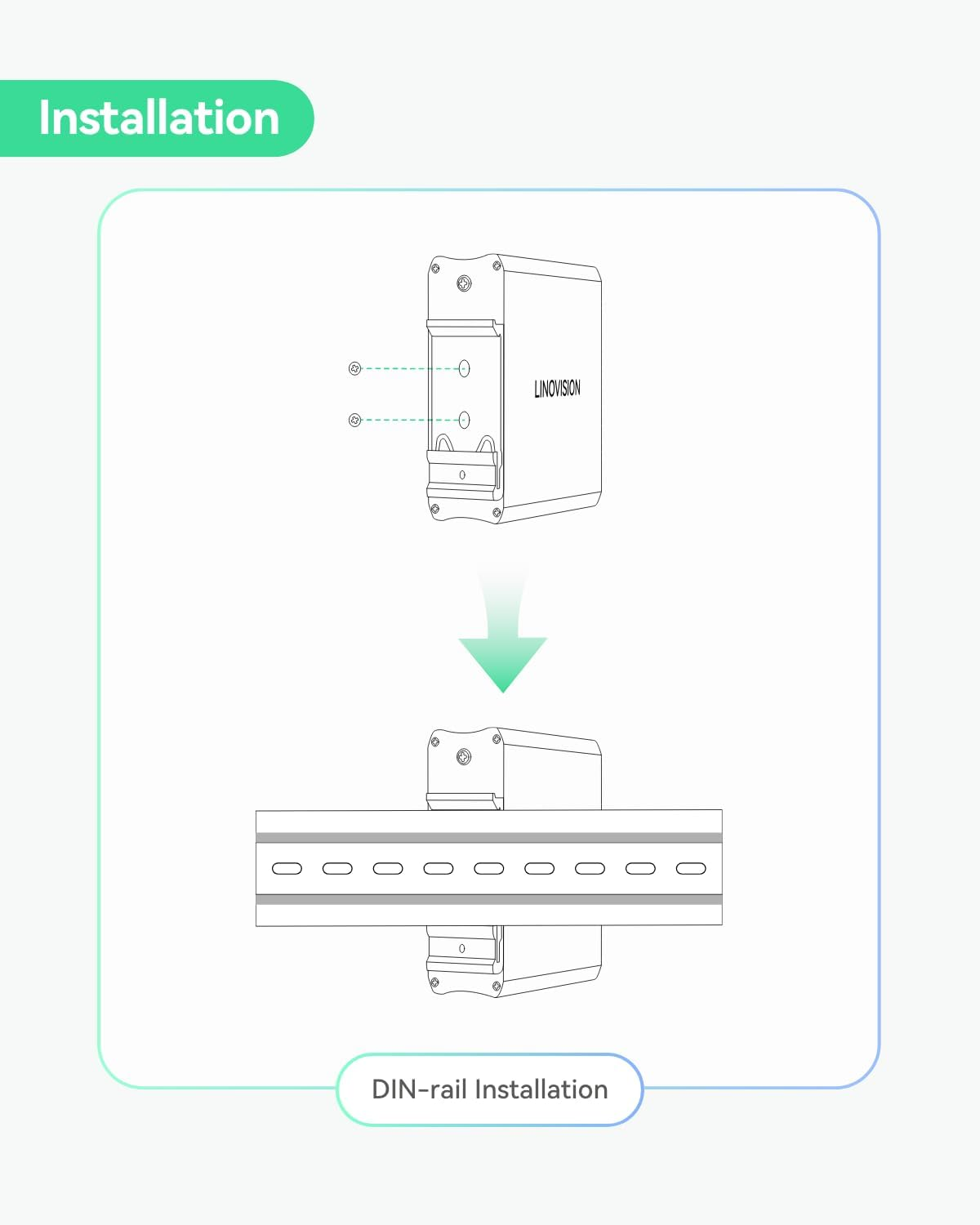

  • COMPACT DESIGN: Full metal design, Din Rail Mount, compact dimension 3.27 x 2.48 x 1.02''(83x63x25.8mm), perfect for tight spaces like electrical cabinets, solar control boxes, or outdoor enclosures.
  • APPLICATIONS: Ideal for Solar System, RV System, Farm Security or remote surveillance applications.

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

POE-504GD banner video

Merchant video

Interface

LINOVISION Wide Voltage Input POE Switch for your choice！

Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
3.0 out of 5 stars 2
4.5 out of 5 stars 104
—
5.0 out of 5 stars 3
3.7 out of 5 stars 4
Price
$179.99$179.99 $149.99$149.99 $149.99$149.99 $369.99$369.99 $299.99$299.99
Input
DC 9V~57V Dual DC Input: 9V~54V DC POE-Switch0504GDF Dual DC Input: 8V~57V Solar&Batt 12/24V, Ext DC12V
Output
IEEE802.3af/at, Passive PoE 44~57V PoE Standard 44~57V PoE Standard 44~57V PoE Standard IEEE802.3af/at/bt, Passive PoE
Uplink Ports
Any PoE port can be Uplink 1 Gigabit Uplink 1 Gigabit SFP 2 Gigabit SFP+ 2 Gigabit RJ45 1 * 1.25G SFP
POE Ports
2 * Gigabit PoE Ports 4 Gigabit PoE Ports 4 Gigabit PoE Ports 8 Gigabit PoE Ports 5 * Gigabit PoE Ports
POE++ Ports
1 * 45W High PoE+ Port / / / 1 * BT 60W Port (Port 1)
Passive 24V PoE
1 * Passive 24V PoE / / / P4-5 Switch to 24V Passive PoE
POE budget
100W@DC24V/48V, 50W@DC12V 120W (DC24V/48V), 60W (DC12V) 120W (DC24V/48V), 60W (DC12V) 240W@48V, 180W@24V, 70W@12V 65W
L2/L3 Management
/ / / L2+ /
Remote PoE Port Control
/ / / PoE Port Remote Cloud Control /
Installation Method
DIN-Rail DIN-Rail/Wall-Mount DIN-Rail/Wall-Mount DIN-Rail/Wall-Mount Wall-Mount
Waterproof
✘ ✘ ✘ ✘ ✘
  • Item Model Number: POE-SW504GD
  • Part Number: POE-SW504GD
  • Data Transfer Rate: 1000 Megabits Per Second
  • Number of items: 1
  • Mounting Hardware: POE-SW504GD-AU
  • Batteries Included: No
  • Batteries Required: No
  • Brand: LINOVISION
  • Item Weight: 181 g
  • Number of Ports: 4
  • Voltage: 48 Volts
  • Model: POE-SW504GD
  • Product dimensions: 25 x 20 x 4 cm; 181.44 Grams
  • Country/Region of origin: China
  • Manufacturer: LINOVISION
